Epiphone and Gibson™ Custom have teamed up once again to create the updated Inspired by Gibson Custom 1963 Firebird I – an authentic replica of the guitar designed by legendary automotive designer Ray Dietrich. When it was launched in 1963, the Firebird™ was Gibson’s first neck-through-body model, and it went on to be used by players in a wide range of genres, including blues legend Johnny Winter, Keith Richards and Brian Jones of The Rolling Stones, Eric Clapton, and Phil Manzanera of Roxy Music, to name a few.
The updated Epiphone Inspired by Gibson Custom 1963 Firebird I delivers vintage Firebird specifications at an accessible price, including a 9-ply neck-through-body made of mahogany and walnut with mahogany body wings to either side of the neck. This construction method results in the tuners, pickup, and bridge all being anchored into the same pieces of wood for exceptional resonance, sustain, and tonal transfer between them.
The neck features a SlimTaper™ Rounded C profile with soft fretboard edges for a comfortable, played-in feel. The rosewood fretboard is adorned with mother-of-pearl dot inlays and equipped with 22 medium jumbo frets. Even the side dot position markers are the same size as on vintage Firebirds and placed in historically accurate locations. Kluson® planetary geared “banjo” tuners anchor the strings at the headstock and further add to the historic Firebird look, while a Wraparound Lightning Bar bridge holds things down at the other end and further reinforces the outstanding sustain.

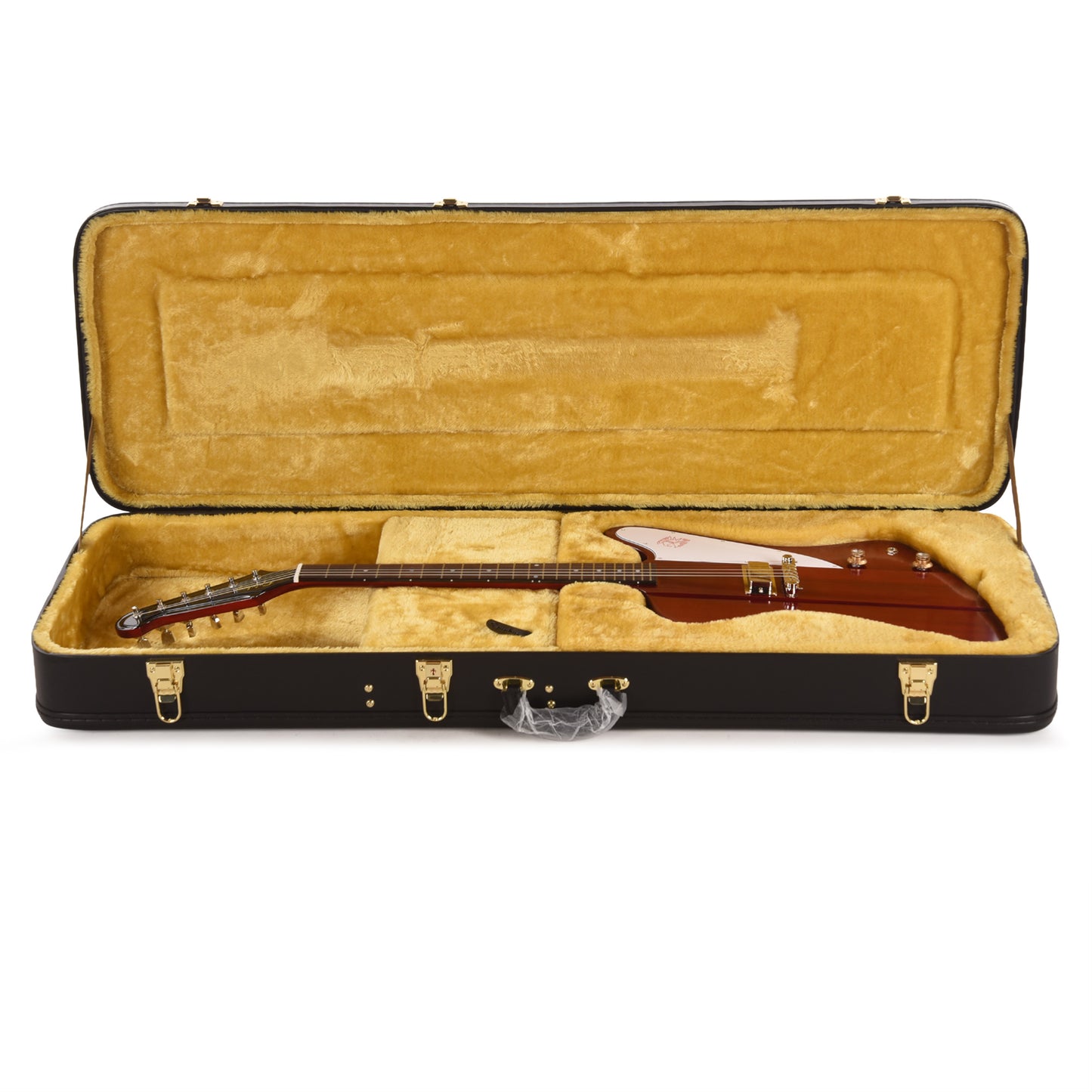

While in keeping with the vintage 1963 Firebird I’s stripped-down specifications, the electronics are also premium and include a Gibson USA Firebird mini humbucker™ pickup with Alnico 5 magnets. It is hand-wired to a pair of CTS® potentiometers, a Mallory™ tone capacitor, and a Switchcraft® 1/4” output jack, giving this remarkable recreation not only the look but the sound of a classic Firebird I. The new Vintage Gloss finish adds to the vintage appeal. An Epiphone Inspired by Gibson Custom hardshell case is also included.
Highlights
- 9-ply mahogany/walnut neck-through-body construction
- Mahogany body wings
- Kluson planetary geared "banjo" tuners
- Rosewood fretboard with mother-of-pearl dot inlays
- Gibson USA Firebird mini humbucker with alnico 5 magnets
- Hardshell case with Inspired by Gibson Custom logo
Specs
Specs
General
| Series: | Epiphone Inspired by Gibson |
| Product Color: | Cherry |
| Case Type: | Hardshell Case Included |
| Factory Setup: | E Standard (E-A-D-G-B-E) |
Body
| Body Shape: | Firebird |
| Body Material: | Mahogany Wings |
| Body Finish: | Vintage Gloss |
Neck
| Neck Material: | 9-ply Mahogany/Walnut |
| Neck Finish: | Vintage Gloss |
| Neck Shape: | 1963 Firebird |
| Fingerboard Material: | Rosewood |
| Nut Material: | Graph Tech |
| Nut Width: | 1.69" |
| Fingerboard Radius: | 12" |
| Scale Length: | 24.75" |
| Number of Frets: | 22 Frets |
| Neck Joint: | Neck-Through-Body Construction |
| Fingerboard Inlay: | Mother of Pearl Dot |
| Inlay Shape: | Dots |
| Side Marker Inlay: | Dot |
| Headstock Inlay/Decal: | Modern Epiphone Logo in Gold (on Truss Rod Cover) |
Electronics
| Bridge Pickup: | Gibson USA Firebird Mini Humbucker with Alnico 5 Magnets |
| Controls and Switching: | Master Volume, Master Tone |
| Electronics Notes: | Hand-wired with CTS Potentiometers and a Mallory Capacitor |
Hardware
| Hardware Color: | Nickel |
| Bridge: | Wraparound Lightning Bar |
| Tuning Machines: | Kluson Banjo-style Planetary |
| Fret Wire: | Medium Jumbo |
| Saddle: | Metal |
| Pickguard: | 3-ply White; Firebird Logo Hotstamp in Red |
| Truss Rod Cover: | Single Ply Black with Epiphone Logo in Gold |
| Knobs: | Black Top Hat with Reflector |
