The following specs were carefully collected and recorded by a skilled technician.
For a more detailed description and questions regarding sound, feel, or cosmetic
condition, please visit our Lincoln Avenue showroom or call to speak to one of our
Used and Vintage experts.
| Finish Details: | Original finish. |
| Top Material: | Maple |
| Body Material: | Mahogany |
| Neck Material: | Mahogany |
| Fingerboard Material: | Rosewood |
| Neck Profile: | C |
| Neck Thickness (IN): | 1st fret - 0.885" / 12th fret - 0.985" |
| Fingerboard Radius: | 12.00" |
| Nut Width: | 1-11/16" |
| Scale Length: | 24 3/4" |

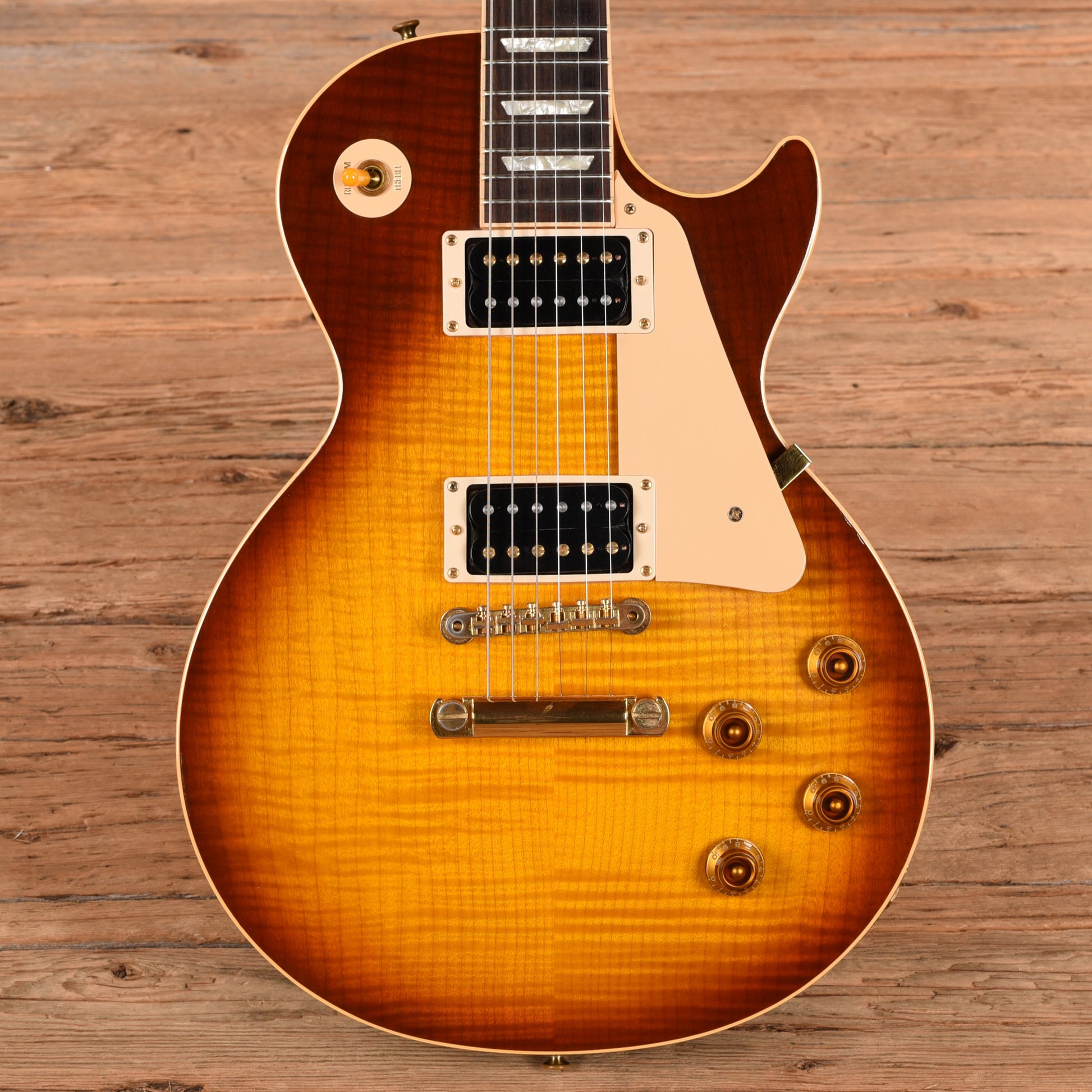

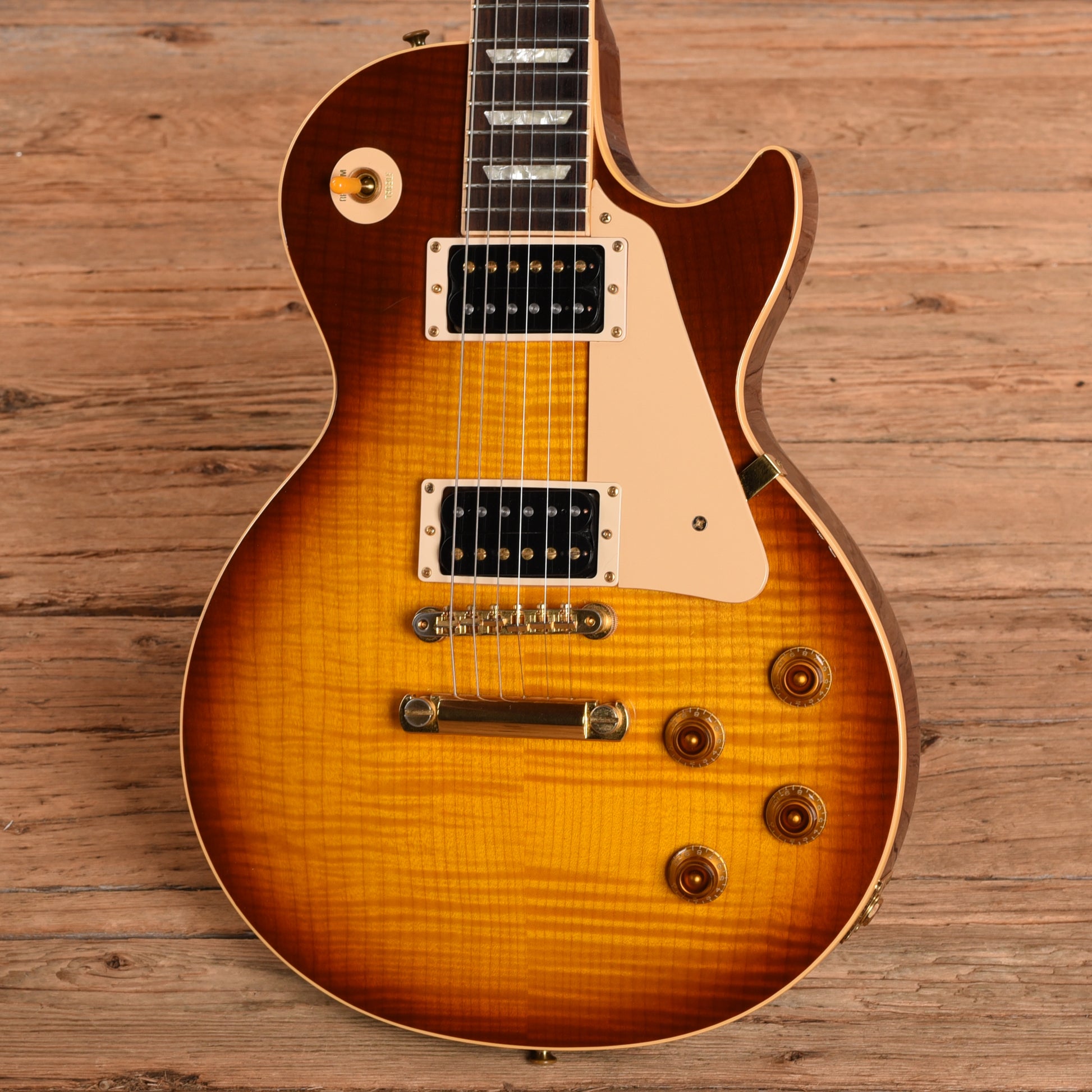

| Electronics: | Original Gibson USA embossed pickups, three way switch, two volume pots, and two tone pots. The neck volume push/pull puts the neck pickup in single coil mode. The bridge volume push/pull puts the bridge pickup in single coil mode. The bridge tone push/pull puts the pickups out of phase in the middle position. When the neck tone push/pull and the bridge tone push/pull are up, the pickups are in series in the middle position. If the neck pickup is selected by itself and the neck tone push/pull is pulled up, the signal is cut completely. This is normal for the Jimmy Page wiring. |
| Pickup Measurements: | Neck - 7.8k ohms, Bridge - 14.2k ohms |
| Hardware: | Original hardware. |
| Weight: | 9lbs 9oz |

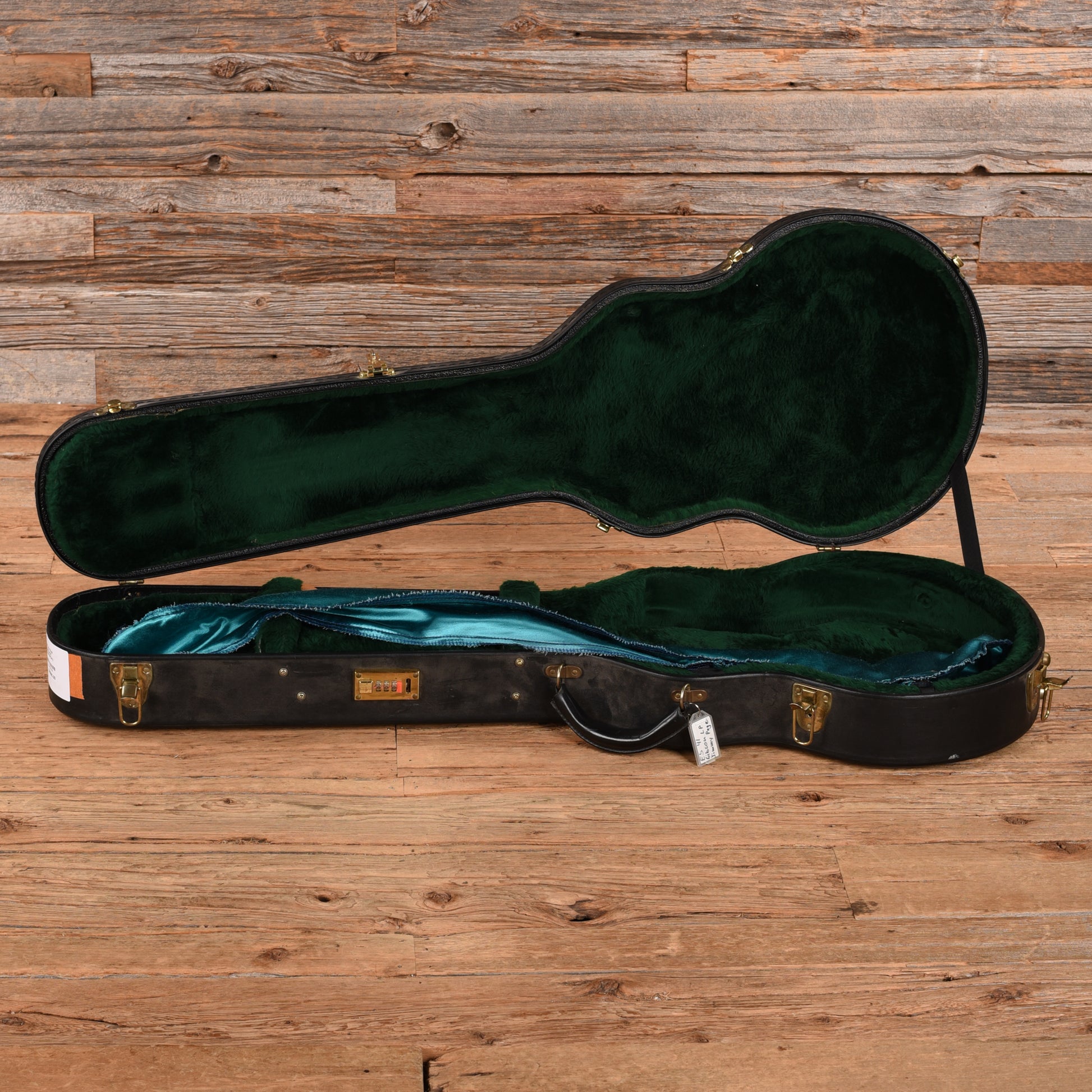

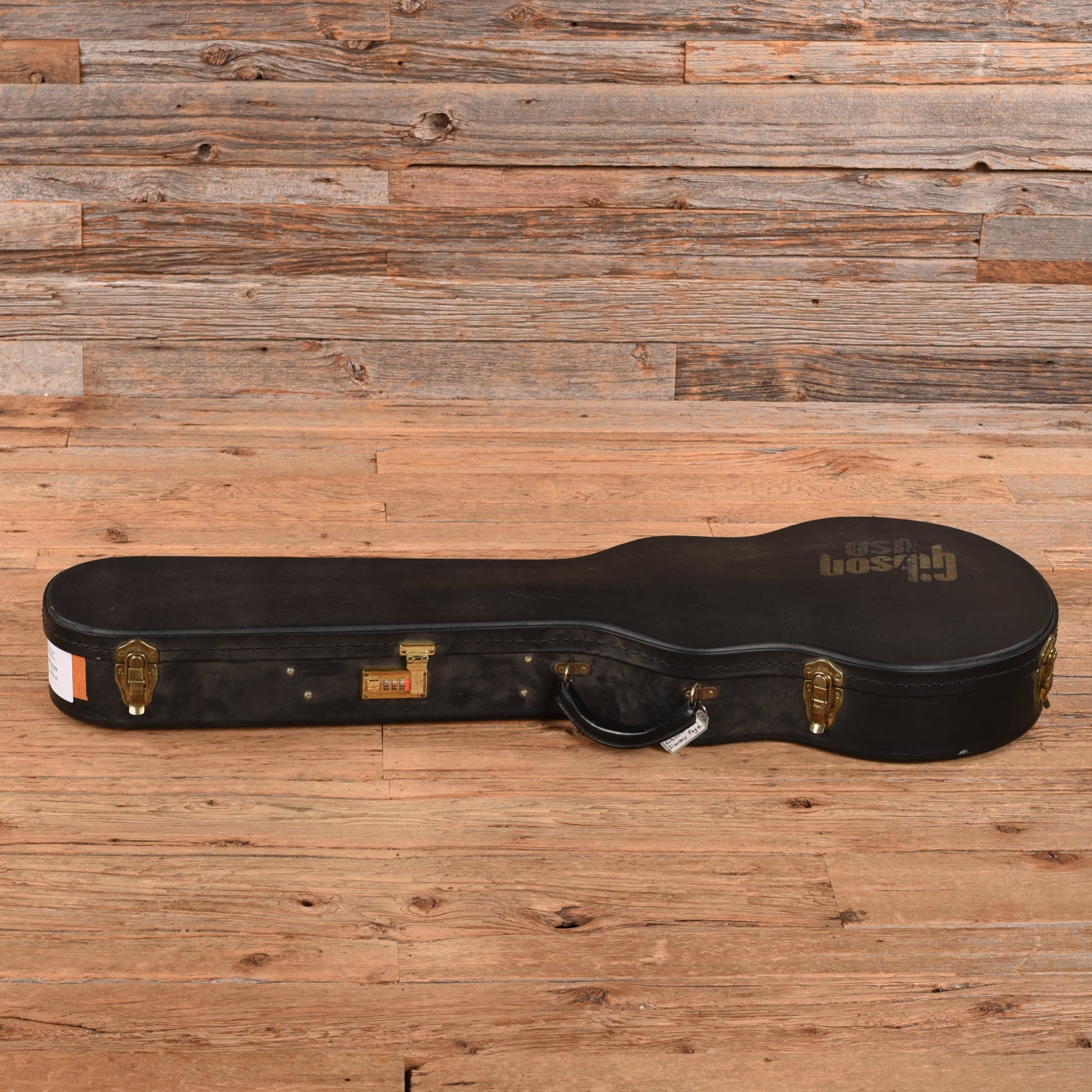

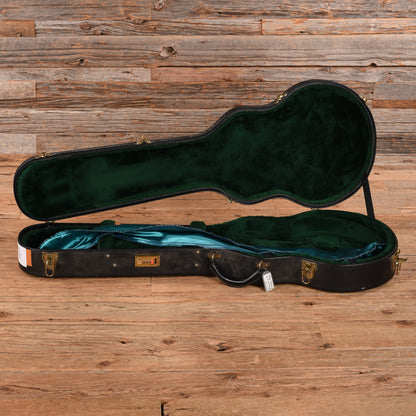

| Case Details: | Original Hardshell Case |
| Cosmetic Condition: | This guitar is in good cosmetic condition. The finish is glossy with some small dents and light scratches throughout, but there is no major play wear. |

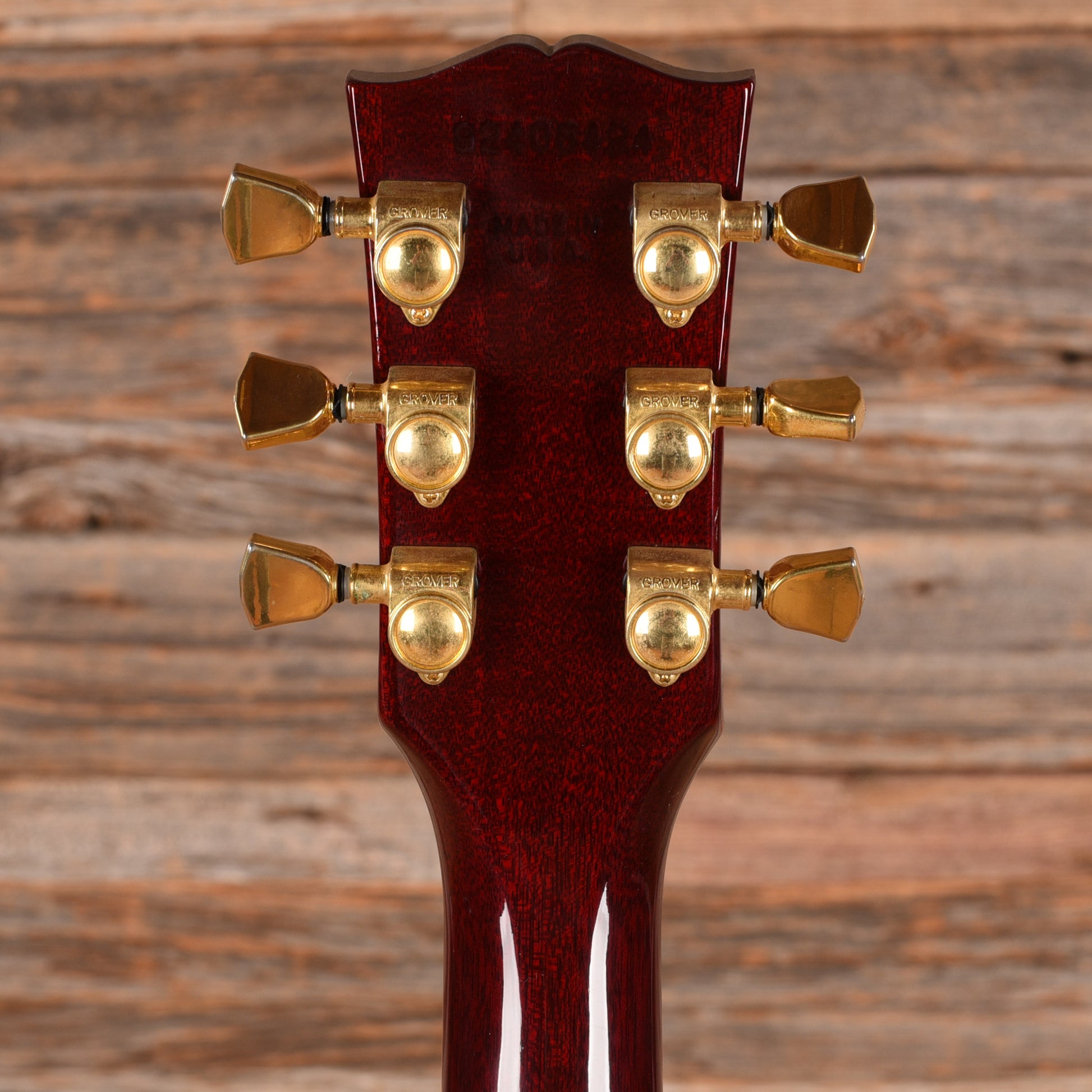

| Serial Number: | 92406424 |
| Tech Notes: | The guitar plays well with low action. The frets are tall with minimal play wear. The serial number dates to 1996. |
