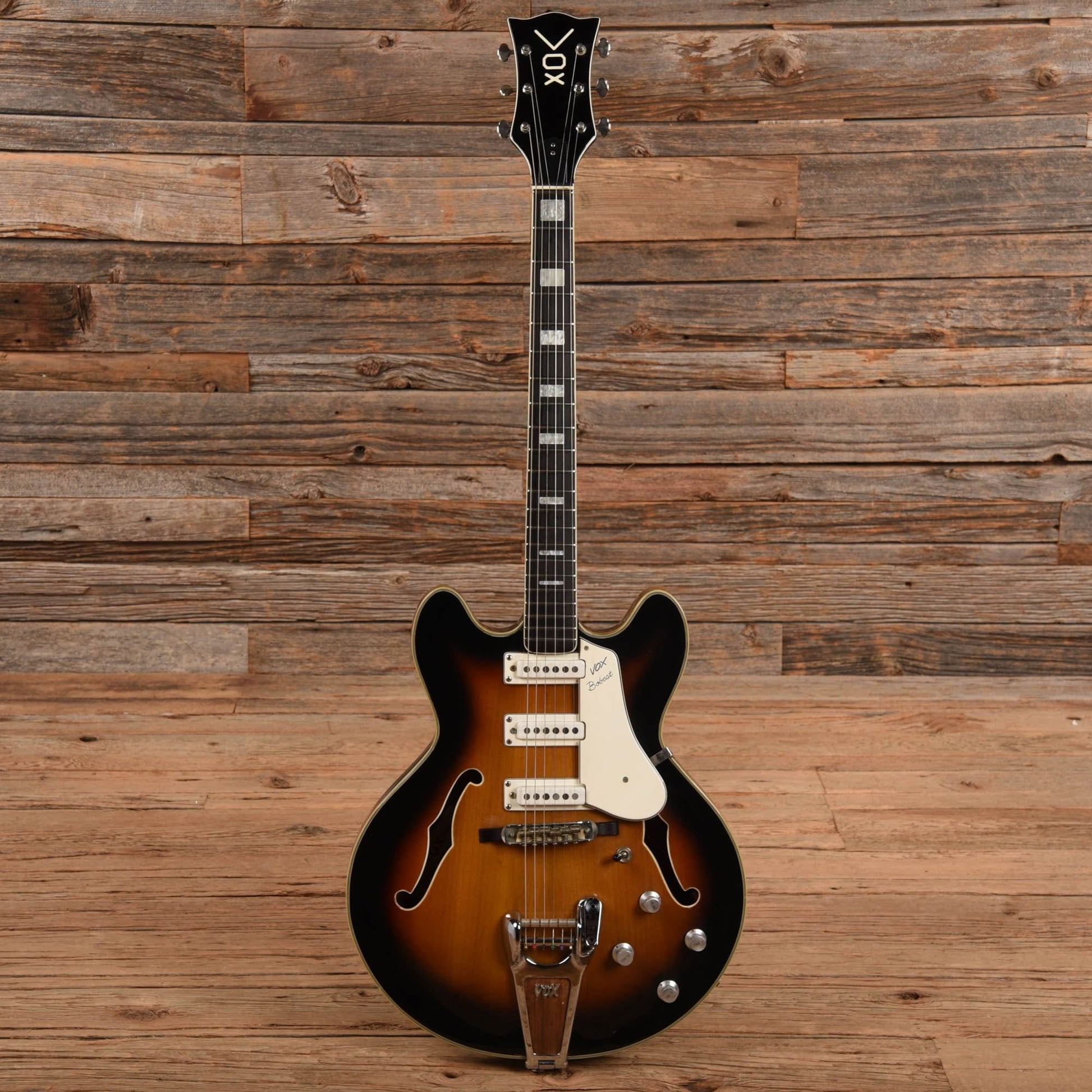

Vox Bobcat Sunburst 1960s

6-String Hollow Body Electric Guitar with Ebony Fingerboard. Made in Italy.
Be the first to review!

Vox Bobcat Sunburst 1960s

Vintage
  • $1,252.00
  • $1,177.00
In store now

Description & Specs

The following specs were carefully collected and recorded by a skilled technician. For a more detailed description and questions regarding sound, feel, or cosmetic condition, please visit our Lincoln Avenue showroom or call to speak to one of our Used and Vintage experts.
Finish Details: Original finish.
Body Material: Maple

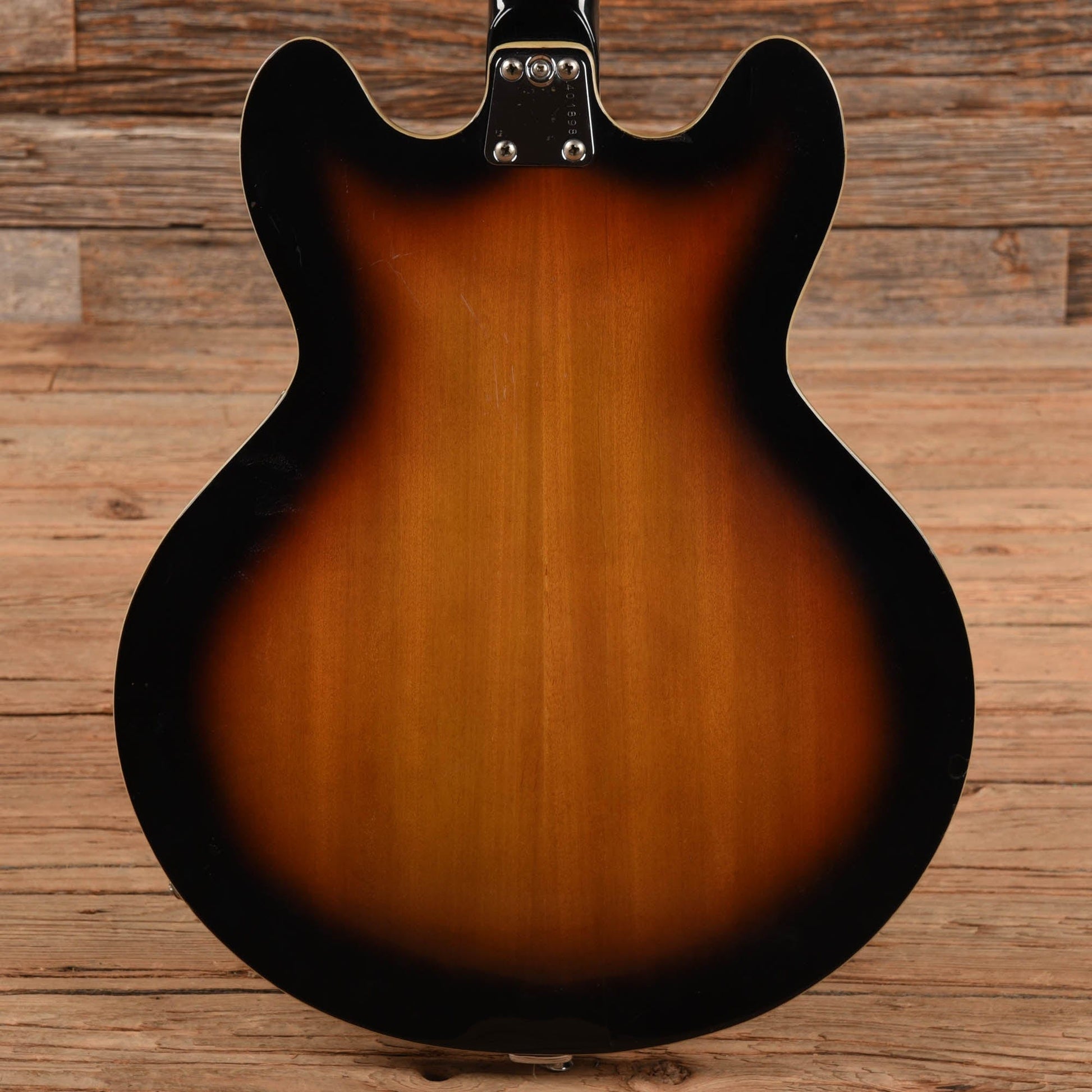

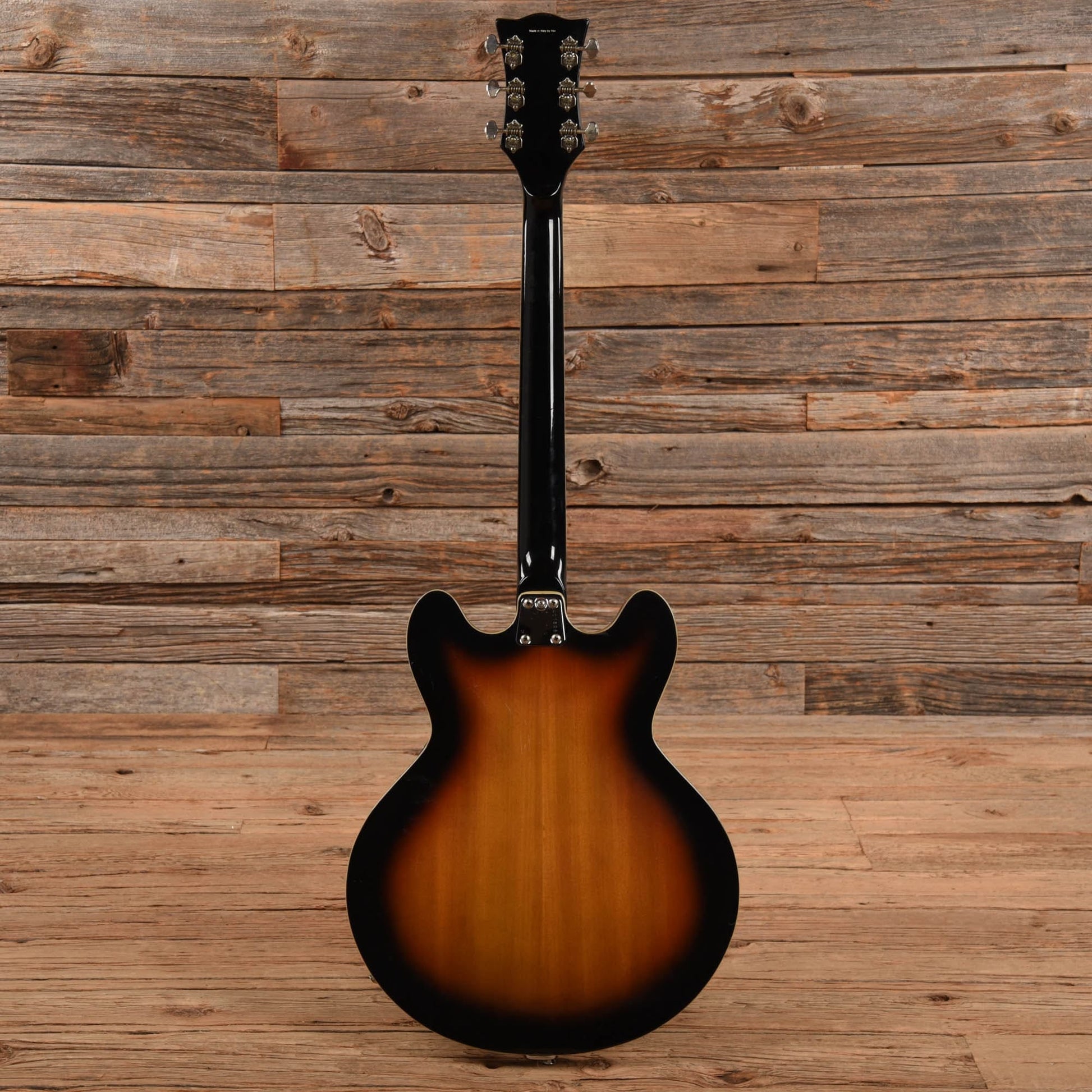

Body Details: Bound hollow body with maple back, sides, and top.
Neck Material: Maple
Fingerboard Material: Ebony
Neck Profile: C
Neck Thickness (IN): 1st - 0.87" 12th - 0.96"
Fingerboard Radius: 12.00"
Nut Width: 1-5/8"
Scale Length: 25"
Neck Details: Bolt-on maple neck with bound ebony fingerboard and block inlays.

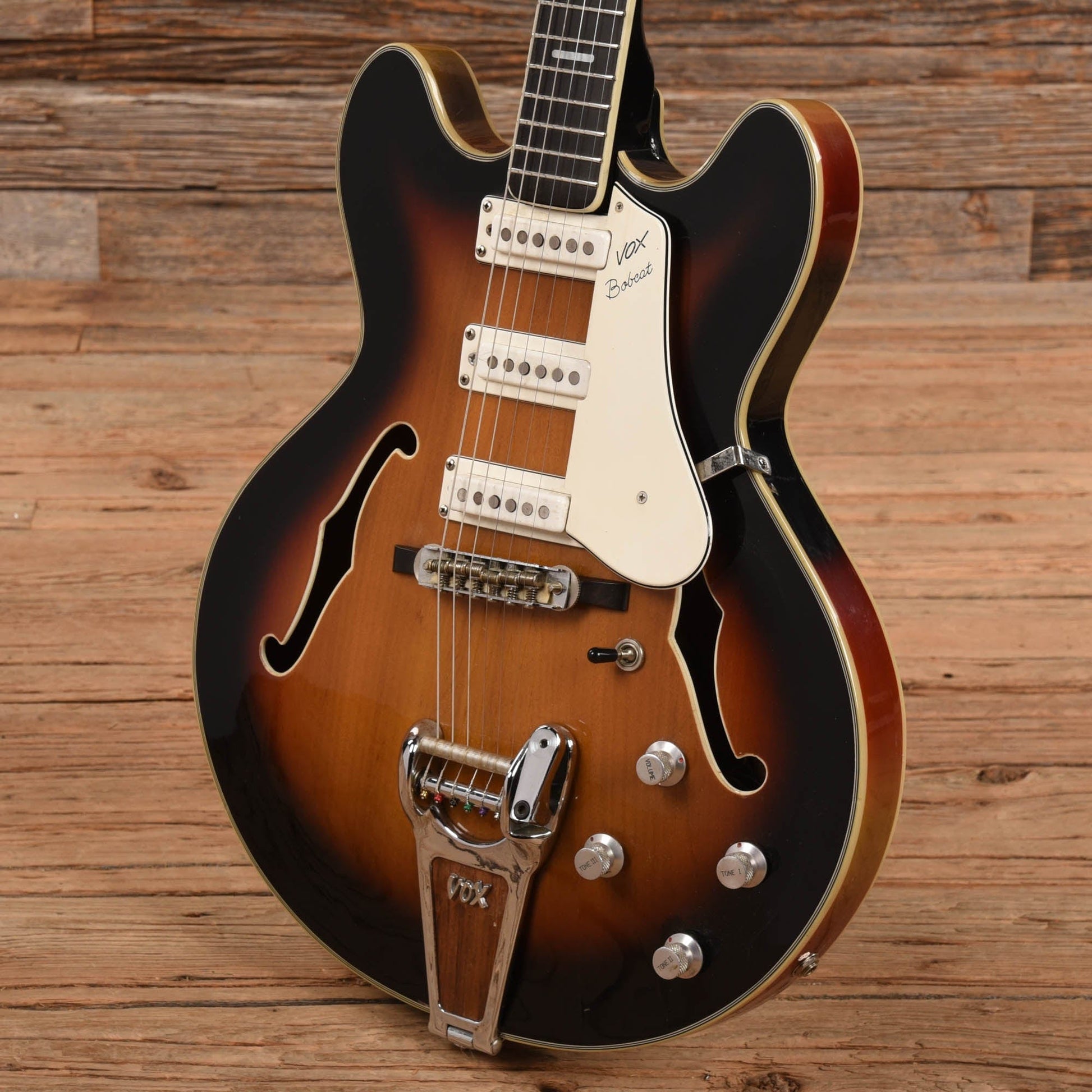

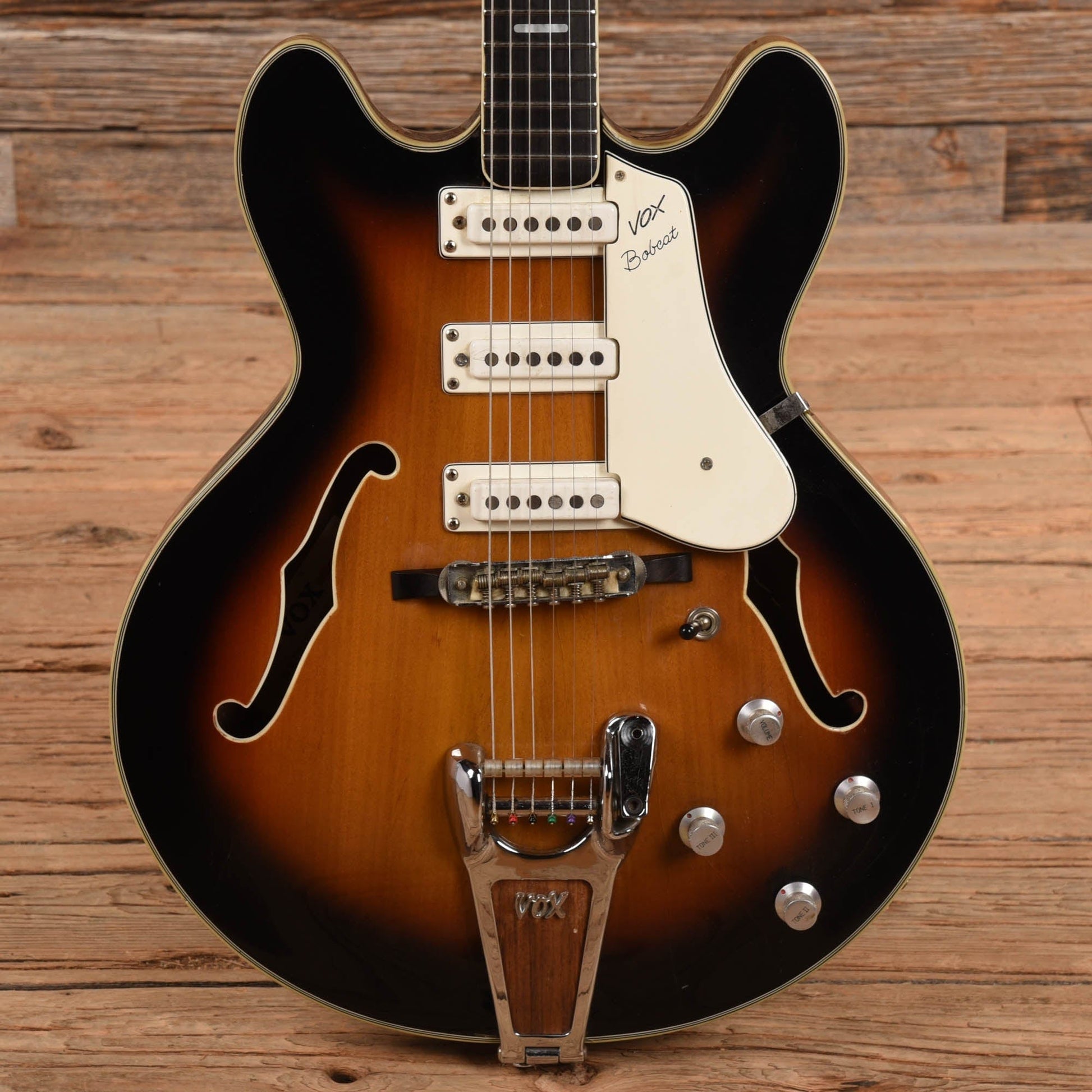

Electronics: The electronics are original but the guitar has been rewired. The guitar has three single coil pickups, but the middle pickup is non-operational and has been disconnected. The guitar has a three-way selector switch, two volume pots, and two tone pots. Its rewiring is configured to operate much like a Les Paul. The pot labeled "Volume" controls the neck pickup volume, and the pot labeled "Tone I" controls the bridge pickup volume. "Tone III" and "Tone II" control the neck and bridge tone respectively. The three-way selector activates the bridge pickup in position one, the bridge and neck in position two, and the neck pickup in position three.
Pickup Measurements: neck - 6.6k ohms, middle - N/A (pickup has been disconnected), bridge - 5.5k ohms

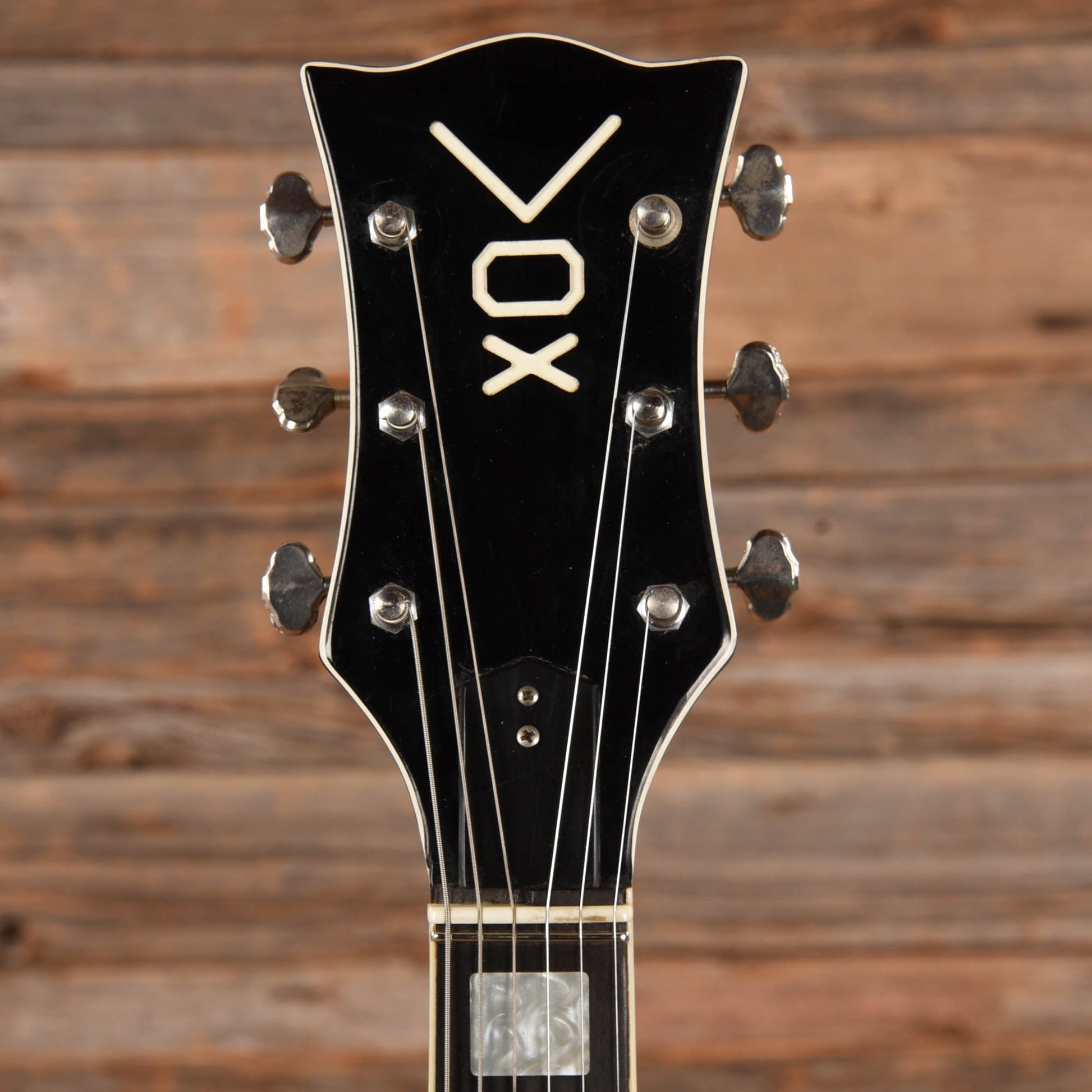

Hardware: The tremolo arm and spring have been removed (these parts are not included). The zero fret has been replaced and the switch tip is non-original.
Weight: 6lbs
Modifications/Repairs: The guitar has been rewired to a control scheme similar to that of a Les Paul. The middle pickup is non-operational and has been disconnected. The pot labeled "Volume" controls the neck pickup volume, and the pot labeled "Tone I" controls the bridge pickup volume. "Tone III" and "Tone II" control the neck and bridge tone respectively. The three-way selector activates the bridge pickup in position one, the bridge and neck in position two, and the neck pickup in position three. The zero fret has been replaced and the switch tip is non-original. The vibrato arm and spring have been removed. There is a crack in the fingerboard running from the 12th to 18th fret that has been repaired and does not affect playability.

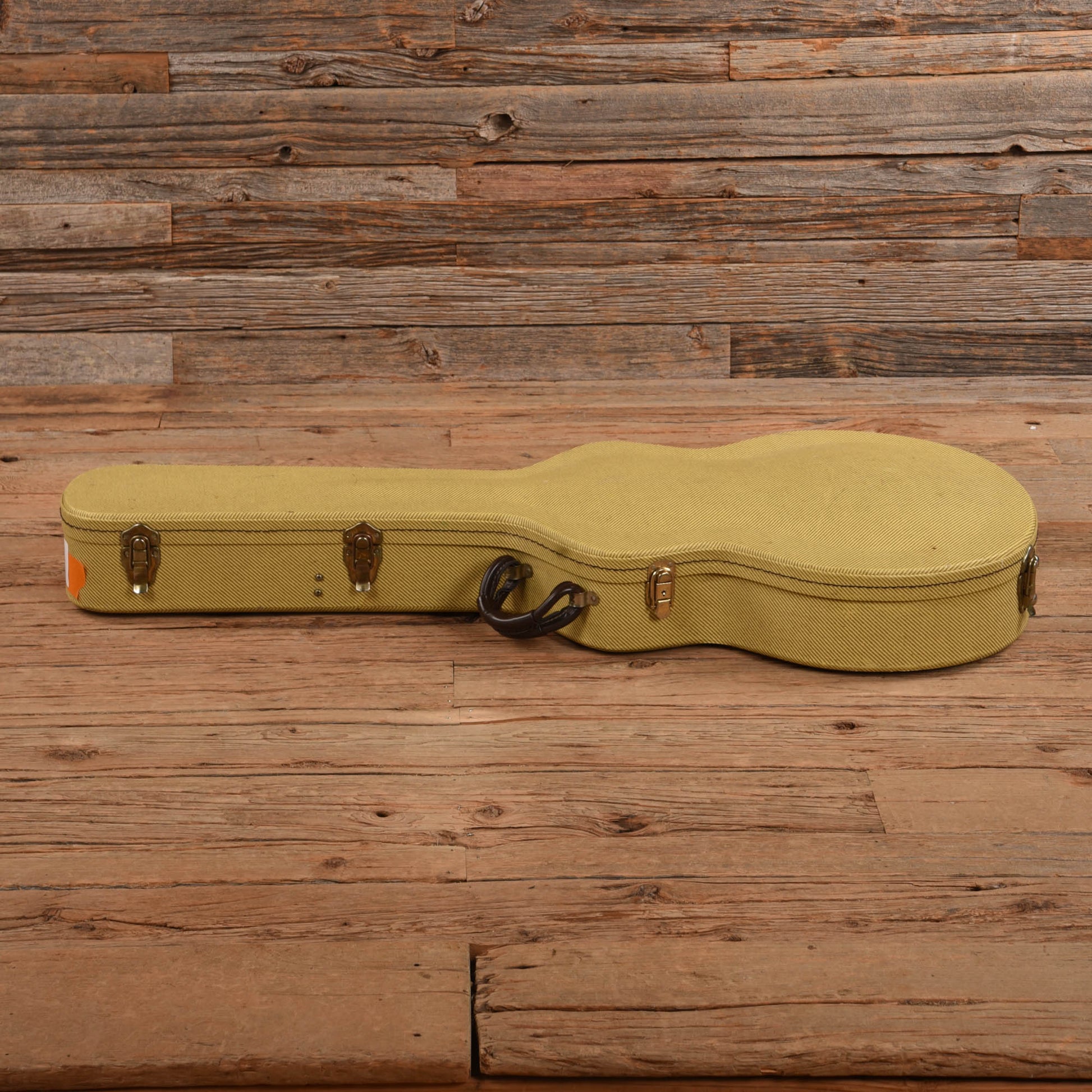

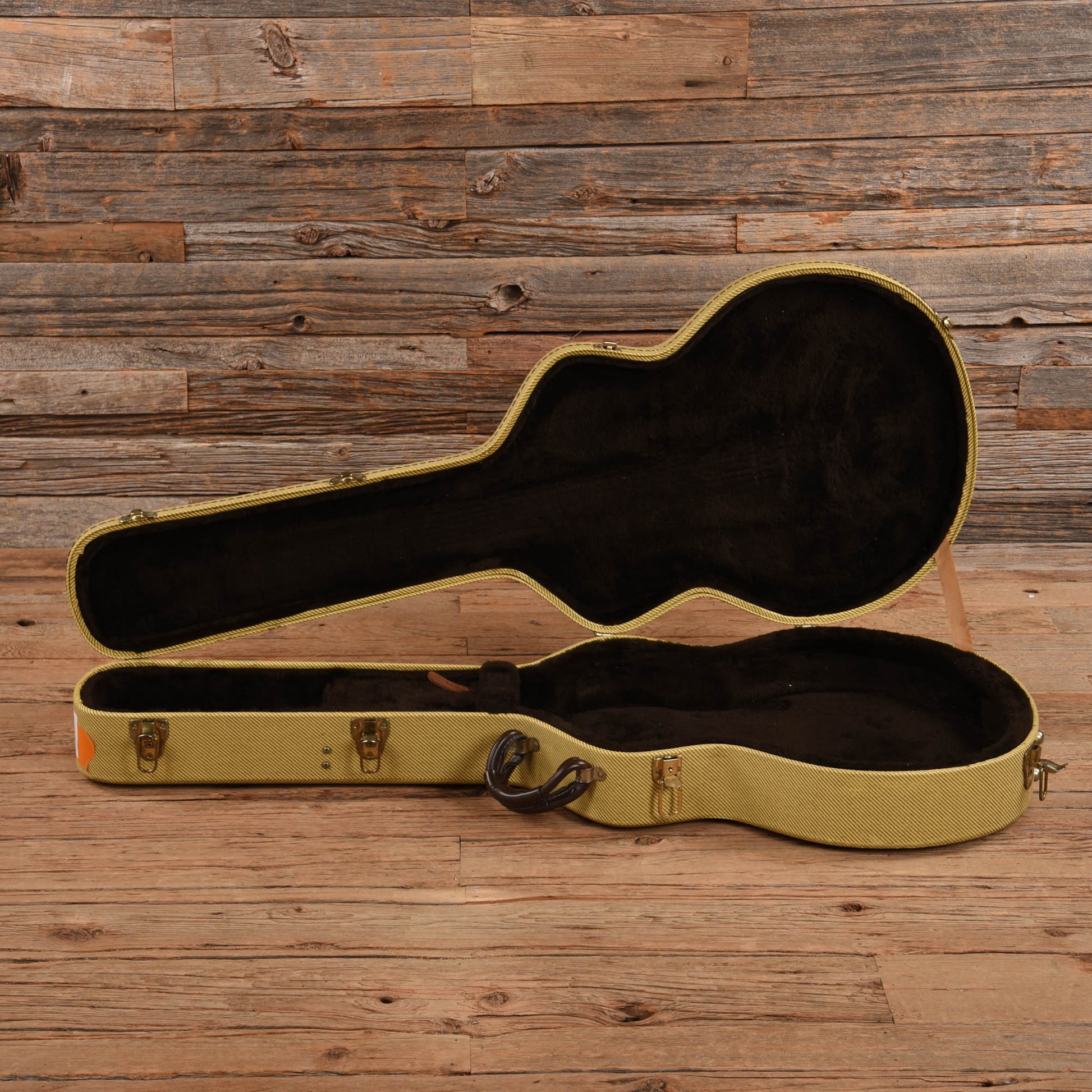

Case Details: Hardshell case.

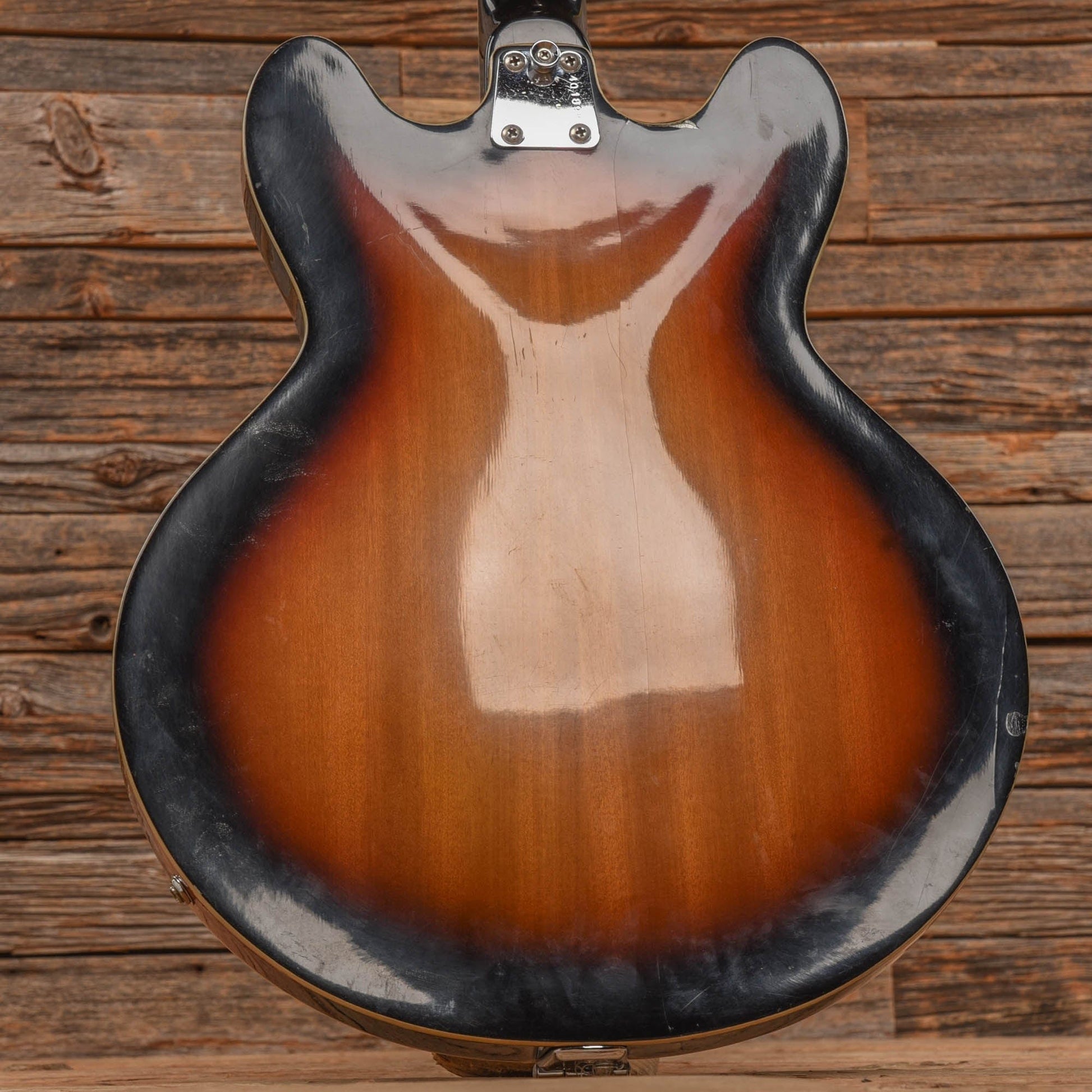

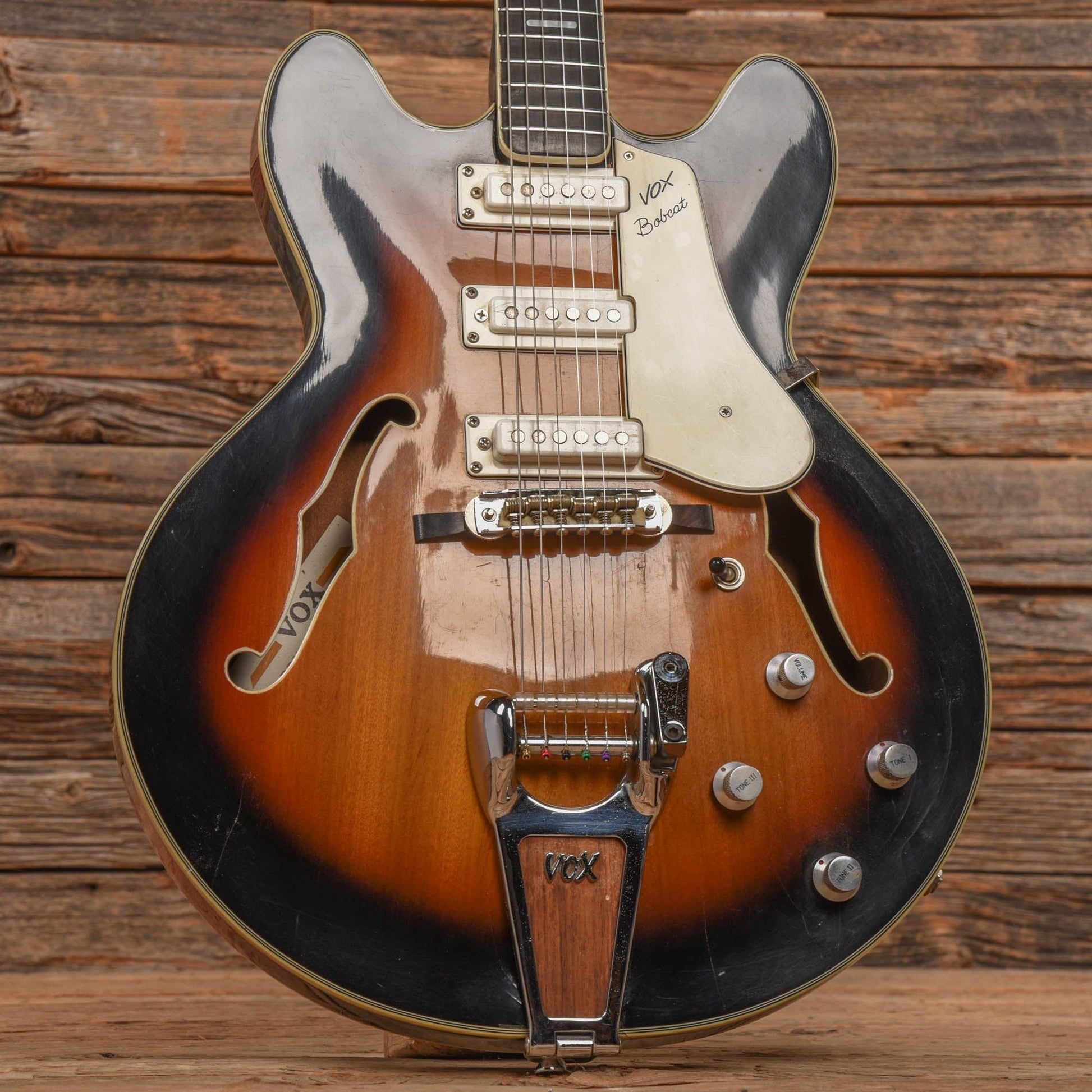

Cosmetic Condition: The guitar is in good condition. The finish is glossy, though worn with age, with light surface scratches and swirling throughout. The guitar has multiple long cracks in its clearcoat and some chipping near the neck pocket and under the tailpiece. The fingerboard has a crack from the 12th to 18th fret that has been repaired and does not affect playability.
Serial Number: 401898
Tech Notes: The guitar plays well with low action. The frets are wide and low with minimal signs of play wear. The truss rod has limited adjustability.
×
