Description
Description
The Charvel American Neo-Classic Series San Dimas® Style 1 delivers the perfect fusion of iconic design and cutting-edge innovation. The alder San Dimas body has been a Charvel staple since the early eighties, providing balanced tonal response and natural resonance with warm midrange punch and crisp high-end clarity that cuts through any mix with authority.
The custom Seymour Duncan® JB/59 pickup combination with parchment bobbins offers ultimate sonic versatility – the neck position ‘59 delivers creamy vintage warmth for expressive leads and rich rhythms, while the bridge JB provides high-output bite for everything from soaring solos to crushing riffs. The one-piece quartersawn maple neck is carefully reproduced from authentic 1980 specifications and enhanced with graphite reinforcement, ensuring legendary feel with unmatched modern stability.
The innovative 12”-16” compound radius fingerboard starts comfortable for chording and opens up dramatically for effortless lead work, while 22 jumbo stainless steel frets provide exceptional note definition. Performance features include the truss rod adjustment wheel at the fingerboard’s end for lightning-fast setup changes, rounded fingerboard edges that feel like a glove, and Luminlay® side-dots for perfect position awareness.
The Charvel hardtail delivers rock-solid tuning stability, while streamlined electronics featuring a single lo-friction volume pot and 5-way blade switch put pure tone at your fingertips. This is your gateway to sonic excellence – authentic 1980 Charvel craftsmanship meets tomorrow’s innovation in one irresistible package.
Specs
Specs
General
| Series: | Charvel American Neo-Classic |
| Country of Manufacture: | Made in the USA |
| Serial Number: | CH19983 |
| Product Color: | Ferrari Red |

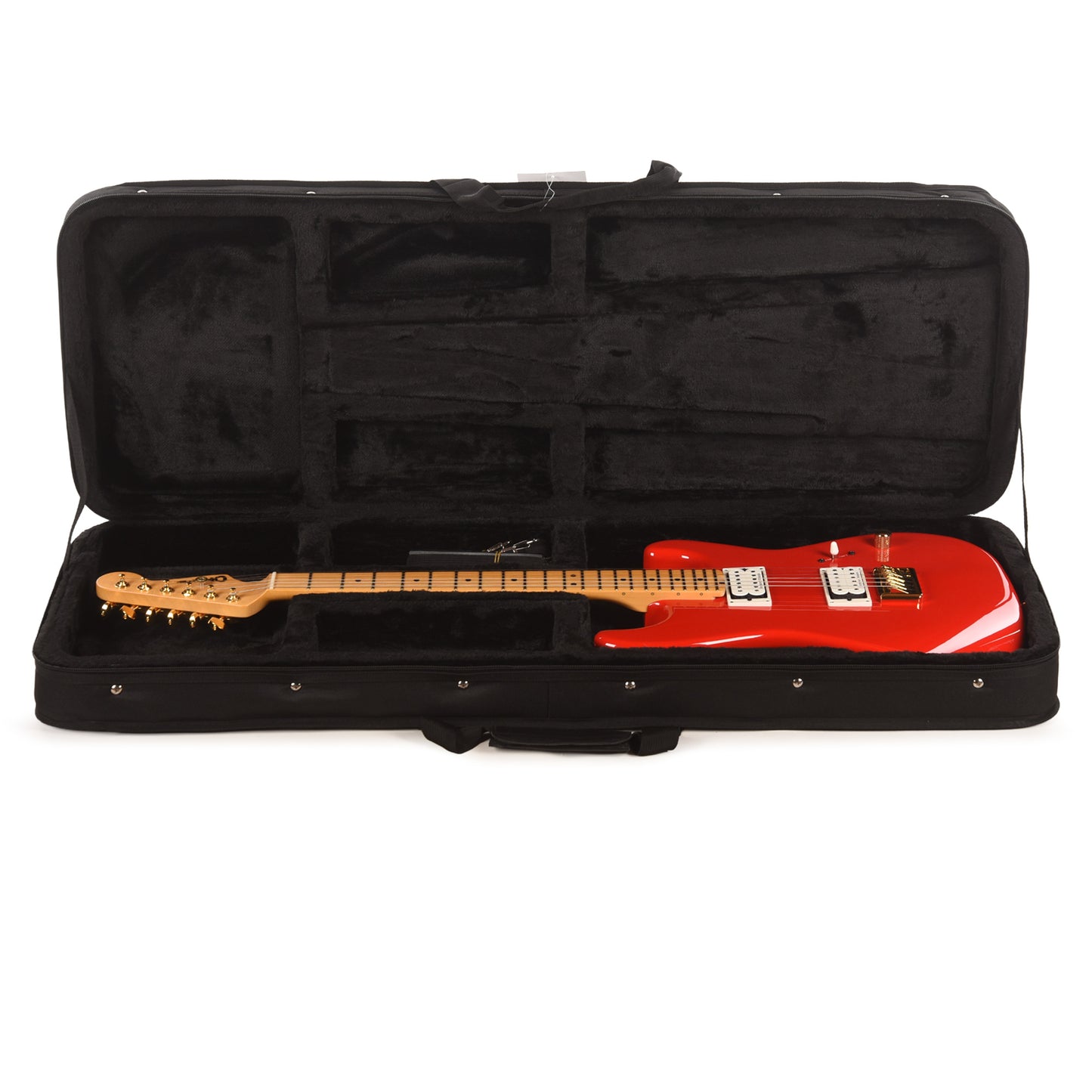

| Case Type: | Gig Bag Included |
| Factory Setup: | E Standard (E-A-D-G-B-E) |
Body
| Body Shape: | San Dimas Style 1 |
| Body Material: | Alder |
| Body Finish: | Gloss |
Neck
| Neck Material: | Quartersawn Maple |
| Neck Finish: | Natural Satin |
| Neck Tint/Color: | Natural Satin |
| Neck Shape: | Speed Neck with Rolled Fingerboard Edges |
| Fingerboard Material: | Quartersawn Maple |
| Nut Material: | Bone |
| Nut Width: | 1.6875" (42.86mm) |
| Fingerboard Radius: | Compound 12-16" (304.8-406.4mm) |
| Scale Length: | 25.5" (648mm) |
| Number of Frets: | 22 Frets |
| Neck Joint: | Bolt-On with Graphite Reinforcement |
| Fingerboard Inlay: | Black Dot |
| Inlay Shape: | Dots |
| Side Marker Inlay: | Luminlay |
| Headstock Inlay/Decal: | Licensed Fender Stratocaster |
Electronics
| Bridge Pickup: | Seymour Duncan JB TB-4 |
| Neck Pickup: | Seymour Duncan '59 SH-1N |
| Controls and Switching: | Volume (500K EVH Bourns Low Friction Pot) |
| Electronics Notes: | 5-Position Blade: Position 1. Bridge, Position 2. Bridge Outer Coil and Neck Inner Coil, Position 3. Bridge and Neck, Position 4. Bridge Inner Coil and Neck Outer Coil, Position 5. Neck |
Hardware
| Hardware Color: | Gold |
| Bridge: | Charvel Hardtail |
| Tuning Machines: | Charvel Sealed Die-Cast Locking |
| Fret Wire: | Jumbo Stainless Steel |
| Saddle: | Metal |
| Knobs: | Dome-Style |
