Description
Description

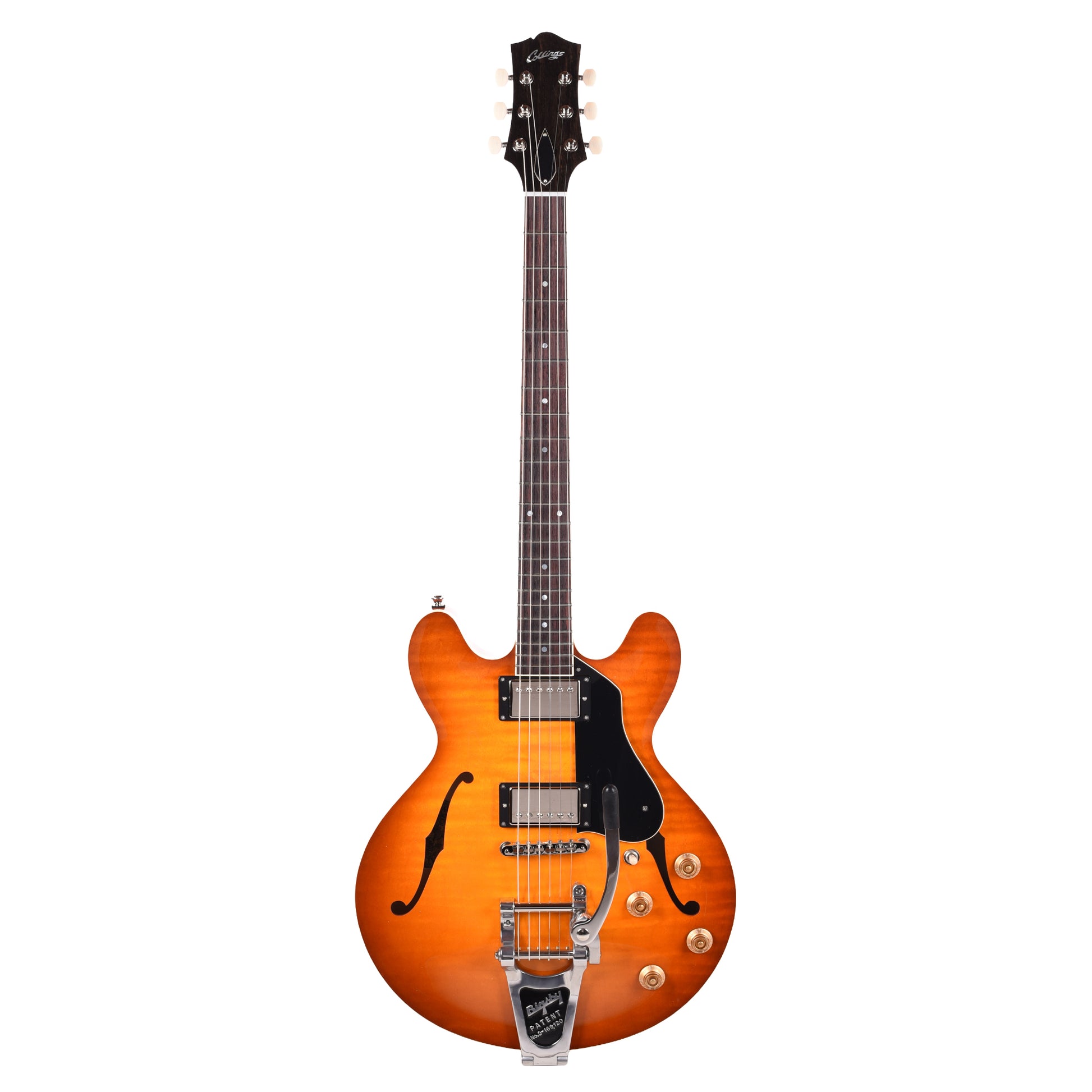

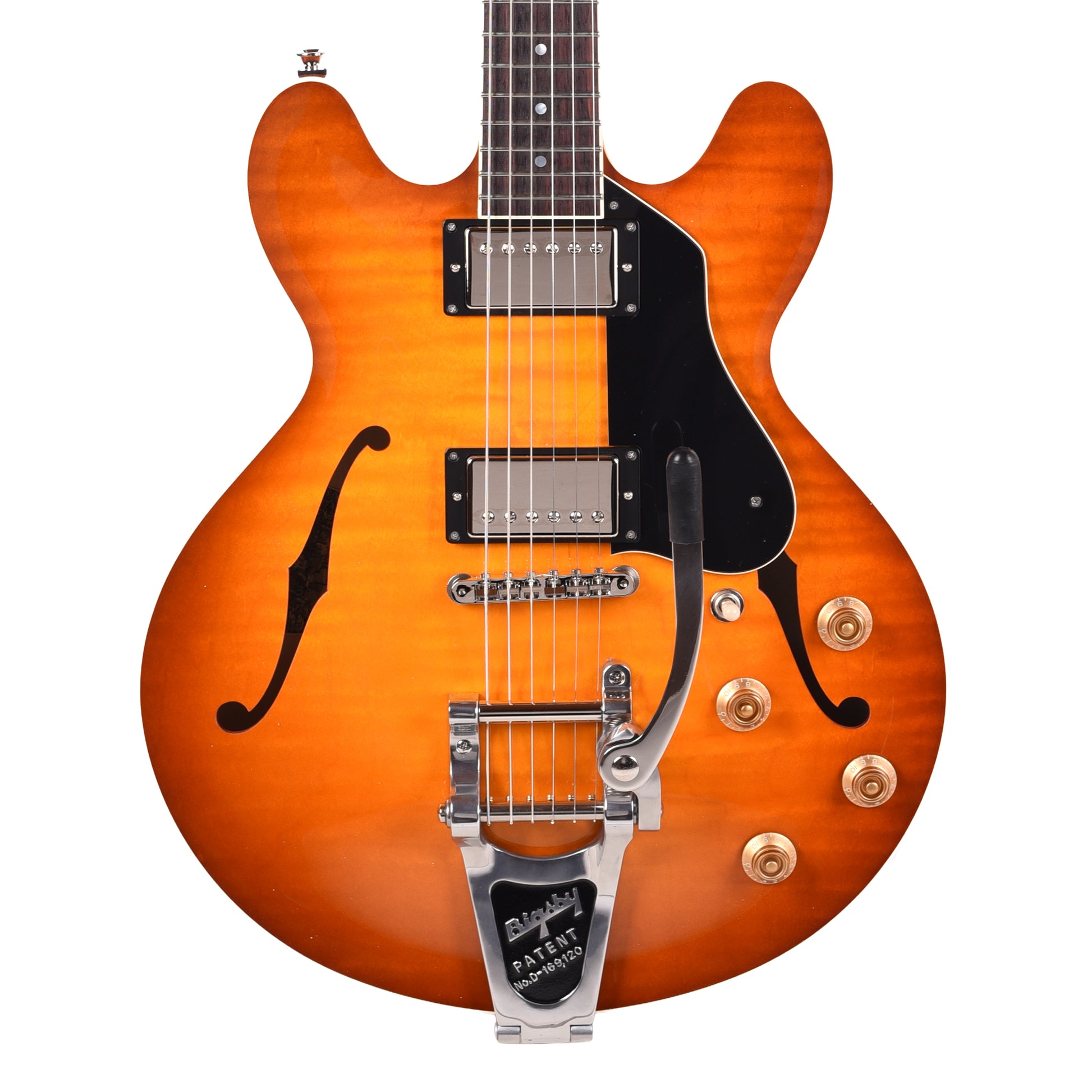

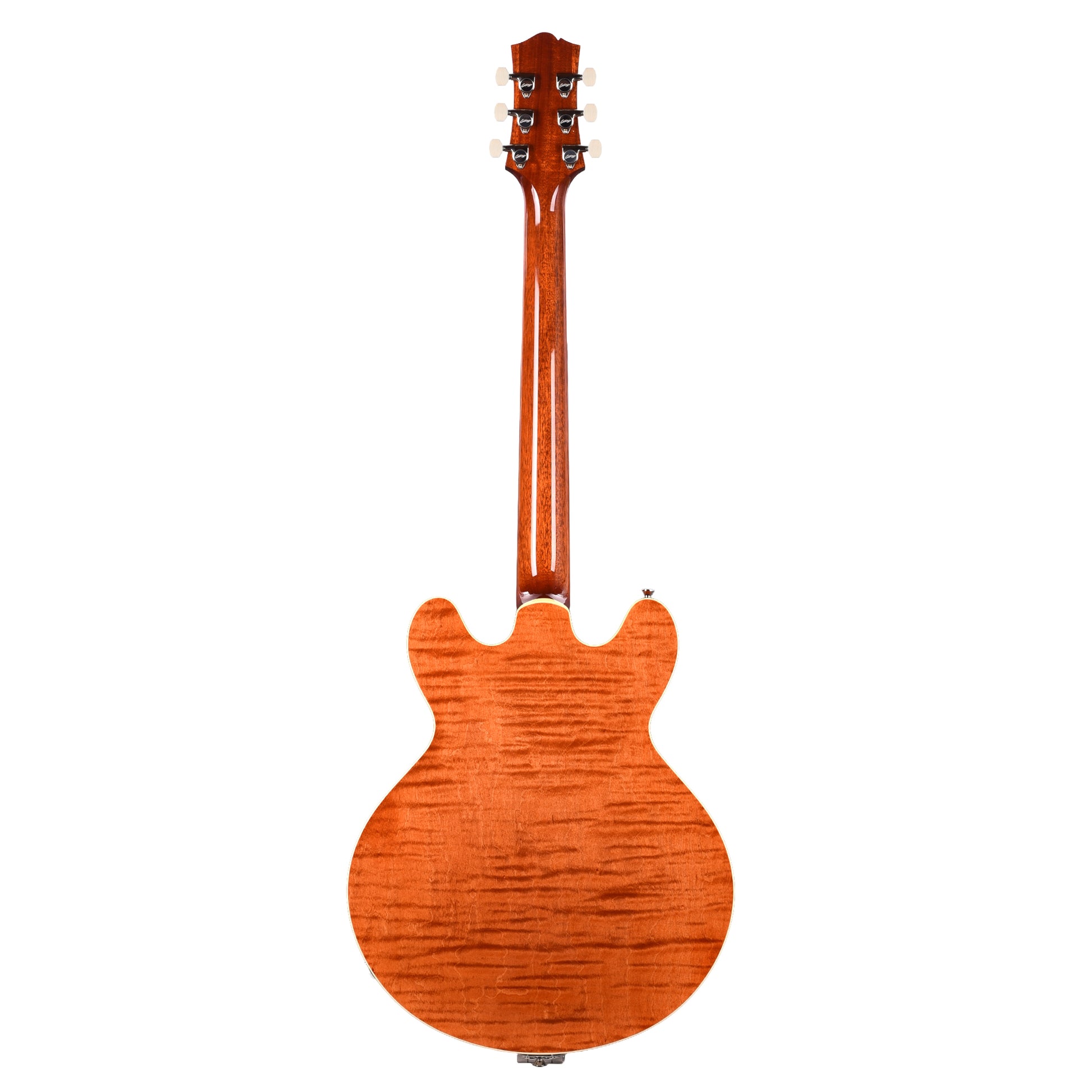

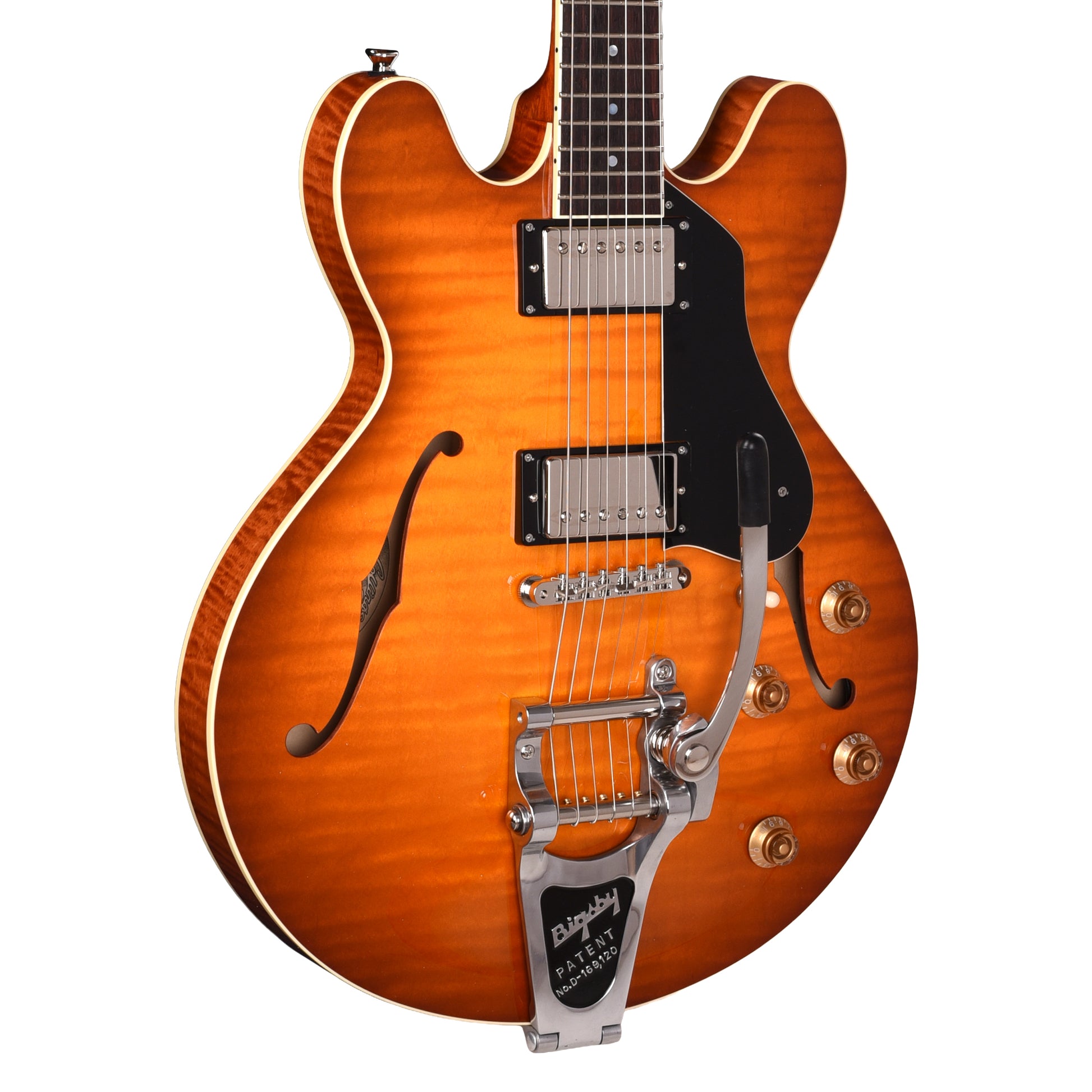

The I-35 LC features a maple laminate top, sides, and back, the result of a custom-laminated construction process that Bill Collings and his R&D team developed in pursuit of the best tonal qualities of semi-hollow guitar design. Crafted to respond acoustically in perfect harmony with its electronics, the design and technique used for our “LC” models has provided another unique way for us to voice our instruments for superior response and tone.
The I-35 LC features ungrained ivoroid binding on the body and fingerboard with no peghead binding.
Specs
Specs
General
| Country of Manufacture: | Made in the USA |
| Serial Number: | I35LC262666 |
| Product Color: | Iced Tea Sunburst |

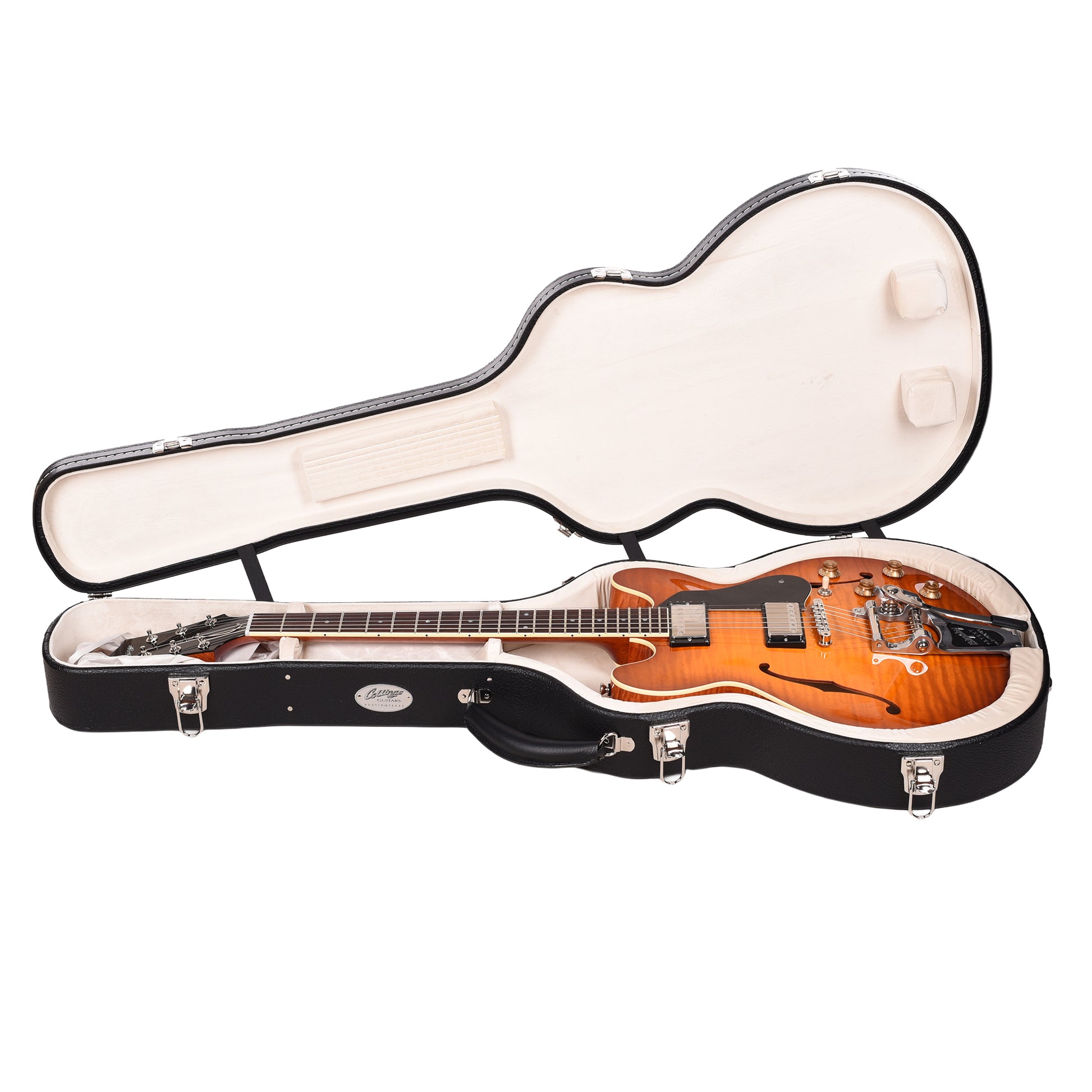

| Case Type: | Hardshell Case Included |
| Factory Setup: | E Standard (E-A-D-G-B-E) |
Body
| Body Shape: | Semi hollow w/ maple/spruce center block |

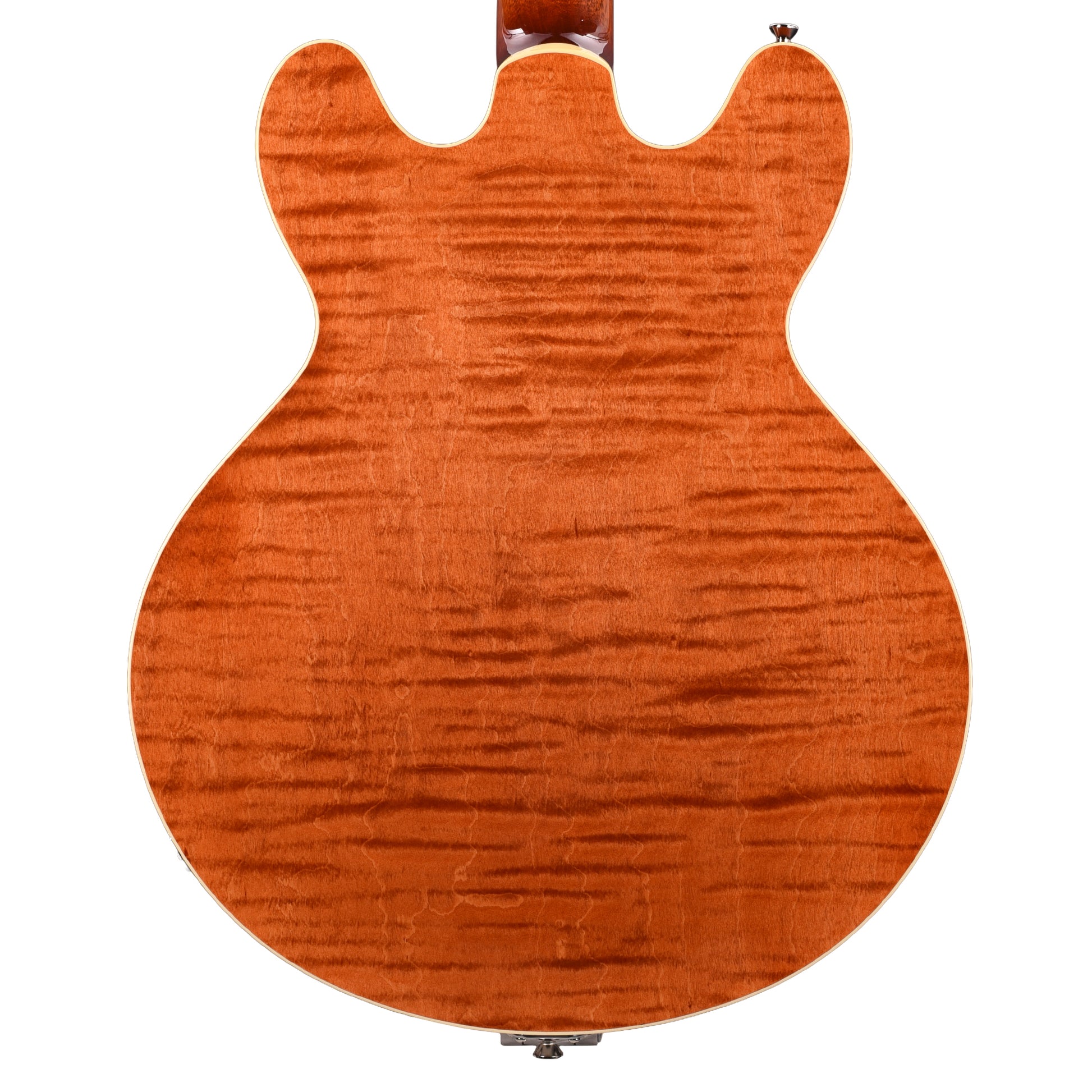

| Body Material: | Maple Laminate |
| Body Finish: | High Gloss Nitrocellulose Lacquer |
| Top Material: | Maple Laminate |
| Bracing Pattern: | Semi hollow w/ maple/spruce center block |
| Body Binding: | Non-Grained Ivoroid |
| Body Notes: | Body Width 15"; Body Length 17 5/8"; Body Depth 1 5/8"; Total Length 40" |
Neck
| Neck Material: | Honduran Mahogany |
| Neck Finish: | High Gloss Nitrocellulose Lacquer |
| Neck Shape: | C Shape |
| Fingerboard Material: | Rosewood |
| Headstock Veneer: | Ebony |
| Nut Material: | Bone |
| Nut Width: | 1.6875" |
| Fingerboard Radius: | 12" |
| Scale Length: | 24.875" |
| Number of Frets: | 22 Frets |
| Neck Joint: | Extra long mortise & tenon |
| Fingerboard Inlay: | MOP long dots (5mm non-tapered) |
| Inlay Shape: | Dots |
| Side Marker Inlay: | Black Dots |

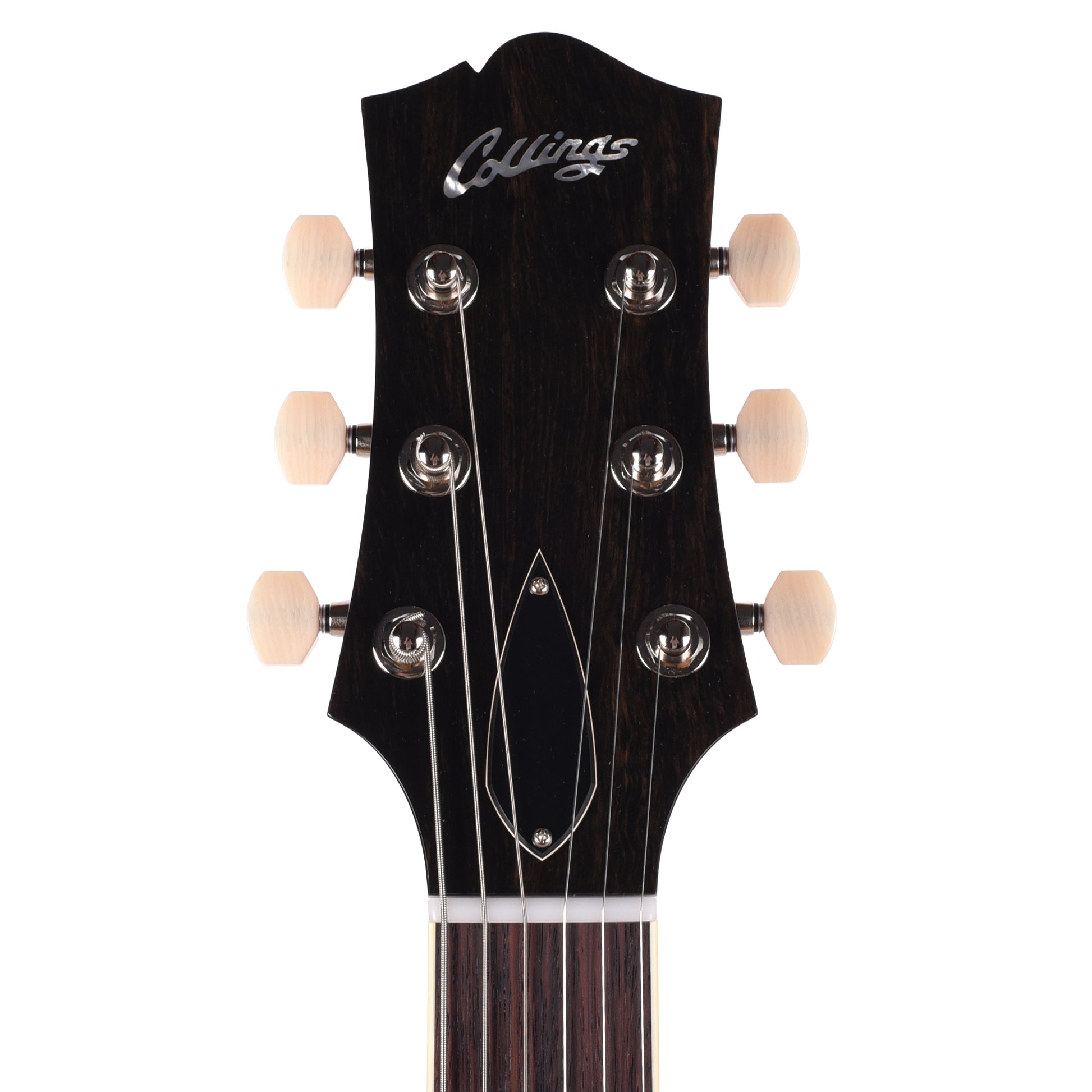

| Headstock Inlay/Decal: | Ebony w/MOP Collings Script logo |
| Neck Binding: | Non-Grained Ivoroid |
Electronics
| Bridge Pickup: | Lollar Low Wind Imperial Humbuckers |
| Neck Pickup: | Lollar Low Wind Imperial Humbuckers |
| Controls and Switching: | 50s style wiring; 3-Way Switch; 2 Volume, 2 Tone |
| Electronics Notes: | CTS 500K / Jupiter Vintage Yellow |
Hardware
| Hardware Color: | Nickel |
| Bridge: | Kluson ABR-1 (nickel-plated zinc w/ retaining wire) |
| Tailpiece: | Bigsby |

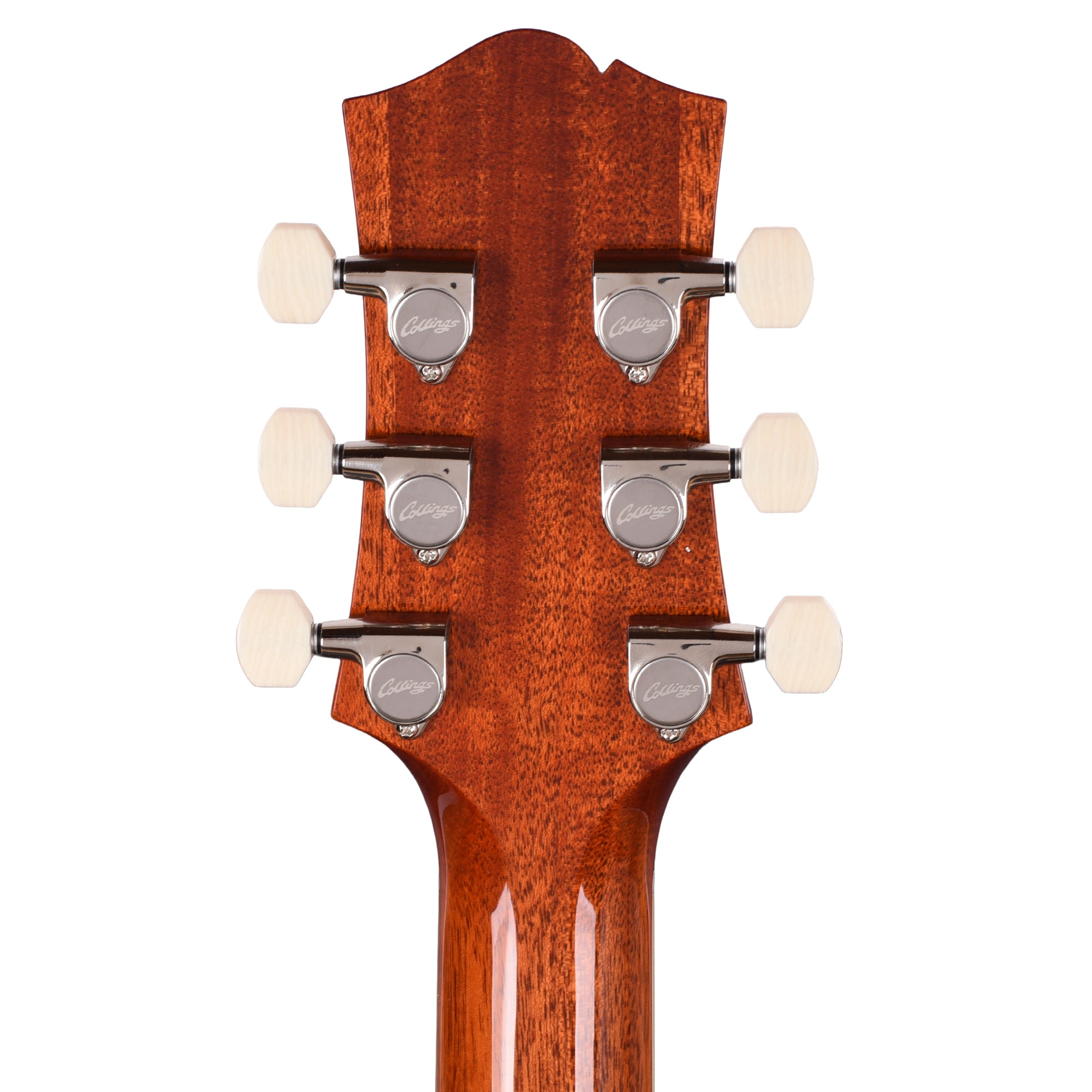

| Tuning Machines: | Nickel Gotoh w/ Collings logo |
| Fret Wire: | Medium 18% nickel-silver |
| Saddle: | Metal |
| Pickguard: | 3-Ply Black |
| Truss Rod Cover: | 3-Ply Black |
| Knobs: | Gold Knobs |
