Condition Note: Minor play wear.

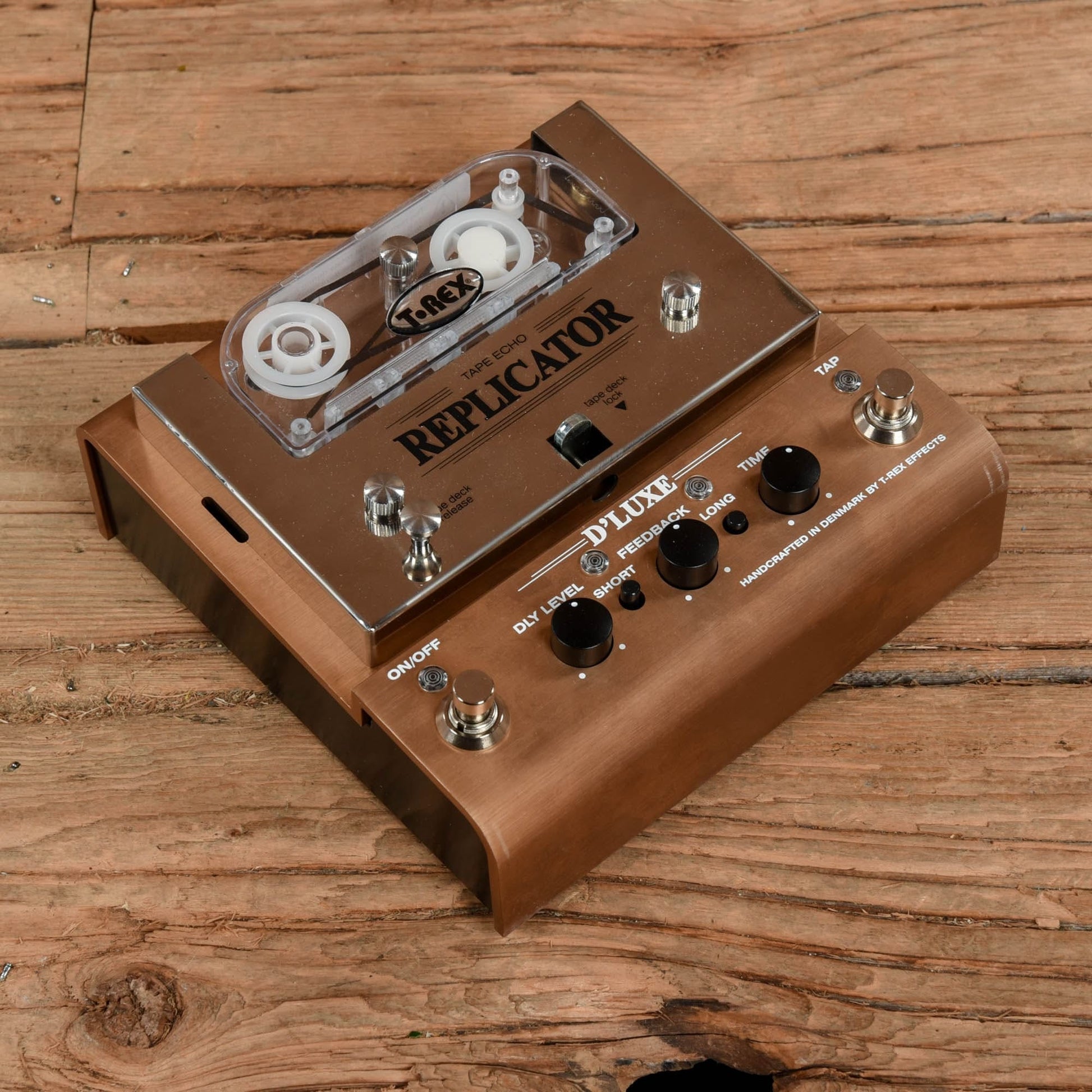

The Replicator D’Luxe is a sum up from all the knowledge, we have built up over the years, making Tape delays.
It is a 2 head machine. The drive mechanism has been updated with a noiseless belt drive. A tape lock/release mechanism is added, to make the pinch wheel and tape last longer and electronics has been tuned to perfection.
Features:
- HANDCRAFTED IN DENMARK
- Multiple Playback-heads for true analog tape echoes
- One Record head and two playback heads. Short Head for slap back delay. Long head for longer modern delays, or combine both heads for a semi Delay-Room experience
- Delay time Short head =108 – 520mS. Delay time long head = 215 – 1000 mS
- Tap tempo for Long Head and half the time for the short head
- True Bypass switching with a gold plated relay
- New motor suspension with belt drive, for reduced noise operation
- New Tape deck lock-mechanics to protect pinch roller and tape for longer life span
- All analog signal path from input to output
- Power supply with exchangeable blades 90-240 Volt, and an extra tape cartridge included
Input impedance: @ 1KHz > 500K Ohm
Output impedance: @ 1KHz < 1K Ohm
Power supply (included): 12VDC, center negative
Current draw: @ 12VDC 300mA
Maximum input signal: Vp-p 8,7V p-p (12dBu)

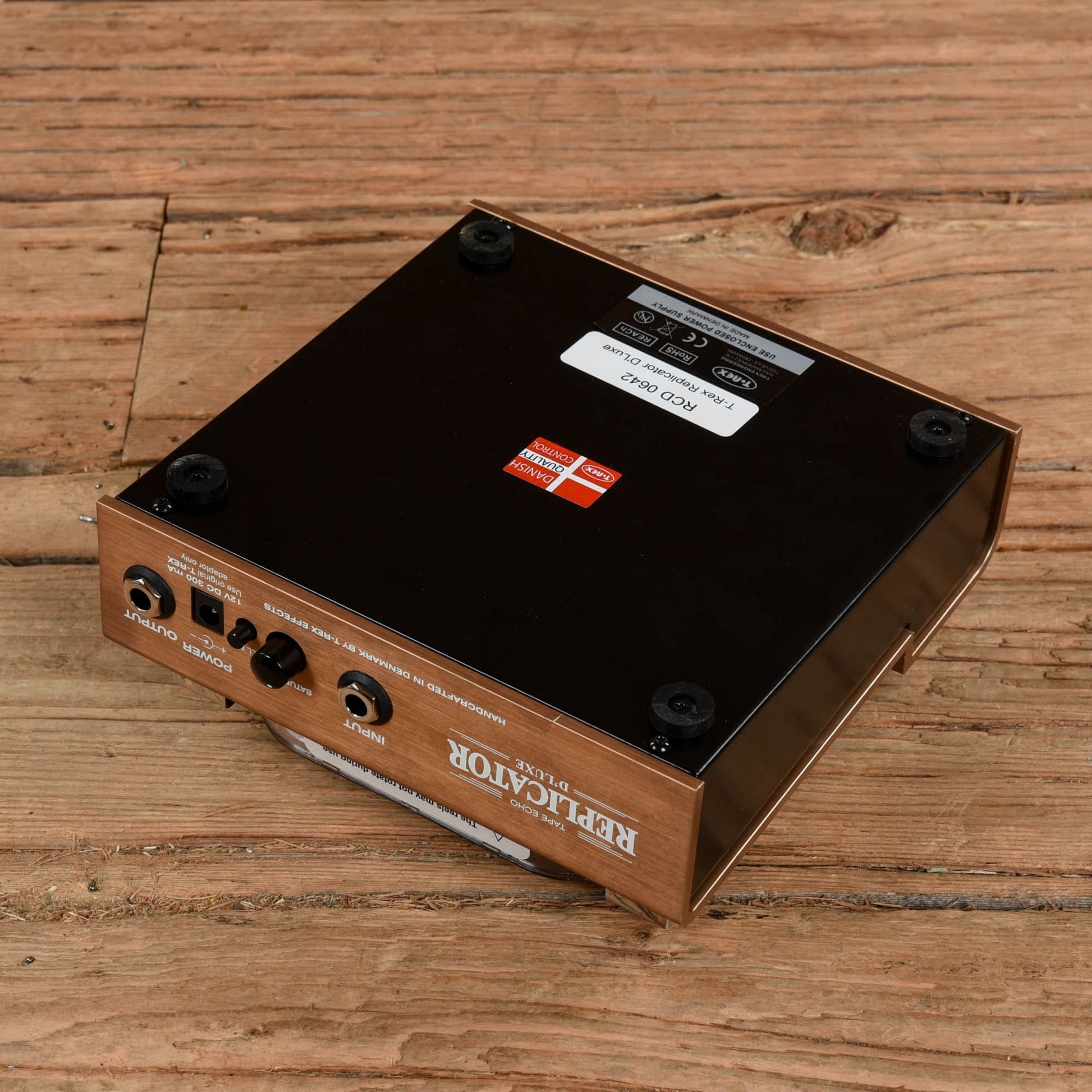

External connectors: input, output, DC inlet
Controls: delay time, feedback, delay level, saturation, kill dry, short, long, on/off, tap tempo
Pedal size incl. knobs: (W x H x D) 3,15 x 6,85 x 6,89 in
