Gamechanger Audio | Motor Synth MKII

Get The World’s First Electro-Mechanical Desktop Synthesizer!

Further proving the brand’s namesake claim, the new Gamechanger Audio Motor Synth MKII offers electronic music makers the world’s first analog synthesizer—which lets you see the sounds being generated via optical electro-mechanical oscillators! Due to the distinct way these motors create wave shapes, the Motor Synth’s sound is in a category all its own—yet, the comprehensive sound-shaping features developed by Gamerchanger’s engineers let users recreate classic synth sounds and even real instruments!

Based on a unique motor oscillator engine, the Motor Synth MKII runs on a system of eight electromotors able to instantly and precisely change their rotation speed in order to produce musical notes. Generating two separate voices with three types of optical waveshapes (sine, saw, square), an electromagnetic inductive wave (M), and an adjustable four-note polyphony, each voice can be shaped using the Motor Synth MKII’s independent controls for volume, scale, waveform, amp envelope, and pitch envelope.

Catalinbread Tribute on wood planks

Motor Synth MKII Overview

  • Eight electromotor oscillator system with custom-built brushless DC motors
  • Two fully independent MOTOR Voices with Separate Amp Envelope, Pitch Envelope, and Analog multi-mode Filters
  • Additional third DIGITAL VOICE (DCO) with full functionality
  • Powerful Modulation section with assignable mod destinations
  • Built-in performance interface with ARP, SEQUENCER, and MOTION REC Engines
  • MIDI & CV control
  • Input Signal Processing: VOCODER, GATE, SIDECHAINING, FILTERING
Gamechanger Audio MOTOR SYNTH MKII Keyboards and Synths / Synths / Analog Synths
Gamechanger Audio MOTOR SYNTH MKII Keyboards and Synths / Synths / Analog Synths
Gamechanger Audio MOTOR SYNTH MKII Keyboards and Synths / Synths / Analog Synths
Gamechanger Audio MOTOR SYNTH MKII Keyboards and Synths / Synths / Analog Synths
Gamechanger Audio MOTOR SYNTH MKII Keyboards and Synths / Synths / Analog Synths

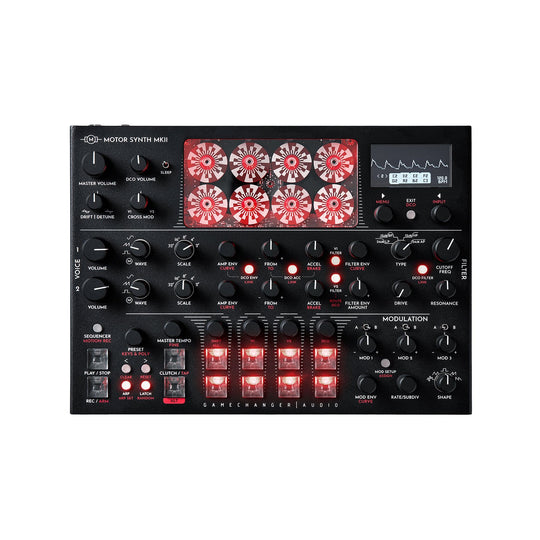

Gamechanger Audio MOTOR SYNTH MKII

$3,299.00
MOTOR Synth is based on a unique motor oscillator engine - it is a system of eight electro-motors that are able to instantly and precisely change their rotation speed in order to produce musical notes.
Because of the distinct way the motors create wave shapes, MOTOR Synth's sound is certainly in a category of its own. However, the comprehensive sound-shaping features developed by our engineers let you recreate classic synth sounds and even real instruments.

Features:
  • Front-facing motor synth mk 2 on white background
  • MOTOR SYNTH MKII OVERVIEW
  • Eight electromotor oscillator system with custom-built brushless DC motors
  • Two fully independent MOTOR Voices with Separate Amp Envelope, Pitch Envelope and Analog multi-mode Filters
  • Additional third DIGITAL VOICE (DCO) with full functionality
  • Powerful Modulation section with assignable mod destinations;
  • Built-in performance interface with ARP, SEQUENCER and MOTION REC Engines;
  • MIDI & CV control
  • Input Signal Processing: VOCODER, GATE, SIDECHAINING, FILTERING

ARPEGGIATOR
Assignable ARP ENGINE with Note Repeat, Pattern repeat, Pattern Shift and Accent functionality.

SEQUENCER
Internal note SEQUENCER ENGINE with savable patterns, pattern chaining, ratcheting, micro-timing, probability and step-repeat functionality

MOTION RECORD
Powerful MOTION RECORD ENGINE with eight editable lanes (playback speed, direction, duration, quantization)
  • Built-in PERFORMANCE INTERFACE:
  • Eight non-velocity sensitive KEYPAD for inputting notes, sequences, patterns
  • Four rotary PITCH ENCODERS for editing note values and microtonal pitch adjustments
  • Innovative CLUTCH function (temporary parameter editing buffer)
MIDI & CV control
  • MIDI IN & MIDI OUT connectors for sending and receiving Note and Clock info
  • Multiple mod wheel and channel pressure slots assignable to any parameter with depth control
  • Three assignable CV inputs (3.5 mm)
  • Three assignable Trigger Inputs (3.5 mm)
  • USB for MIDI in/out and for file transfer to MICRO SD card
I/O
  • Single TRS 1/4' OUTPUT Jack with adjustable Split Voice Routing (can be used as MONO Out)
  • Two Separate SEND/RETURN loops jacks (3.5 mm TRS) for each MOTOR voice (pre-VCF, post-VCA)
  • Headphone output
  • Single MONO 1/4' INPUT Jack for Input Signal processing
View Details

How It Works

Each one of the Motor Synth’s eight motor oscillators can produce four distinct waveforms by reading wave reflections via infrared sensors and electromagnetic pickups. Featuring three “tracks” engraved onto the reflective surface, which are designed as a circular optical representation of the sine, saw, and square waveforms, each reflective “track” is paired with a separate infrared laser and sensor that picks up the reflected beam.

As the disc rotates and spins the differently shaded areas in a circular motion, the infrared reflectivity sensor begins outputting a so-called “Optical Waveform,” via a technology developed by Gamechanger Audio specifically for the Motor Synth. Meanwhile, the “M'' waveform is produced by a set of electromagnetic pickups placed next to each motor’s rotating inner coils, creating electromagnetic fluctuations that can be amplified to produce a unique motor waveform.

Each one of the Motor Synth’s eight motor oscillators can produce four distinct waveforms by reading wave reflections via infrared sensors and electromagnetic pickups. Featuring three “tracks” engraved onto the reflective surface, which are designed as a circular optical representation of the sine, saw, and square waveforms, each reflective “track” is paired with a separate infrared laser and sensor that picks up the reflected beam.

As the disc rotates and spins the differently shaded areas in a circular motion, the infrared reflectivity sensor begins outputting a so-called “Optical Waveform,” via a technology developed by Gamechanger Audio specifically for the Motor Synth. Meanwhile, the “M'' waveform is produced by a set of electromagnetic pickups placed next to each motor’s rotating inner coils, creating electromagnetic fluctuations that can be amplified to produce a unique motor waveform.

Catalinbread Tribute with Box

The Motor Synth MKII also features an additional third digital voice (DCO) with fully independent controls of all parameters, plus adjustable four-note polyphony, and other features, including:

- Proprietary virtual-analog oscillator and noise engine with waveshaping
- Dedicated multimode digital filter with extensive functionality
- Multiple routing options for Filter and Output

SHOP GAMECHANGER AUDIO
Chase Bliss Blooper Bottomless Looper Effects and Pedals / Loop Pedals and Samplers
Chase Bliss Blooper Bottomless Looper Effects and Pedals / Loop Pedals and Samplers
Chase Bliss Blooper Bottomless Looper Effects and Pedals / Loop Pedals and Samplers
Chase Bliss Blooper Bottomless Looper Effects and Pedals / Loop Pedals and Samplers

Chase Bliss Blooper Bottomless Looper

$499.00
From Chase Bliss:

The bottomless looper.

Within this little blue rectangle is an intricate machine to explore, unravel, and make your own, with infinite opportunities and outcomes. The dream of blooper was to merge high-quality looping with creative manipulation, allowing you to steer your loops to new and extraordinary places. Record a loop one day, save, then come back and transform it on another.

On the practical end, there is loop saving, eight layers of undo and redo, and external syncing. On the creative end, there are two channels of modifiers, a lo-fi Stability control, and three looping modes. blooper’s heart is Additive mode, which allows you to record sound modifiers directly into the loop like any other overdub.
View Details

If you’re looking to drive your music to new sonic frontiers with an electromotor-powered analog engine, get the world’s first electro-mechanical desktop synthesizer, with the new Gamechanger Audio Motor Synth MKII NOW at Chicago Synth Exchange!
