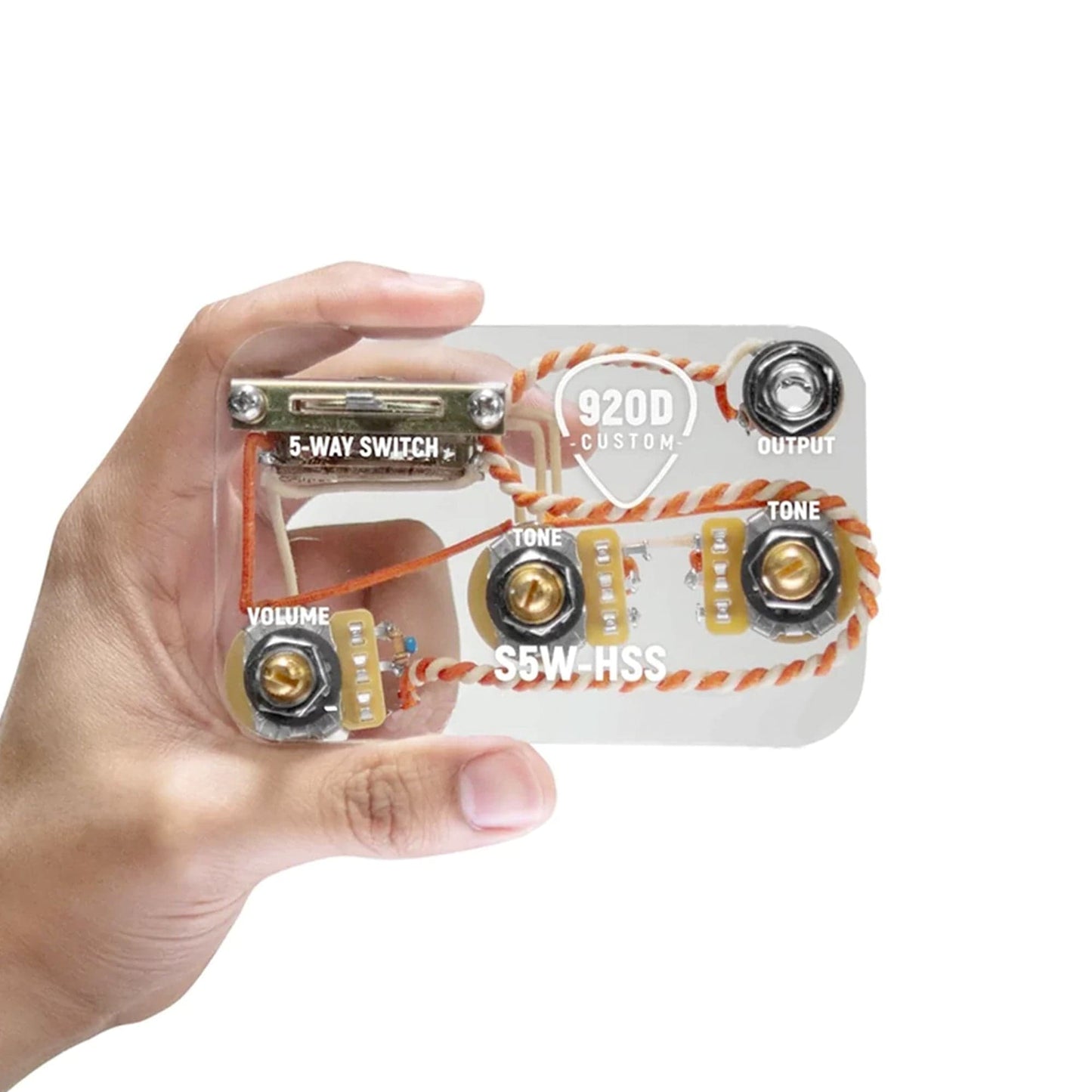

920D Custom S5W-HSS Stratocaster HSS 5-Way Super Switch Wiring Harness Upgrade

Our S5W-HSS harness is designed for guitars with a full sized humbucker in the bridge position. It features a 5-way super switch that automatically splits the humbucker, when combined with the middle pickup (position 2). It also allows the single coil pickups to "see" 250K volume control while the humbucker "sees" 500K volume control. This wiring harness is a must-have for your HSS.

Components

• 1 - 920D Custom 450G Series 250K Pot by CTS
• 2 - 920D Custom 450G Series 500K Pots by CTS
• 1 - 5-Way Super Switch
• 1 - .022 Orange Drop Capacitor
• 1 - .047 Orange Drop Capacitor
• 1 - 680pF Ceramic Capacitor (Treble Bleed)
• 1 - 150K Resistor (Treble Bleed)
• 2 - 470K Resistors (Single Coil Pickups)
• 1 - Pure Tone Output Jack
• 920D Custom Signature Wiring by Gavitt Wire

Switch Positions

• Bridge
• Bridge / Middle
• Middle
• Middle / Neck
• Neck
