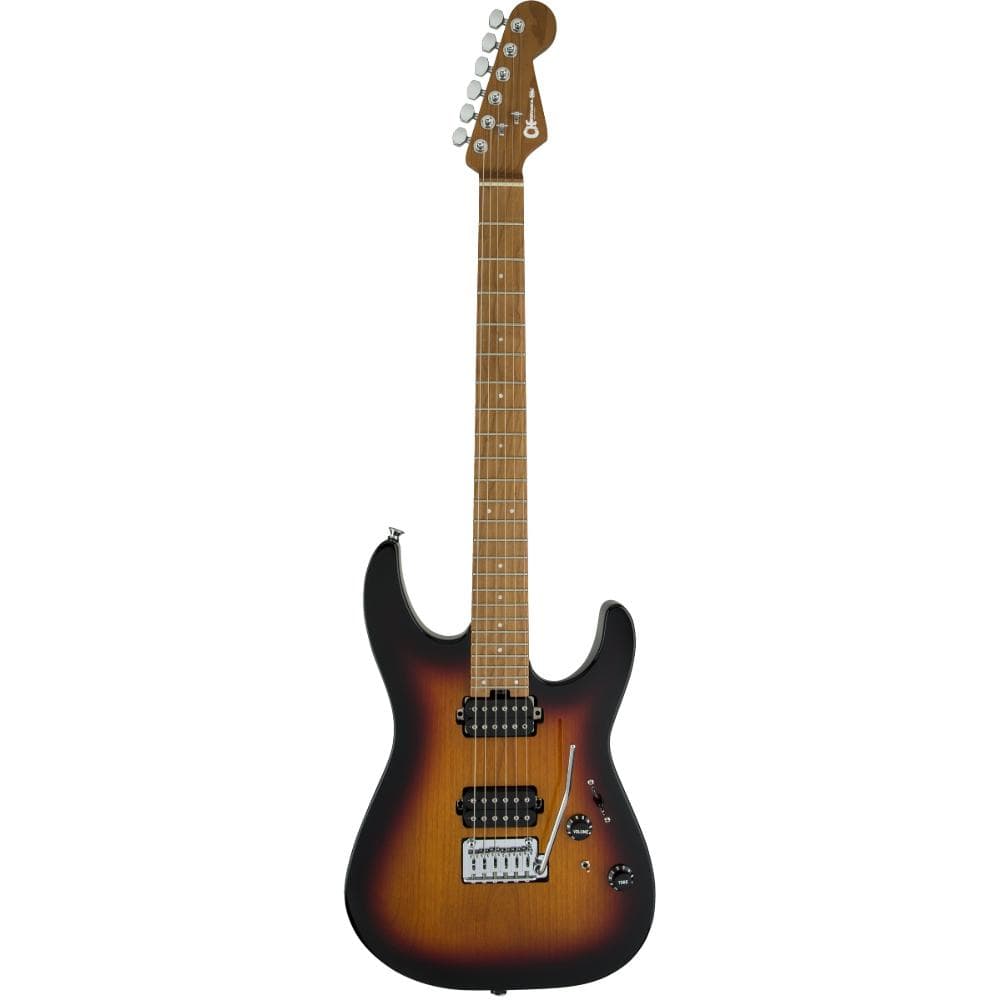

Charvel® turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM, a brazen instrument for the progressive guitarist searching for an unparalleled spectrum of sound.

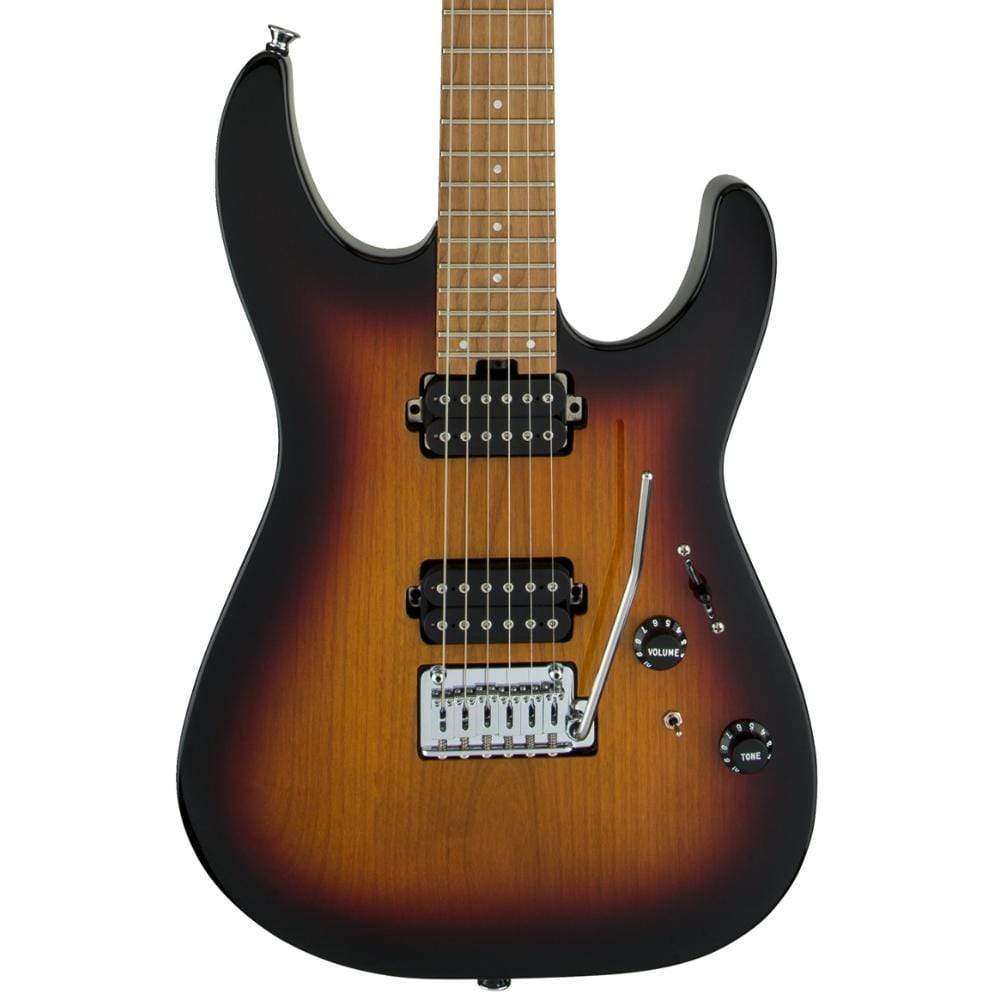

Featuring a sculpted shredder’s cut heel and a scalloped lower back bout for easy upper access to the fingerboard, the alder body in the classic Dinky™ style is cloaked in a 3-Tone Sunburst finish.

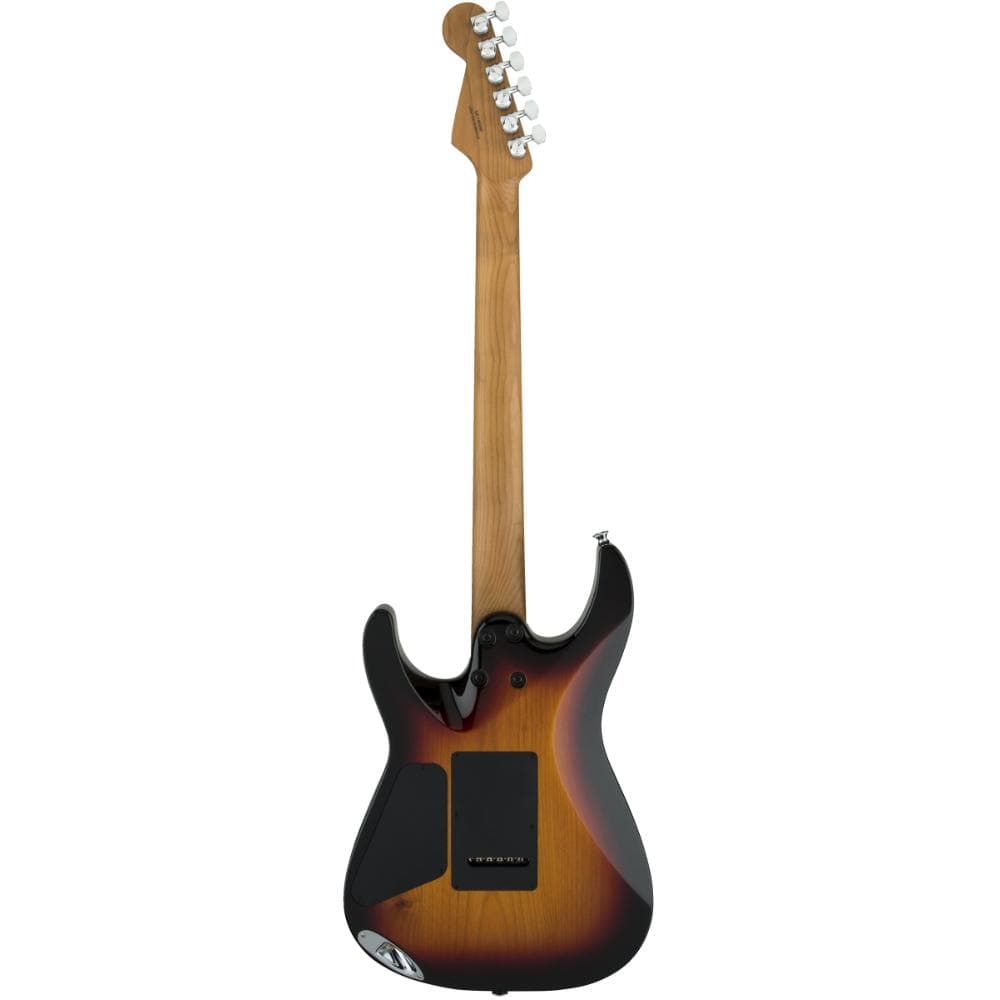

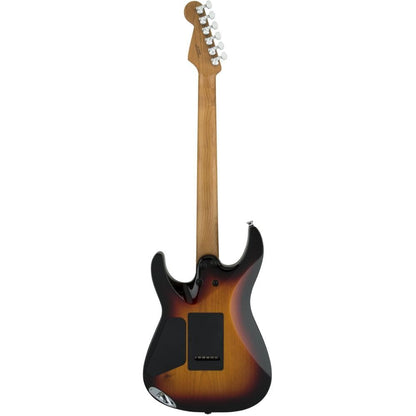

The bolt-on caramelized maple “speed” neck has graphite reinforcement, silky-smooth hand-rubbed urethane back finish, heel-mount truss rod adjustment wheel and Luminlay® side dots. Its 12”-16” compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.
Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this axe features an HH pickup configuration consisting of a direct mount Custom Seymour Duncan® Full Shred SH-10B bridge pickup and direct mount Seymour Duncan® Alnico II Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.
Blending sophisticated style with assertive tone, the DK24 HH 2PT CM also offers premium modern features such as a five-way blade pickup switch, Stratocaster®- style skirt knobs for the volume (with 500K EVH® Bourns® low-friction potentiometer) and no-load tone controls, Gotoh® Custom 510 recessed tremolo bridge, locking tuners, chrome hardware and more.
Body Shape: Dinky™
Body Material: Alder
Body Finish: Gloss (598, 503), Satin (519, 534)
Neck Material: Caramelized Maple
Neck Construction: Bolt-On with Graphite Reinforcement
Neck Finish: Hand-Rubbed Urethane
Fingerboard: Caramelized Maple, 12”-16” Compound Radius (304.8 mm to 406.4 mm)
Frets: 24, Jumbo
Position Inlays: 4mm Pearloid Dot
Nut (Material/Width): Graph Tech® TUSQ® XL, 1.6875” (42.86 mm)
Headstock: Licensed Fender® Stratocaster®
Tuning Machines: Charvel®-Branded Die-Cast Locking
Scale Length: 25.5” (648 mm)
Truss Rod: Heel-Mount Truss Rod Adjustment Wheel
Bridge: Gotoh® Custom 510 Tremolo
Pickups: Seymour Duncan® Custom Full Shred™ SH-10B (Bridge), Seymour Duncan® Alnico II Pro APH-1N (Neck)
Pickup Switching: 5-Position Blade & 2-Way Mini Toggle: (Pos 1: Bridge Pickup, Pos 2: Both Outer Coils, Pos 3: Bridge & Neck Pickup, Pos 4: Both Inside Coils, Pos 5: Neck Pickup; 2-Way Mini Toggle Down/All Series; 2-Way Mini Toggle Up/All Parallel
Controls: Volume (with 500K EVH® Bourns® Low-Friction Potentiometer), No-Load Tone
Control Knobs: Strat®-Style Skirt
Hardware Finish: Chrome
