Description
Description

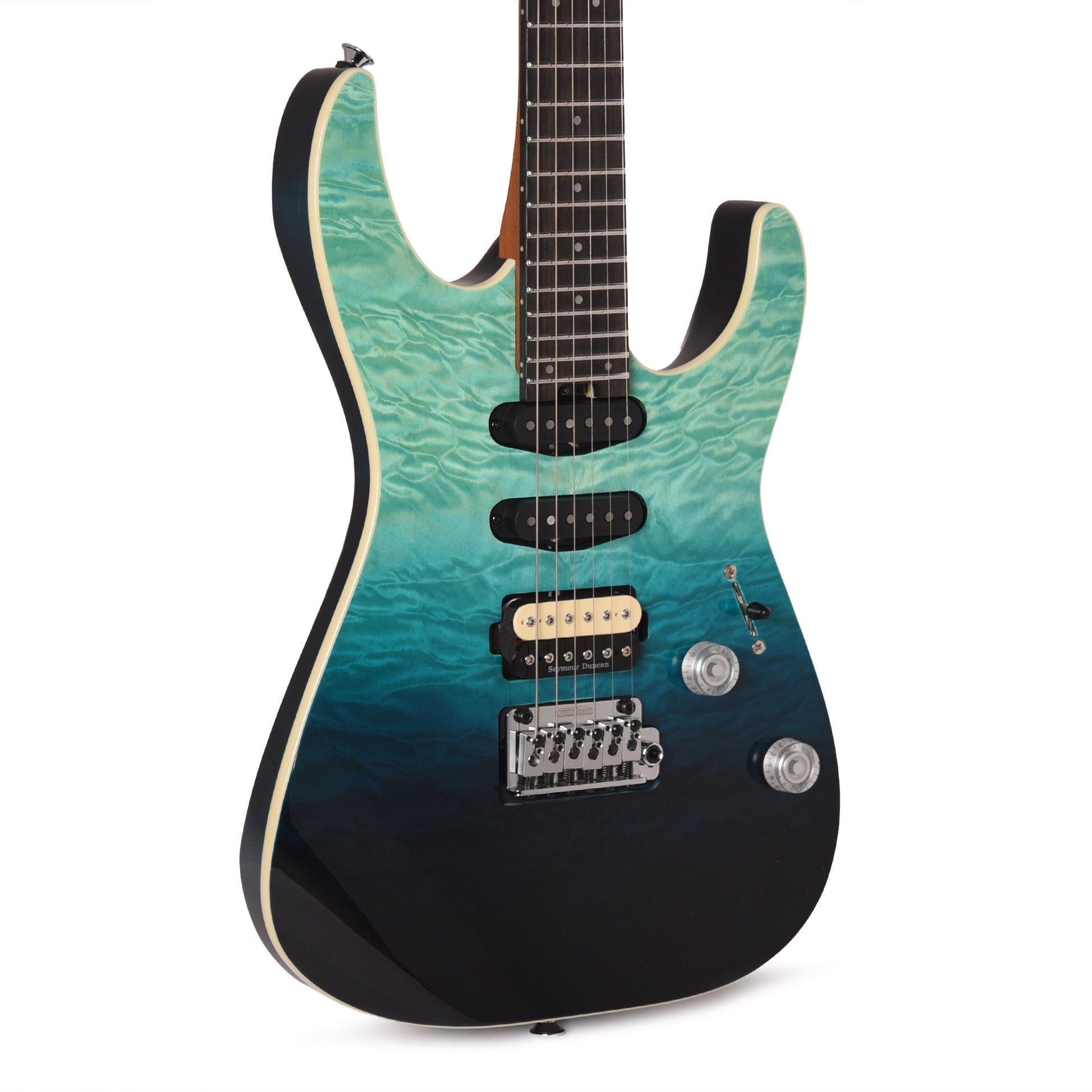

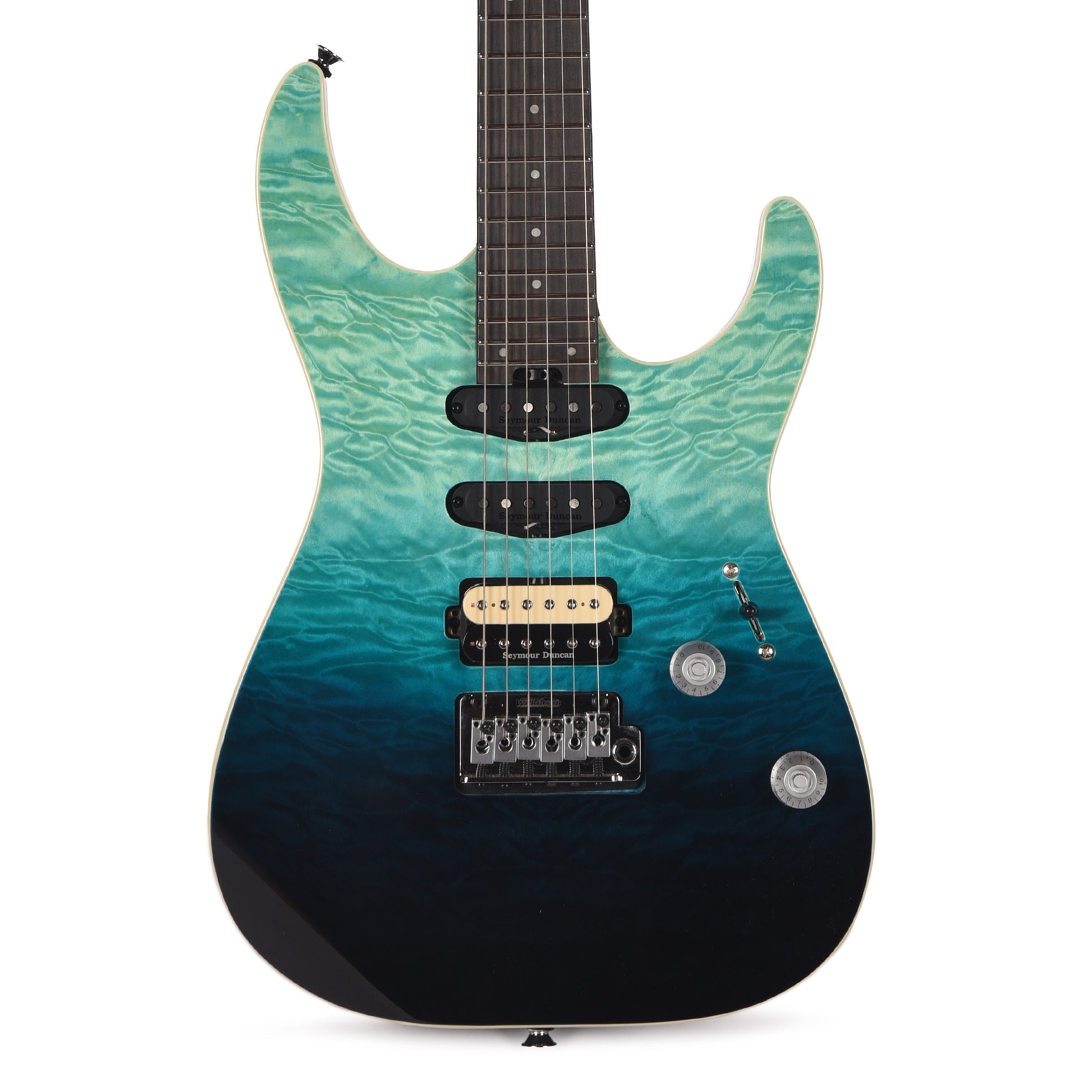

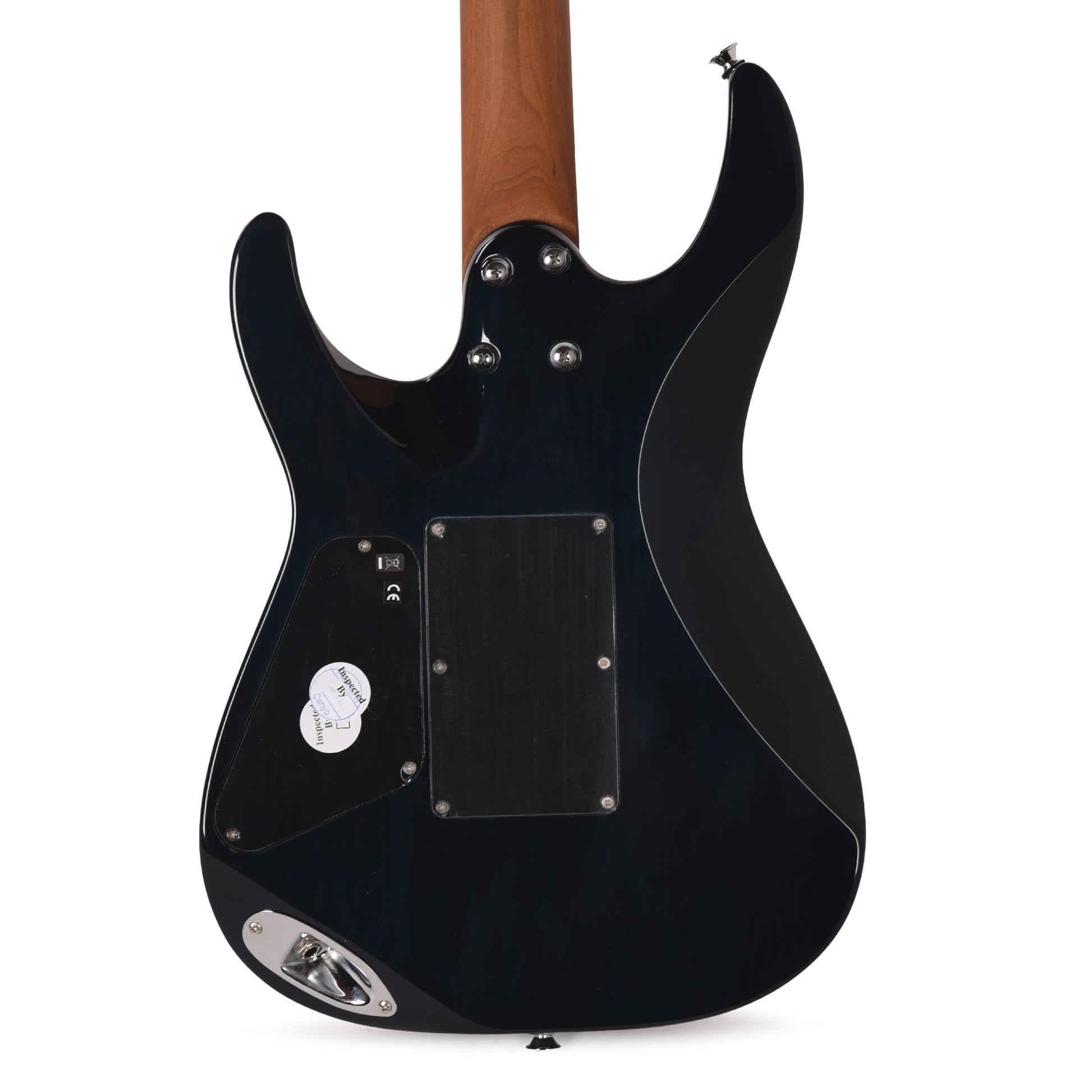

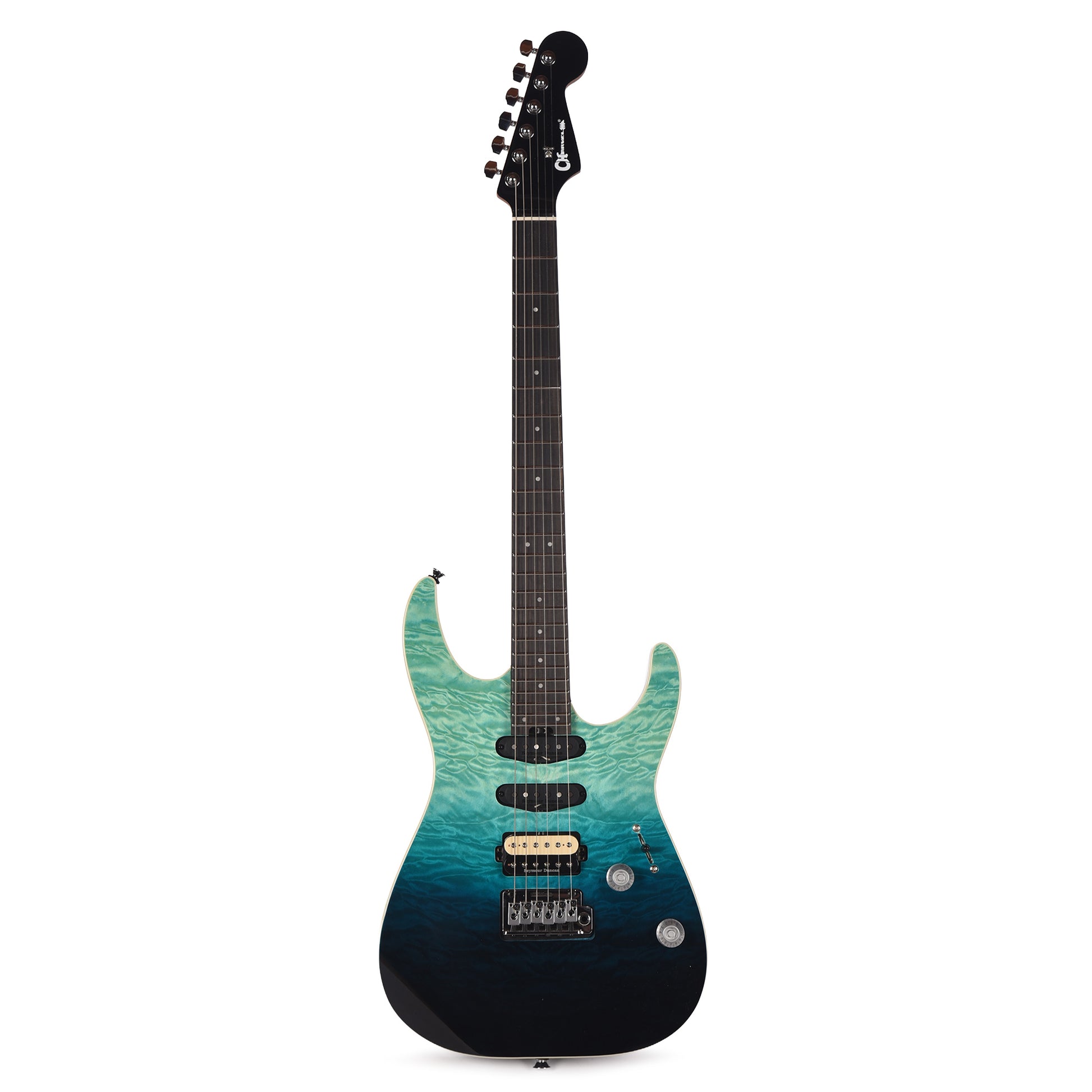

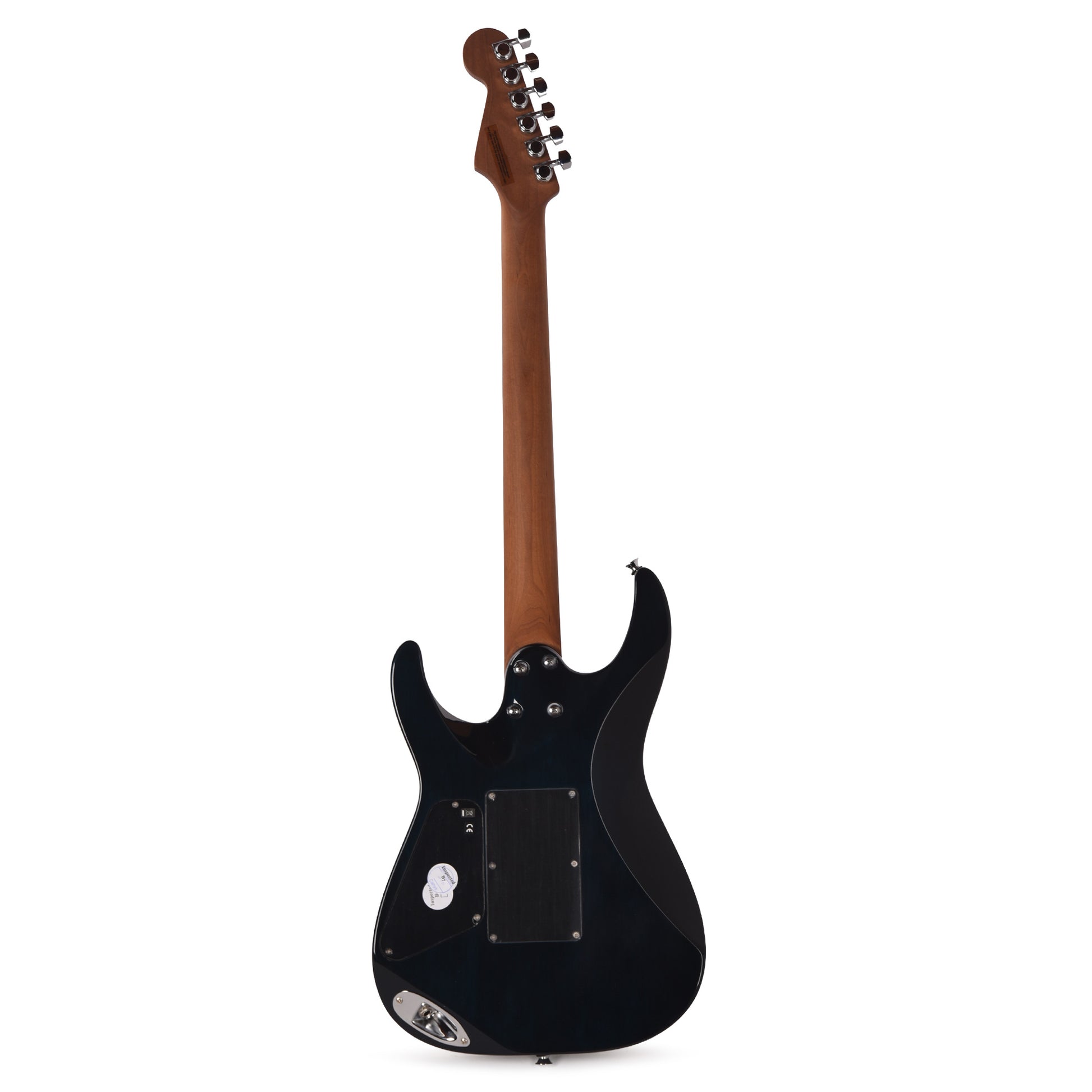

Loaded with premium features, this Pro-Mod Plus Dinky DK24 2PT HSS E QM model features a sleek Dinky body constructed from basswood with a quilt maple top, sculpted shredder’s cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on caramelized maple neck features graphite reinforcement for rock-solid stability, a satin natural finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12”-16” compound radius ebony fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets and Luminlay side-dots for enhanced visibility in low-light conditions.
This axe features an HSS pickup configuration consisting of a direct mount Seymour Duncan Full Shred TB-10 bridge pickup and direct mount Seymour Duncan Custom Flat Strat SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup ith plenty of focused humbucker grit and springy vintage snap.
Other premium modern features include a five-way blade pickup switch, speed knobs for the volume and no-load tone controls, Wilkinson recessed tremolo bridge with locking saddles, Charvel-branded die-cast locking tuners and more.
Blending sophisticated style with assertive tone, the Pro-Mod Plus Dinky DK24 2PT HSS E QM delivers premium performance and modern features.
Bullets
- 25.5" scale length
- Basswood Dinky body with quilt maple top
- Scalloped lower back bout
- Bolt-on maple neck with graphite reinforcement
- Sculpted shredder's cut heel
- 12"-16" compound radius ebony fingerboard with 24 jumbo stainless steel frets
- Heel-mount truss rod adjustment wheel
- Direct mount Seymour Duncan Full Shred TB-10 humbucking bridge and Seymour Duncan Custom Flat Strat SSL-6 middle and neck single-coil pickups
- Five-way blade switch, volume control and no-load tone control
- Wilkinson WVS130-2p tremolo bridge with locking saddles
- Charvel-branded die-cast locking tuners

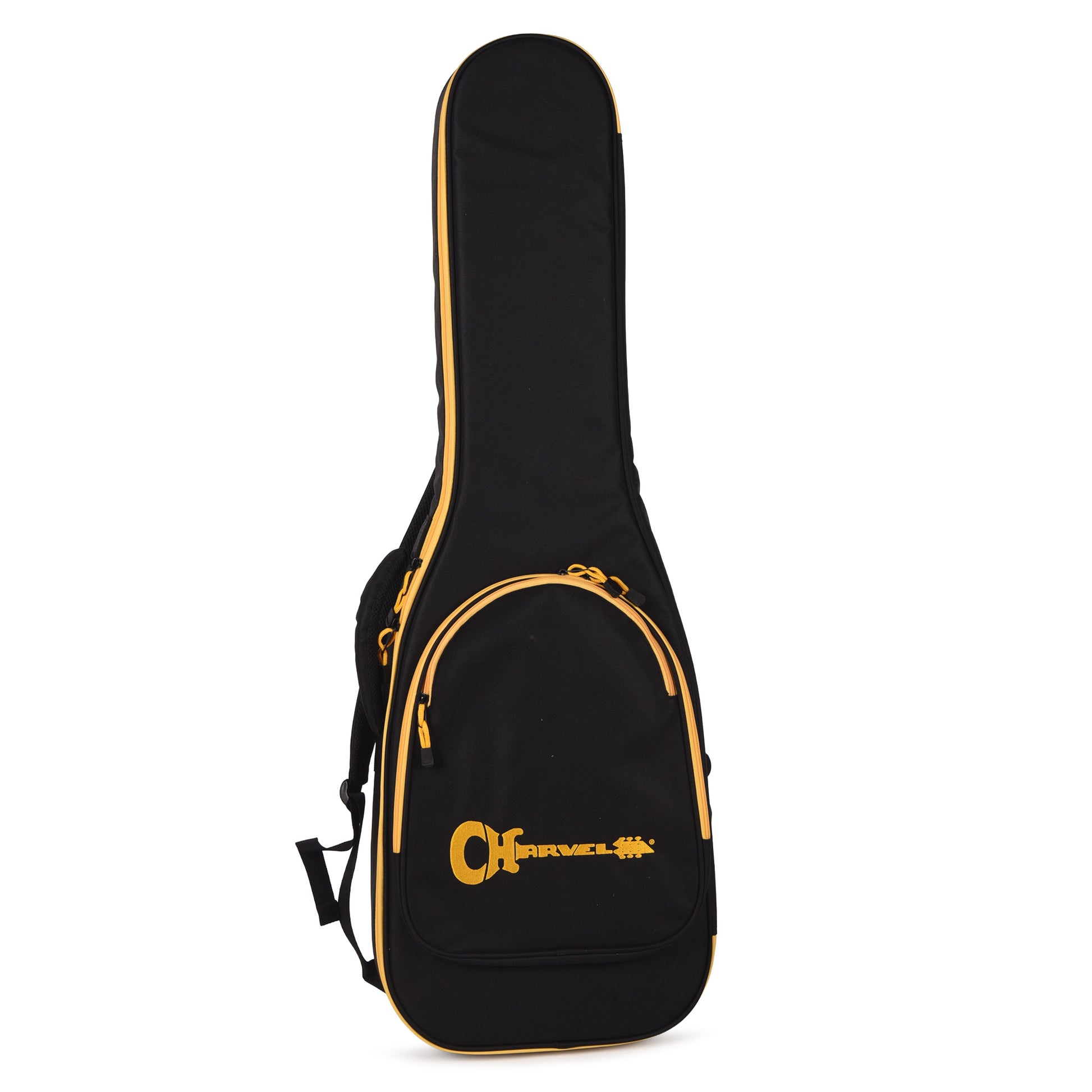

- Included deluxe gig bag
Specs
Specs
General
| Series: | Charvel Pro-Mod Plus |
| Product Color: | Blue Curaçao |
| Case Type: | Gig Bag Included |
| Factory Setup: | E Standard (E-A-D-G-B-E) |
Body
| Body Shape: | Dinky |
| Body Material: | Basswood |
| Body Finish: | Gloss |
| Top Material: | Quilt Maple |
Neck
| Neck Material: | Caramelized Maple |
| Neck Finish: | Natural Satin |
| Neck Tint/Color: | Natural Satin |
| Neck Shape: | Speed Neck with Rolled Fingerboard Edges |
| Fingerboard Material: | Ebony |
| Nut Material: | Graph Tech TUSQ XL |
| Nut Width: | 1.6875" (42.86mm) |
| Fingerboard Radius: | Compound 12-16" (304.8-406.4mm) |
| Scale Length: | 25.5" (648mm) |
| Number of Frets: | 24 Frets |
| Neck Joint: | Bolt-On with Graphite Reinforcement |
| Fingerboard Inlay: | 4mm Pearloid Dot |
| Inlay Shape: | Dots |
| Side Marker Inlay: | Luminlay |

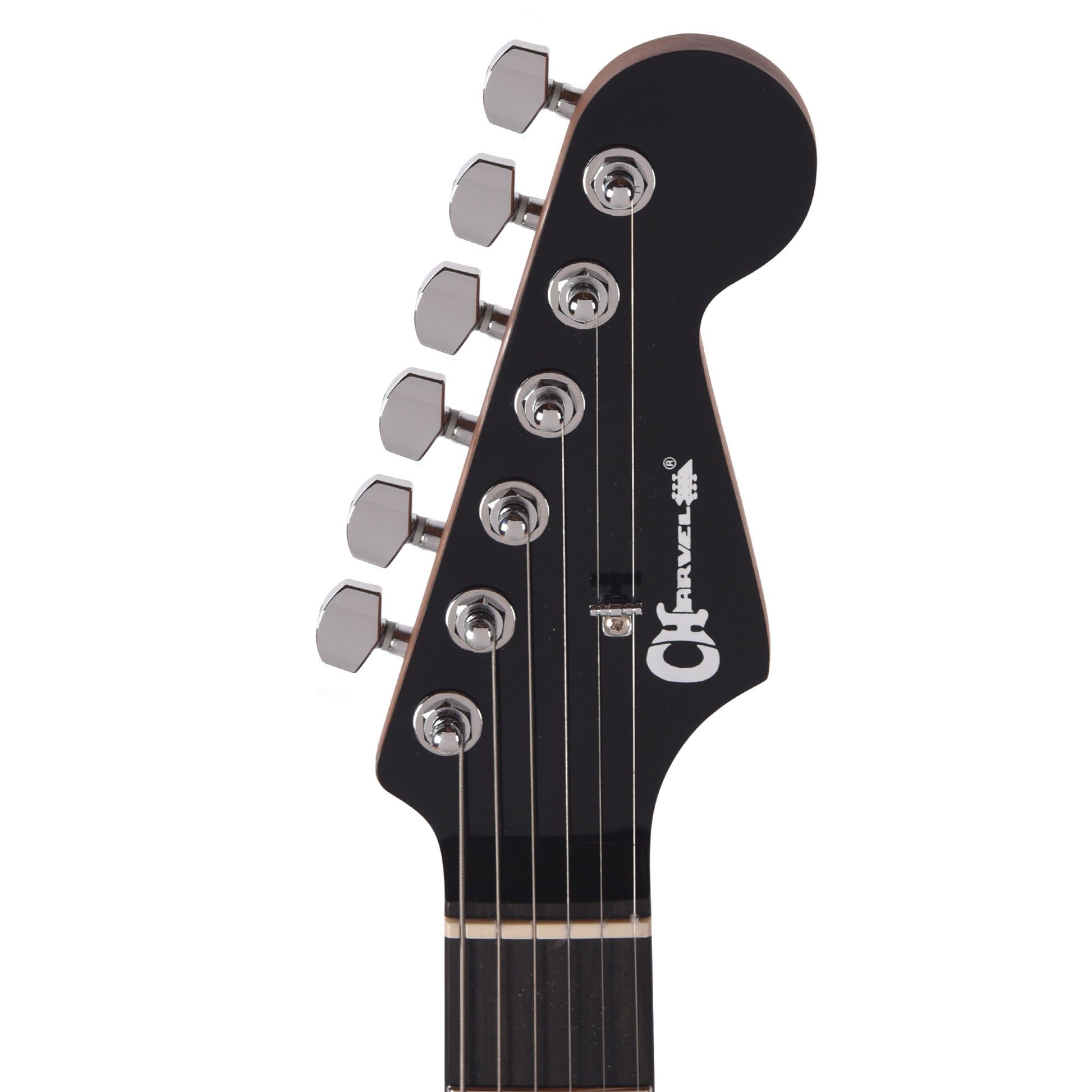

| Headstock Inlay/Decal: | Licensed Fender Stratocaster |
Electronics
| Bridge Pickup: | Seymour Duncan Full Shred TB-10 |
| Middle Pickup: | Seymour Duncan Custom Flat Strat SSL-6 Single-Coil |
| Neck Pickup: | Seymour Duncan Custom Flat Strat SSL-6 RWRP Single-Coil |
| Controls and Switching: | Volume (500K EVH Bourns Low Friction Pot), No-Load Tone |
| Electronics Notes: | 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup |
Hardware
| Hardware Color: | Chrome |
| Bridge: | Wilkinson WVS130-2P Tremolo |

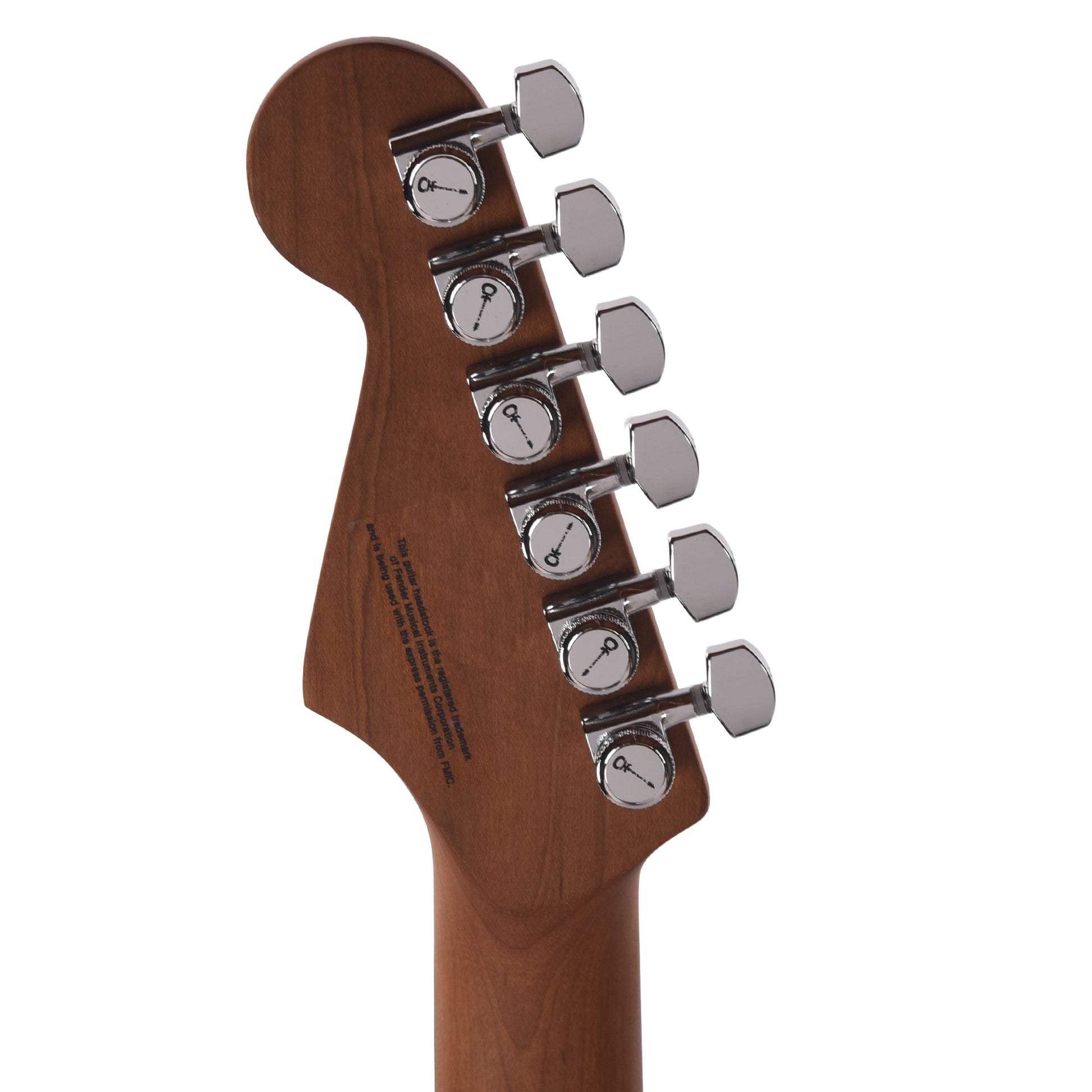

| Tuning Machines: | Charvel-Branded Die-Cast Locking |
| Fret Wire: | Jumbo Stainless Steel |
| Saddle: | Metal |
| Knobs: | Speed Knob |
