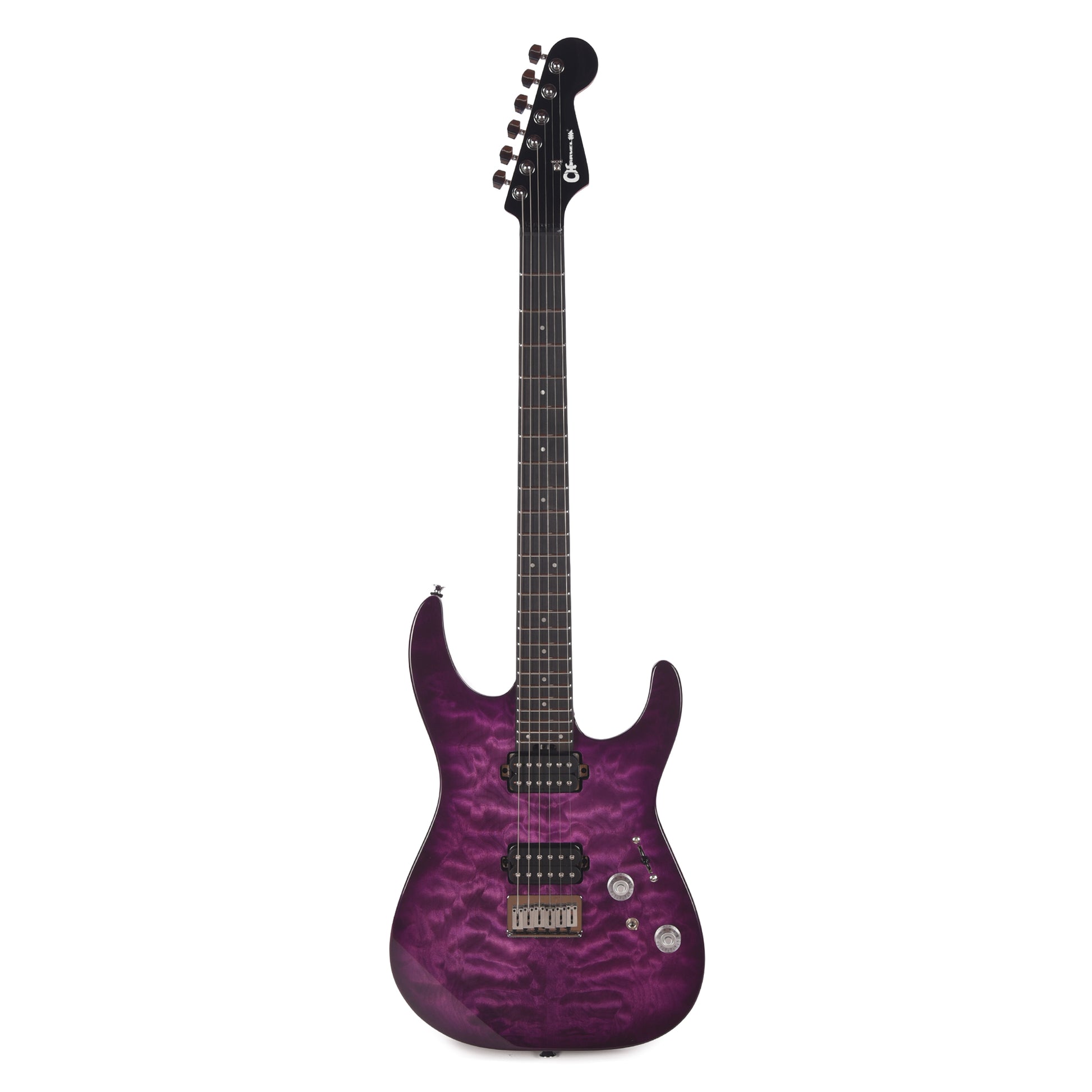

Loaded with premium features, this Pro-Mod Plus Dinky DK24 HT model features a sleek Dinky body constructed from basswood with a quilt maple top, sculpted shredder's cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on caramelized maple neck features graphite reinforcement for rock-solid stability, a satin natural finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets and Luminlay side-dots for enhanced visibility in low-light conditions.
This axe features an HH pickup configuration consisting of a direct mount Seymour Duncan Full Shred TB-10 bridge pickup and direct mount Seymour Duncan Alnico Pro II APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.
Other premium modern features include a five-way blade pickup switch, speed knobs for the volume and no-load tone controls, Charvel HT6 string-through-body hardtail bridge, Charvel-branded die-cast locking tuners and more.
Blending sophisticated style with assertive tone, the Pro-Mod Plus Dinky DK24 HT HH E delivers premium performance and modern features.
Bullets
- 25.5" scale length
- Basswood Dinky body with quilt maple top
- Scalloped lower back bout
- Bolt-on maple neck with graphite reinforcement
- Sculpted shredder's cut heel
- 12"-16" compound radius ebony fingerboard with 24 jumbo stainless steel frets
- Heel-mount truss rod adjustment wheel
- Direct mount Seymour Duncan Full Shred TB-10 humbucking bridge and Seymour Duncan Alnico II Pro APH-1N humbucking neck pickups
- Five-way blade switch, volume control and no-load tone control
- Charvel HT6 string-through-body hardtail bridge

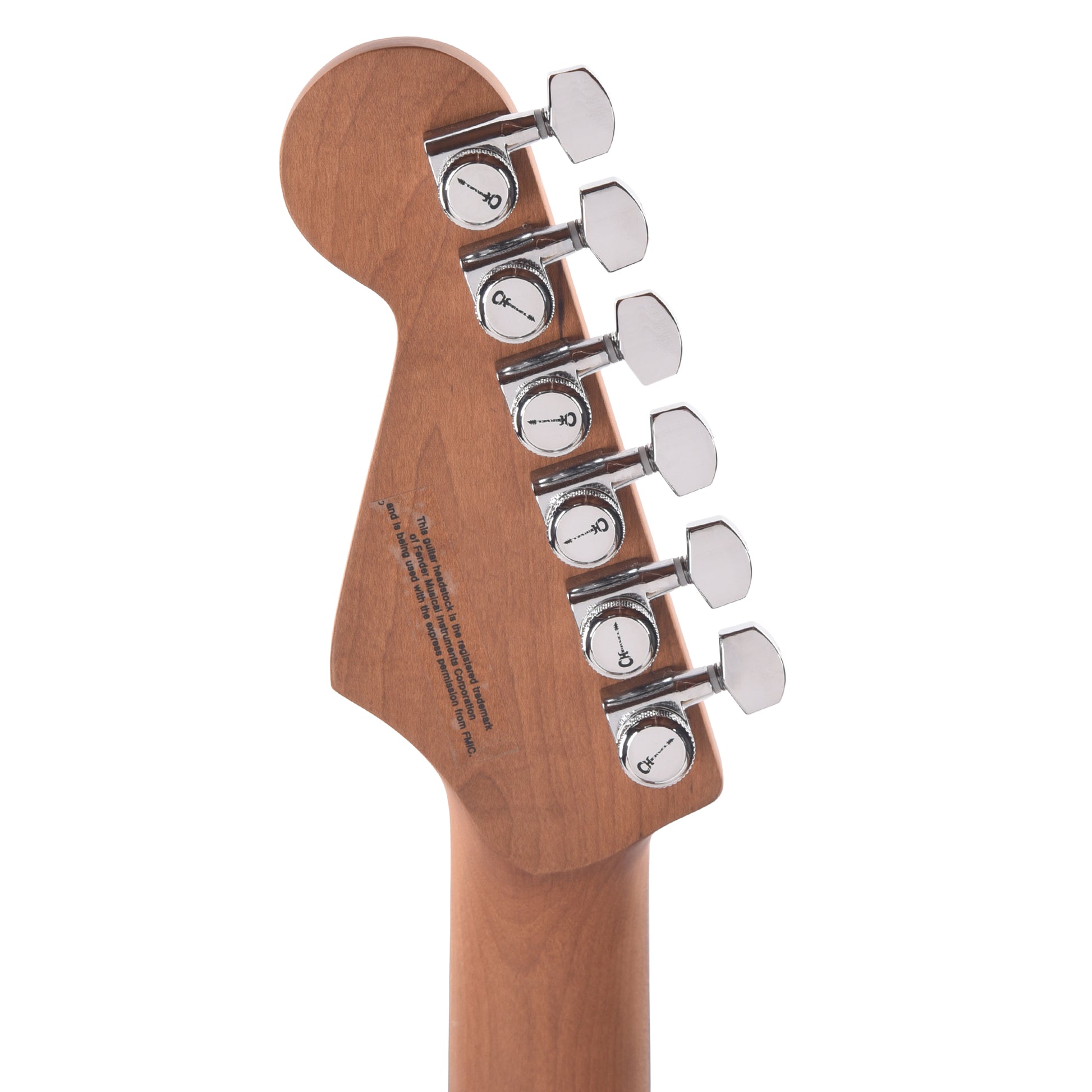

- Charvel-branded die-cast locking tuners

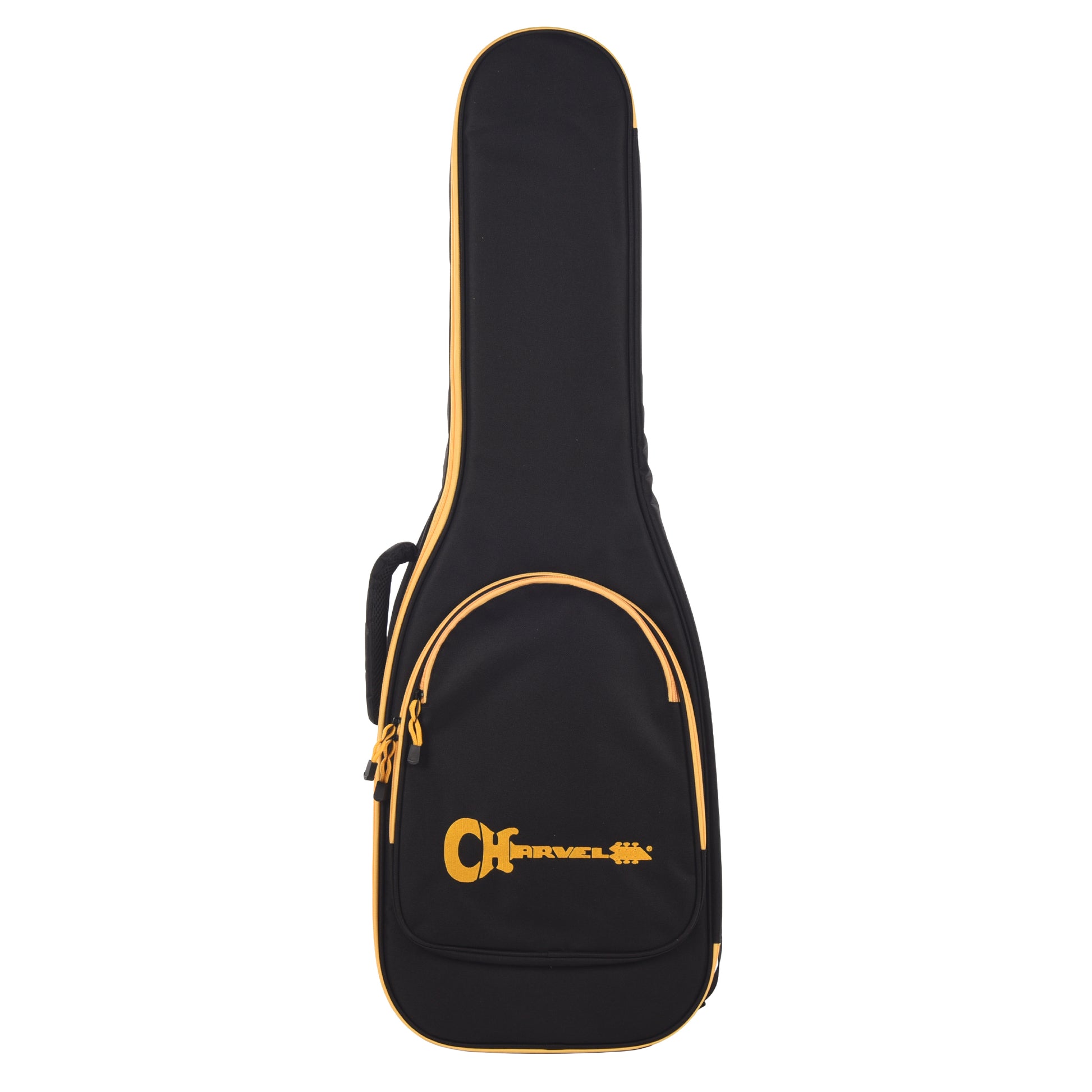

- Included deluxe gig bag
Specs
Specs
General
| Series: | Charvel Pro-Mod Plus |
| Product Color: | Violet Radiance |
| Case Type: | Gig Bag Included |
| Factory Setup: | E Standard (E-A-D-G-B-E) |
Body
| Body Shape: | Dinky |
| Body Material: | Basswood |
| Body Finish: | Gloss |
| Top Material: | Quilt Maple |
Neck
| Neck Material: | Caramelized Maple |
| Neck Finish: | Natural Satin |
| Neck Tint/Color: | Natural Satin |
| Neck Shape: | Speed Neck with Rolled Fingerboard Edges |
| Fingerboard Material: | Ebony |
| Nut Material: | Graph Tech TUSQ XL |
| Nut Width: | 1.6875" (42.86mm) |
| Fingerboard Radius: | Compound 12-16" (304.8-406.4mm) |
| Scale Length: | 25.5" (648mm) |
| Number of Frets: | 24 Frets |
| Neck Joint: | Bolt-On with Graphite Reinforcement |
| Fingerboard Inlay: | 4mm Pearloid Dot |
| Inlay Shape: | Dots |
| Side Marker Inlay: | Luminlay |
| Headstock Inlay/Decal: | Licensed Fender Stratocaster |
Electronics
| Bridge Pickup: | Seymour Duncan Full Shred TB-10 |
| Neck Pickup: | Seymour Duncan Alnico II Pro APH-1N |
| Controls and Switching: | Volume (500K EVH Bourns Low Friction Pot), No-Load Tone; 2-Position Mini Toggle Down/All Series, Up/All Parallel |
| Electronics Notes: | 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil, Position 3. Both Inner Coils, Position 4. Neck Inner Coil, Position 5. Full Neck Pickup |
Hardware
| Hardware Color: | Chrome |
| Bridge: | Charvel HT6 String-Through-Body Hardtail |
| Tuning Machines: | Charvel-Branded Die-Cast Locking |
| Fret Wire: | Jumbo Stainless Steel |
| Saddle: | Metal |
| Knobs: | Speed Knob |
