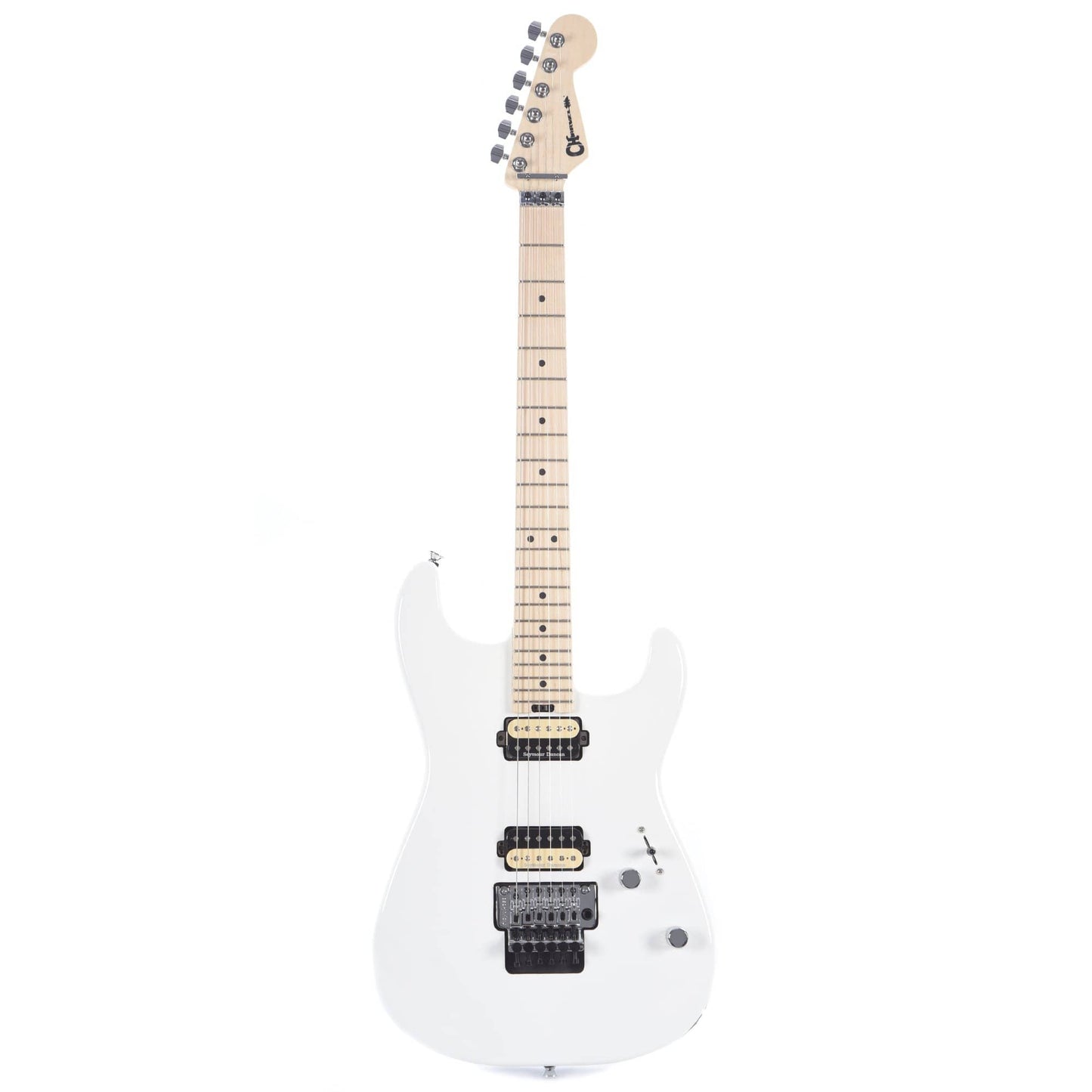

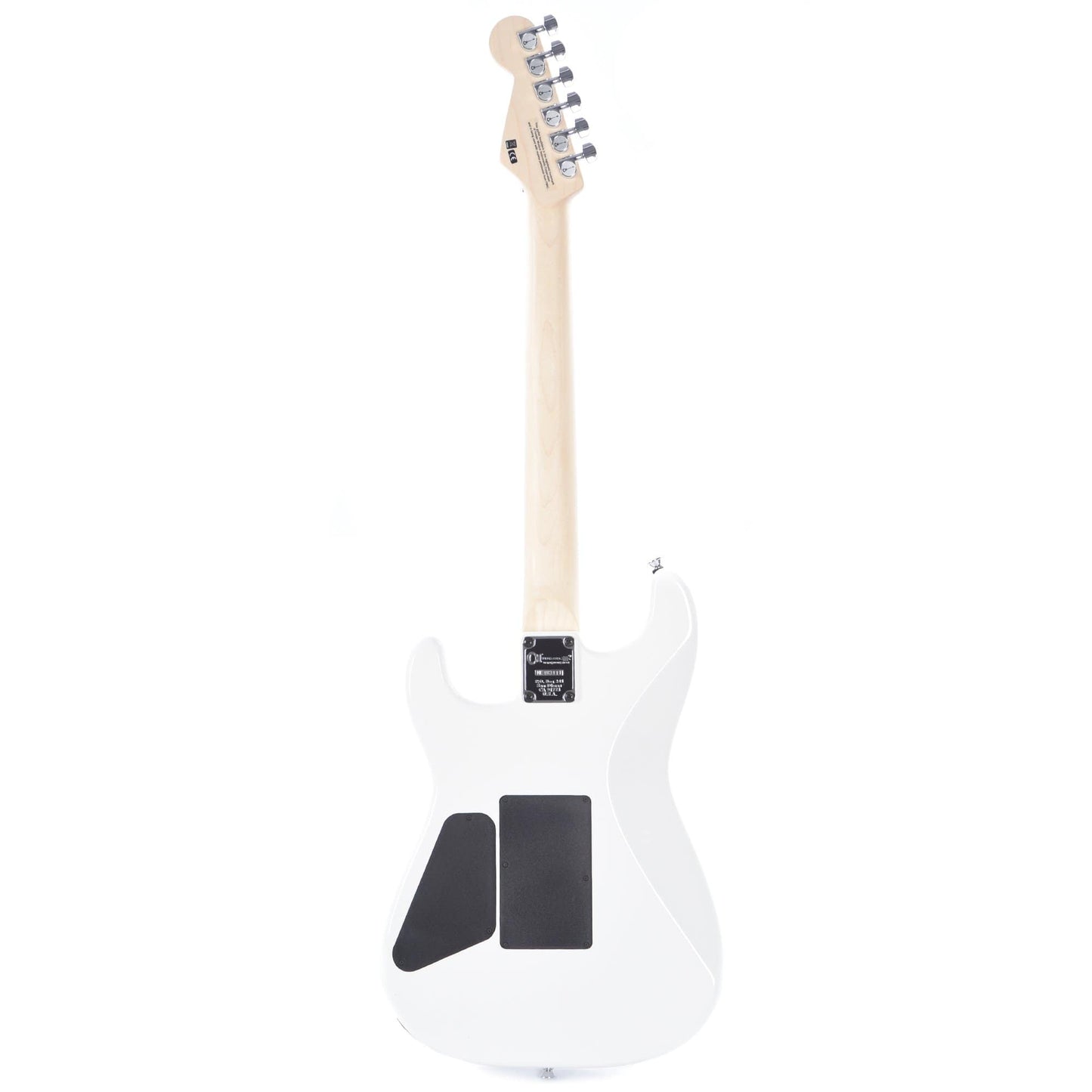

The Pro-Mod Series continues upon Charvel’s storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features for today's modern players. An ideal instrument for dazzling high-speed playing, the San Dimas® Style 1 HH FR M boasts scorching sound, stunning style and grin-inducing playing feel and performance.
Specs
Specs
General
| Product Color: | Snow White |
| Factory Setup: | .009-.042, E Standard (E-A-D-G-B-E) |

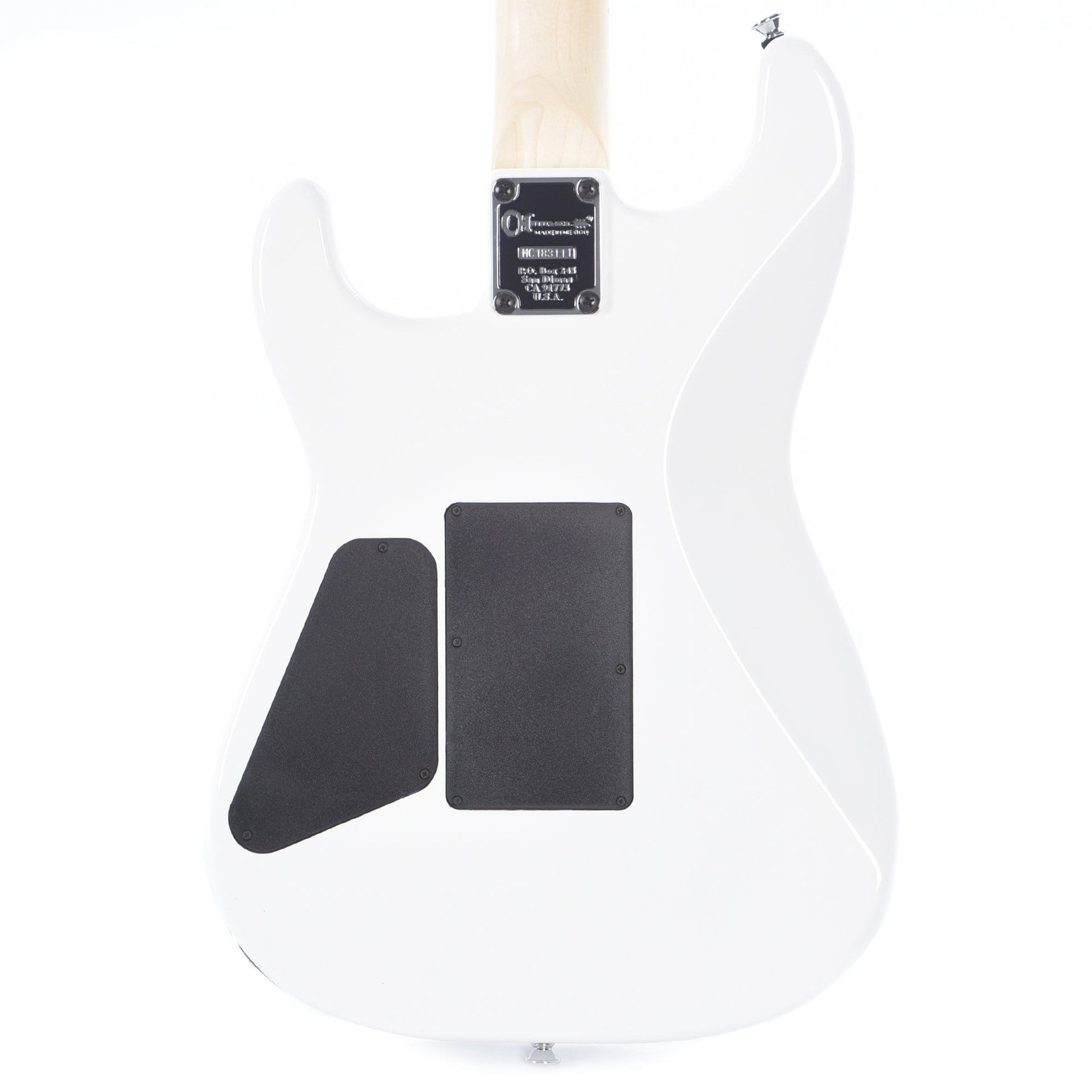

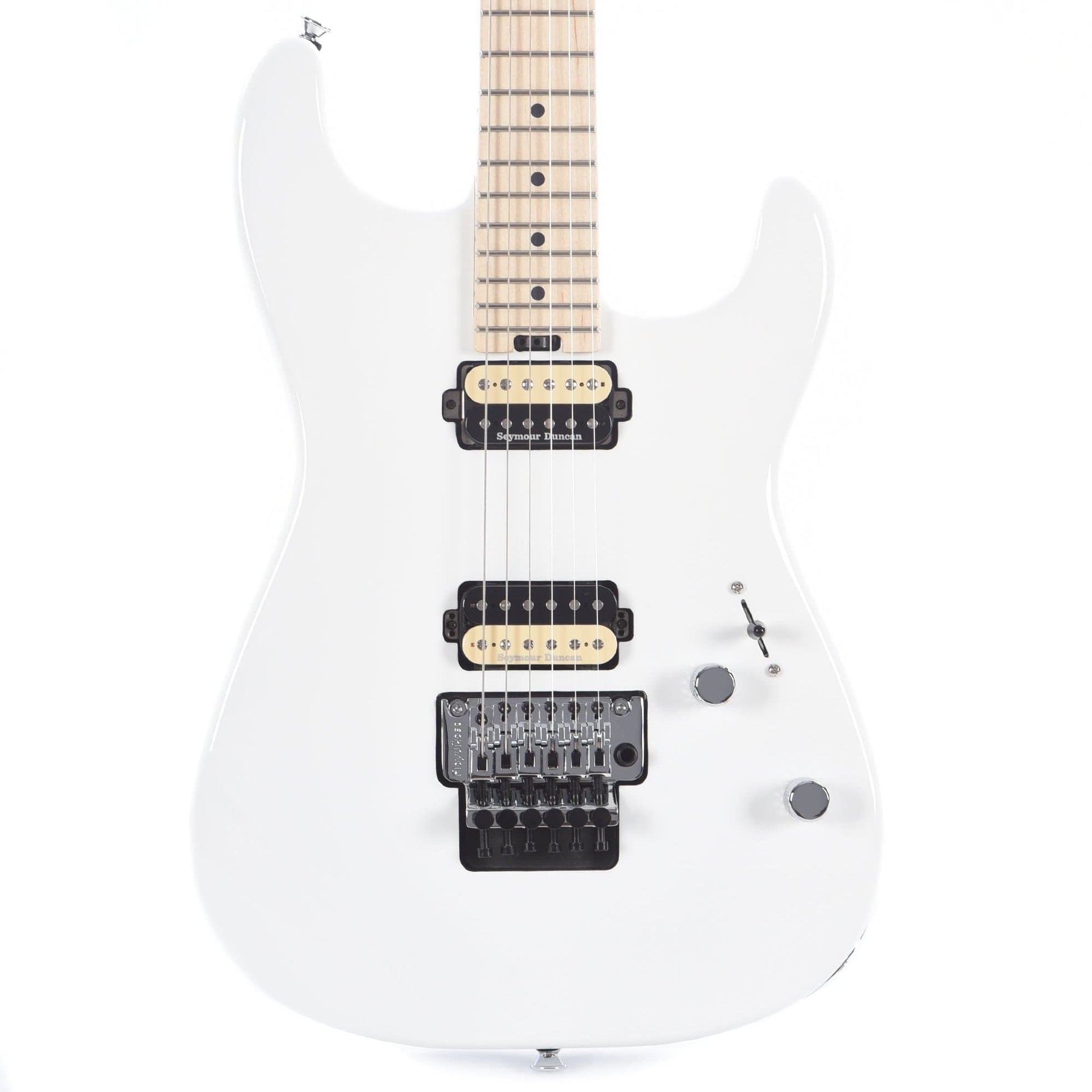

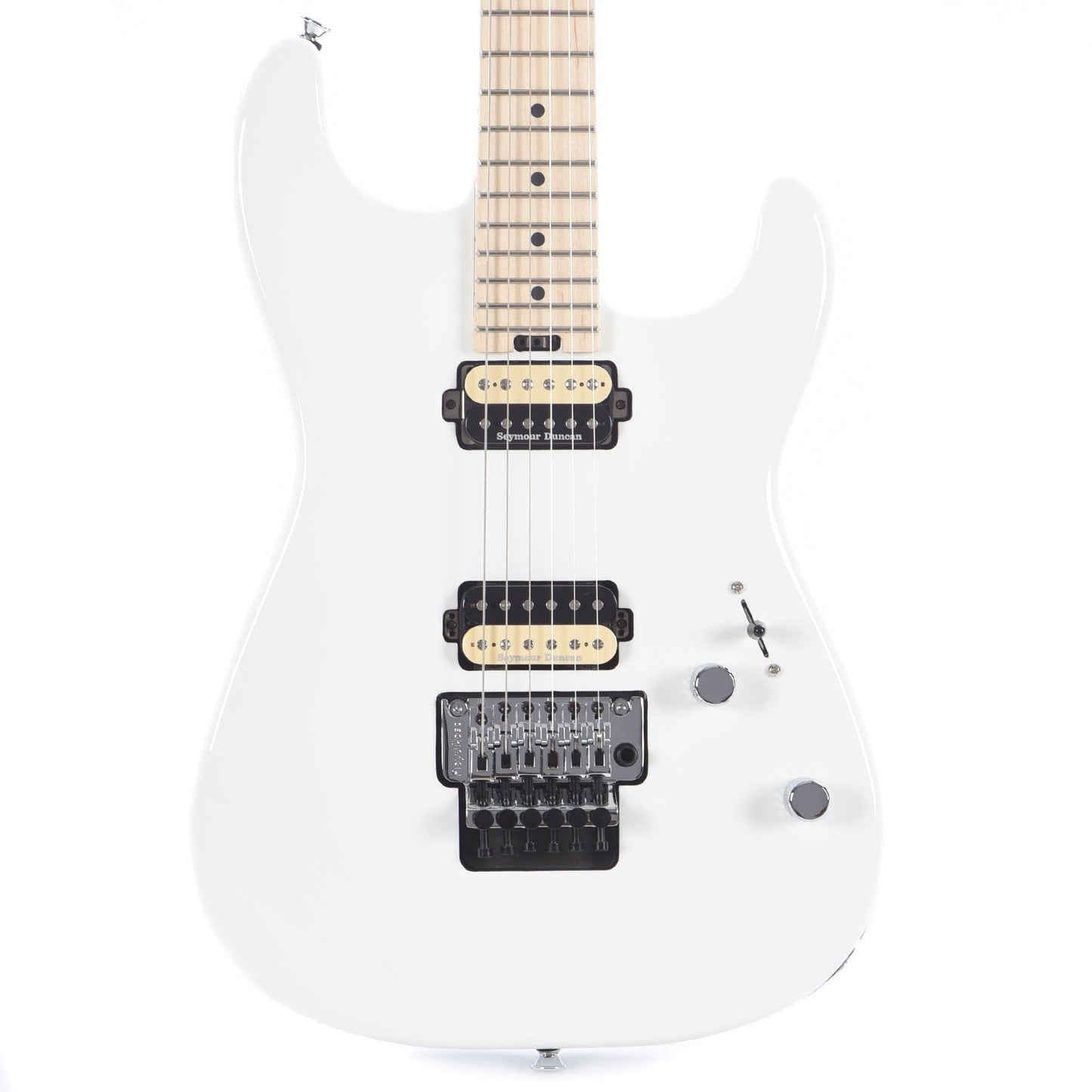

Body
| Body Shape: | San Dimas Style 1 |
| Body Material: | Alder |
| Body Finish: | Gloss |
Neck
| Neck Material: | Maple |
| Neck Finish: | Hand-Rubbed Satin Urethane |
| Neck Shape: | Speed Neck |
| Fingerboard Material: | Maple |
| Nut Material: | Floyd Rose 1000 Series Locking |
| Nut Width: | 1.6875" (42.86mm) |
| Fingerboard Radius: | Compound 12-16" (304.8-406.4mm) |
| Scale Length: | 25.5" (648mm) |
| Number of Frets: | 22 Frets |
| Neck Joint: | Bolt-On |
| Fingerboard Inlay: | Black Dots |
| Inlay Shape: | Dots |

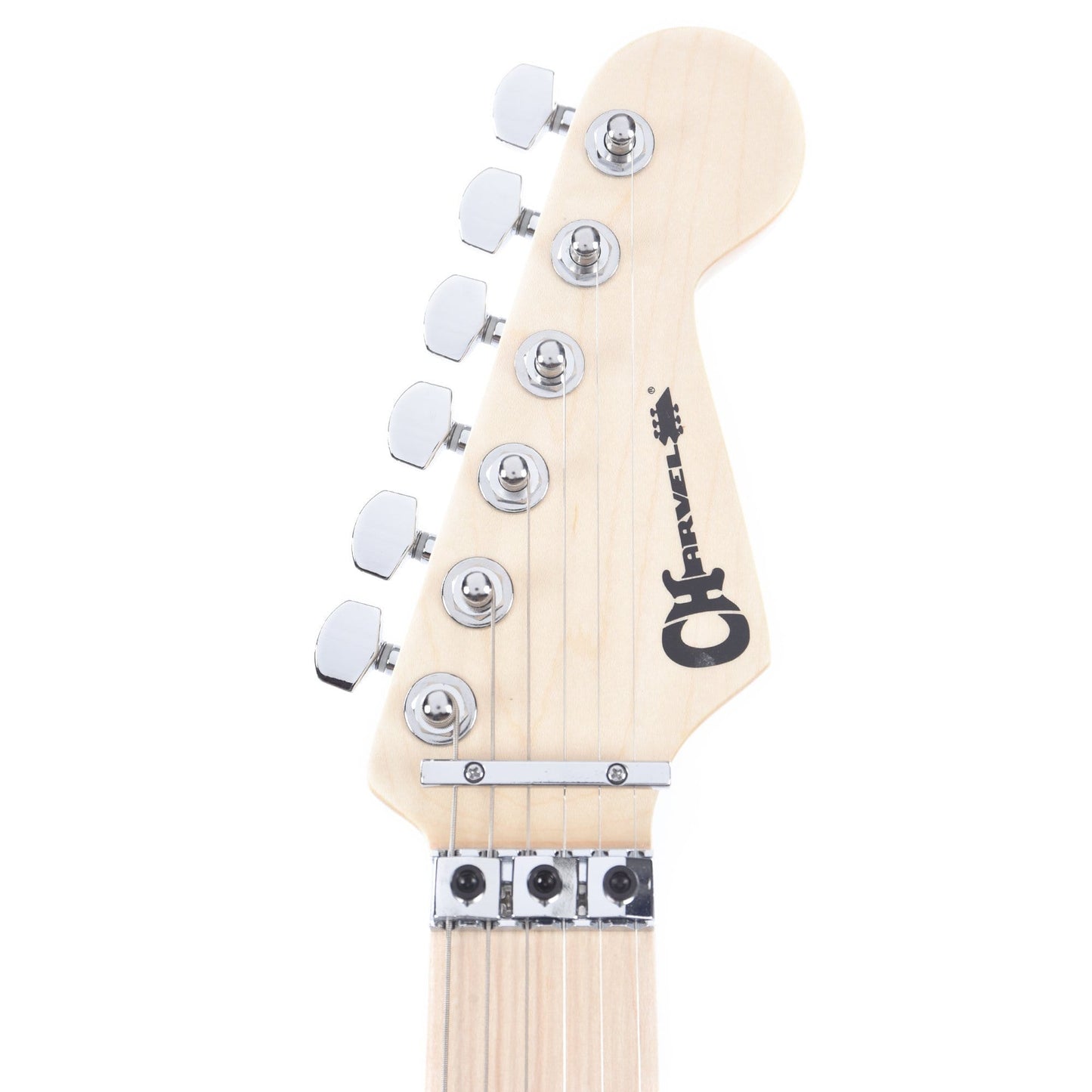

| Headstock Inlay/Decal: | Charvel Logo |

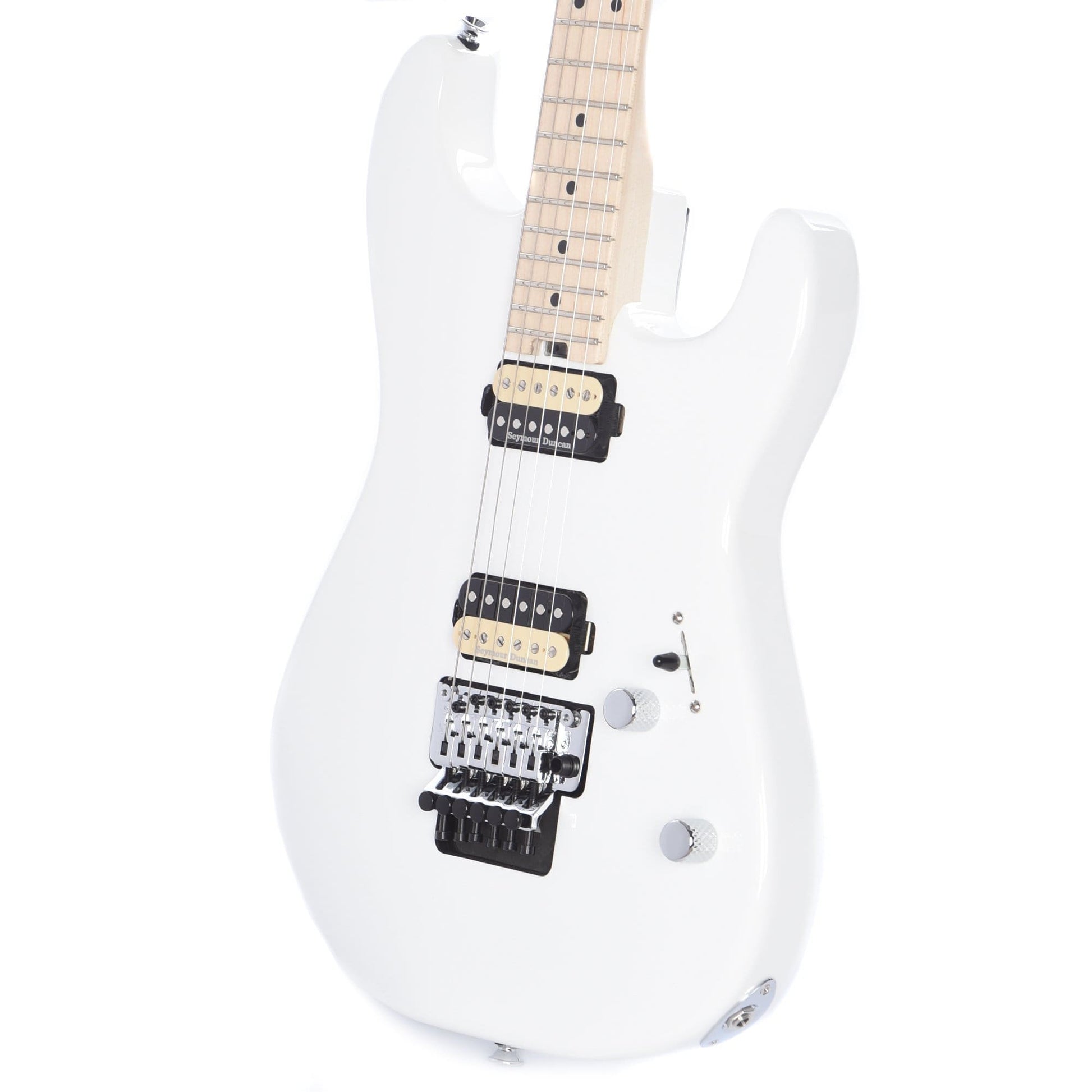

Electronics
| Bridge Pickup: | Seymour Duncan JB TB-4 |
| Neck Pickup: | Seymour Duncan '59 SH-1N |
| Controls and Switching: | Volume with Push/Pull Coil Split, No-Load Tone, 3-Position Blade |
| Electronics Notes: | Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil |
Hardware
| Hardware Color: | Chrome |
| Bridge: | Floyd Rose 1000 Series Double-Locking Tremolo, Recessed |

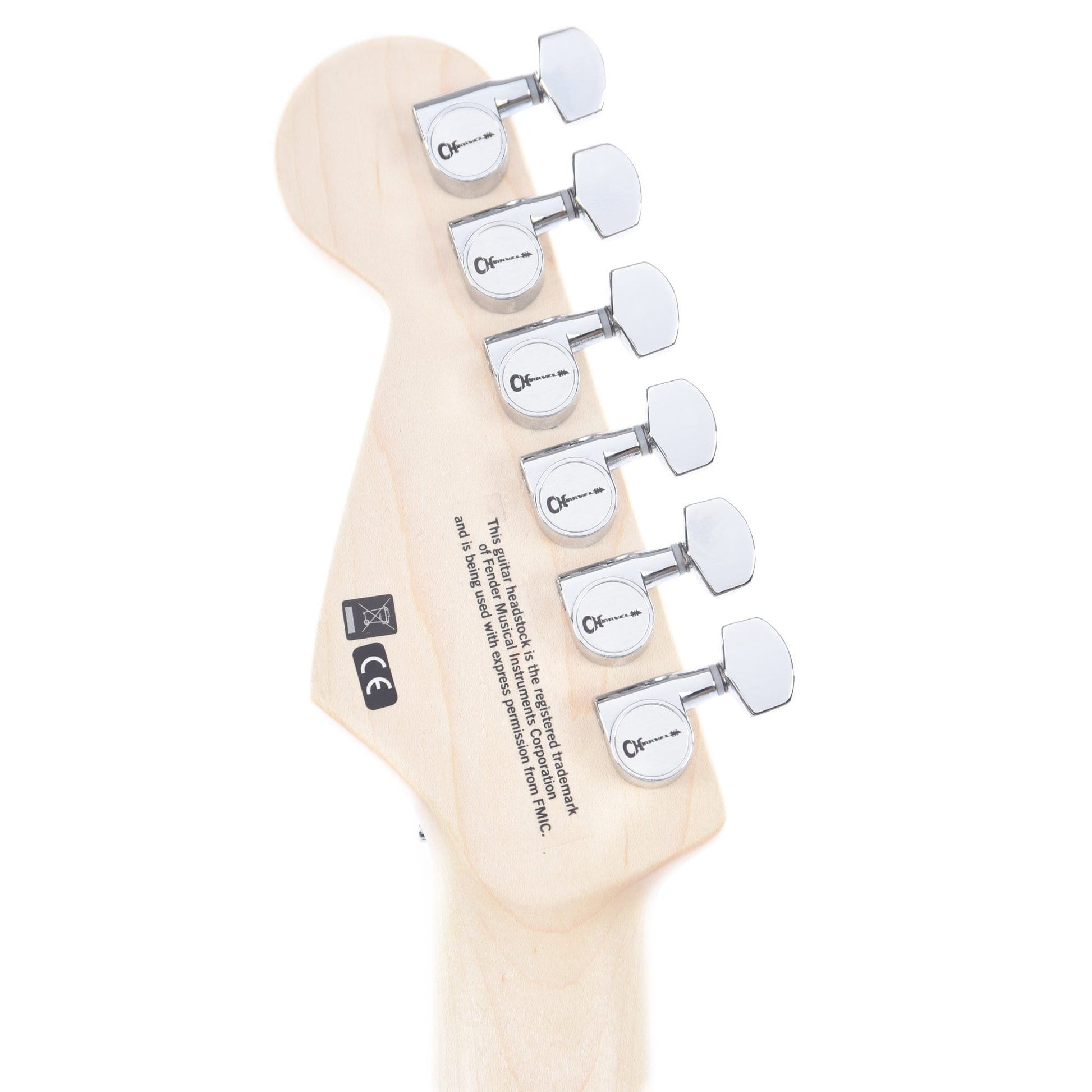

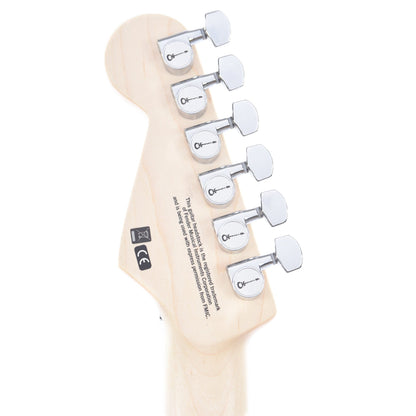

| Tuning Machines: | Charvel-Branded Die-Cast |
| String Tree: | Bar |
| Fret Wire: | Jumbo |
| Knobs: | Knurled Flat-Top |
| Switch Cap: | Black |
