Description
Description
This Bundle Includes:
From Dr. Scientist:
BoostBot
The BoostBot is an always-on, ultra-compact clean boost with dynamic, real-time level display meter. The boost circuit is a classic op amp design, a clean and loud amplifier that sounds great and provides 20dB of boost. Displaying the signal level is a classic 10 Segment Bar Graph LED. Like all Dr. Scientist pedals the BoostBot can be used with guitar, bass, synths, and many other instruments.
Features
Knobs
Operation
Additional Specs

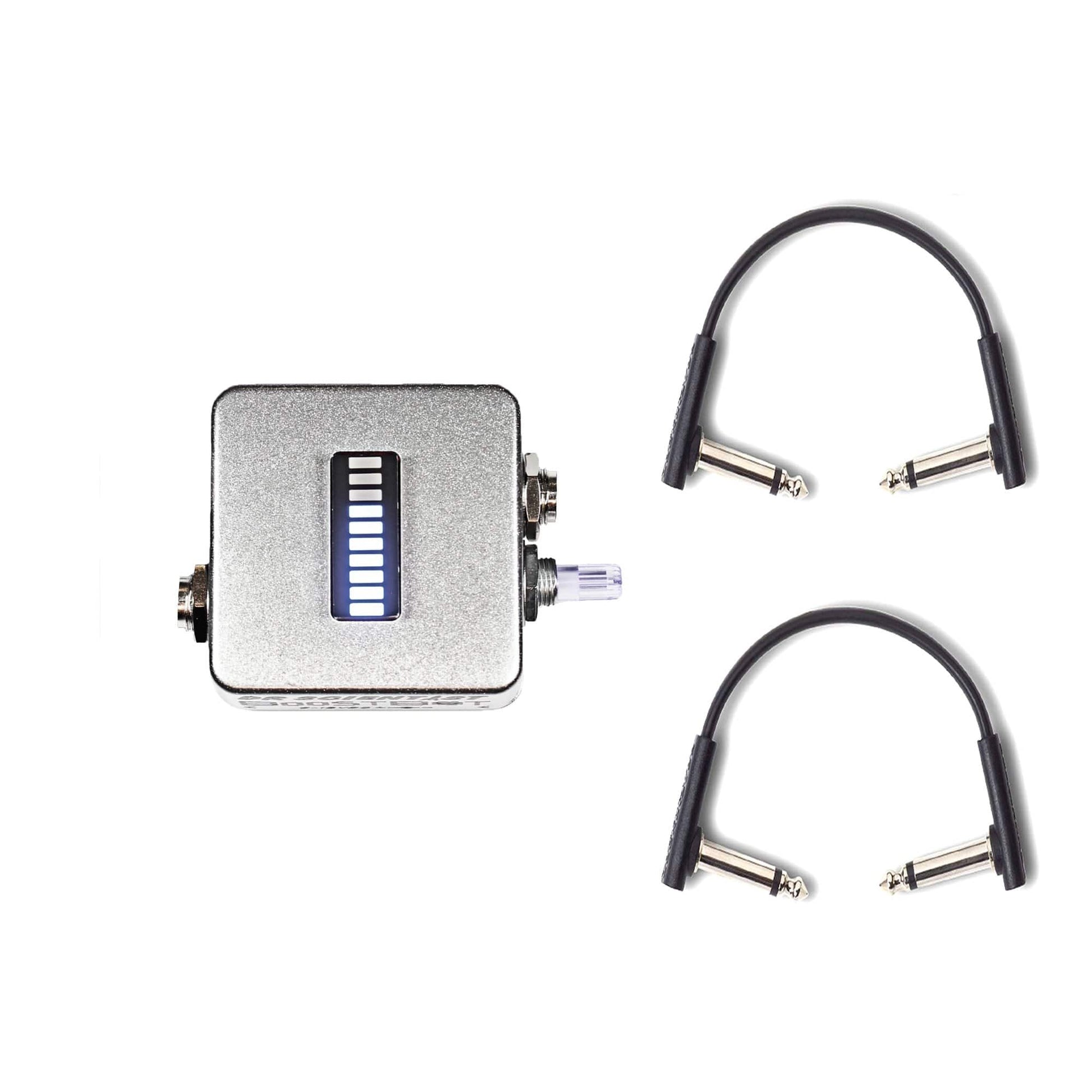

- Dr. Scientist Boost Bot
- Two RockGear RockBoard Flat Patch Cables; Black 10cm (3.94")
From Dr. Scientist:
BoostBot
The BoostBot is an always-on, ultra-compact clean boost with dynamic, real-time level display meter. The boost circuit is a classic op amp design, a clean and loud amplifier that sounds great and provides 20dB of boost. Displaying the signal level is a classic 10 Segment Bar Graph LED. Like all Dr. Scientist pedals the BoostBot can be used with guitar, bass, synths, and many other instruments.
Features
- 20dB of clean boost
- Bright Bar Graph LED to display your signal level
- Illuminated volume control
- Ultra-compact design
- Available in several different colours
- High quality analog signal path
- Premium parts and components throughout
- Designed and handmade in B.C., Canada
Knobs
- Volume– Sets the amount of boost, unity gain buffer when at minimum, 20dB of gain when at maximum
Operation
- 1MΩ input impedance, 1kΩ output impedance
- 75mA @ 9VDC, 150mA @ 18VDC, 2.1mm centre negative
- The BoostBot is always on
Additional Specs
- Mono input, mono output
- Dimensions: 73mm wide, 51mm long, 42mm tall (2.9” wide, 2.0” long, 1.7” tall)
