Elektron Analog Heat MKII Stereo Analog Sound Processor

Elektron Analog Heat MKII Stereo Analog Sound Processor

Brand New
  • $799.00
or

Description & Specs

From Elektron:

Add sparkly brilliance, or grimy roughness, to any sound source. Samplers, drum machines, synths, the master bus, you name it. Analog Heat MKII is a fiery furnace destined to make your music glow.

Sound better
Take a sound, any sound. Send it through the Analog Heat MKII, try out the eight different stereo analog distortion circuits, add stereo analog filtering and EQ, and hear beautiful things unfold. New life for your existing gear.

All analog, all yours
The eight stereo analog circuits are designed to quickly access varied and powerful sound shaping. Each circuit has a distinctive way of processing sound. Clean boost, tape-like saturation, tube amp-like enhancement, overdrive, crunch, distortion, harmonic fuzz or high gain? You’ll find your favorite flavor with ease.

Brighter and better
The MKII version of the Analog Heat features improved durability and precision encoders, new tough back-lit keys and a crisp OLED screen. The display is bigger, sharper and brighter: perfect for performing in the dark. There is also additional visual feedback on the Amp, Filter, Envelope and LFO pages that makes overview and understanding of sound processing and modulation a whole lot easier.

Sound processing
  • 8 × Stereo analog distortion circuits
  • 1 × Stereo analog multi-mode filter (7 filter types)
  • 1 × 2 band adaptable stereo analog EQ
  • 1 × Assignable envelope generator/envelope follower
  • 1 × Assignable LFO

Storage
  • 128 user preset slots

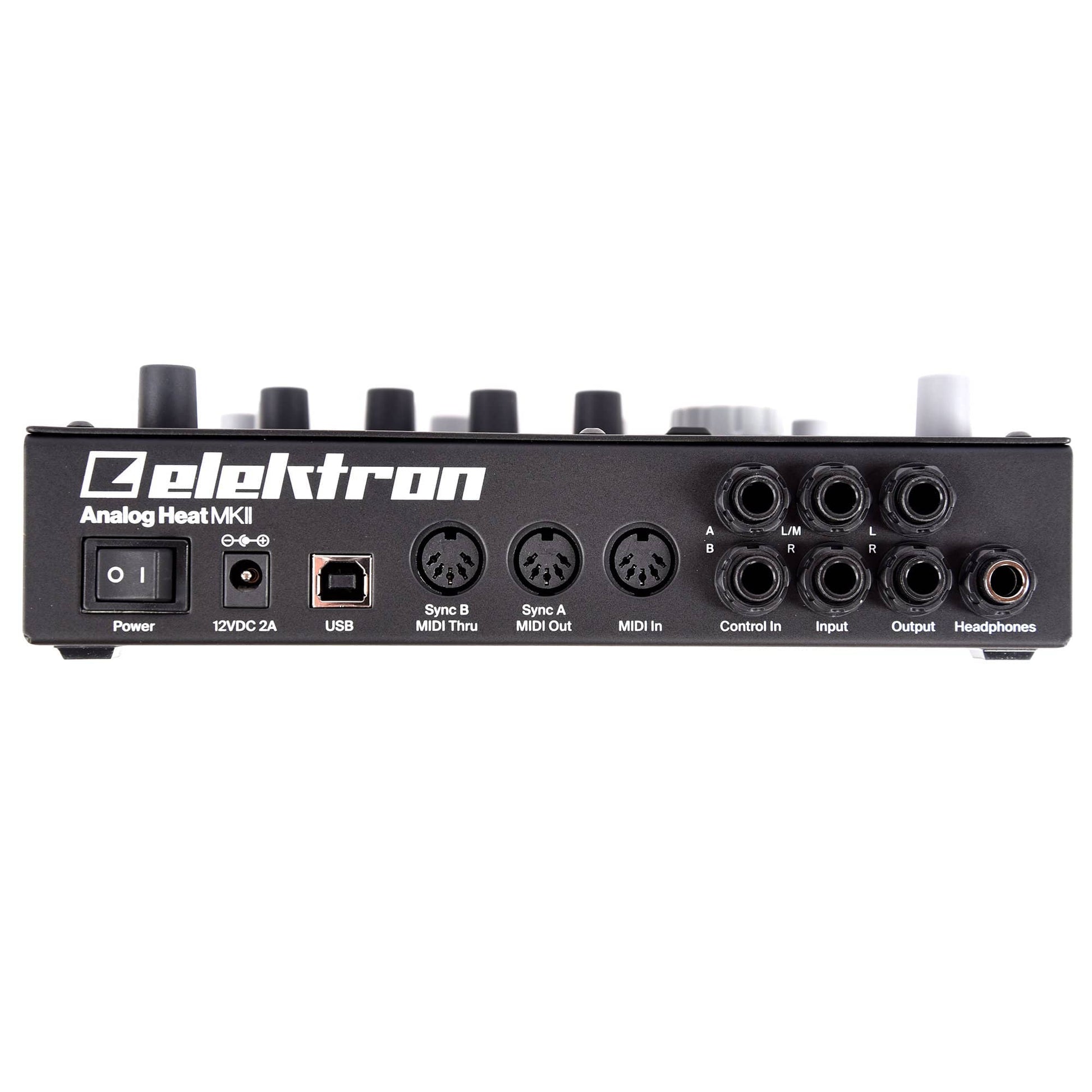

Hardware
  • 128×64 pixel OLED screen
  • MIDI In/Out/Thru with DIN Sync out
  • 2 × ¼″ balanced audio out jacks
  • 2 × ¼″ balanced audio in jacks
  • 1 × ¼″ stereo headphones jack
  • 2 × ¼″ CV/Expression pedal input jacks
  • 48 kHz, 24-bit D/A and A/D converters
  • Flash-EEPROM upgradable OS
  • Hi-speed USB 2.0 port

Audio outputs
  • Headphones out level: +19 dBu peak
  • Headphones output impedance: 36 Ω
  • Impedance balanced main outputs level: +19 dBu peak
  • Main outputs impedance: 440 Ω unbalanced

Audio inputs
  • Balanced audio input level: +19 dBu peak
  • Audio input impedance: 39 kΩ

Control inputs
  • Input level: -5 V – +5 V
  • Accepts CV, Expression pedals, Foot switches

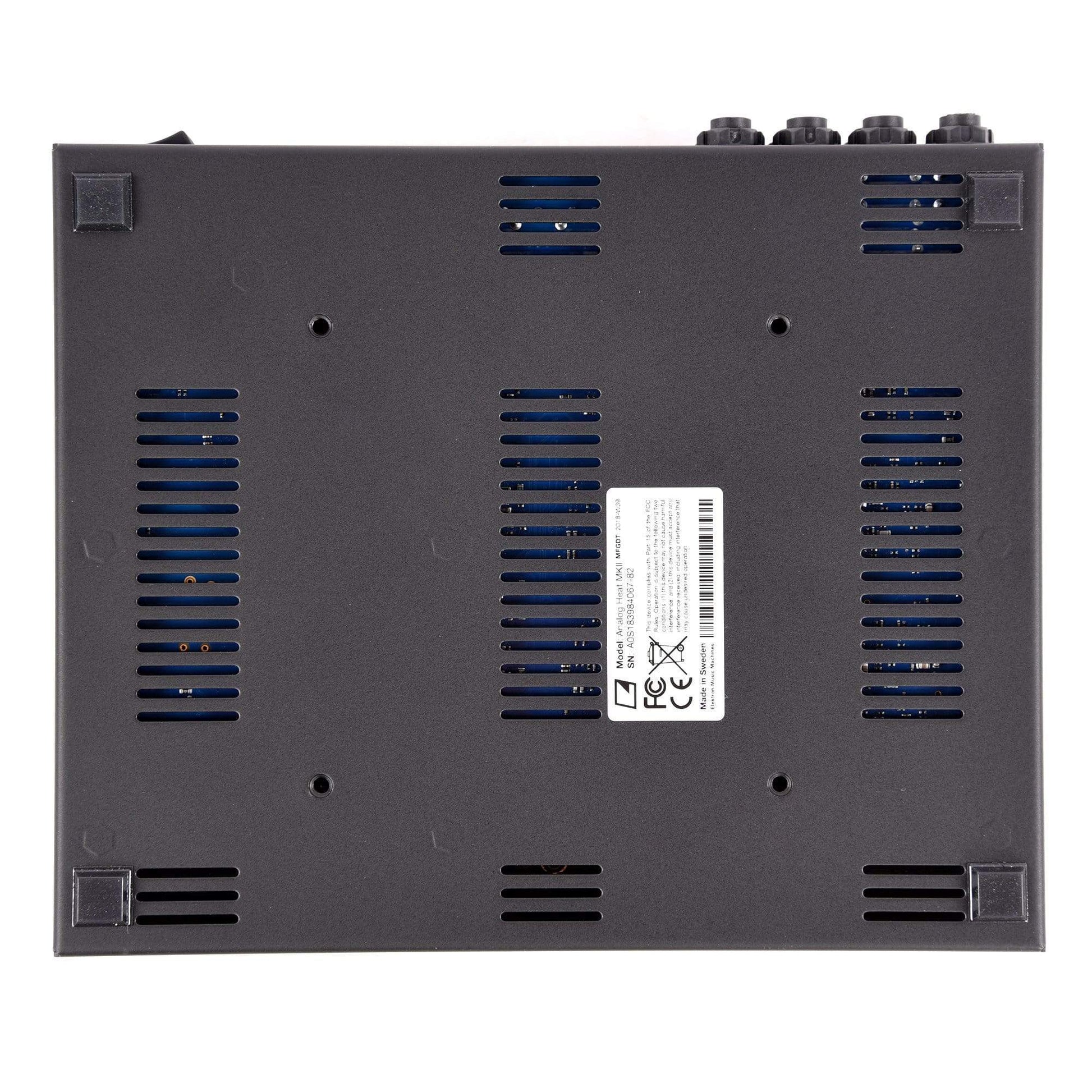

Physical specifications
  • Sturdy steel casing
  • Dimensions: W215×D184×H63 mm (8.5×7.2×2.5″) (including audio outputs, knobs and rubber feet)
  • Weight: approximately 1.5 kg (3.3 lbs)
  • 100×100 mm VESA mounting holes

Included in the box
  • Power Supply PSU-3b
  • Elektron USB cable

Analog Heat MKII and Overbridge
Any DAW user will love Analog Heat. It is perfect for adding analog warmth and grit to digital audio. Suitable on individual tracks as well as on the master bus. It can also double as a sound card, making it perfect for the nimble studio.
  • Control your Analog Heat with audio and sync using a dedicated VST/AU
  • plugin
  • Process DAW audio with beautiful analog stereo filtering and distortion
  • Mid/Side mode lets you expand audio processing possibilities
  • Analog Heat MKII can be used as a 2 in/2 out sound card
  • (CoreAudio/ASIO/WDM)
  • Use Analog Heat as a separate sound card, all while using the other features
  • of the instrument
  • Total Recall remembers all Analog Heat settings when loading a DAW project
