Fender Custom Shop 1962 Jazzmaster "Chicago Special" NOS Aged Black w/Painted Headcap

Fender Custom Shop 1962 Jazzmaster "Chicago Special" NOS Aged Black w/Painted Headcap

Serial Number: R120942

Weight: 8lbs 1oz

Questions? Chat Now!

Description

Our goal with our Custom Shop Jazzmasters was to make the absolute best sounding and playing JMs out there. Seems pretty simple right? Combining a mix of vintage specs, and modern mods we think you’ll agree that we hit the mark. From 1959 to 1966, our “Chicago Special” Jazzmasters have a 7.25” radius, a slab rosewood fretboard, and a rift sawn maple neck. The magic really happens under the guard with the combination of a 250k volume pot and our Chicago Specials.

Based on a set of 1961 Jazzmaster pickups, George Bland helped us craft our set to have higher output in the neck position than the bridge. The bridge pickup is slightly overwound giving it a smooth and round presence, while the neck pickup is moderately overwound giving it a huge bottom end with with round highs. Both Alnico 5 pickups are potted in shellac to give them a wide and open dynamic range, and wound with 42 gauge enamel wire. When you put everything together, you get the most balanced Jazzmaster on the market!

"Chicago Special" Jazzmaster pickups
  • Custom set modeled after CME's favorite 1961 Jazzmater AlNiCo 5 magnets
  • 42 gauge enamel wire for round highs
  • Potted in shellac for open wide range frequency response
  • BRIDGE: Slightly overwound for high end punch but still still smooth and round
  • NECK: Moderately overwound for huge bottom end but with clear, round highs

Model Number: 9237100995
Serial Number: R120942
Finish Package: New Old Stock

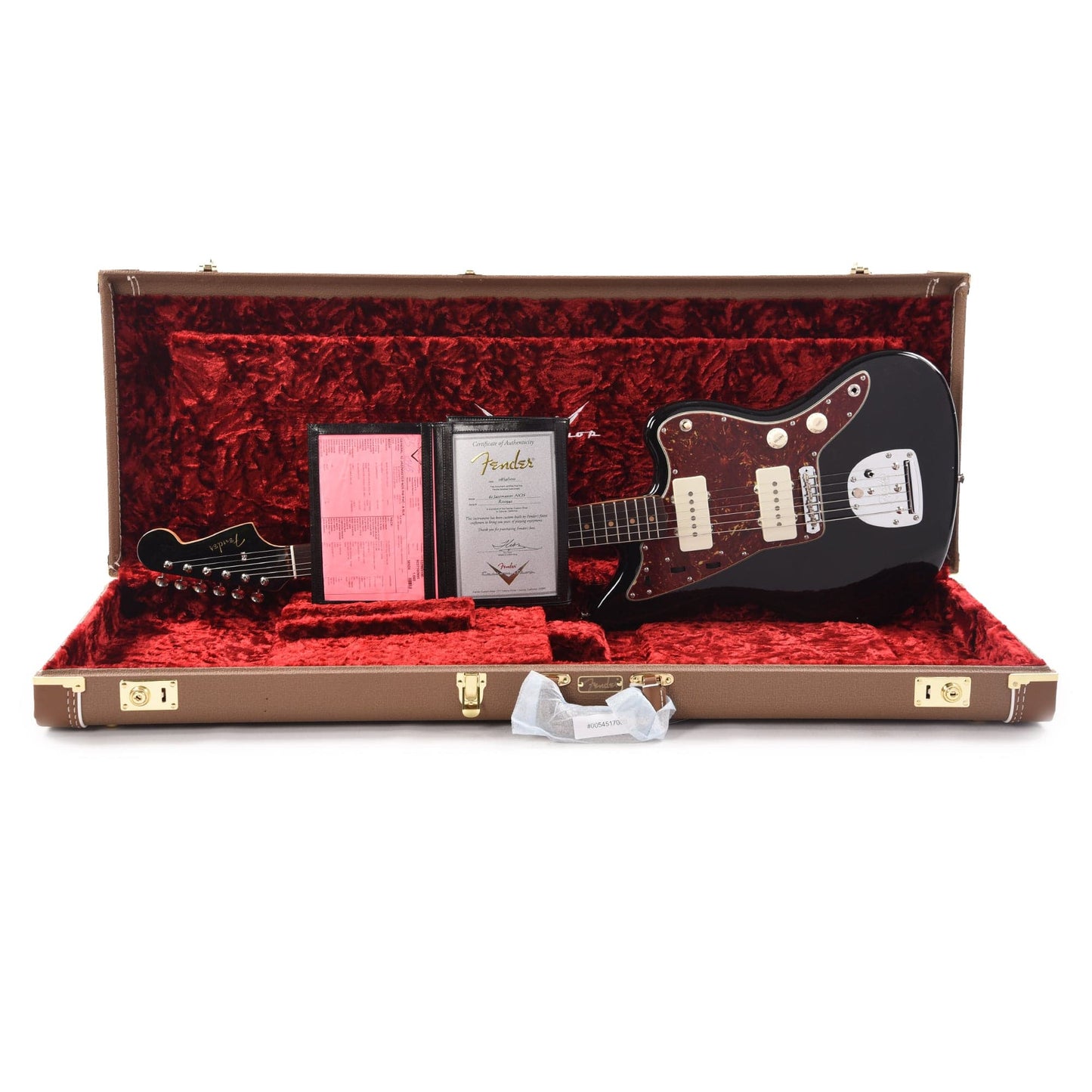

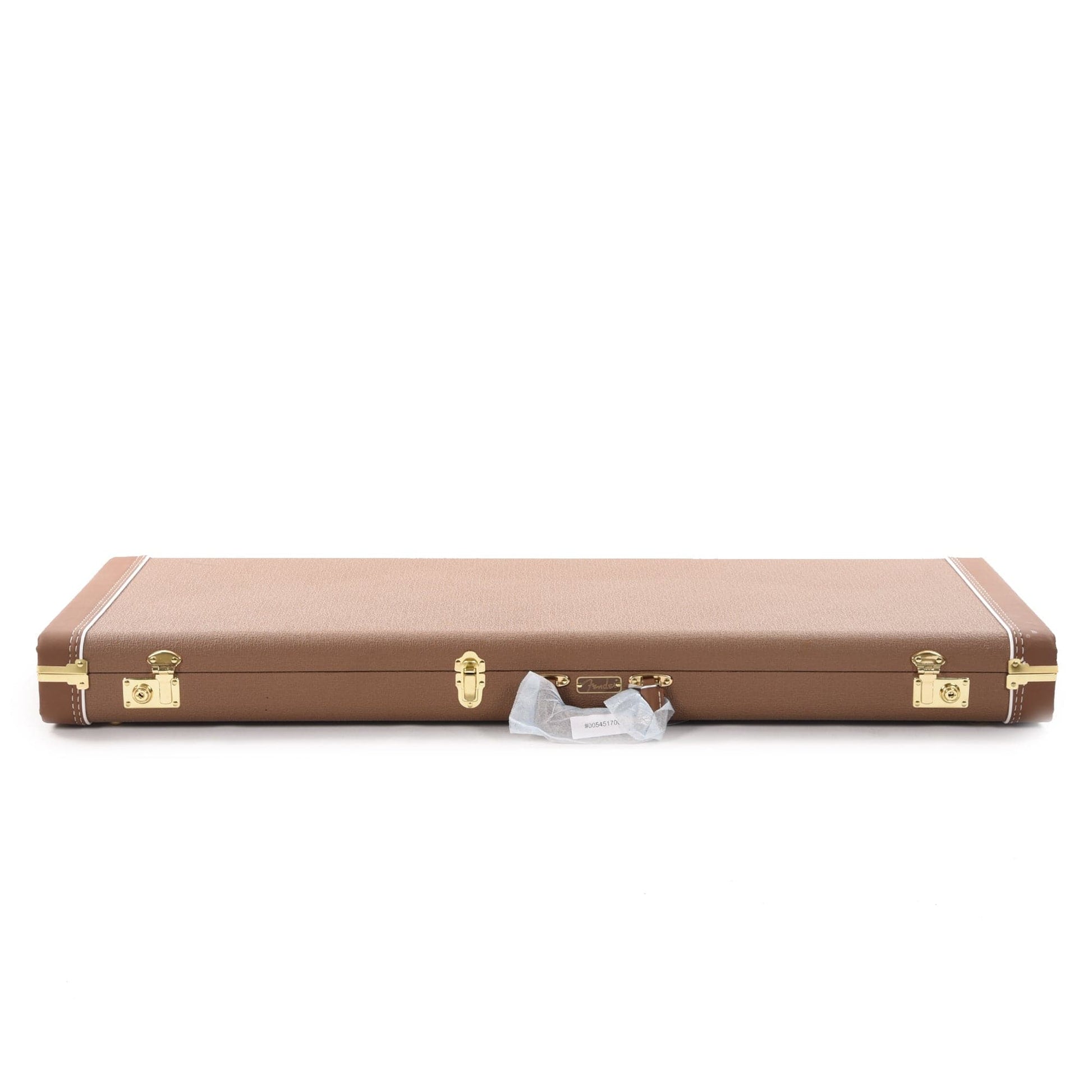

Case: Fender Custom Shop Brown
Weight: 8lbs 1oz

Body Wood: Alder
Body Color: Aged Black
Body Finish: Lacquer
Sort for Lightweight: Yes

Hardware Plating: Chrome/Nickel
Bridge Assembly: Adjustable Jag/Jazz
Neck Plate: R Serial Vintage

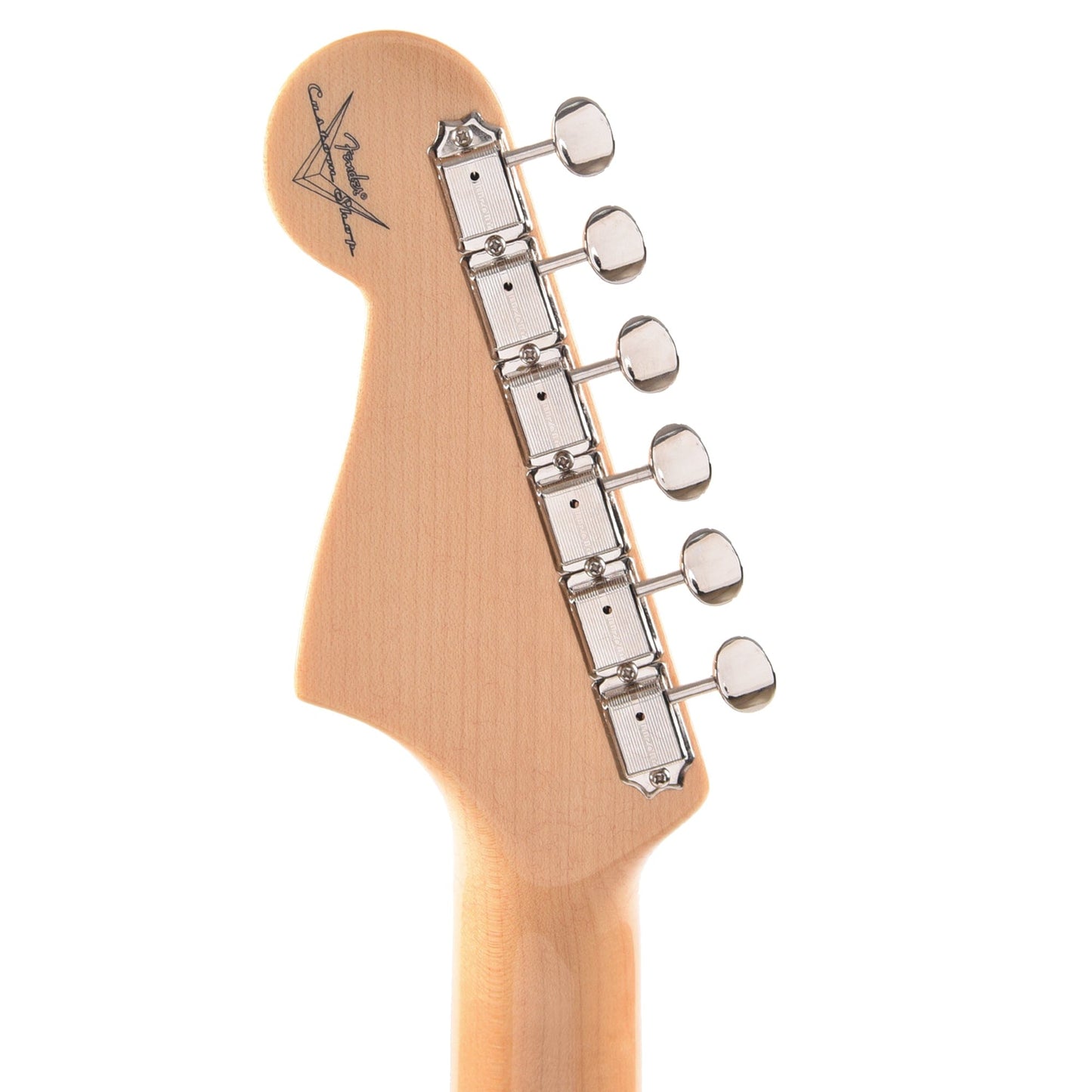

Tuner Keys: Vintage w/Fender Logo
String Gauge: .010-.046

Neck Finish: Light Tint Nitro Lacquer
Neck Blank: Rift Sawn Maple
Fingerboard: AAA Rosewood
Sort for Dark Rosewood? Yes
Truss Rod: Late 60s
Head Style: Large
Neck Head Thickness: 0.590"
Neck Scoop: 60
Dot Spacing: Wide
Face Dot: Vintage Clay
Side Dot: Vintage Clay
Fret Wire: Medium Vintage Jescar 47095
Number of Frets: 21
Fingerboard Radius: 7.25"
Neck Back Shape: 59 Tapered "C"
Neck Nut Width: 1.650"
Neck Thickness at 1st Fret: .790"
Neck Thickness at 12th Fret: .970"
Neck Butt Width: 2.200"
Nut Material: Bone
Number of Bolts: 4

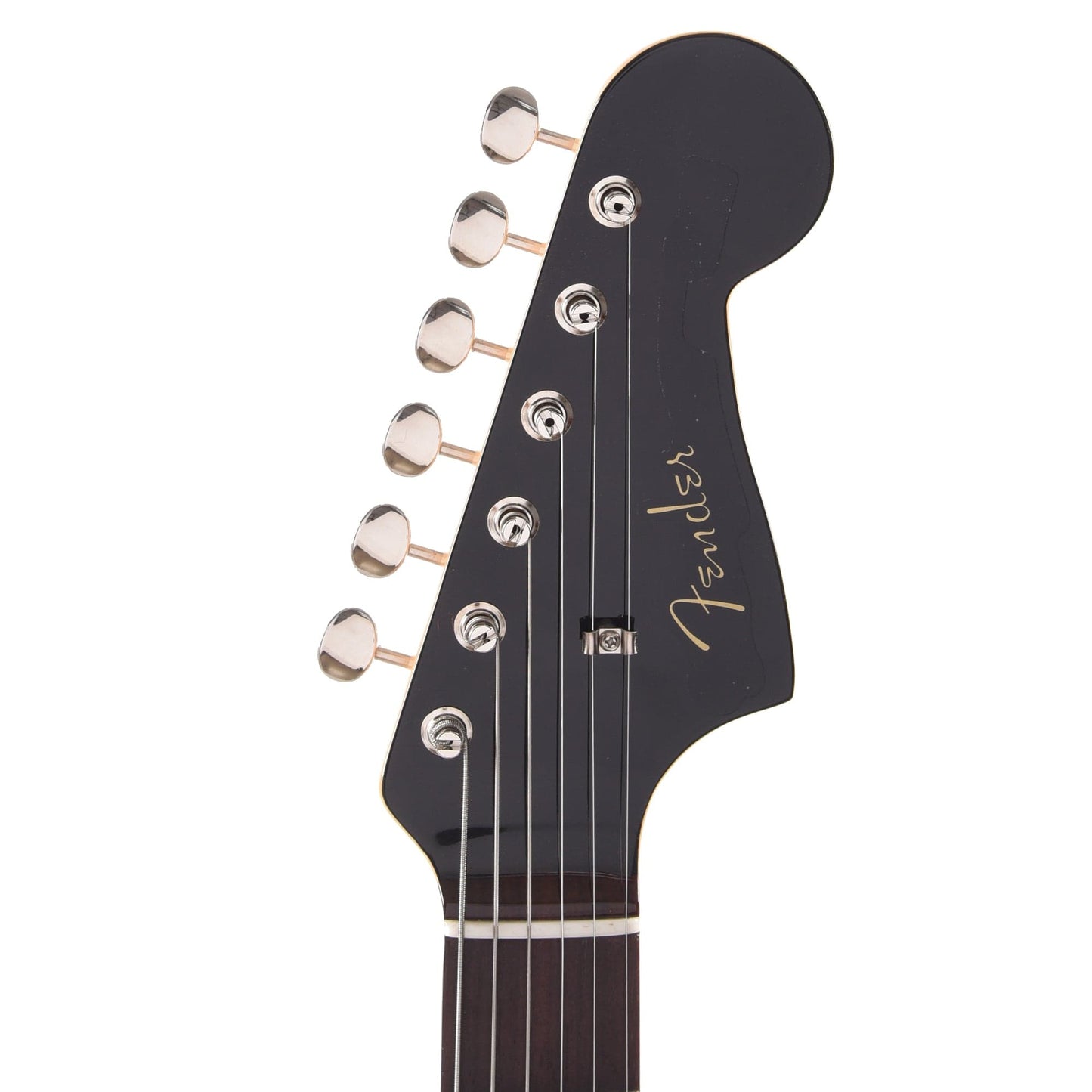

Head Cap Decal: 62 Jazzmaster
Neck Notes: Matching Painted Head Cap

Pickguard: 4-Ply Tortoise Shell
Pickup Neck: Josefina Hand-Wound Chicago Special
Pickup Bridge: Josefina Hand-Wound Chicago Special
Pickup Covers: Vintage Ivory
Pots: 250K
View full details
