The following specs were carefully collected and recorded by a skilled technician.
For a more detailed description and questions regarding sound, feel, or cosmetic
condition, please visit our Lincoln Avenue showroom or call to speak to one of our
Used and Vintage experts.
| Finish Details: | Full Refinish |
| Body Material: | Alder |
| Body Details: | Alder Solid Body |
| Neck Material: | Maple |
| Fingerboard Material: | Brazilian Rosewood |
| Neck Profile: | C-Shape |
| Neck Thickness (IN): | 1st fret: .86" |
| Fingerboard Radius: | 7.25" |
| Nut Width: | 1-11/16" |
| Scale Length: | 24" |
| Neck Details: | One-piece maple bolt-on neck with a bound Brazilian rosewood board, center dot pearloid inlays, truss adjustment at the headstock. -- Heel stamp: xDEC65B -- The 3rd fret has been replaced -- The binding on both sides of the neck have been replaced, though the small section at the heel appear original. A small stip on the bass side between 2nd & 4th frets does not match. -- There are a few significant finger indents in the rosewood between the lower frets toward the treble side, some of which have been filled. |
| Electronics: | The pickups are original. The original tone pot dates from 1966. -- The volume pot and misc wires have been replaced with various solder joint touch-ups -- Large portions of the electronics are covered in spray paint. -- The original volume pot is included within the gig bag, though it does not function properly. |
| Pickup Measurements: | Neck: 5.6 kΩ, Bridge: 5.5 kΩ |

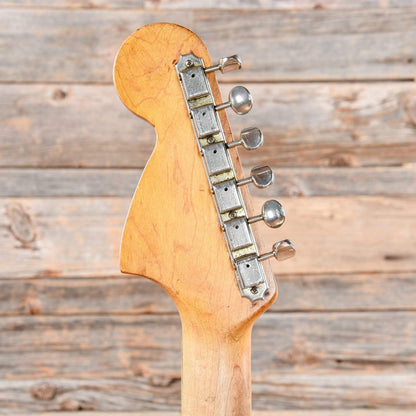

| Hardware: | The bridge has been replaced with a Mastery -- The trem arm is included within the gig bag -- The tuning machines are era correct, though may not be original as other machines have been installed in the past. There are open screw holes under the current machines. |
| Modifications/Repairs: | Has been refinished -- The 3rd fret has been replaced -- The necks binding has been replaced -- A Mastery bridge has been installed -- The volume pot and misc. wires have been replaced with various solder joint touch-ups -- Large portions of the electronics are covered in spray paint |

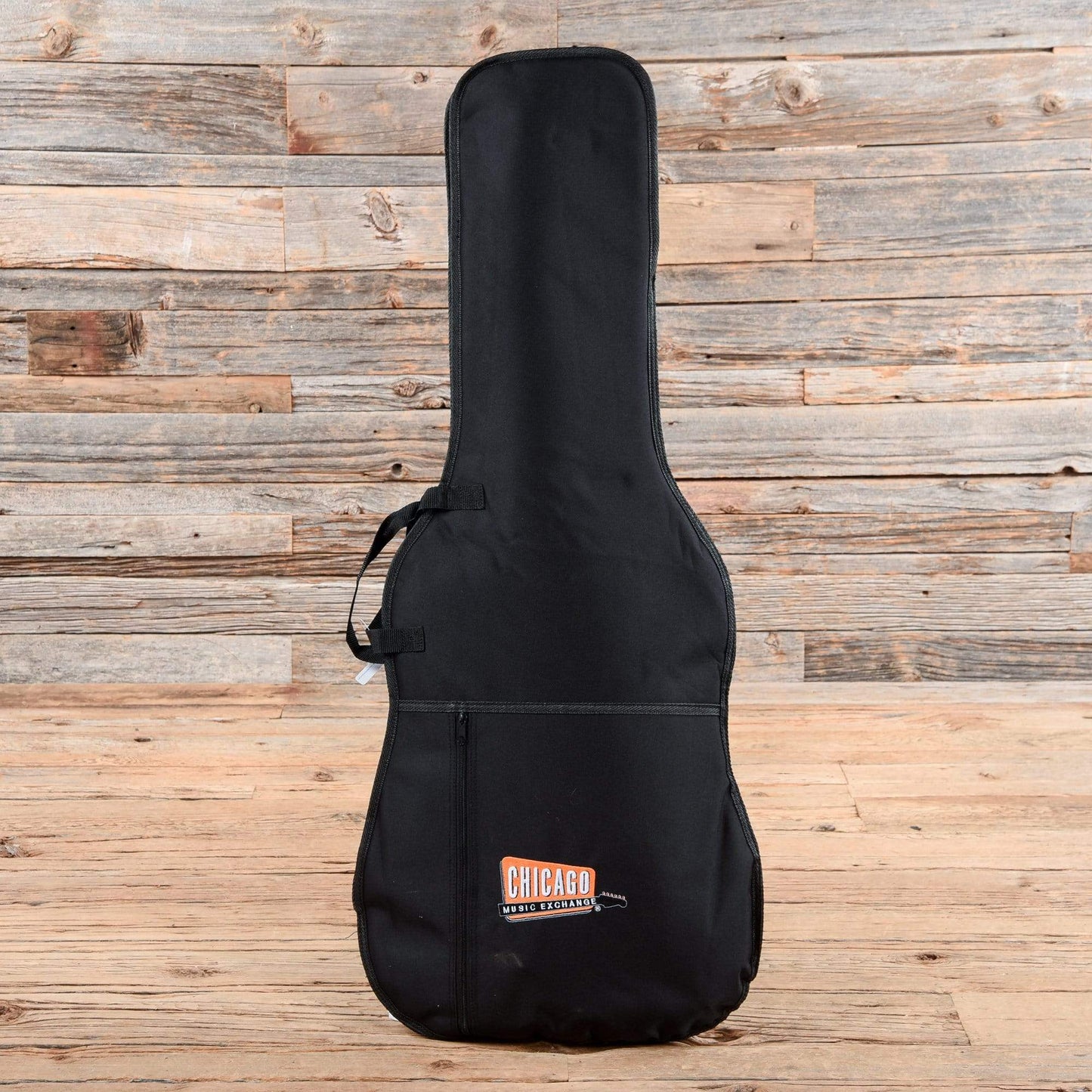

| Case Details: | Gig Bag |
| Cosmetic Condition: | This refinished Jaguar shows nice aging and play wear. Many wear marks, nicks, chips, dings, and other various blemishes are present throughout. A crack in the pickguard exists near the bass side of the neck pickup spanning to the edge of the guard. The hardware shows tarnishing. |
| Serial Number: | 140370 |
| Tech Notes: | Currently, set up with 10-gauge strings, low action, and optimal neck relief. The frets are skinny and low showing light play wear. -- The necks heel stamp shows a 1965 date. The original tone pot dates from 1966. The serial number dates from 1966 - 1967. |
