The following specs were carefully collected and recorded by a skilled technician.
For a more detailed description and questions regarding sound, feel, or cosmetic
condition, please visit our Lincoln Avenue showroom or call to speak to one of our
Used and Vintage experts.
| Finish Details: | Original |
| Body Material: | Ash |
| Body Details: | Solid ash body |
| Neck Material: | Maple |
| Fingerboard Material: | Maple |
| Neck Profile: | "C" profile |
| Neck Thickness (IN): | .88" (1st fret), .95" (12th fret) |
| Fingerboard Radius: | 7.25" |
| Nut Width: | 1-5/8" |
| Scale Length: | 25 1/2" |

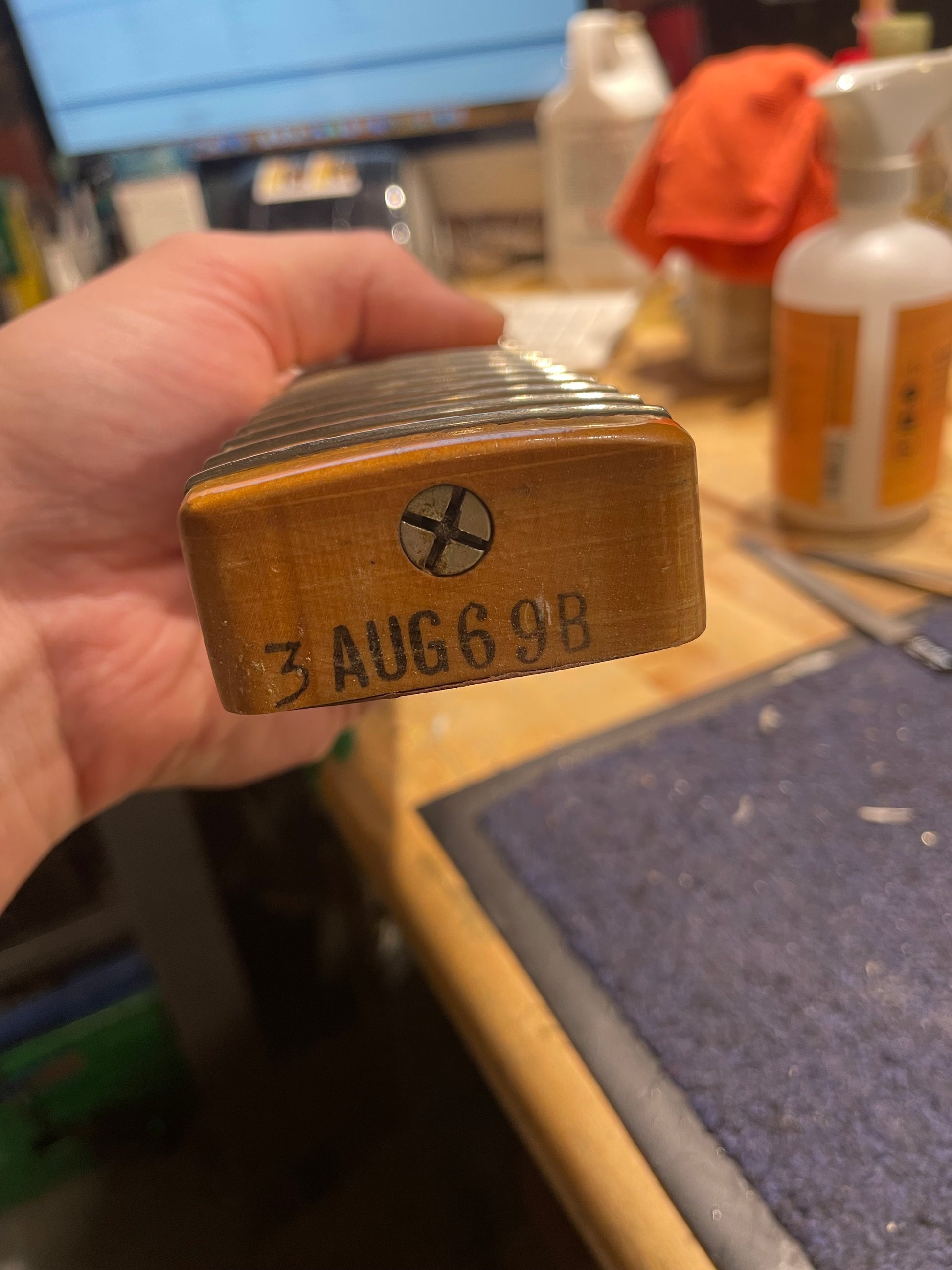

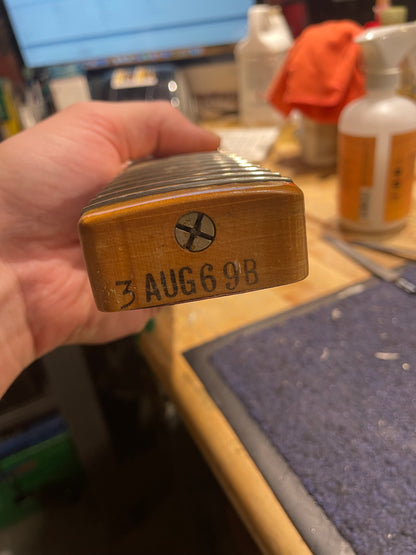

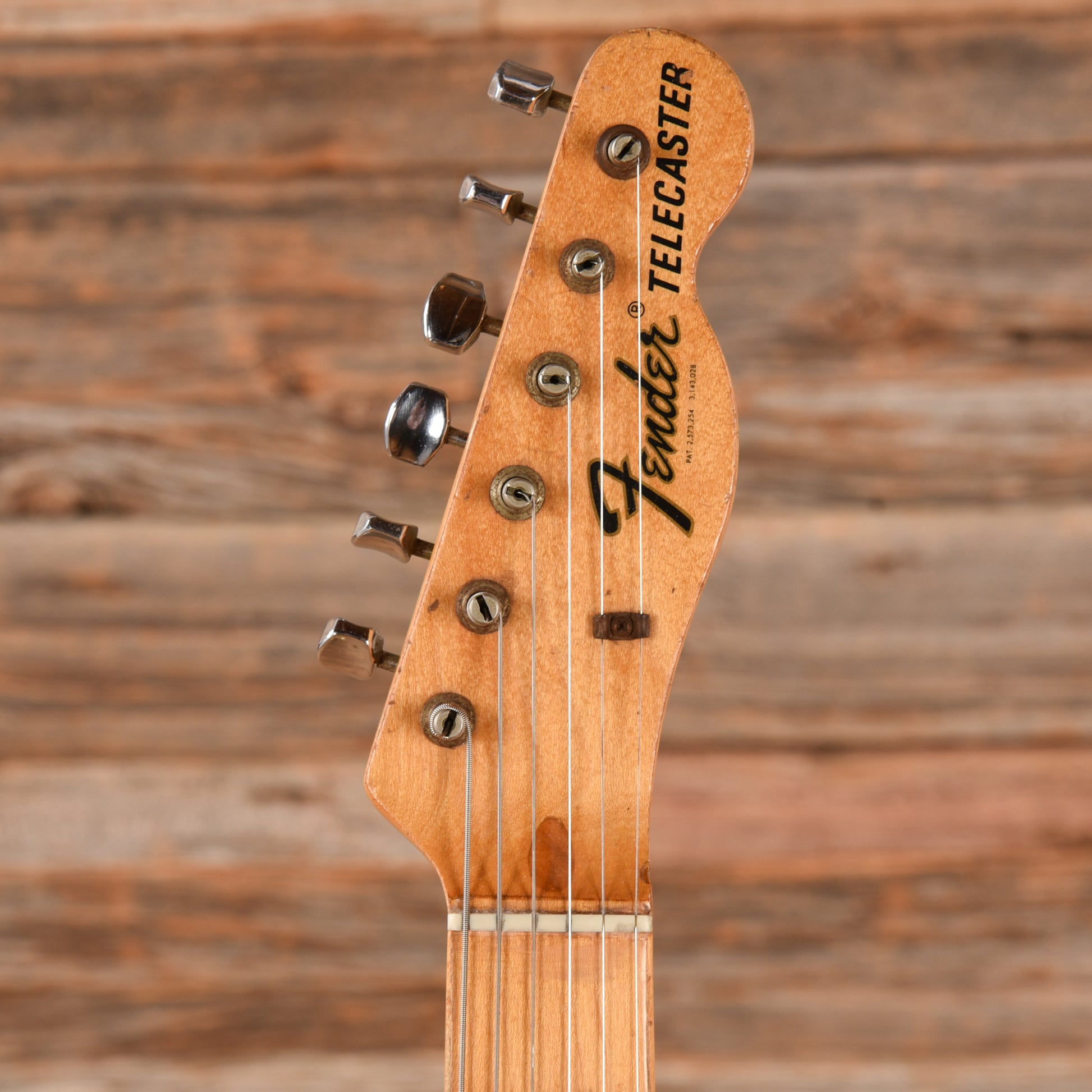

| Neck Details: | Bolt-on maple neck with unbound maple fingerboard, skunk stripe, dot inlays, and heel-adjust truss rod. The neck has been refretted and the nut has been replaced. The neck has a "3 AUG 69 B" heel stamp. |

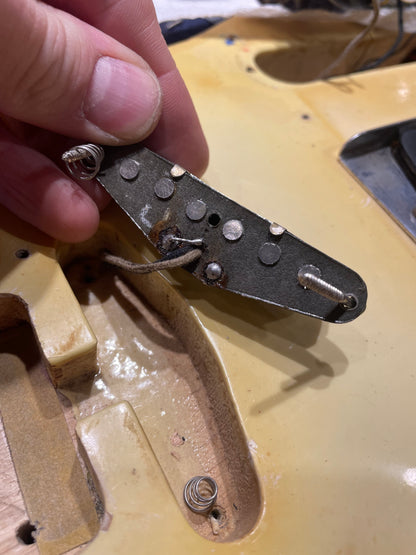

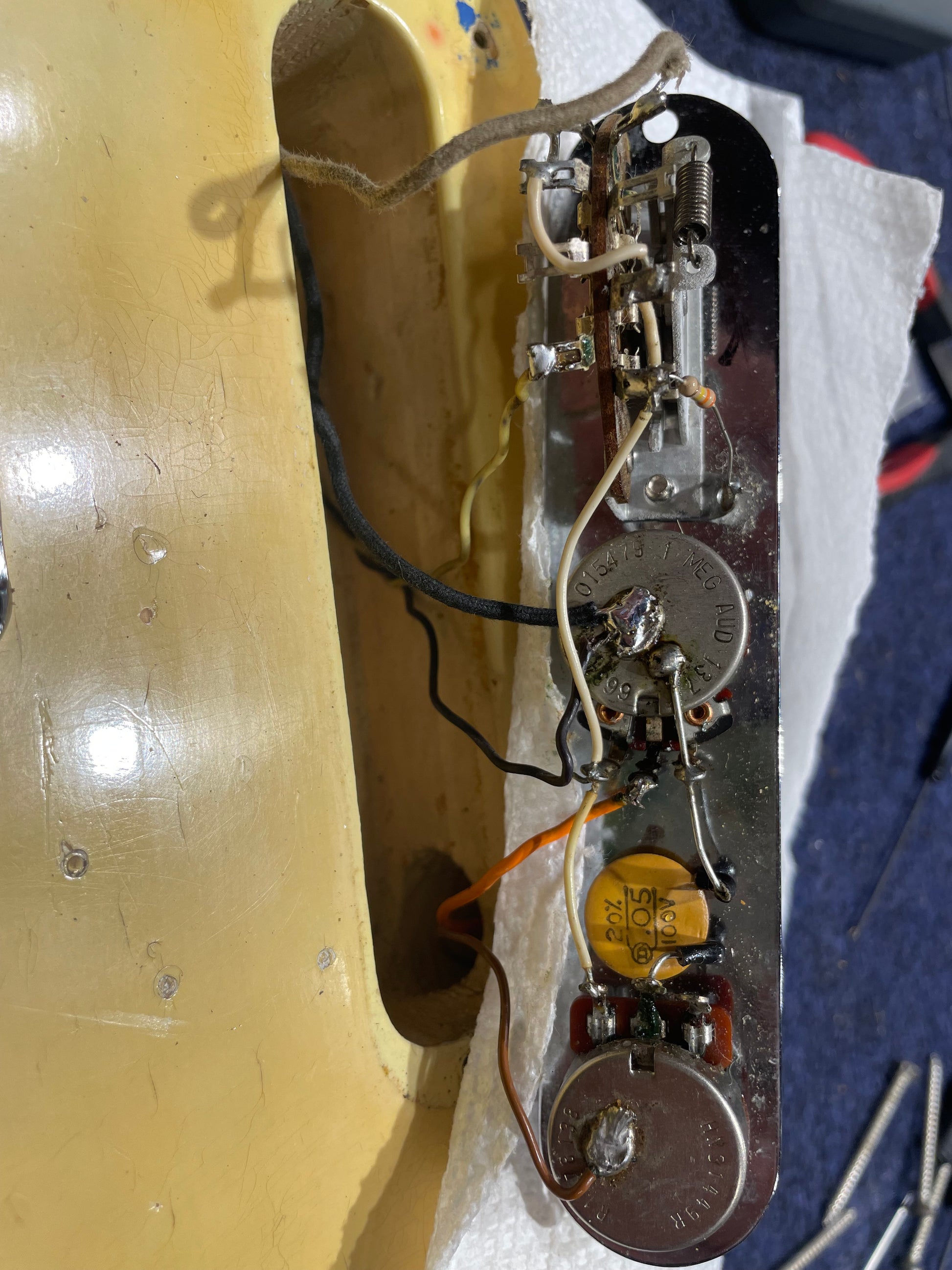

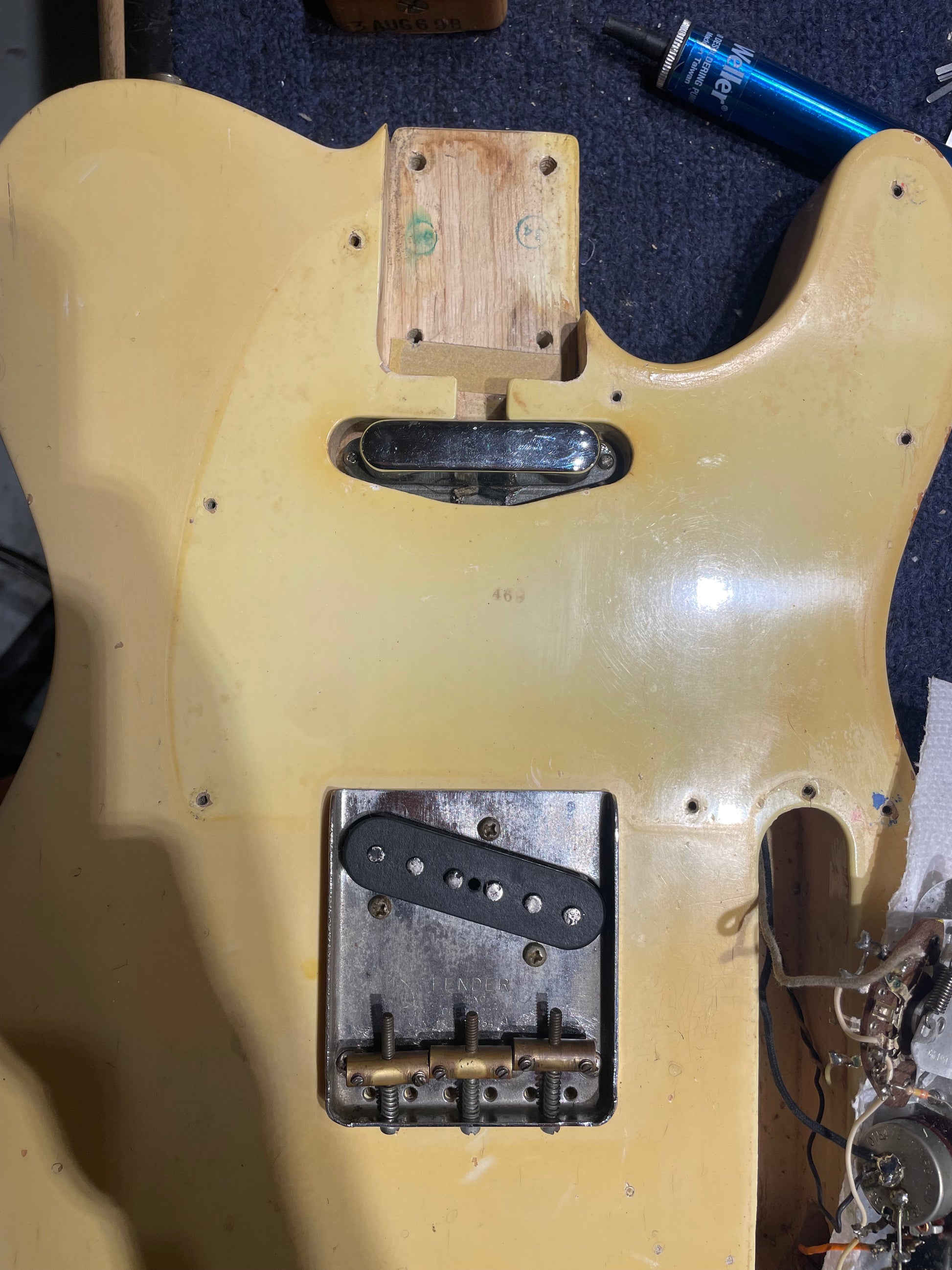

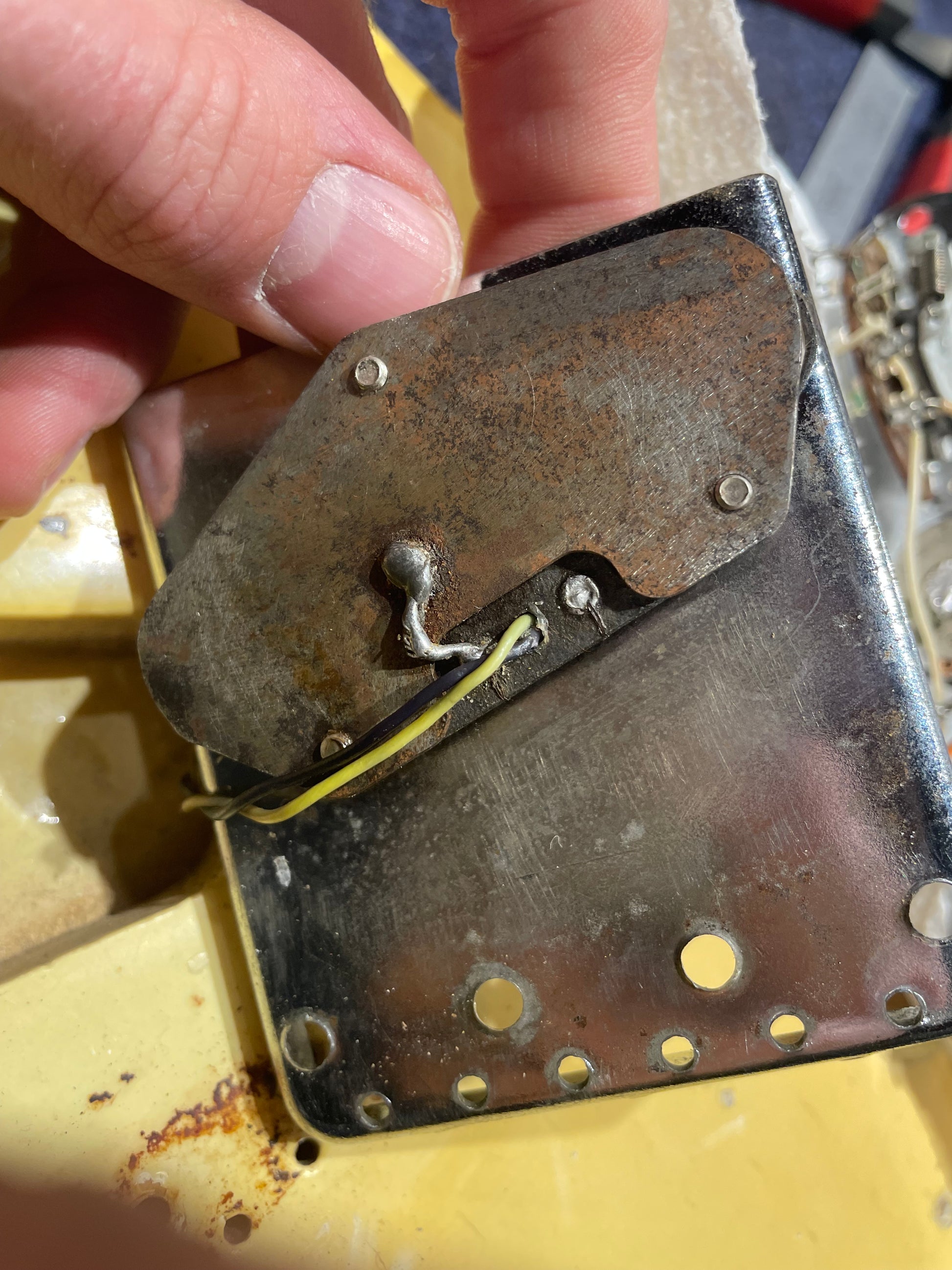

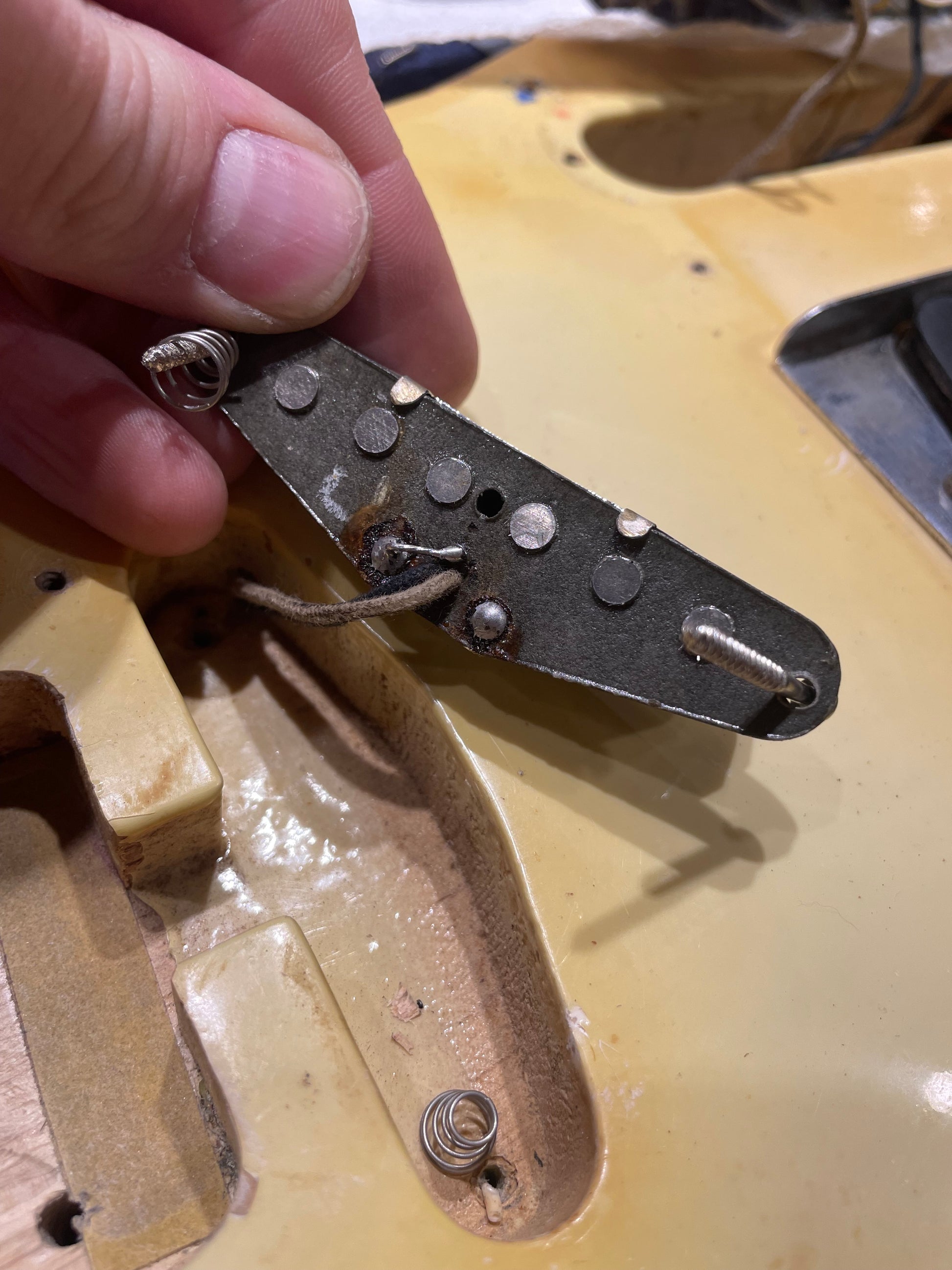

| Electronics: | Original Fender single coil pickups, with grey bobbins, cloth covered leads on the neck pickup, and plastic covered leads on the bridge pickup. The pickups have been removed and reinstalled. The master tone pot has been replaced; the original master volume pot dates to 1966. |
| Pickup Measurements: | 7.1k (neck), 6.7k (bridge) |
| Hardware: | The nut and saddles have been replaced. |
| Weight: | 7lbs 4oz |
| Modifications/Repairs: | -The neck has been refretted and the nut has been replaced -The pickups have been removed and reinstalled -The tone pot has been replaced. |

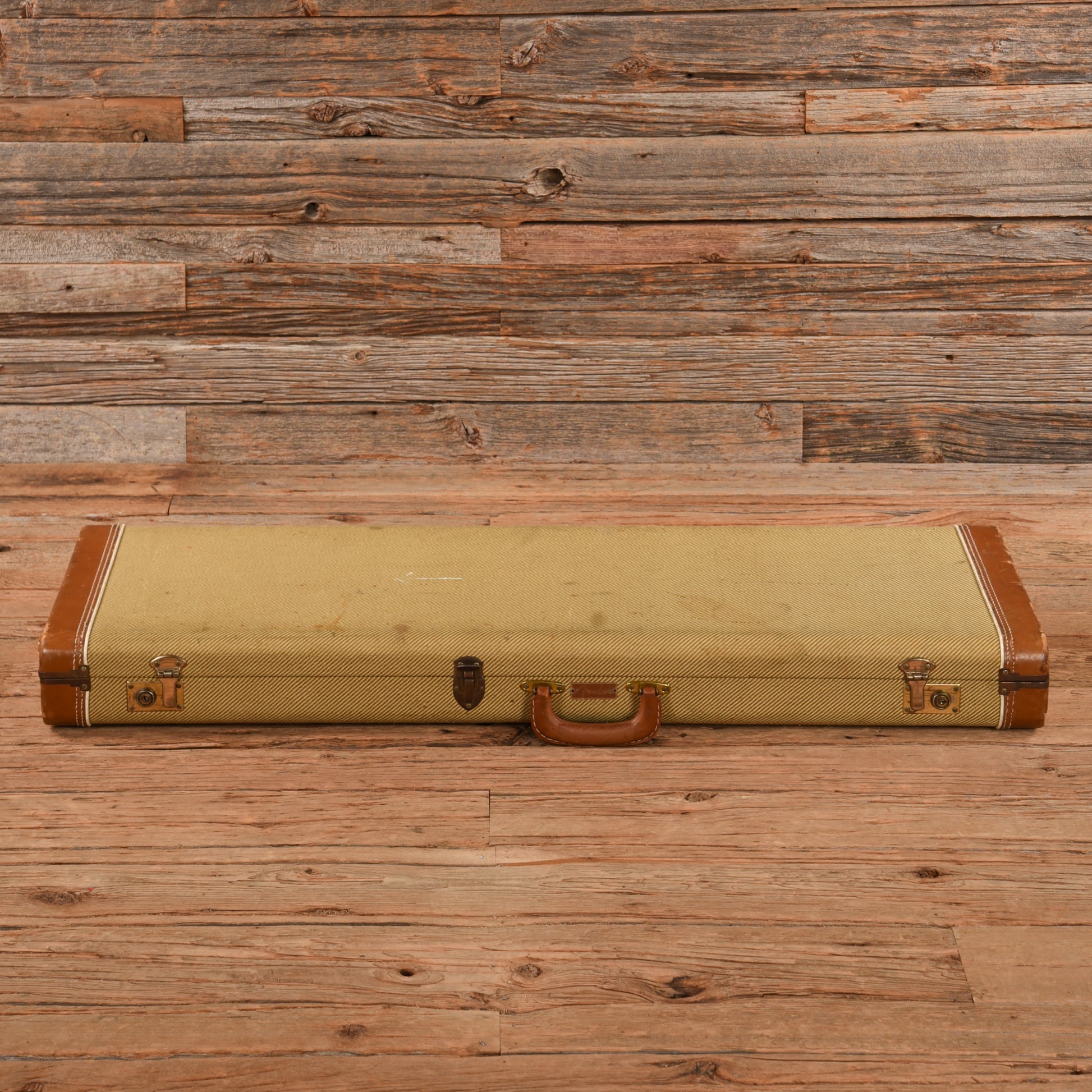

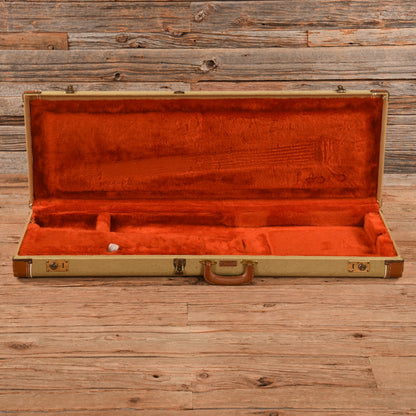

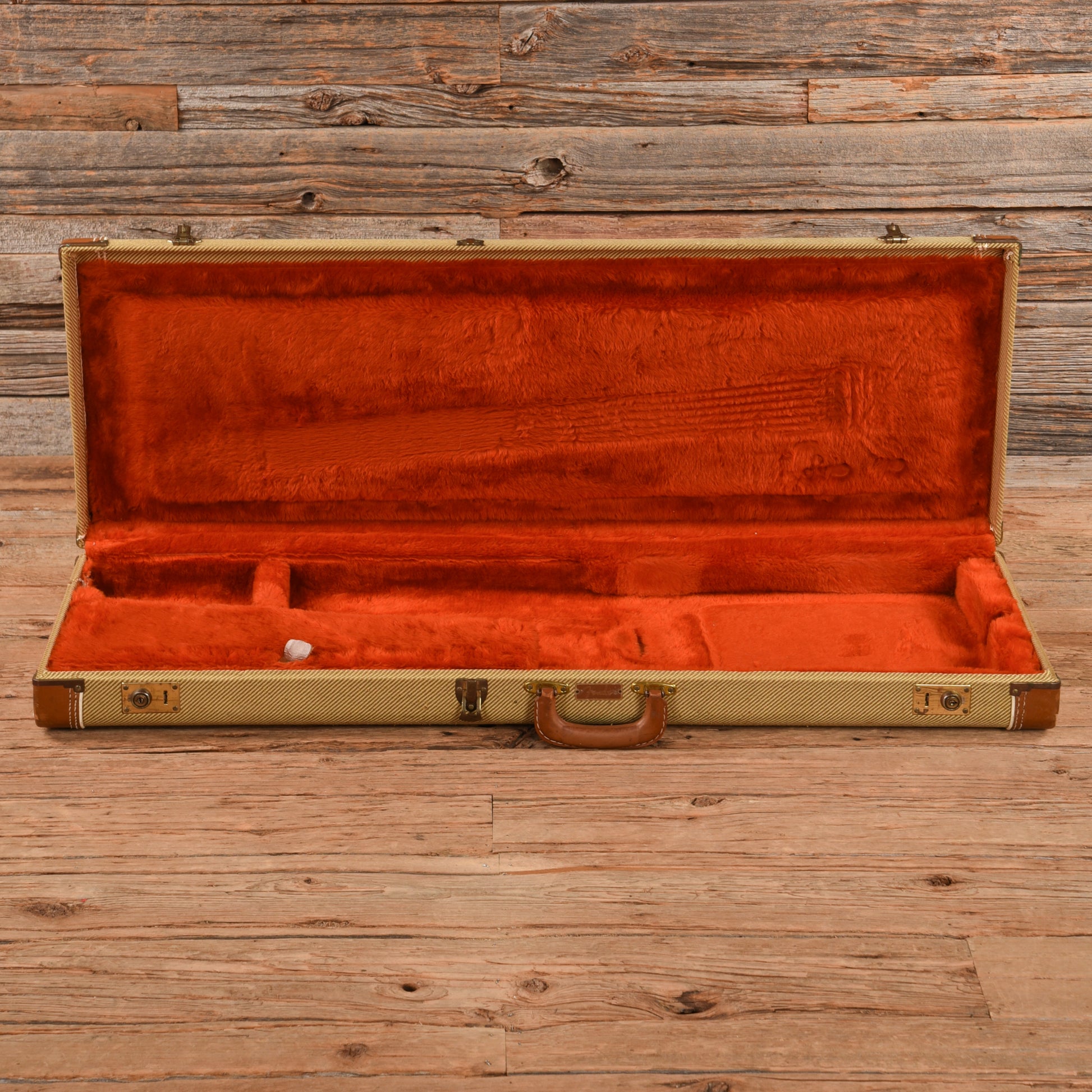

| Case Details: | Original Hardshell Case |

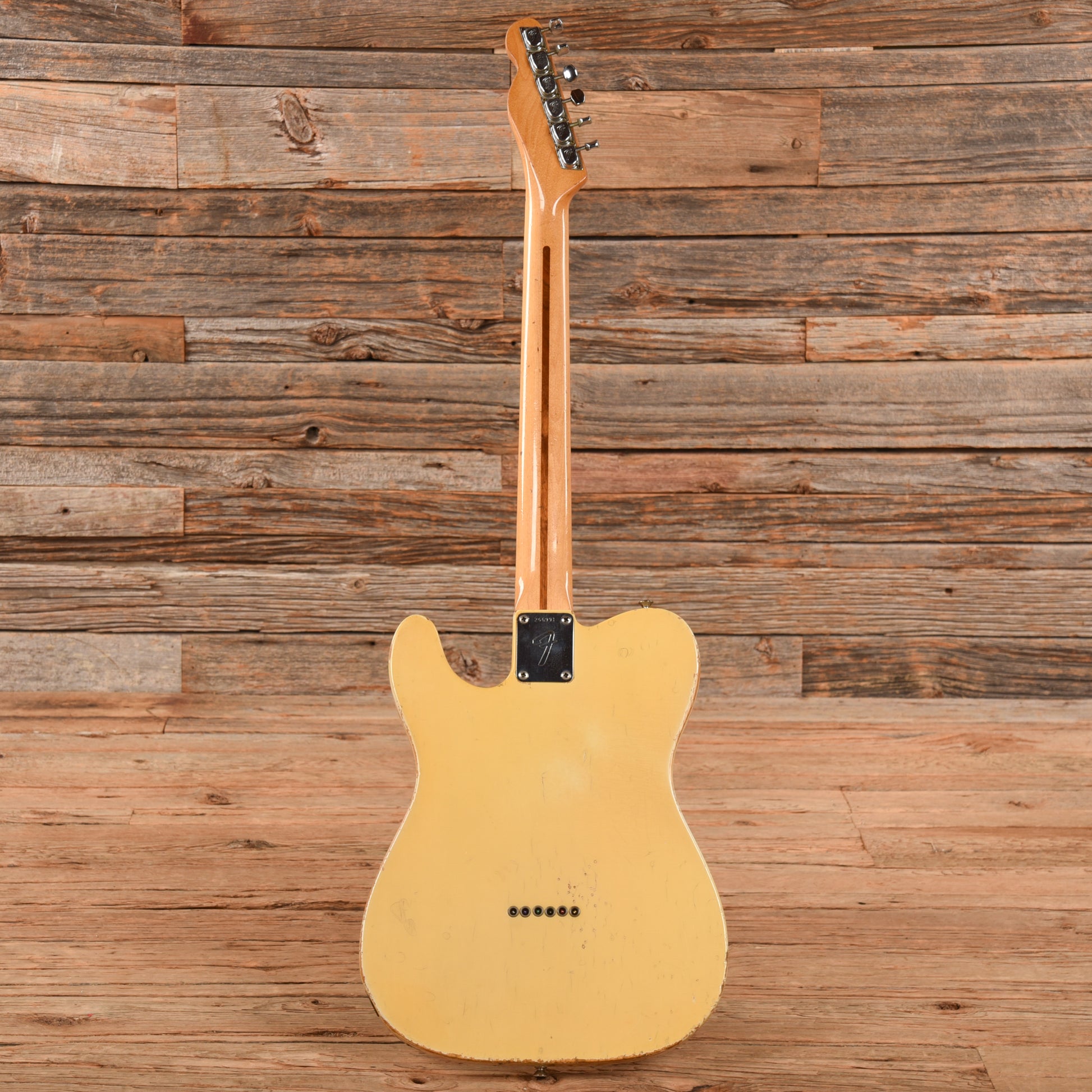

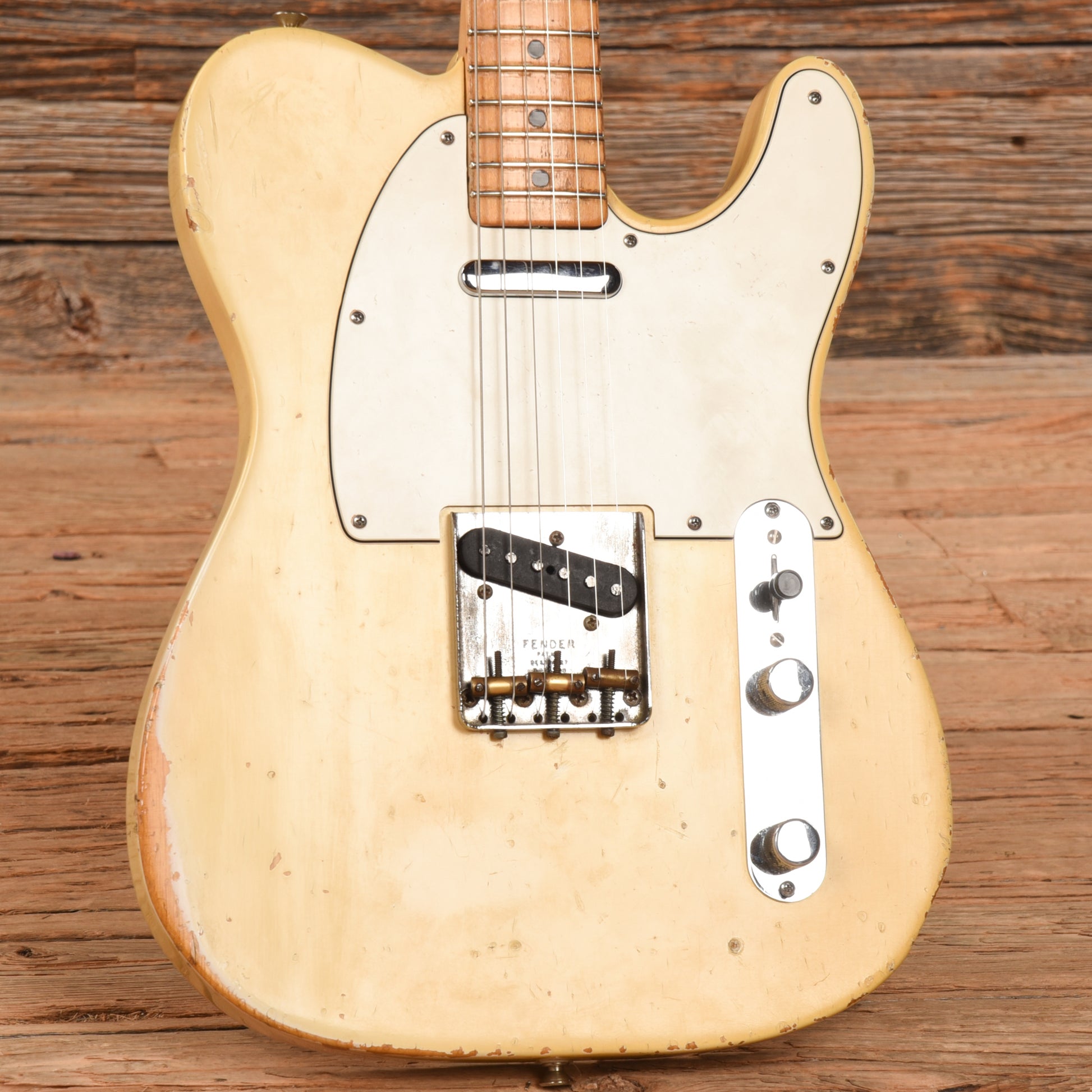

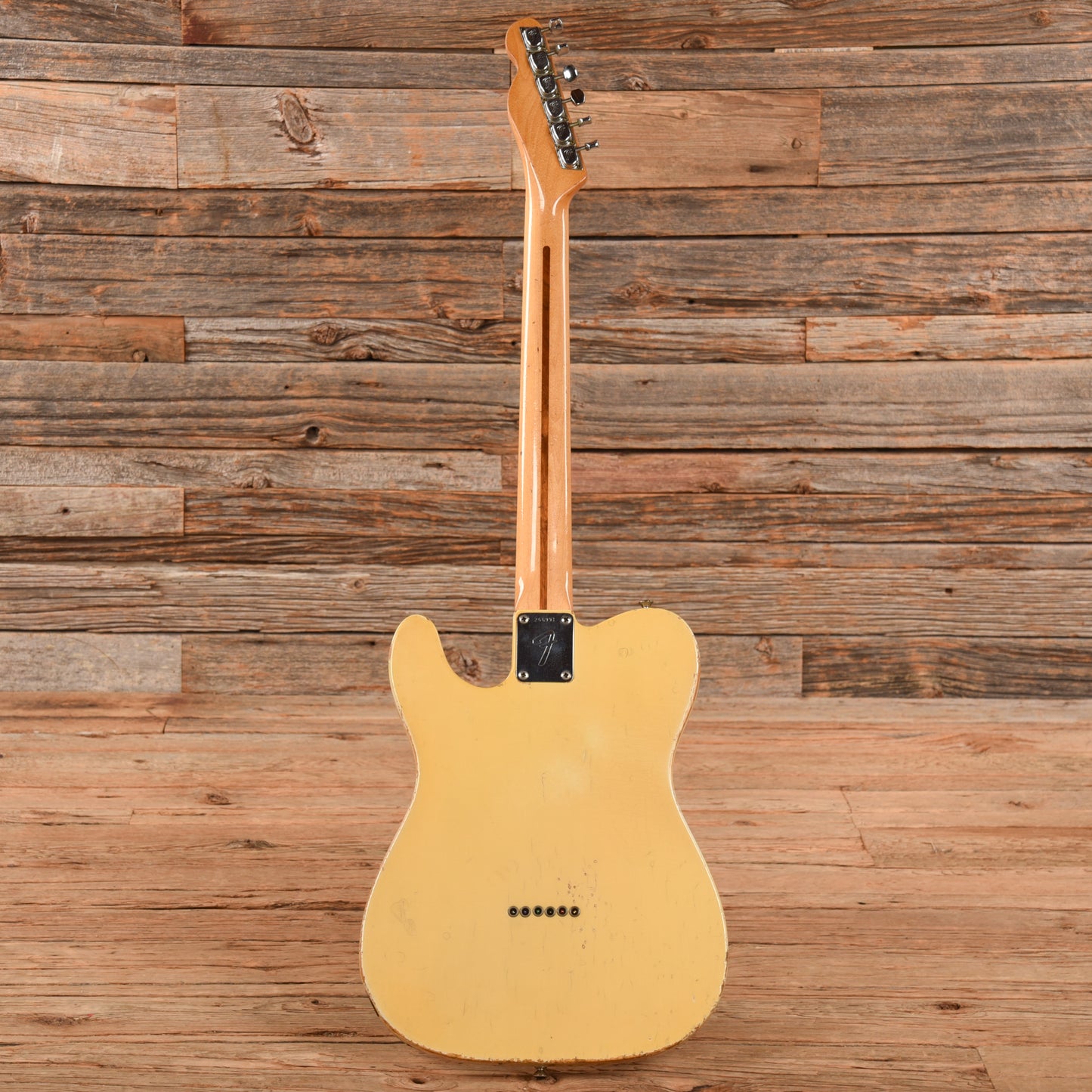

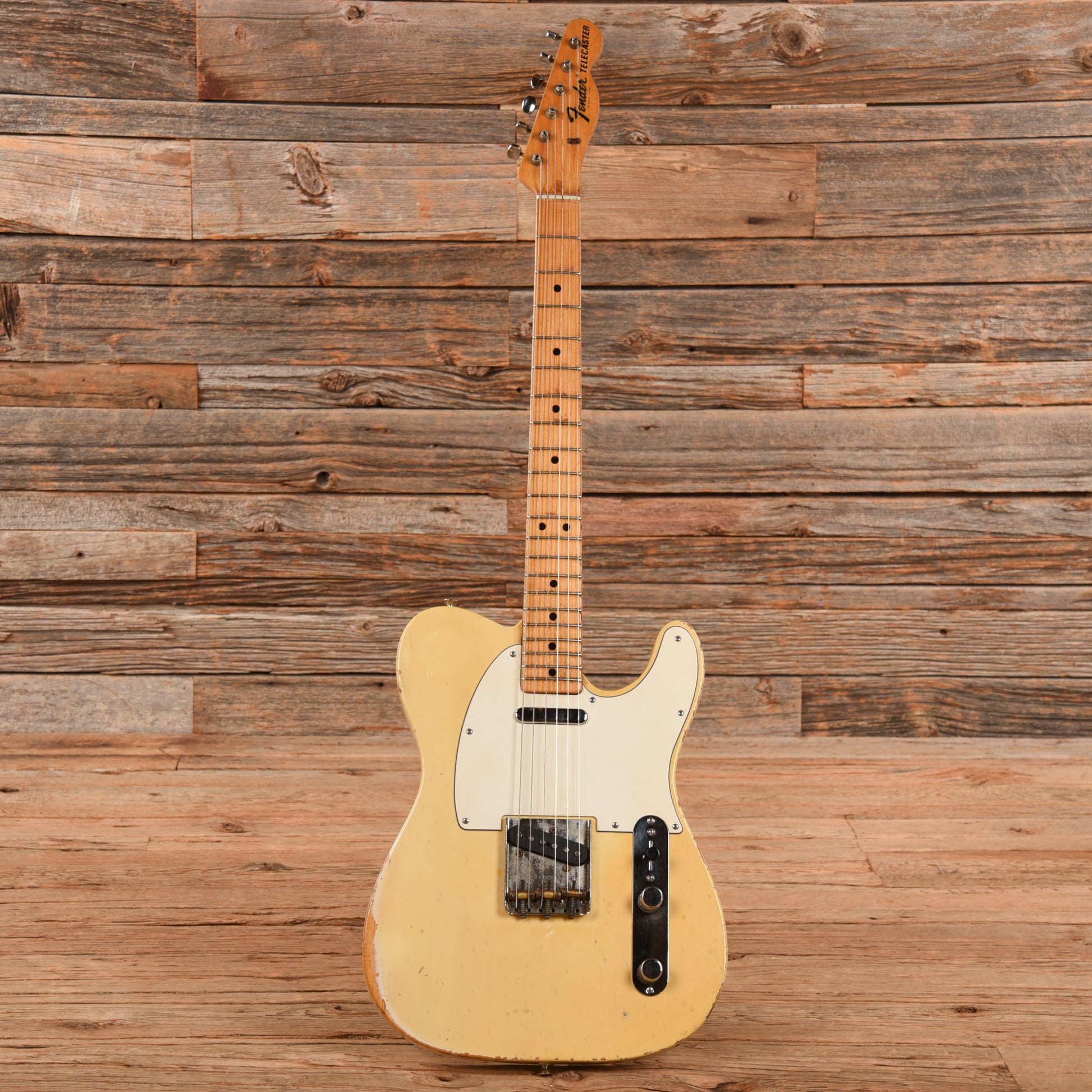

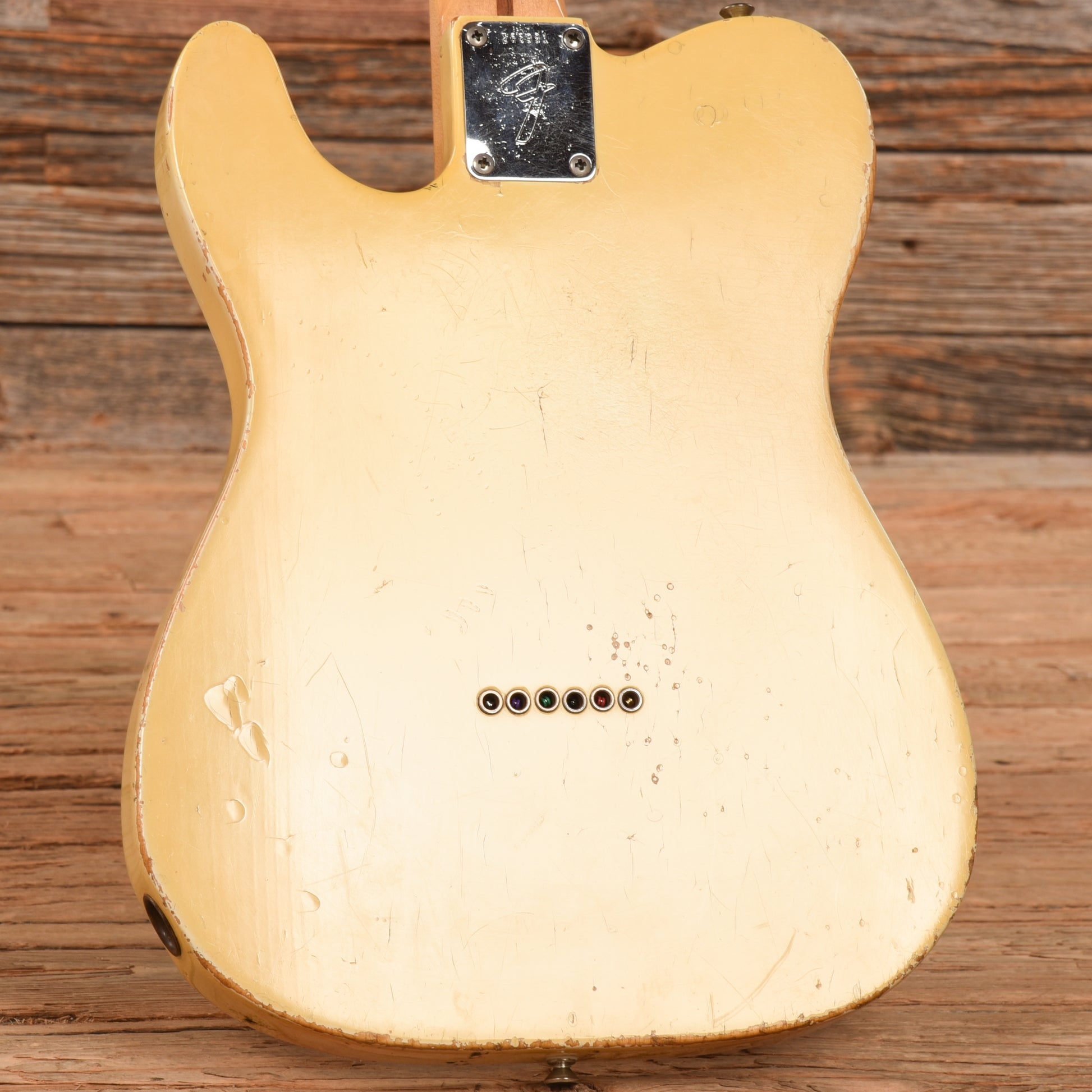

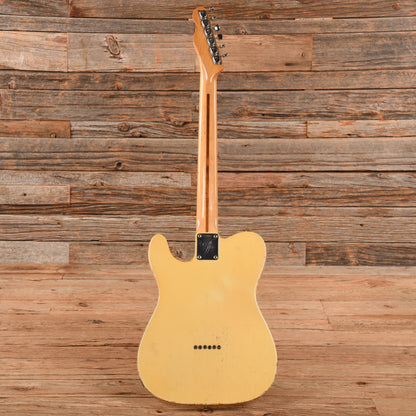

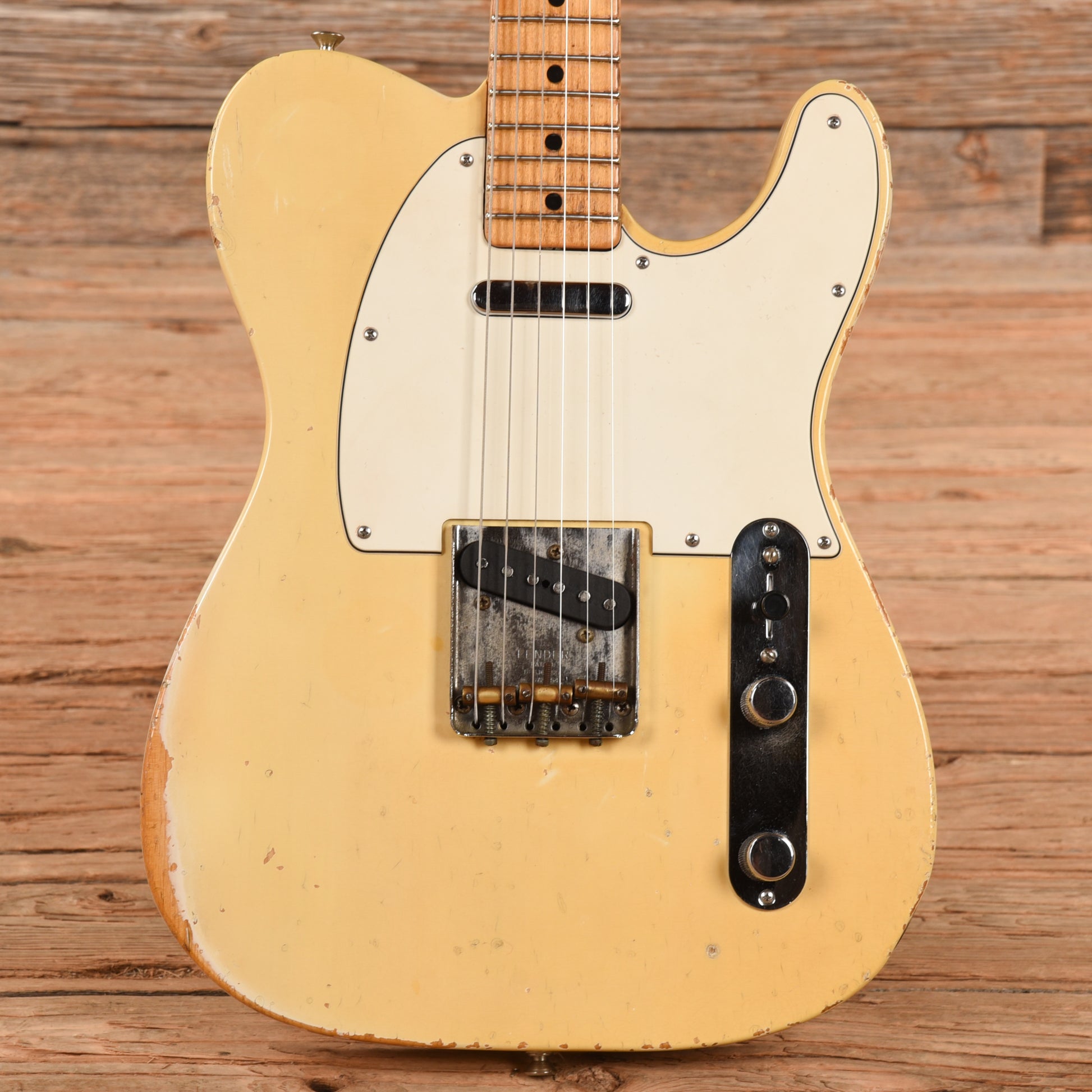

| Cosmetic Condition: | This vintage Fender Telecaster has aged nicely, with plenty of authentic wear on the glossy finish. The body has worn along the edges and sides, and has numerous small dents and dings scattered throughout. These are heavier on the back of the body, and there is checking throughout as well. The back of the neck is glossy with numerous small dings, and the edges of the fretboard are worn comfortably smooth. The hardware is nicely tarnished with age, and there is an open screw hole next to the top strap button from when the button was moved. |

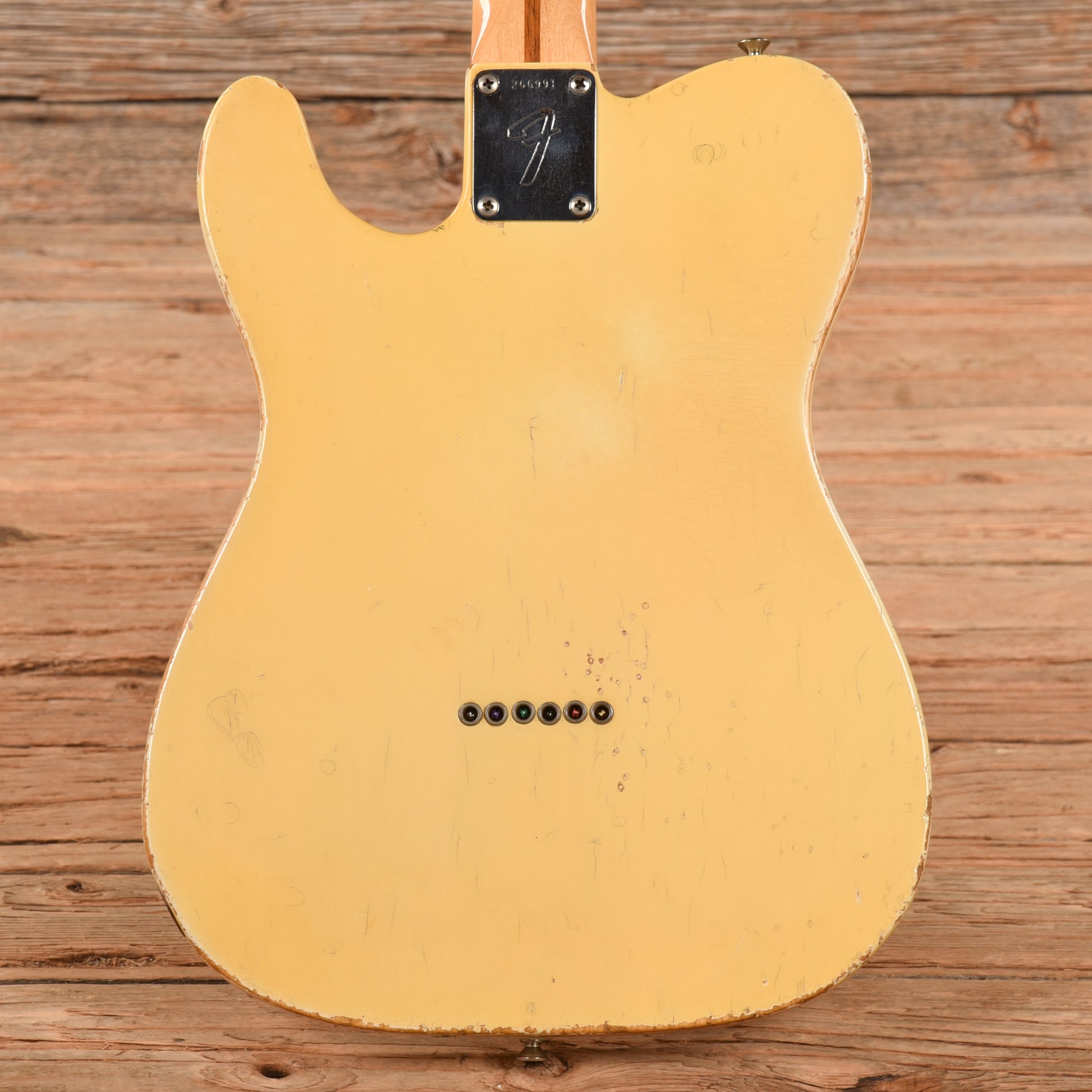

| Serial Number: | 266991 |
| Tech Notes: | The guitar plays well with low action and optimal neck relief, and the tall frets show minor wear. The neck is very straight even with the truss rod fully loosened, and so the guitar sets up best with 10 gauge strings or heavier. The serial number and neck stamp date the guitar to 1969. |
