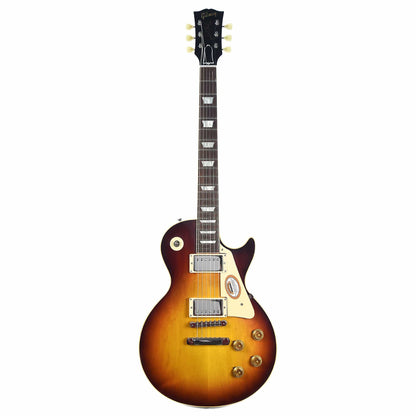

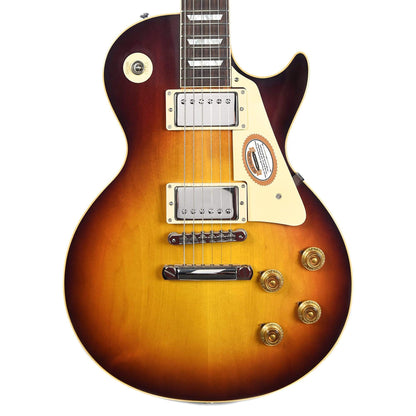

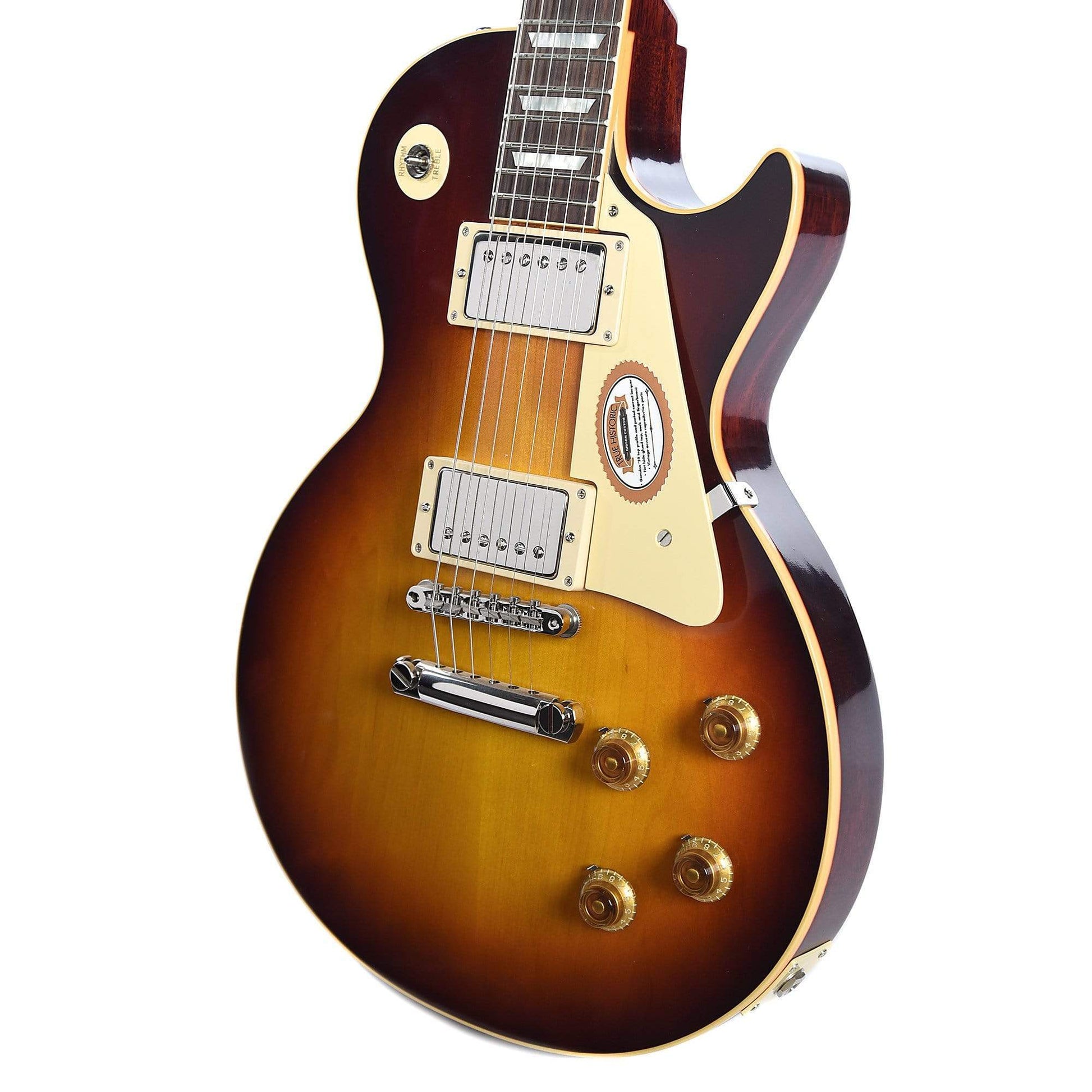

Gibson Custom True Historic 1958 Les Paul Reissue Vintage Dark Burst

From Gibson:

The full '58 playing feel and screaming PAF tone are perfectly rendered by our fanatical new True Historic specs, with hand-rolled fingerboard binding, hide glue construction, and dead-on appointments.

Top Wood Species: Maple
Pieces: 2
Binding: Single Bound, True Historic Reissue Cream

Back Wood Species: Mahogany
Pieces: 1
Binding: Top Only

Glue: Hand Applied Hide Glue
Tonal, Resonant, and/or Technical Effect: Hand selected backs for lightweight
Carve: Original 1958 Les Paul

Neck Wood Species: Mahogany
Pieces: 1
Truss Rod: Historic Reissue-No Tubing
Profile: 1958 Les Paul
Thickness at Fret 1: 2.26 cm /.900"
Thickness at Fret 12: 2.54 cm / 1.0"
Average Weight: .453592 kg / 1.25 lbs

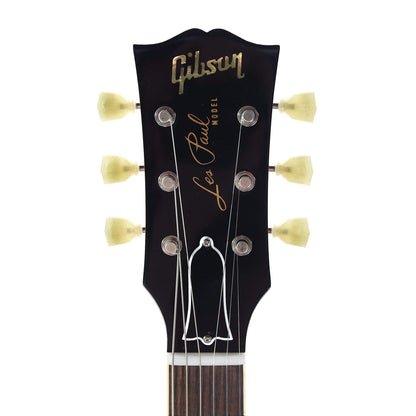

Peg Head Type: 1958 True Historic Thin Head Veneer
Inlay: Pearl
Peg Head Binding: None
Logo: "Gibson"
Silkscreen: "Les Paul"
Headstock Angle: 17 Degrees
Tonal, Resonant, and/or Technical Effect: Holly head veneer has been re-tooled, reproducing the original thinner specification of the late 1950's

Neck Joint Angle: 4 Degrees
b Reissue
Adhesive: Hot Hide Glue
Gauges Used: Pitch and Alignment Gauge

Nut Style: 6/6
Material: Nylon
Width: 4.28 cm / 1.687"
Slots:

• E: .13716 cm / 0.054"
• A: .10414 cm / 0.041"
• D: .04826 cm / 0.019"
• G: .0381 cm / 0.015"
• B: .03556 cm / 0.014"
• e: .03048 cm / 0.012"

Fingerboard Wood Species: Solid Indian Rosewood
Pieces: 1
Radius: 30.38 cm / 12"
Frets: 22
Nut/End of Board: 4.28498 cm / 1.687" @ nut, 5.6896 cm / 2.24" @ end of board
Scale: 62.865 cm / 24.75"
Binding: .040 True Historic Reissue Cream
Side Dots (Color): Tortoise Shell

Inlay Style: Trapezoid
Material: Aged Nitrocellulose
Dimensions: Large: 2.921 cm x 1.7018 cm / 1.150" x .670", Small: 3.937 cm x .6096 cm / 1.550 x .240"
Average Weight: .340194 kg / .75 lbs

Pickup Style: Custom Bucker
Winds/Coil: Screw side/Slug side: 5200-5590
Material of Wire (gauge): #42 Enamel
Coil Dimensions (per coil): 6.6294 cm x 1.7272 cm x .9525 cm / 2.61 x.68 x .375"
Coil Material: ABS
Coil Winding Process: Machine Wound
Pole Piece Material: 416 Grade Stainless Steel
Pole Piece Position from Nut: 47.3075 cm / 18.625" (Rhythm), 59.7 cm / 23.5" (Lead)
Slug Material: 416 Grade Stainless Steel
Slug Dimensions (diameter x length): .4826 cm x 1.24206 cm / .190 x .480" (Rhythm), 47.3075 cm / 18.625" (Lead)
Magnet Material: Alnico III
Magnet Position from Nut: 48.1965 cm / 18.975" (Rhythm), 58.36 cm / 22.975" (Lead)
Magnet Dimensions: 6.35 cm x 1.27 cm x .3175 cm / 2.5 x .5 x .125"
Cover: True Historic Replica VOS Nickel
ResistanceDC: 8.0k (Rhythm), 8.5k (Lead)

Tuning Keys Style: Reissue Kluson Deluxe Green Keys, Single Band
Material: Nickel Plated Steel
Weight: 3.6 oz
Tuning Ratio: 12:01
Gear Type: Closed
What is allowable turn: 1/4
Plating specs: Nickel Plated Stamped Steel
Part numbers: 130-430-14889/90

Bridge Style: ABR With Thumbwheels
Material: Zinc Surrounded by a die casting alloy for casting flow
Plating Specs: Nickel Plated
Part number: 130-430-10161
Weight: .0637 kg / 2.25 oz.

Tailpiece Style: Reissue Lightweight Aluminum
Compensated: No
Material: Aluminum
Plating Specs: Nickel
Part number: 130-430-11738
Weight: .0311845 kg / 1.1 oz

Output Jack Style: 1/4"

Jack Plate Style: 59 True Historic
Material: True Historic Reformulated
Part Number: 130-430-19299C
Weight: .0056699 kg / .2 oz

Strap Buttons Material: Aluminum
Plating Specs: None
Part numbers: 130-430-19150
Weight: .0141748 kg / .5 oz

Pick Guard Style: 59 True Historic
Part Number: 130-430-12768

Truss Rod Cover Style: True Historic
Part Number: 130-430-19784

Knobs Style: True Historic Gold Top Hats
Part Number: 130-430-19778V

Backplate Cover Style: Reissue Les Paul .09 Black Royalite
Part Number: 130-430-19808

SwitchPlate Cover Style: 2015 Die Cast Gibson Custom Medallion
Part Number: 130-430-19016

Switch Washer Style: True Historic Cream Replica
Part Number: 130-430-19292C

Trim Rings Style: True Historic Cream Replica
Part Number: 130-430-13891V/130-430-13892V

Case Style: Reissue Les Paul
Color: Reissue Brown with Pink Fur Lining
COA/Other: Custom Shop True Historic Certificate of Authenticity in Binder, Extra Black Plastic Treble/Rhythm Switch Cover Plate
