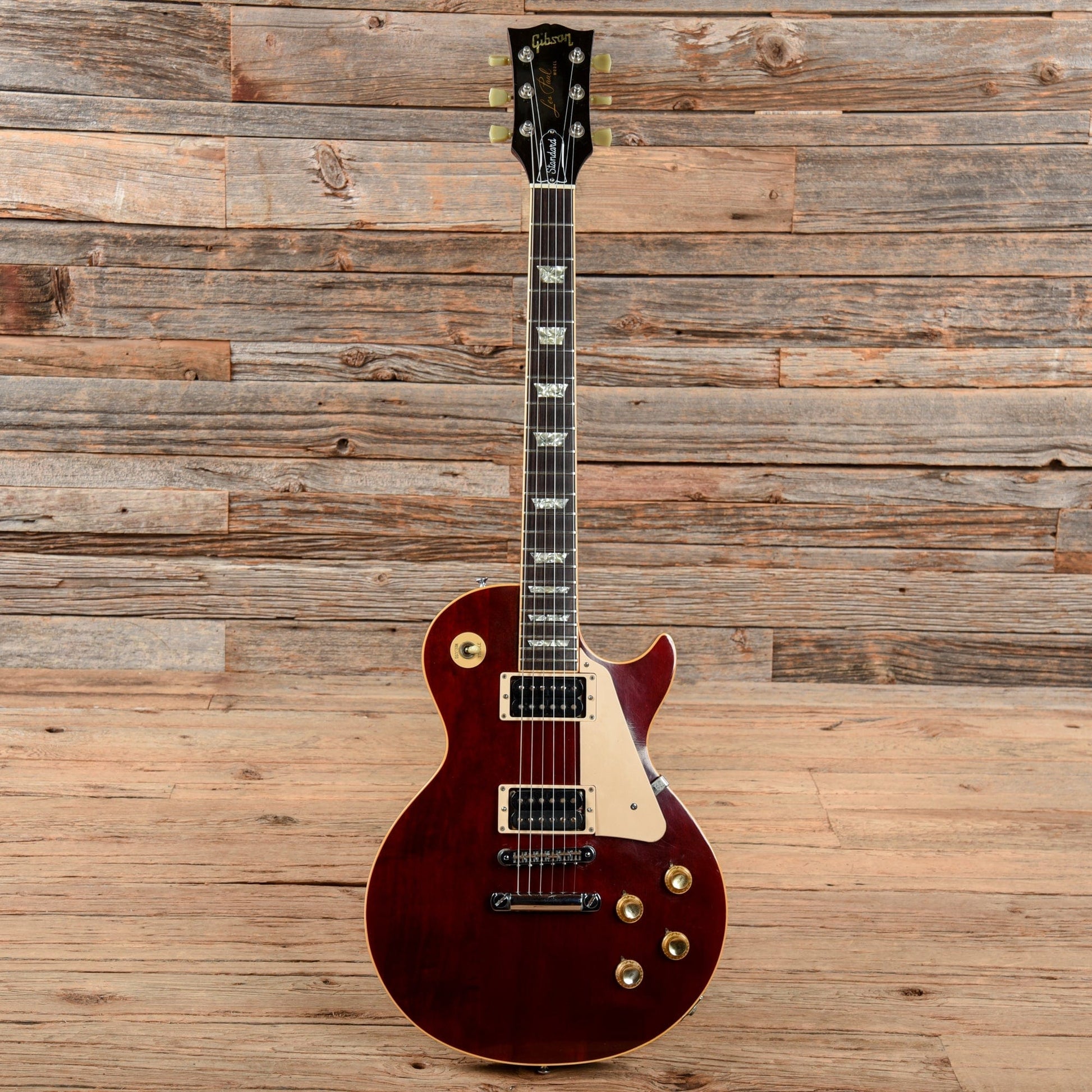

Finish Details: | Original |
Body Material: | Mahogany |
Body Details: | Mahogany "pancake" body with three piece carved maple cap |
Neck Material: | Maple |
Fingerboard Material: | Rosewood |
Neck Profile: | "C" profile |
Neck Thickness (IN): | .80" (1st fret), .94" (12th fret) |
Fingerboard Radius: | 12.00" |
Nut Width: | 1-5/8" |
Scale Length: | 24 3/4" |
Neck Details: | Set-in three piece maple neck with bound rosewood fretboard, headstock volute, trapezoid inlays, and headstock truss rod adjustment |

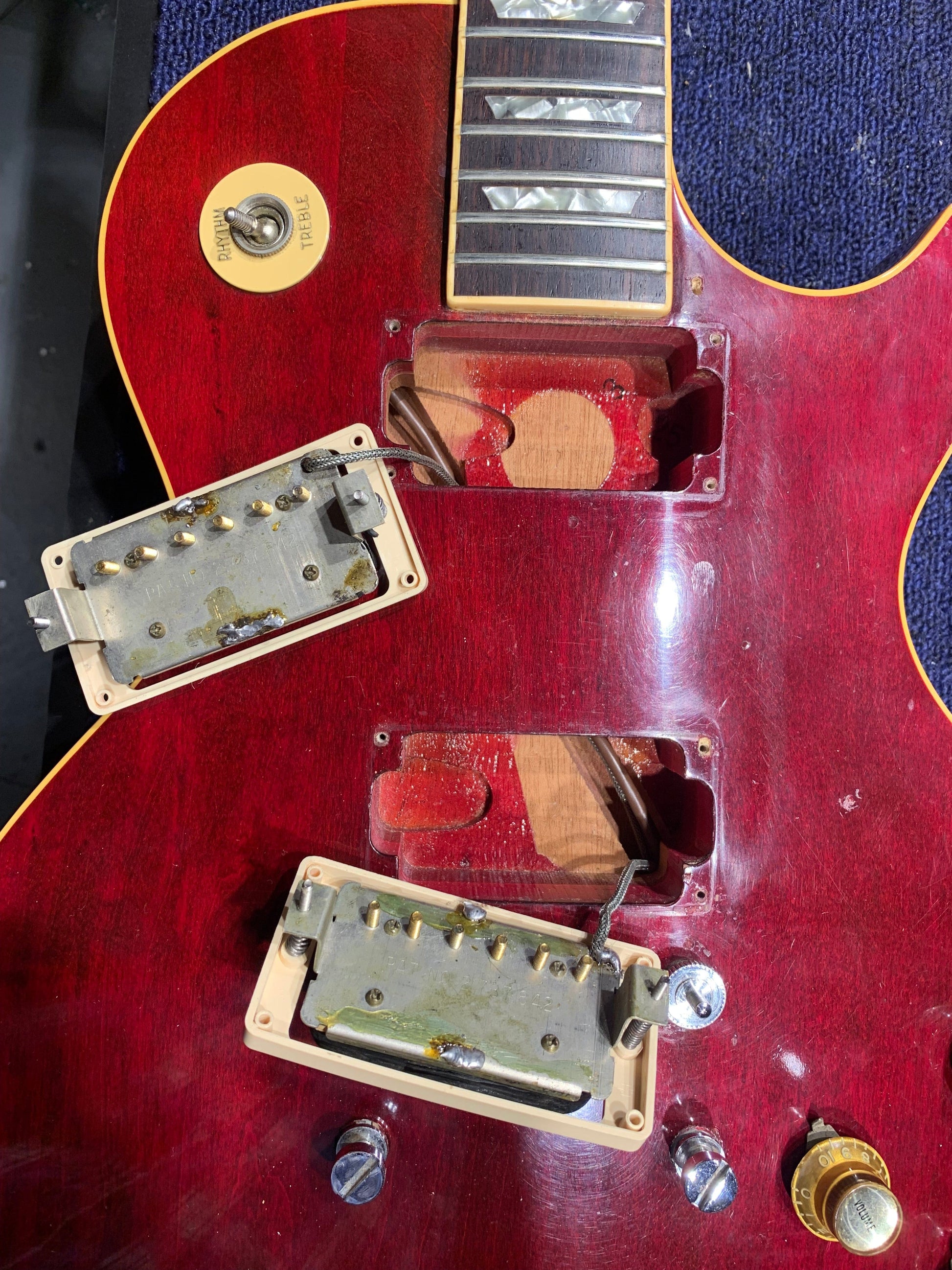

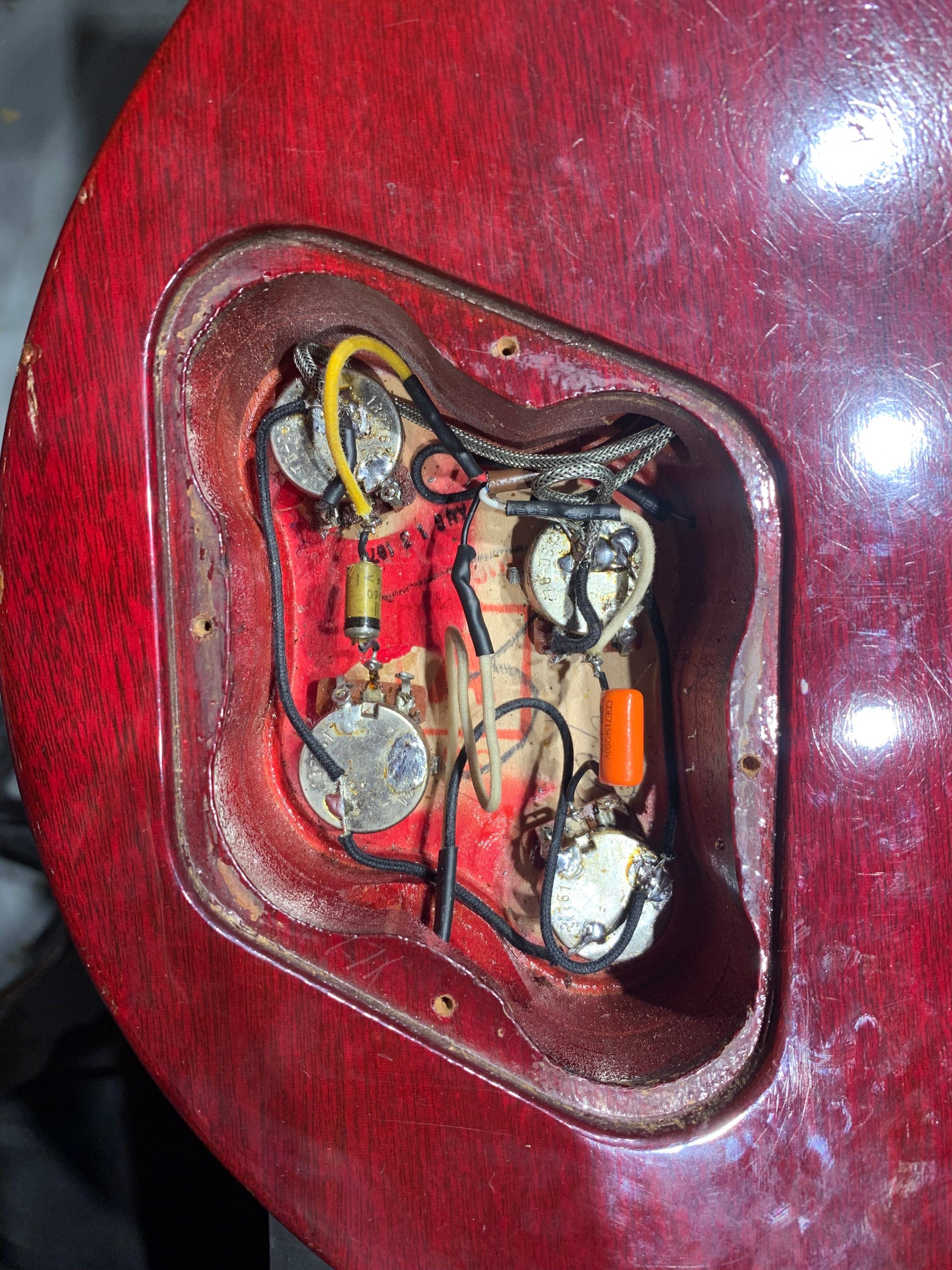

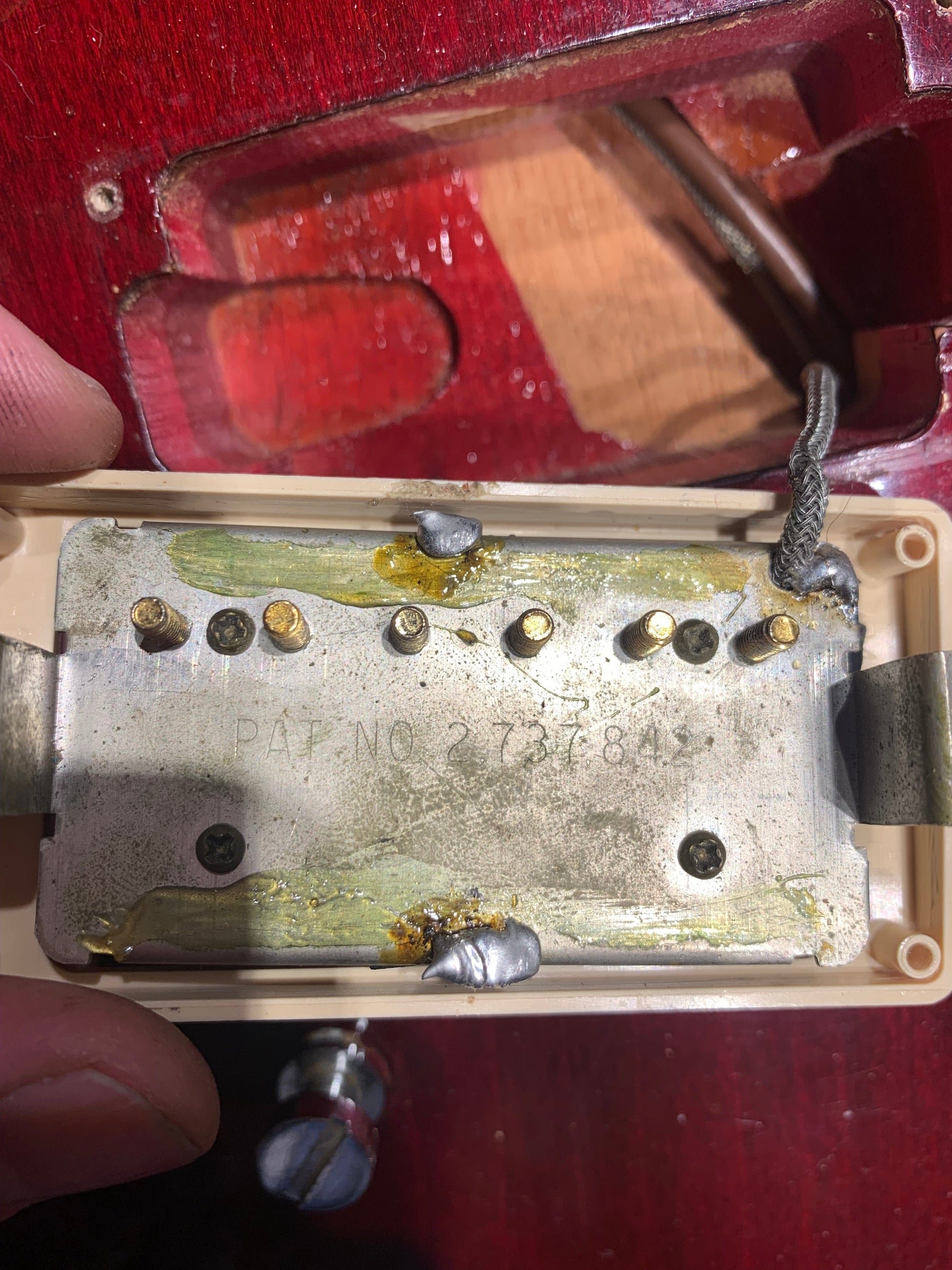

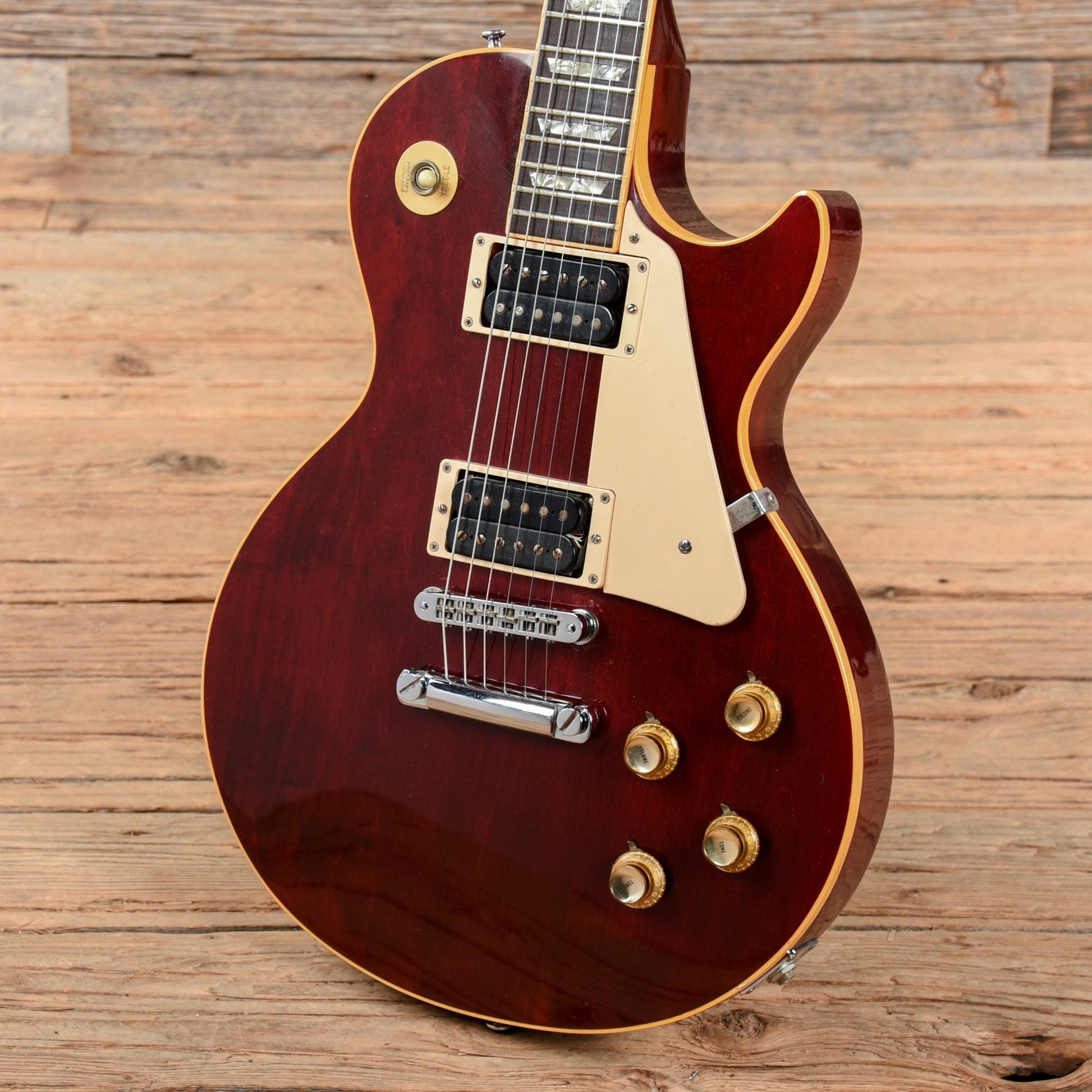

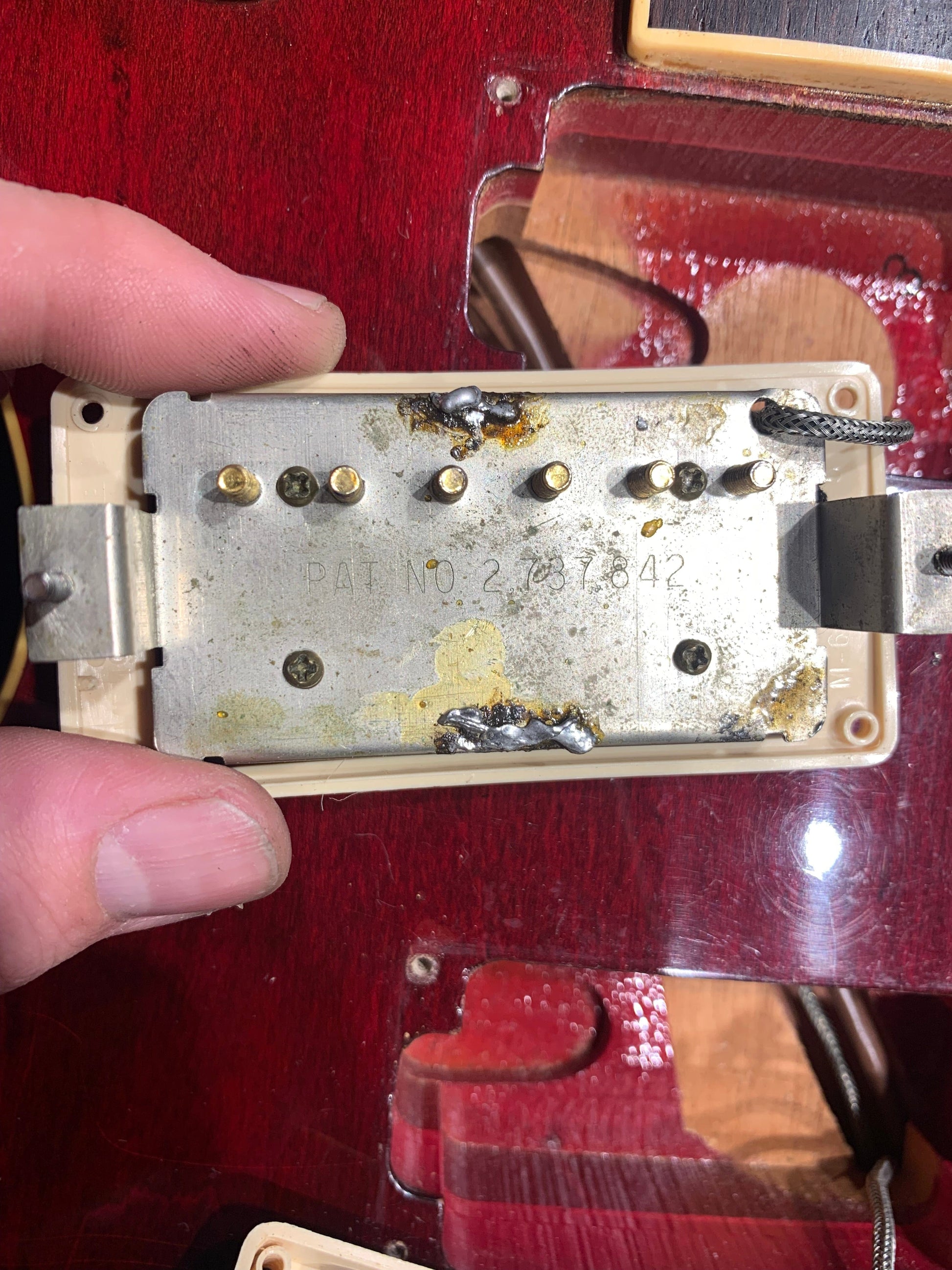

Electronics: | The pickups have been replaced with T-top humbuckers from a 1970s Les Paul Custom; the wiring harness has been fully rewired using the original pots. Controls include 3-way toggle switch and volume/tone controls for each pickup. The pot codes date to 1976. |
Pickup Measurements: | 7.8k (neck), 8.0k (bridge) |

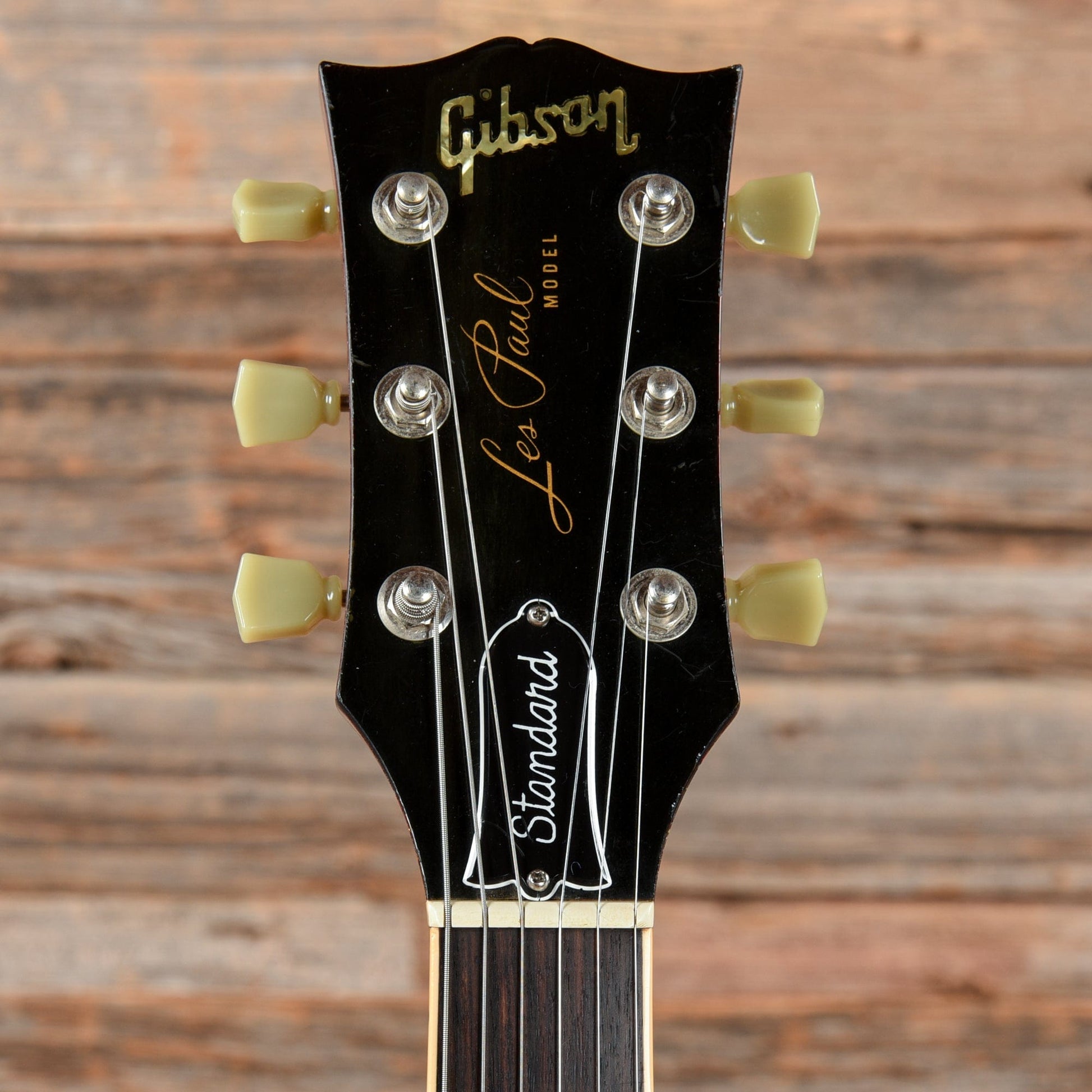

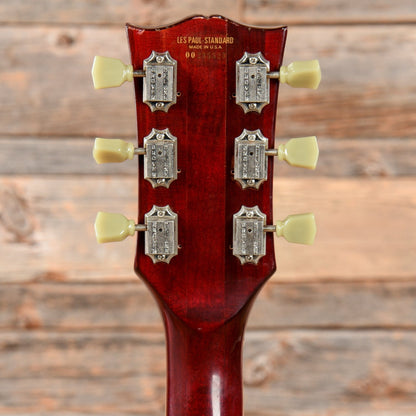

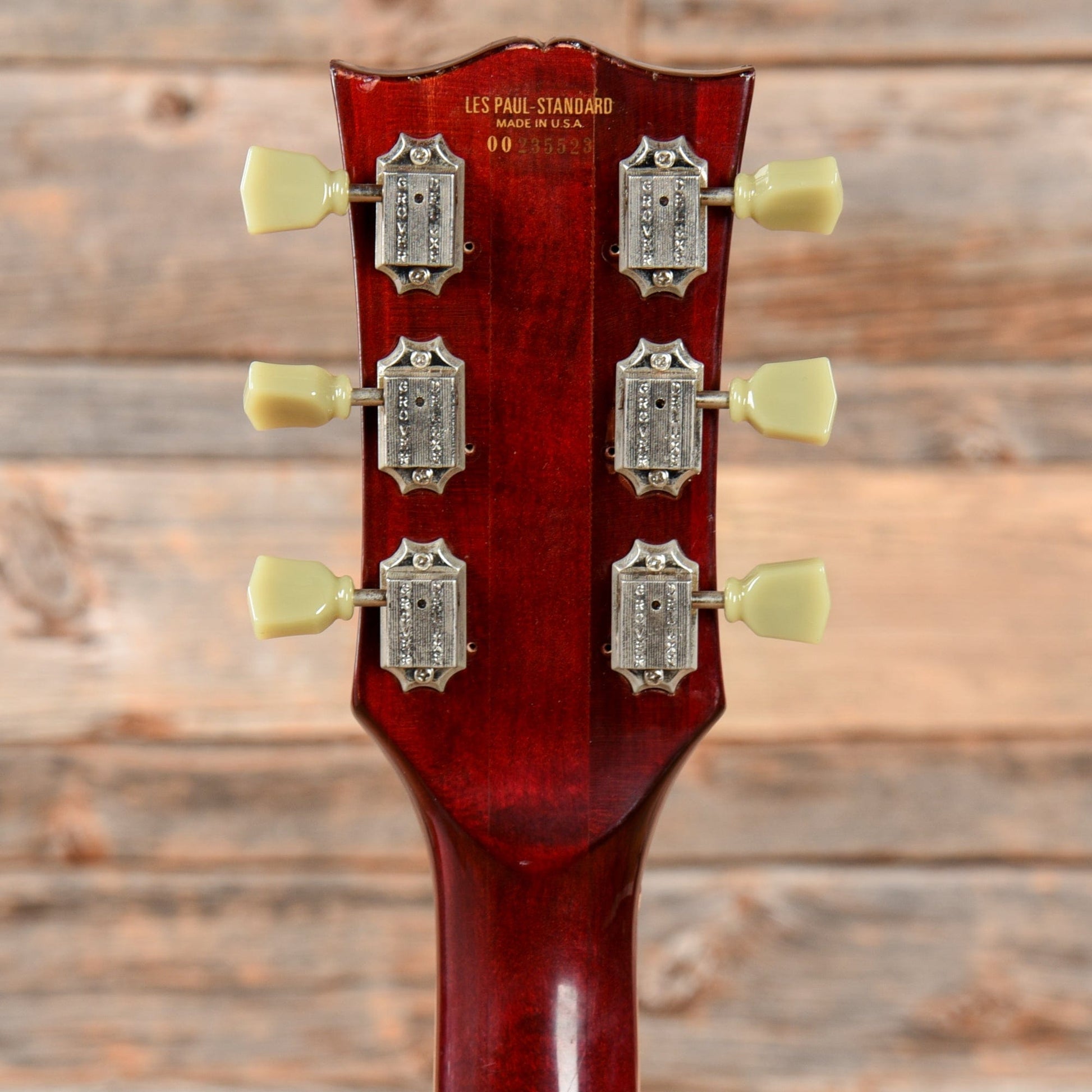

Hardware: | The tuners have been replaced; there are a few open screw holes on the back of the headstock from previously installed tuners. The tuner holes have also been reamed out for 10mm bushings. |
Modifications/Repairs: | -The pickups have been replaced and the harness has been rewired using the original pots -The tuners have been replaced |

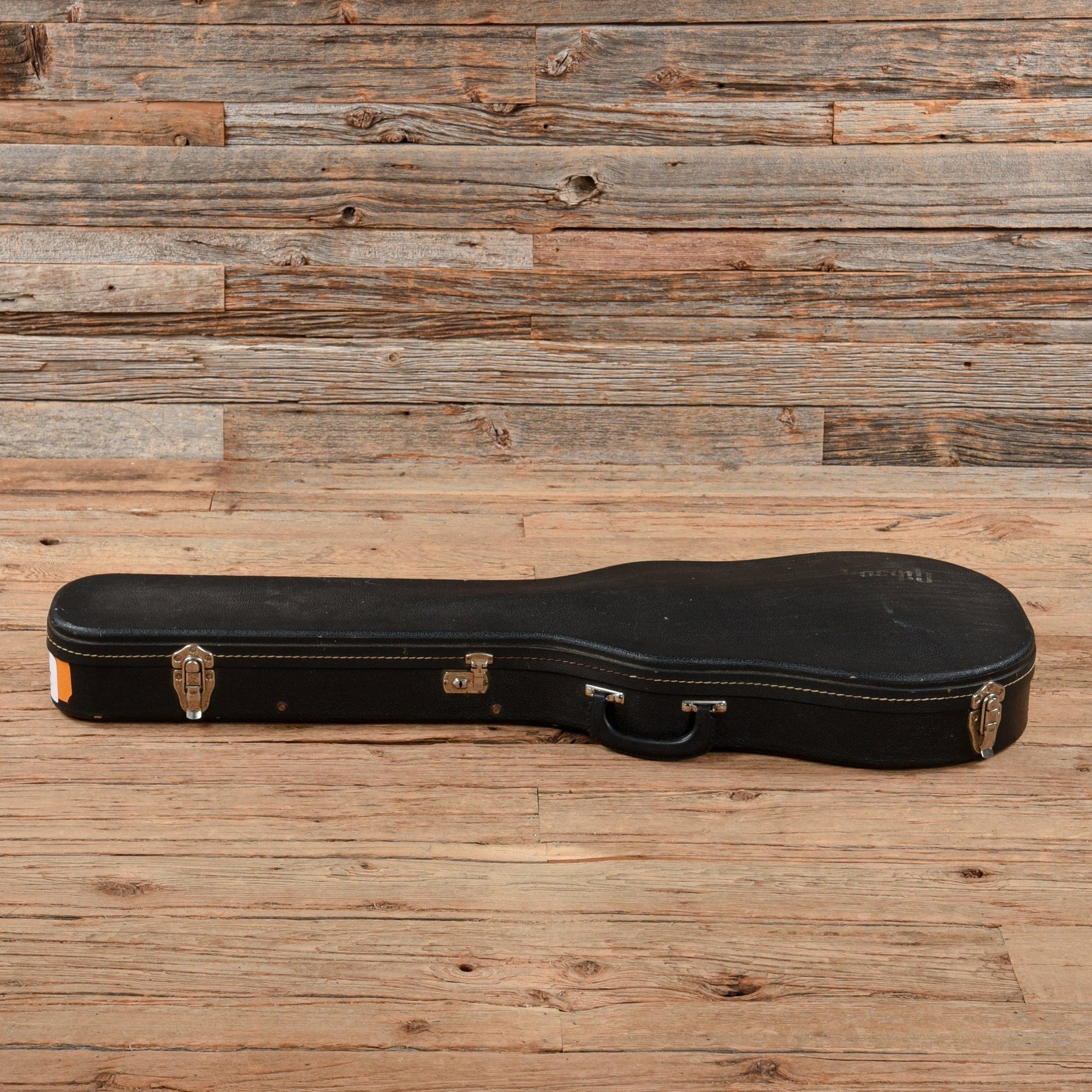

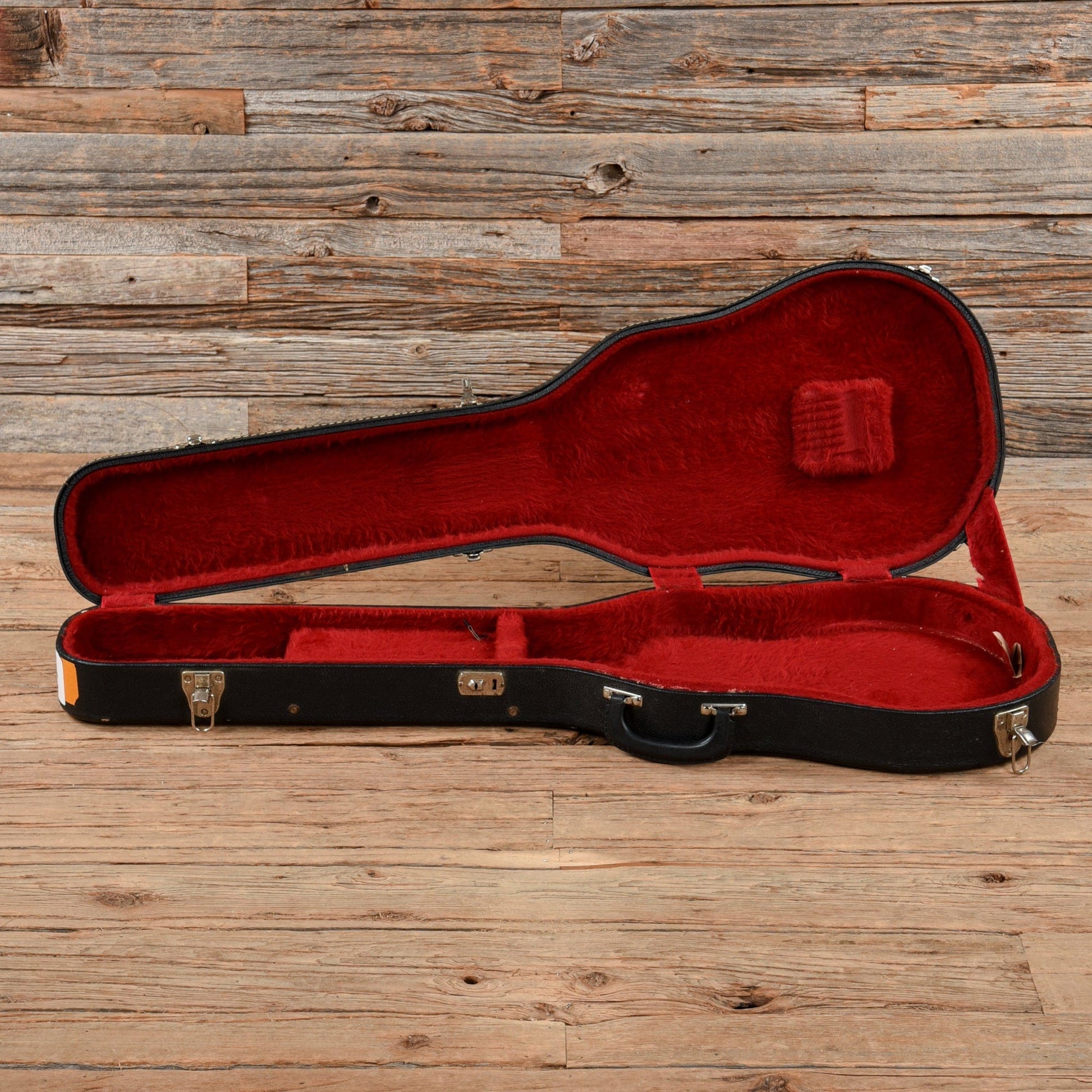

Case Details: | Original hardshell case |

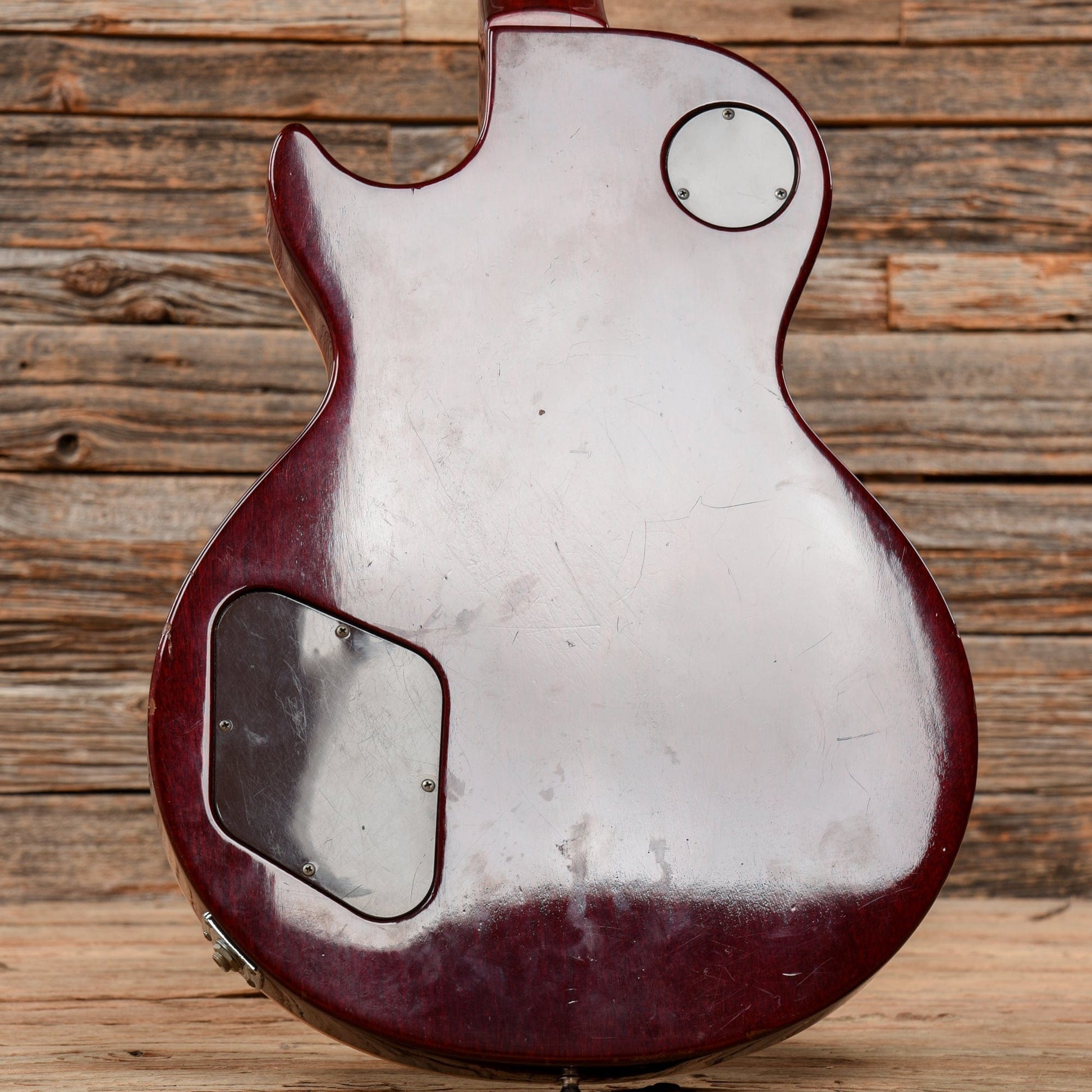

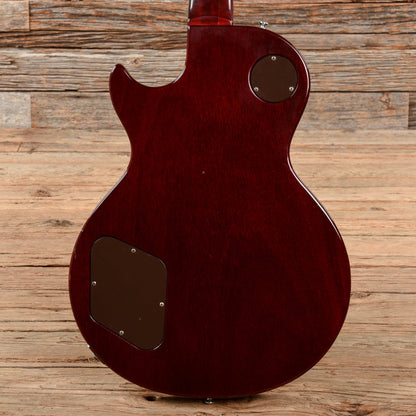

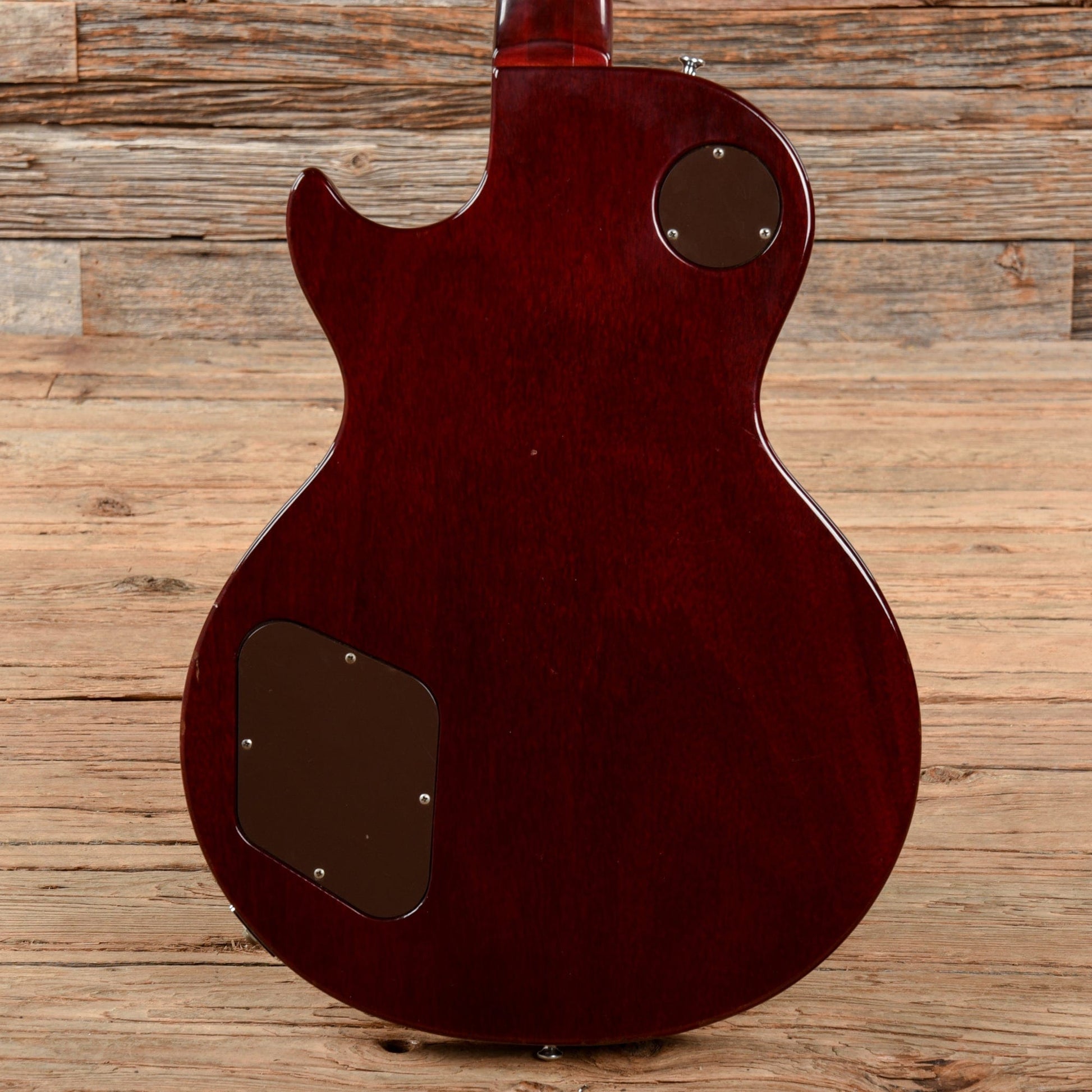

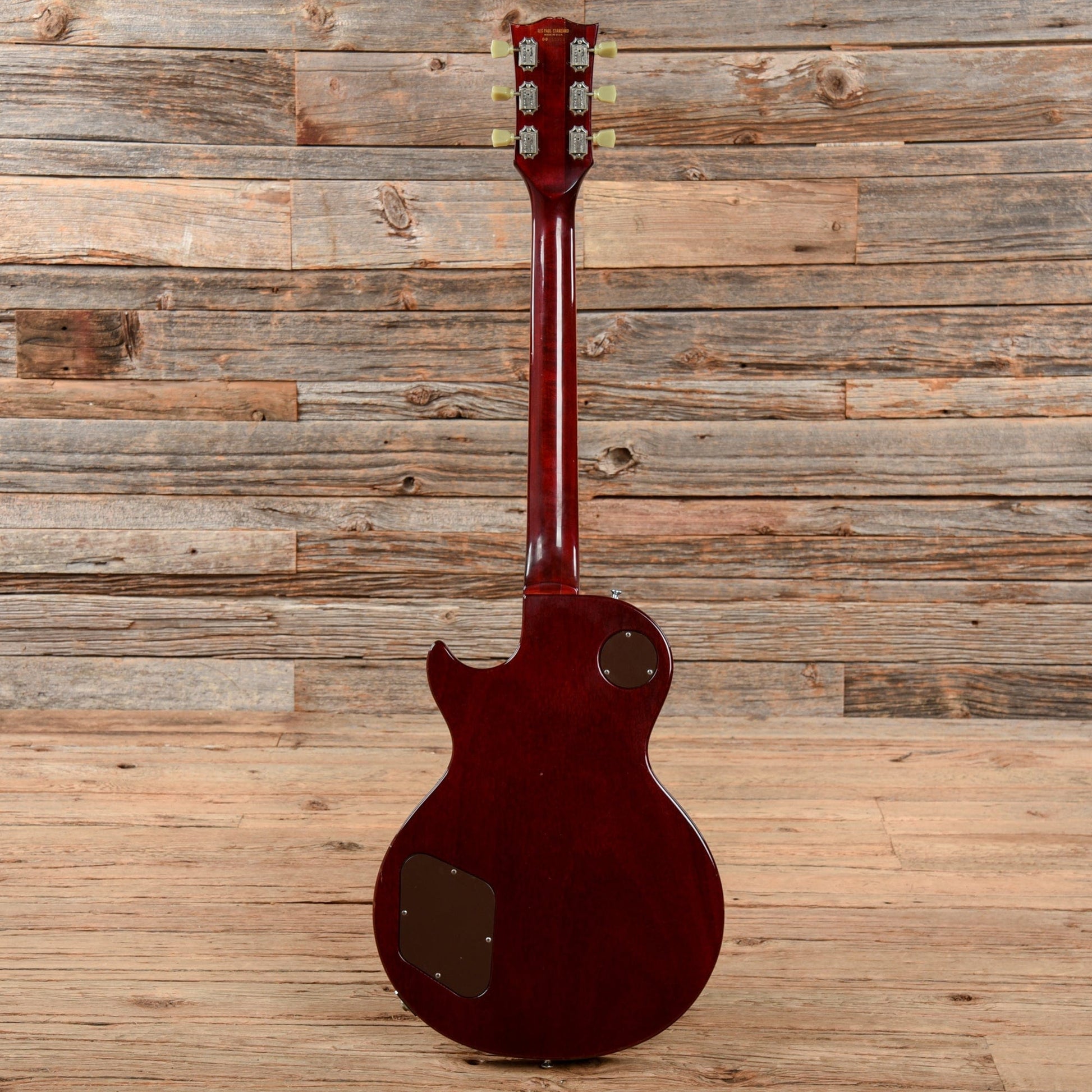

Cosmetic Condition: | The guitar has aged nicely; the finish is glossy with light scratches and various small nicks and dings around the body edges. The back has mild buckle rash. The back of the headstock has a few open screw holes from previous tuners. |
Serial Number: | 00235523 |
Tech Notes: | The guitar plays well with low action, and is currently set up with 10s. The neck has a slight S-curve on the treble side, but the guitar has been set up accordingly. The frets are wide and fairly low, with minor wear. The pot codes and serial number date to 1976. |
