The following specs were carefully collected and recorded by a skilled technician.
For a more detailed description and questions regarding sound, feel, or cosmetic
condition, please visit our Lincoln Avenue showroom or call to speak to one of our
Used and Vintage experts.
| Finish Details: | Original |
| Top Material: | Mahogany |
| Body Material: | Ash |

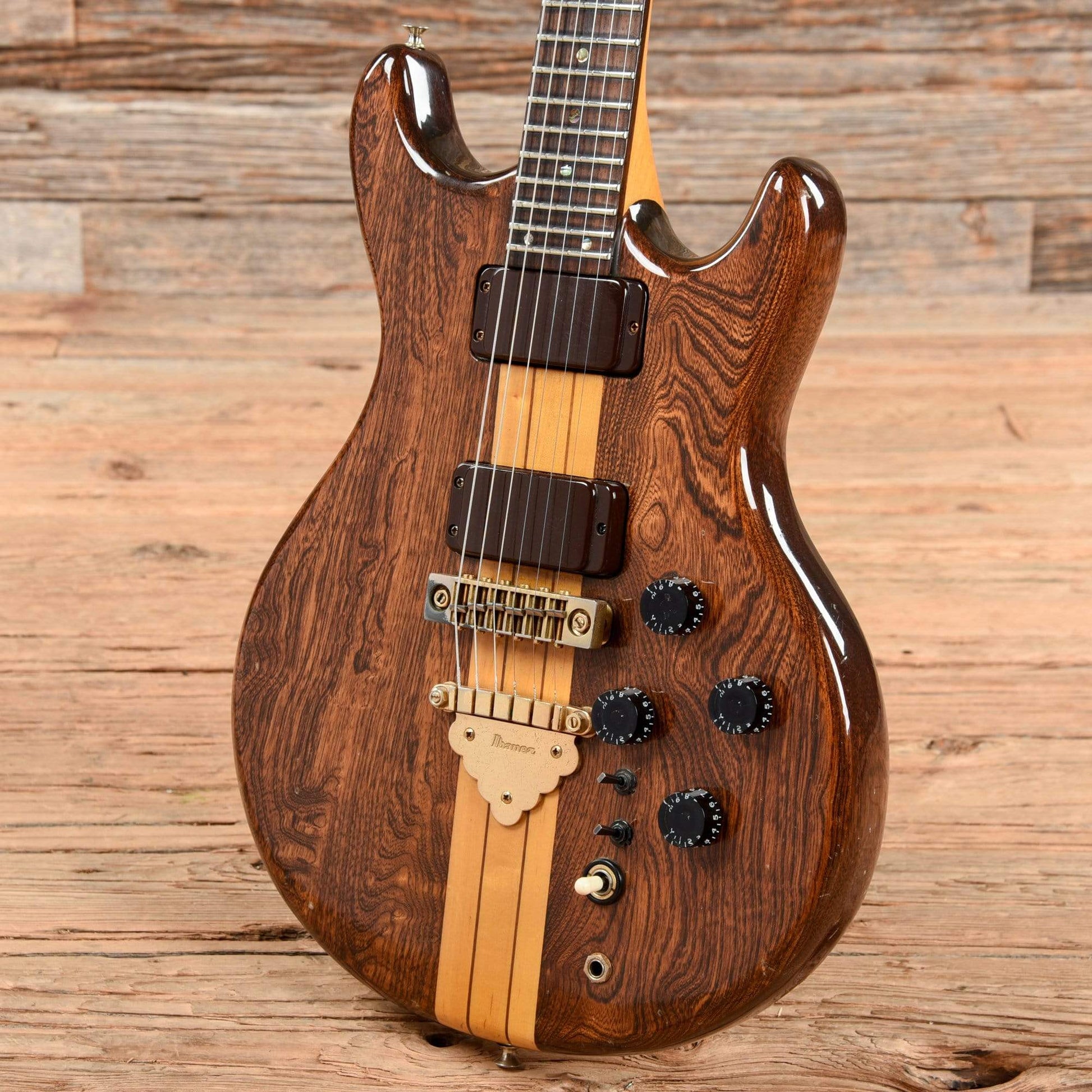

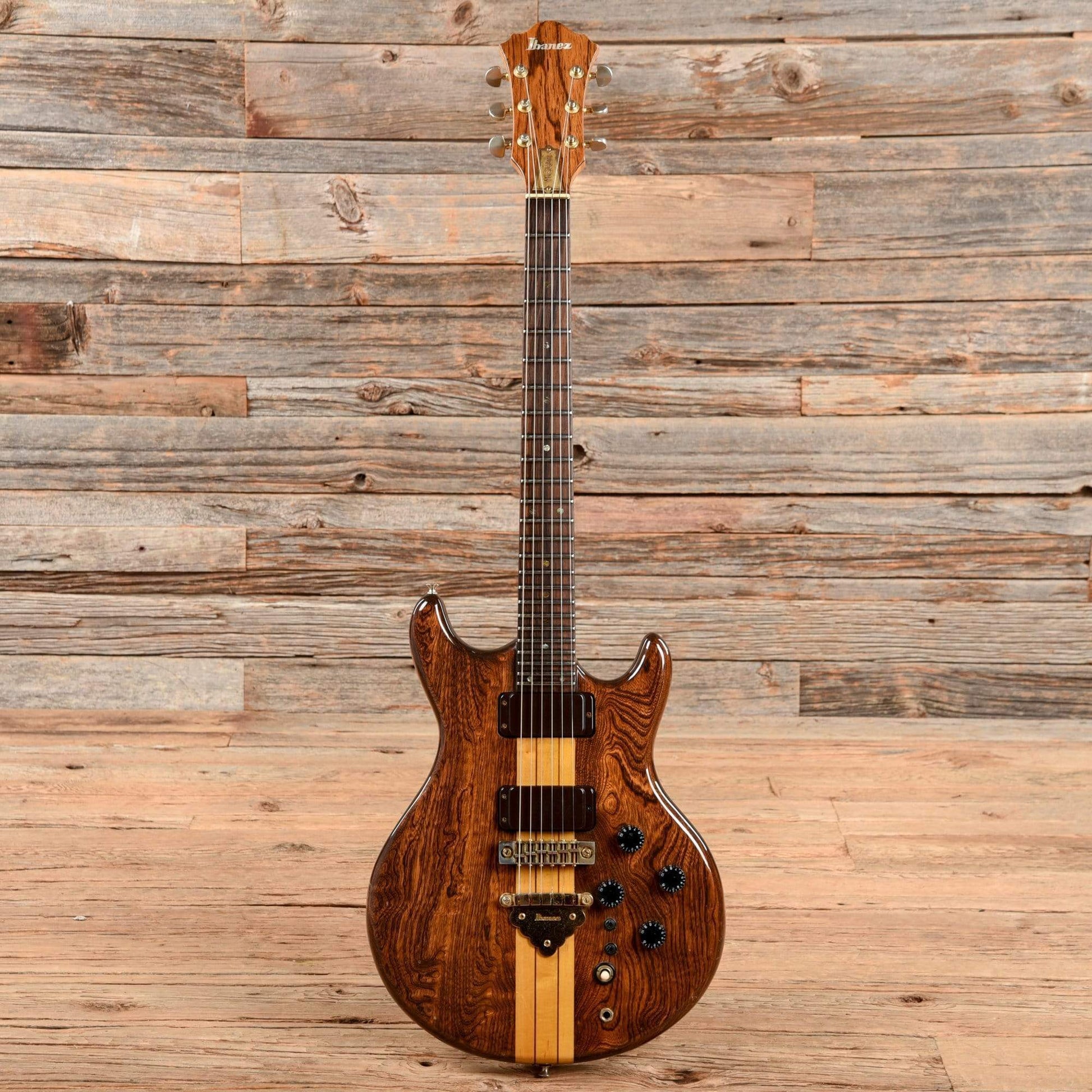

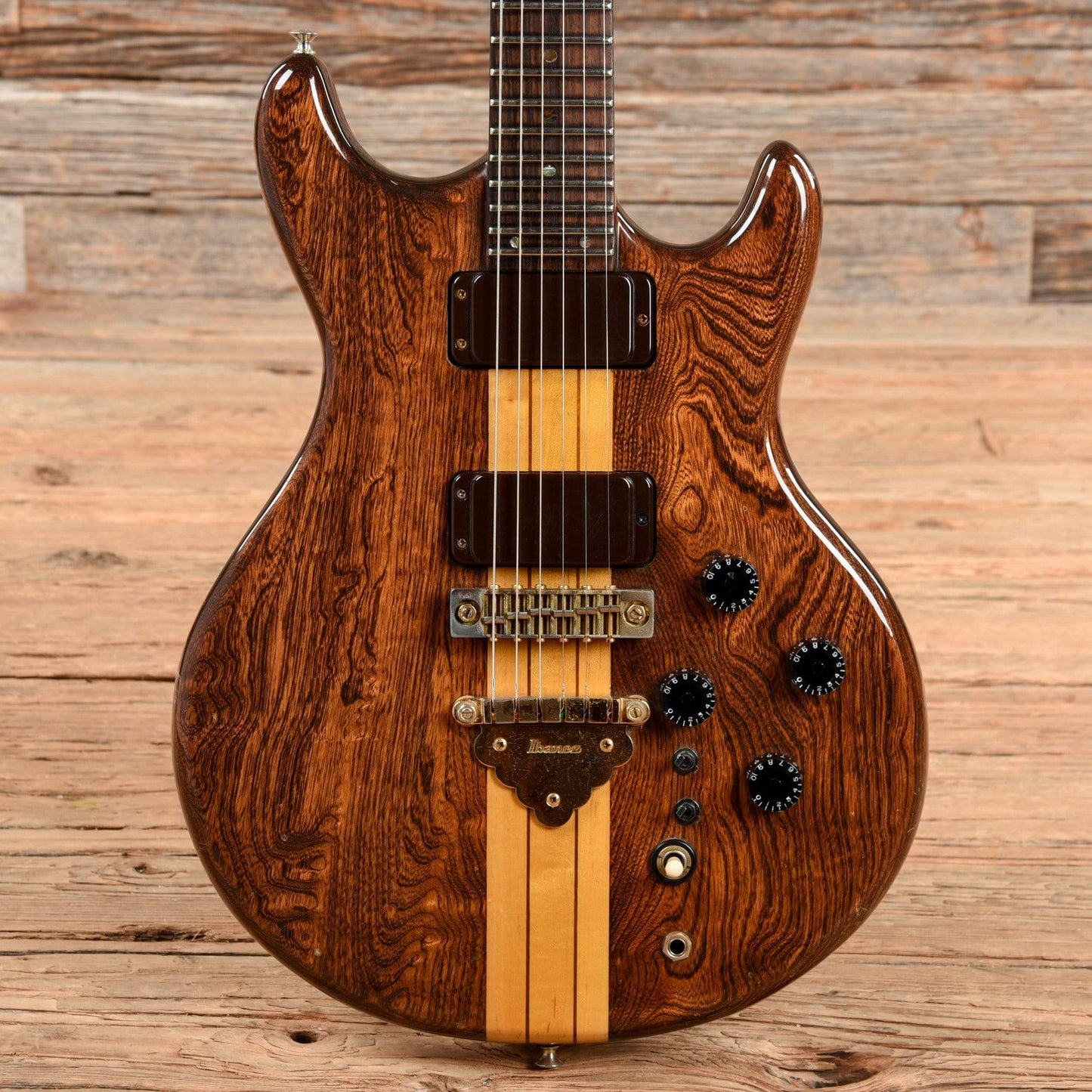

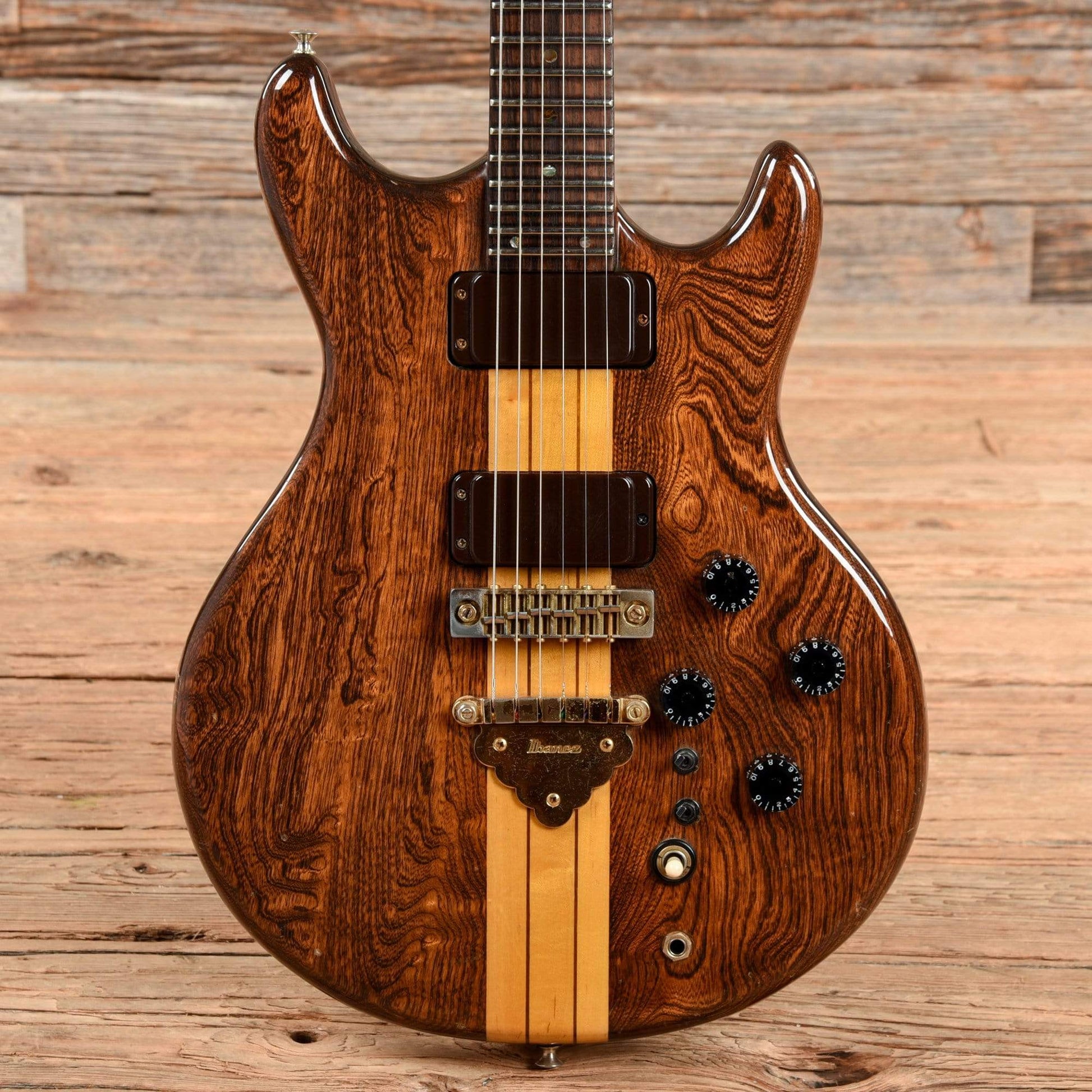

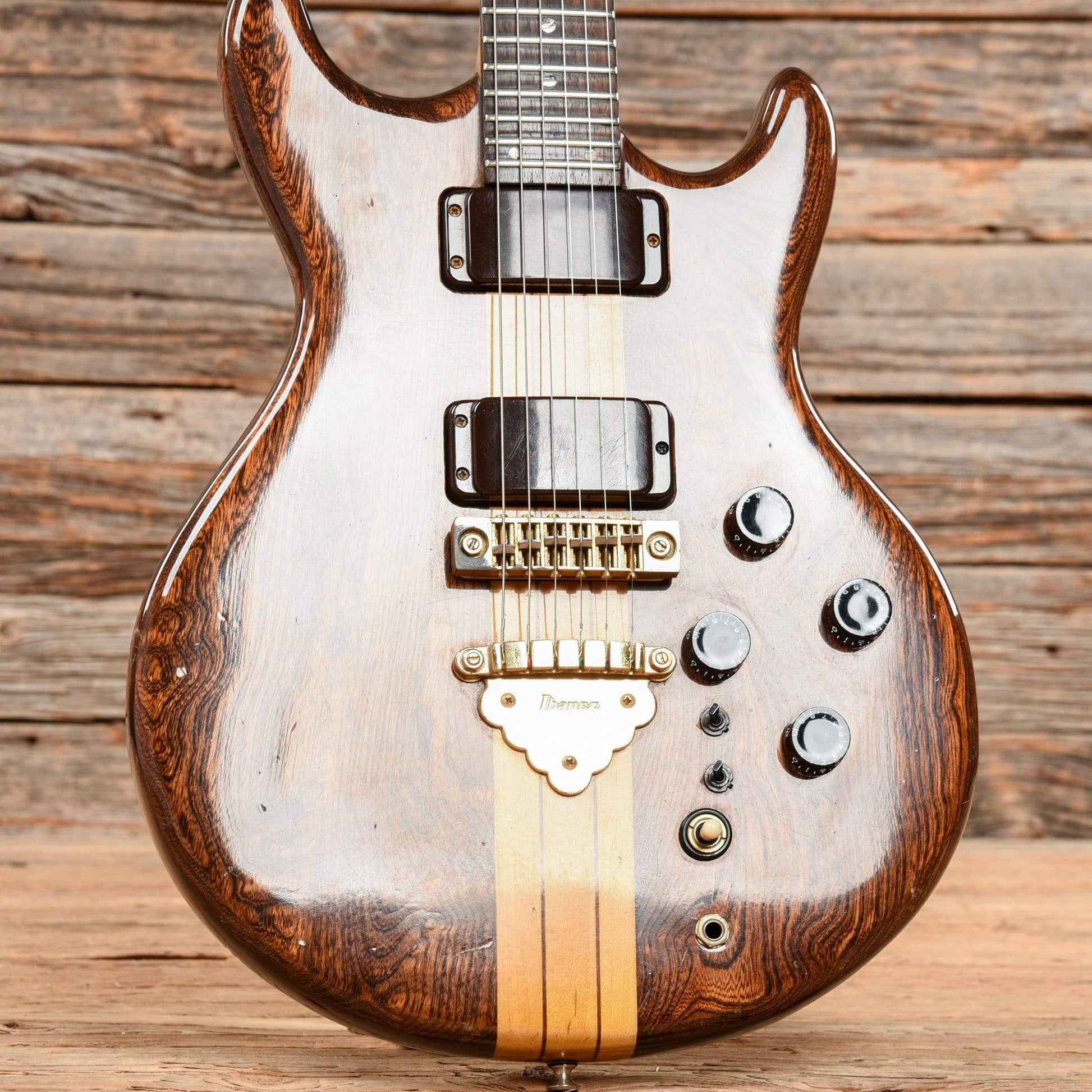

| Body Details: | Solid pancake body with ash core and mahogany front and back, with neck-through design. |
| Neck Material: | Maple |
| Fingerboard Material: | Rosewood |
| Neck Profile: | "C" profile |
| Neck Thickness (IN): | .84" (1st fret), .91" (12th fret) |
| Fingerboard Radius: | 12.00" |
| Nut Width: | 1-11/16" |
| Scale Length: | 24 3/4" |

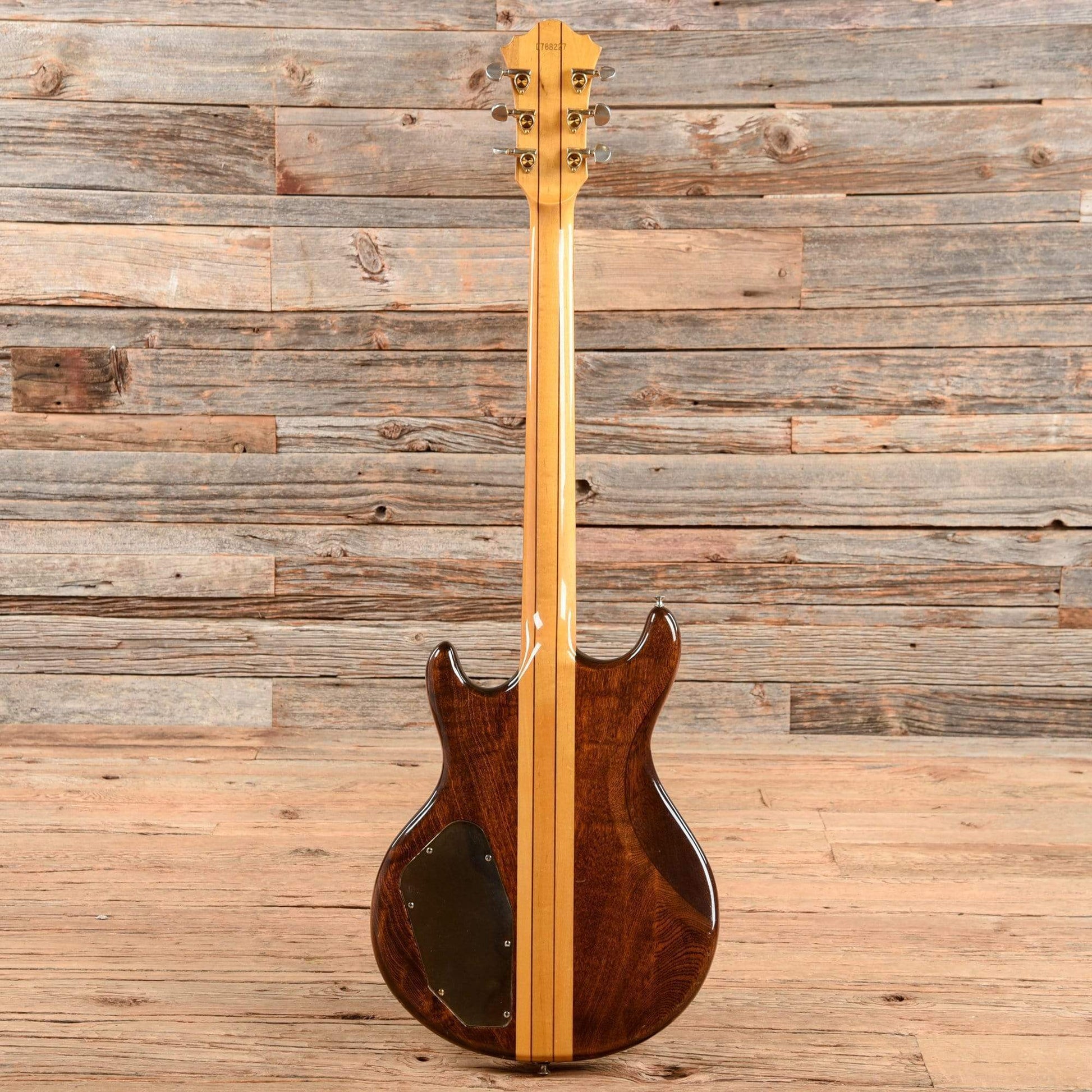

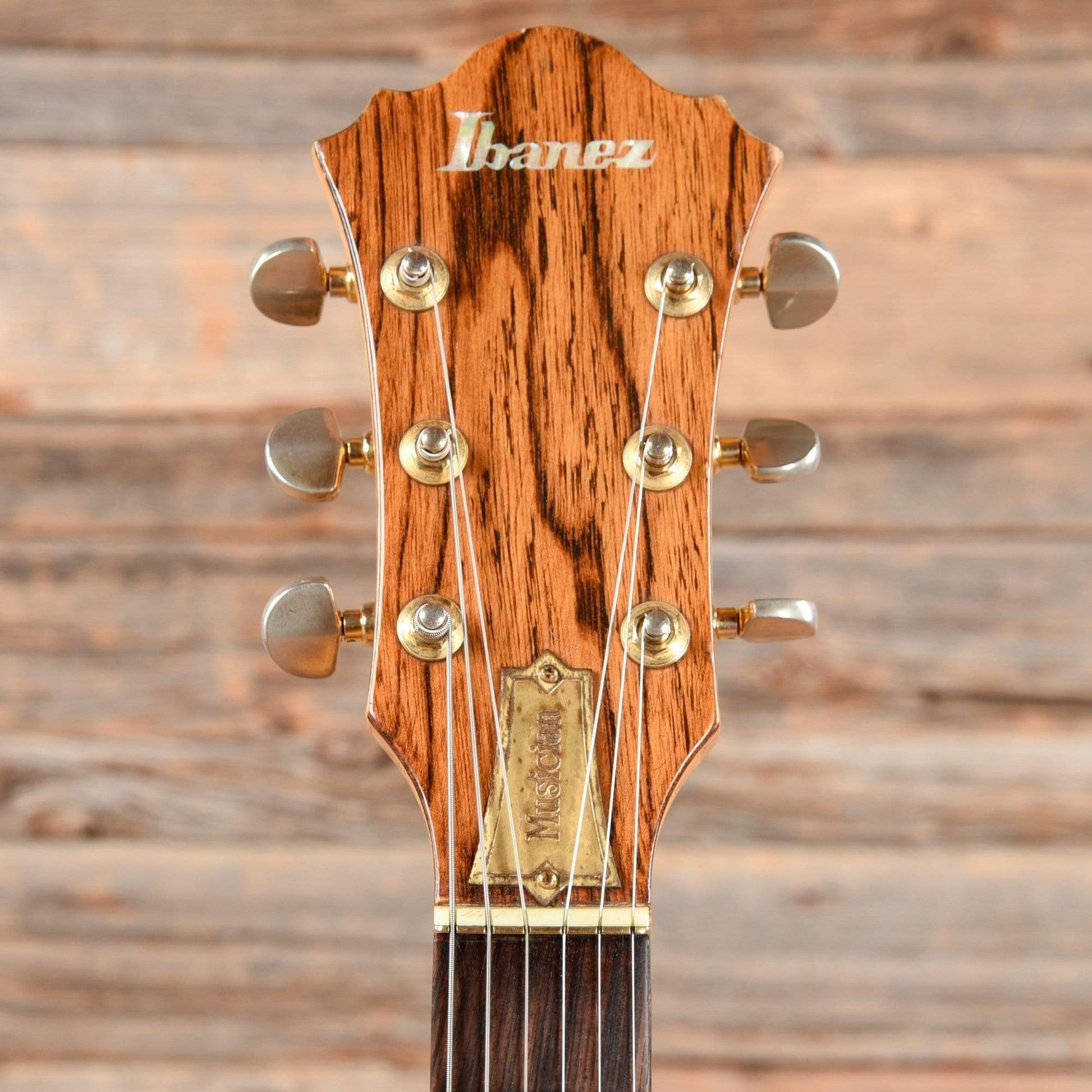

| Neck Details: | Neck-through design with five-piece maple/walnut/maple neck, unbound rosewood fretboard, dot inlays, 24 frets, original brass/bone nut, and headstock truss rod adjustment. |

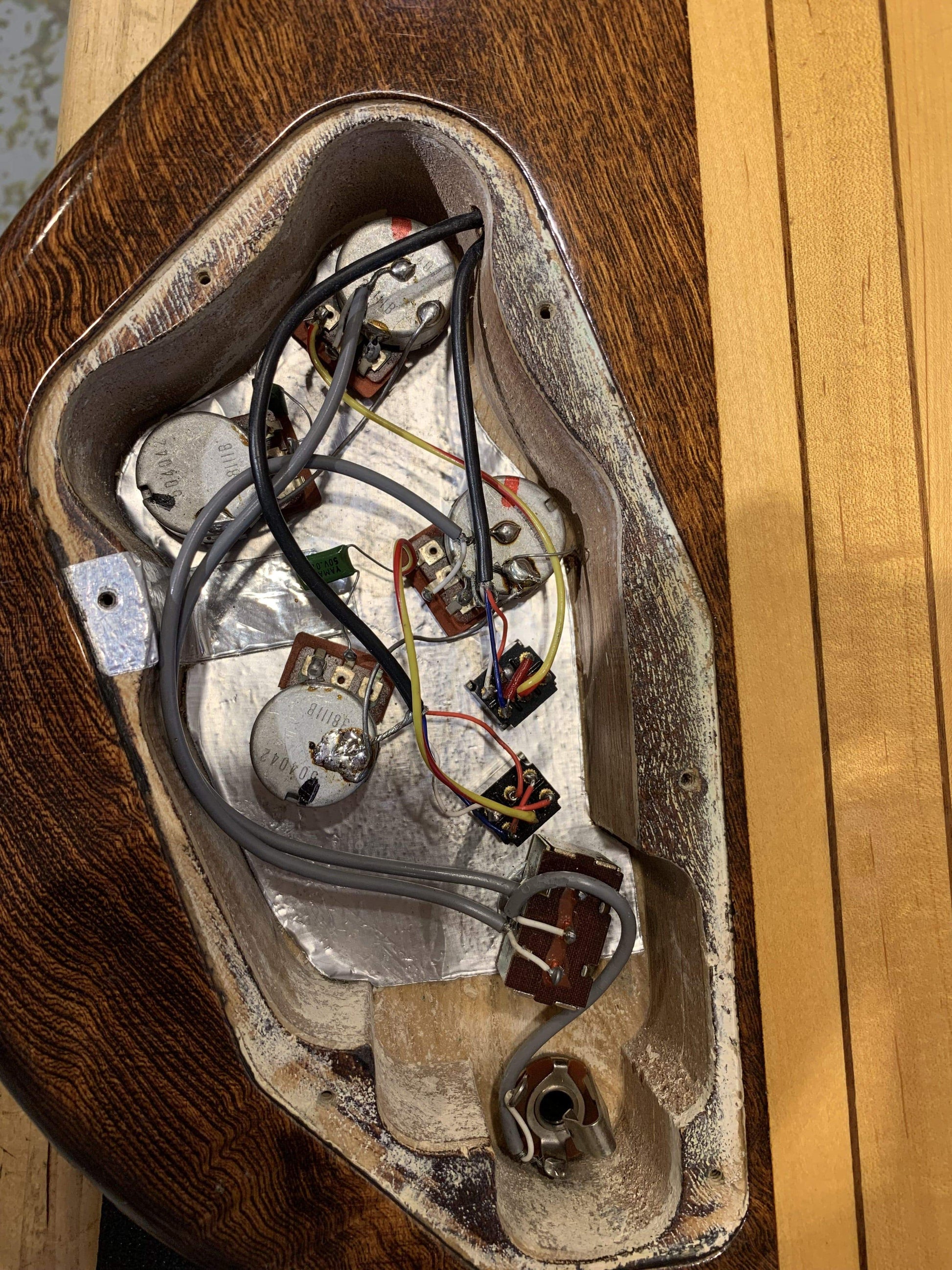

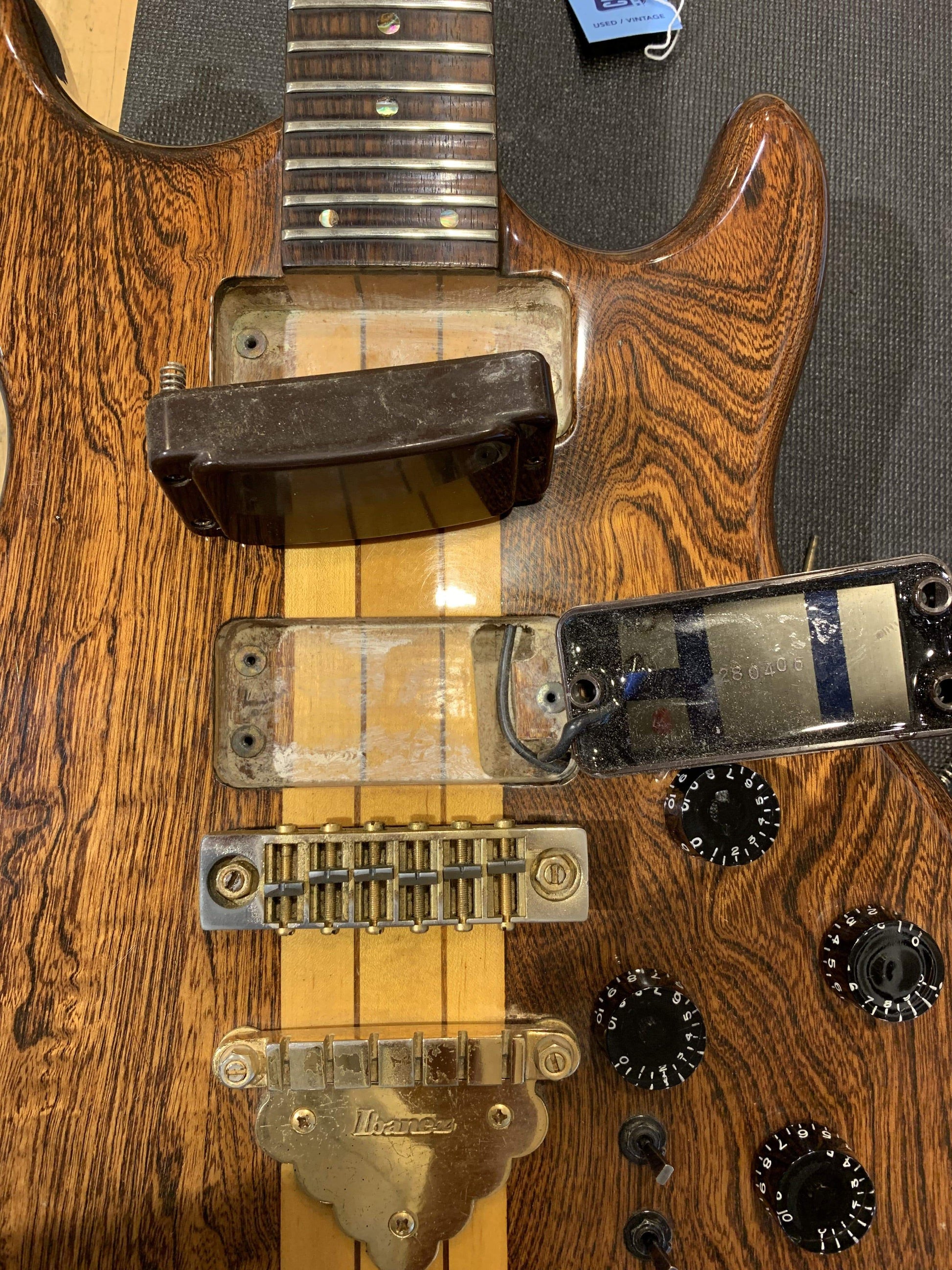

| Electronics: | Original Ibanez Super 88 humbucker pickups and original electronics; the pots do not have standardized date codes. Controls include 3-way pickups selector switch, volume/tone controls for each pickup. and "Tri-sound" toggle switch (series humbucker, single coil, series humbucker out-of-phase) for each pickup. |
| Pickup Measurements: | 7.8k (neck), 8.0k (bridge) |
| Hardware: | The knobs are not original. |
| Weight: | 9lbs 5oz |
| Modifications/Repairs: | The knobs are not original. |

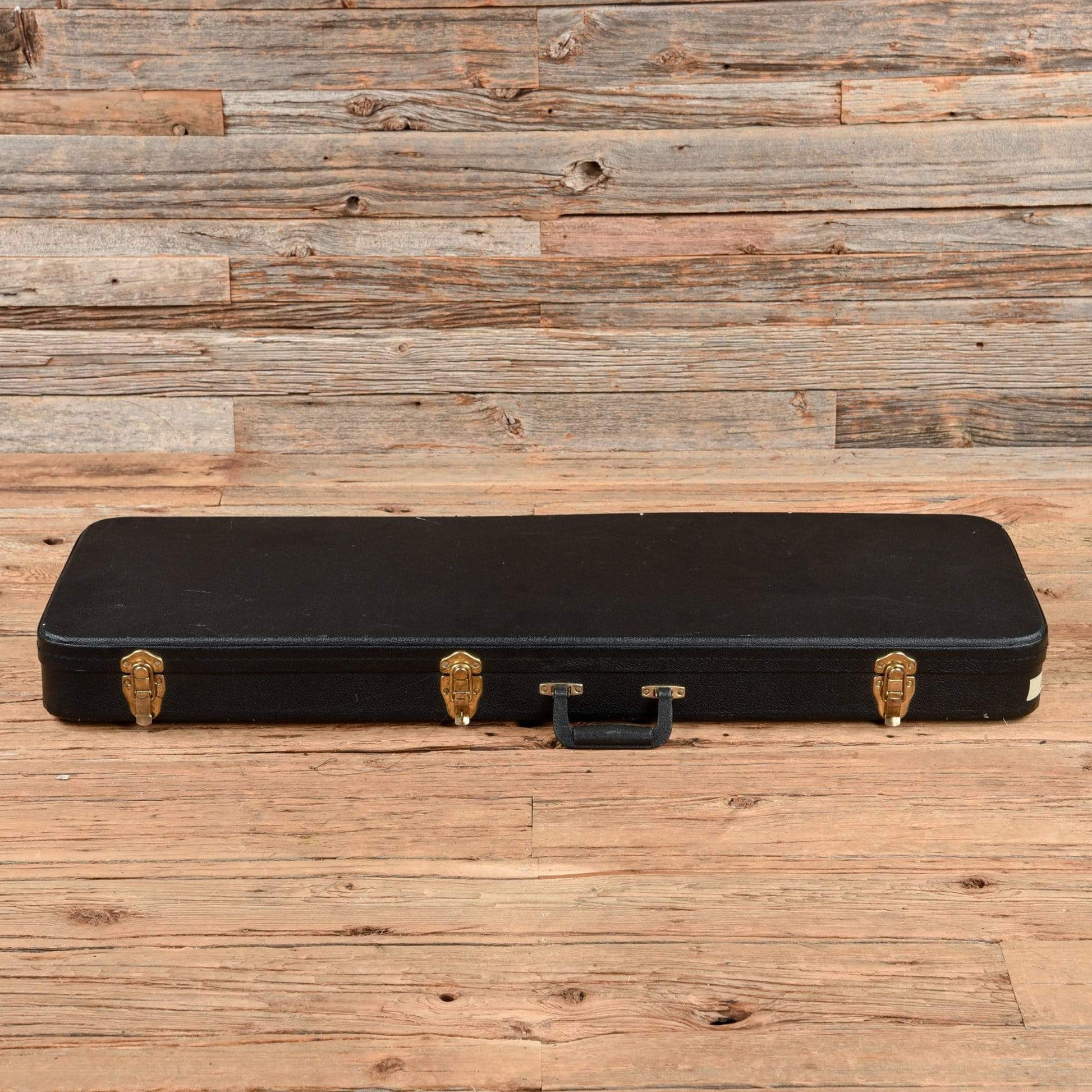

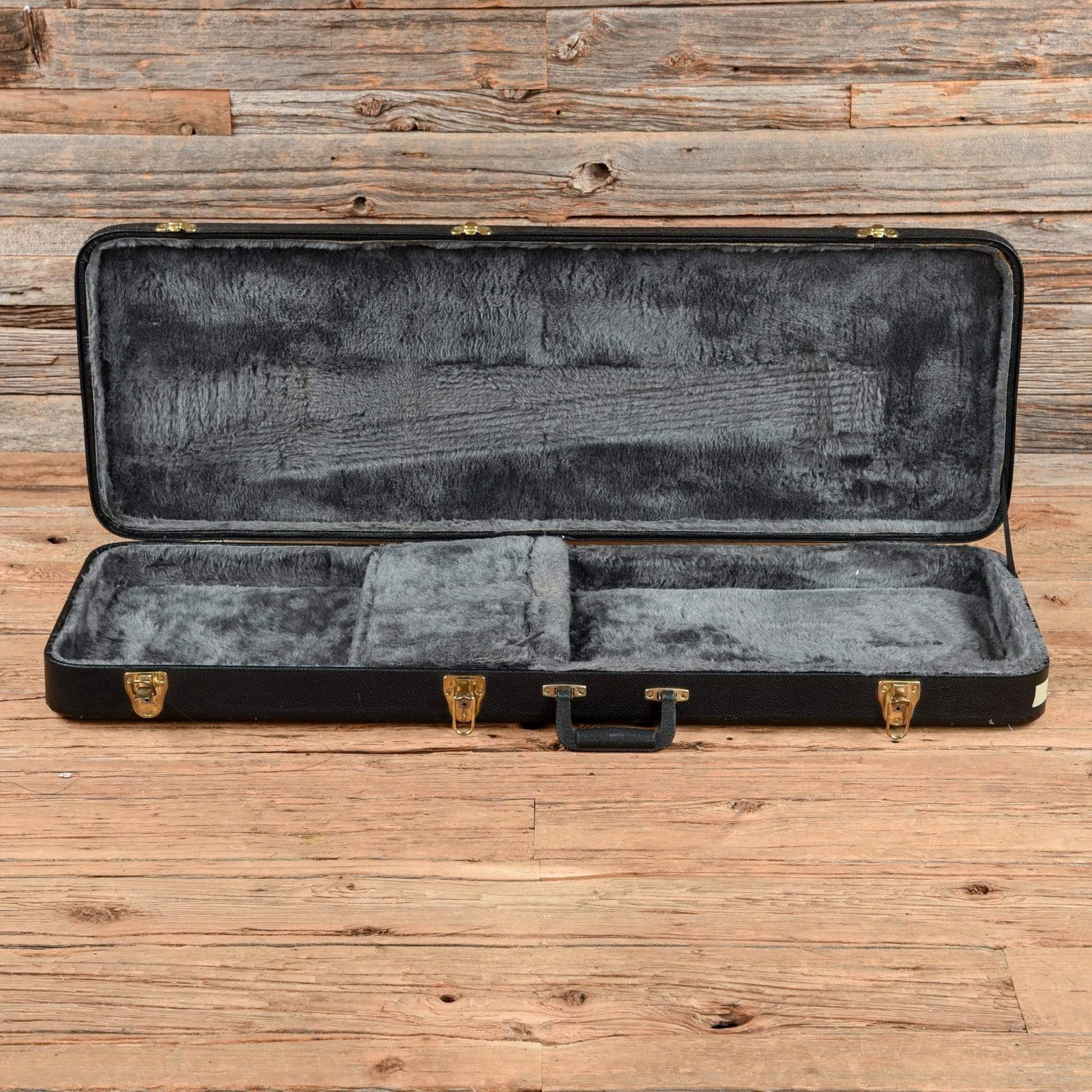

| Case Details: | Hardshell case |

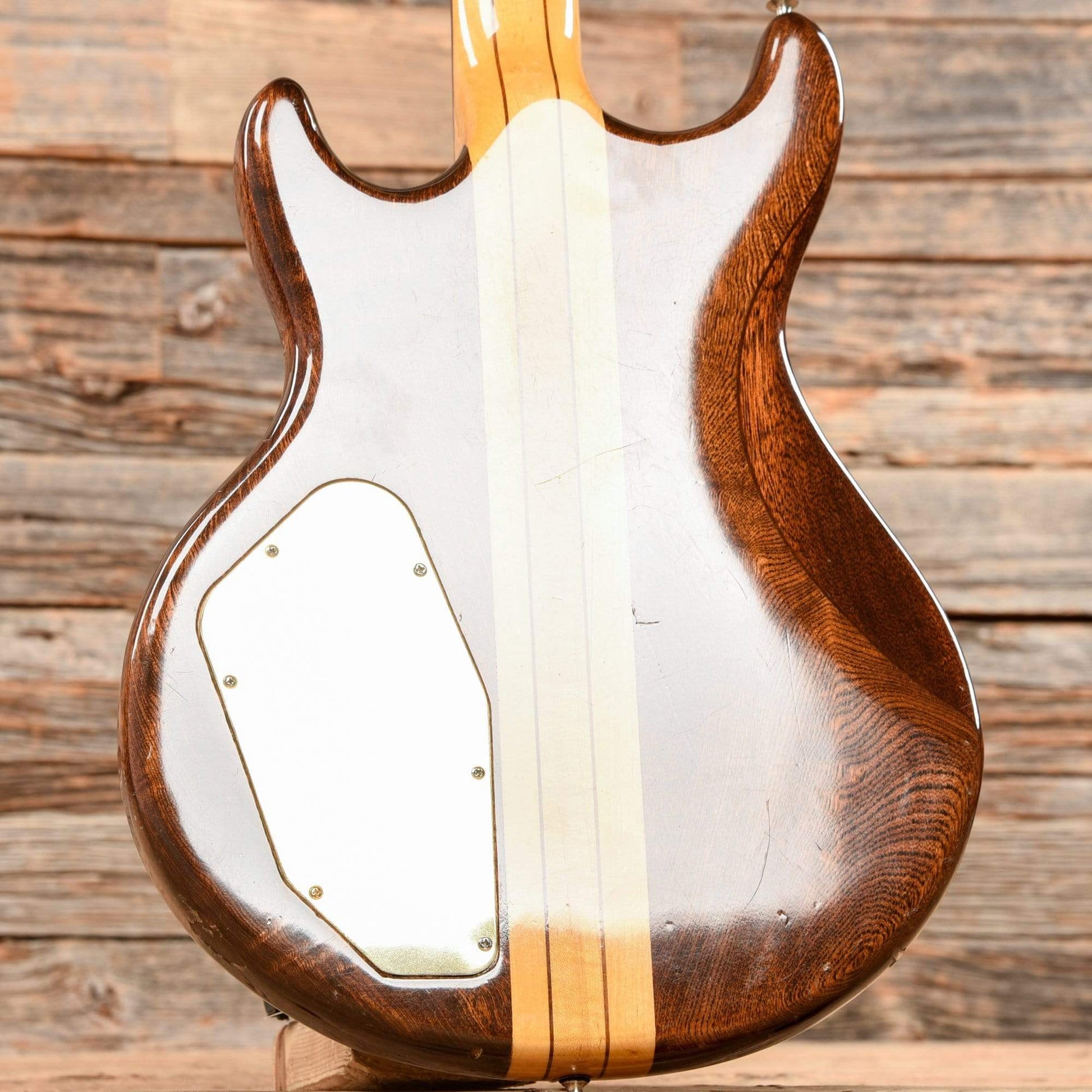

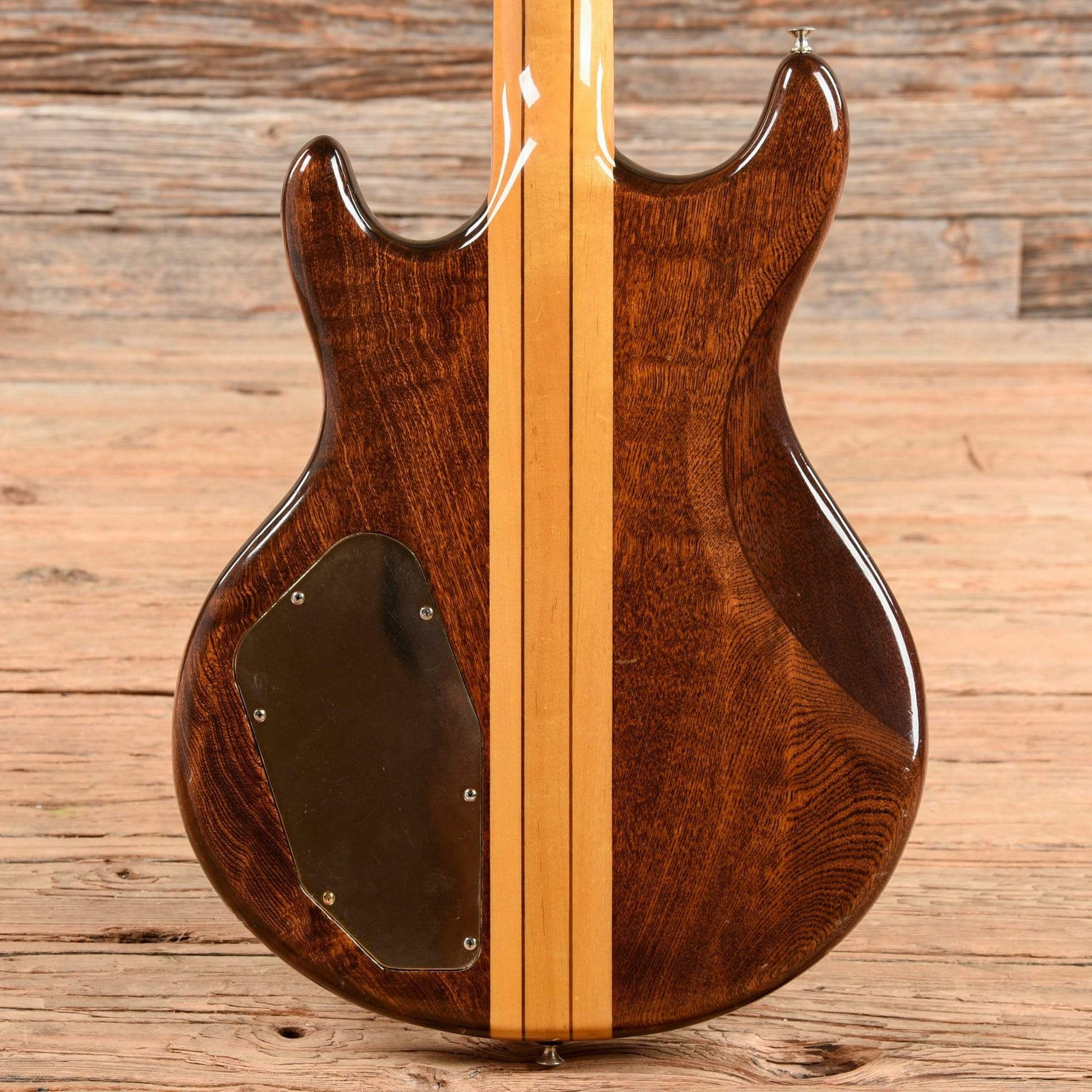

| Cosmetic Condition: | The guitar has aged nicely; the finish is glossy with swirls, light scratches, and a few scattered small dings on the front. The back has some additional dings and scratches. The side of the treble bout has a noticeable finish chip, and the side of the bass bout has a small gouge with additional finish wear. The neck is smooth with minor wear. |

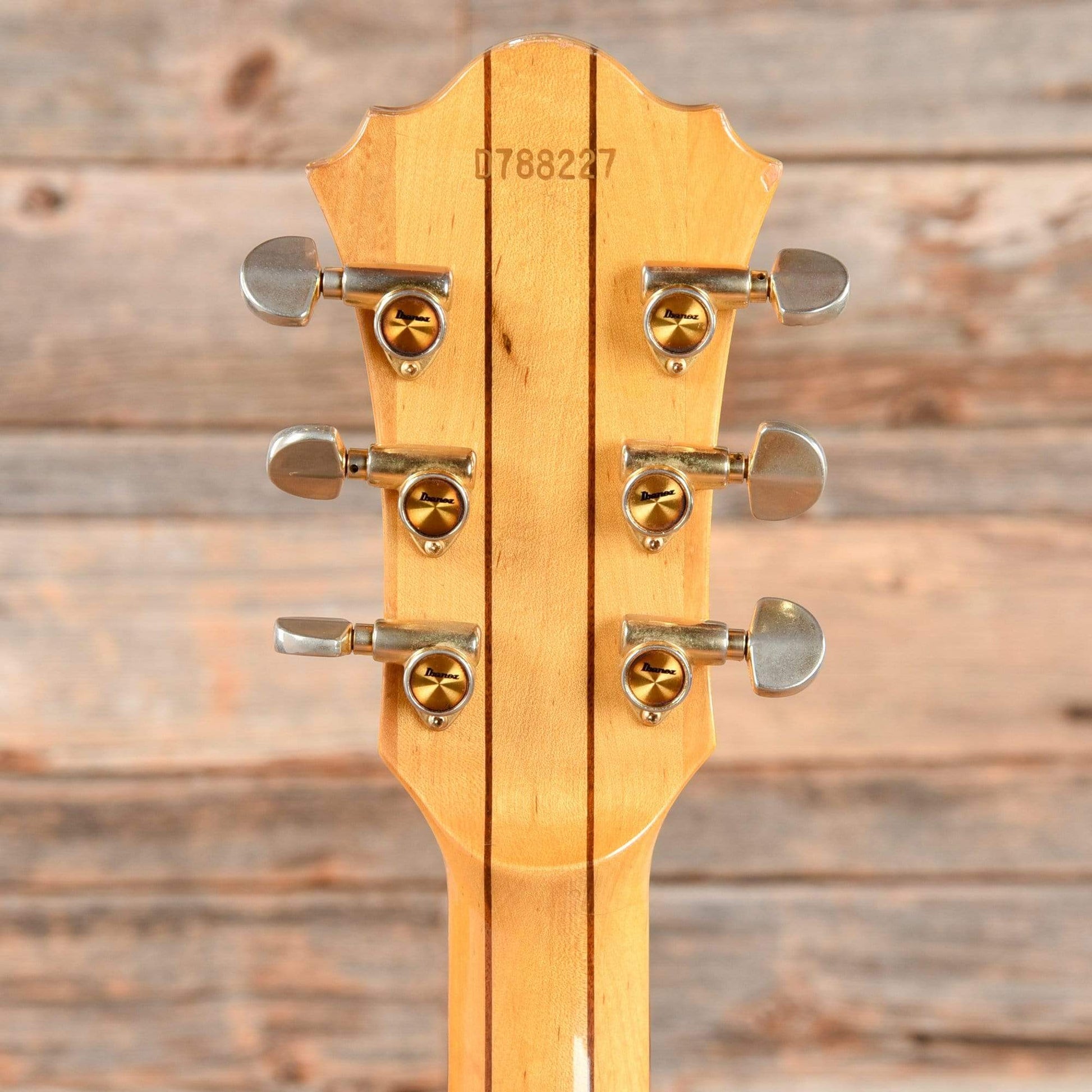

| Serial Number: | D788227 |
| Tech Notes: | Plays well with low action and optimal neck relief; the guitar is currently set up with 10s. The frets are wide and medium height with mild wear. The serial number dates the guitar to 1978. |
