Description
Description
Condition Note: This item is subject to minor wear from use.

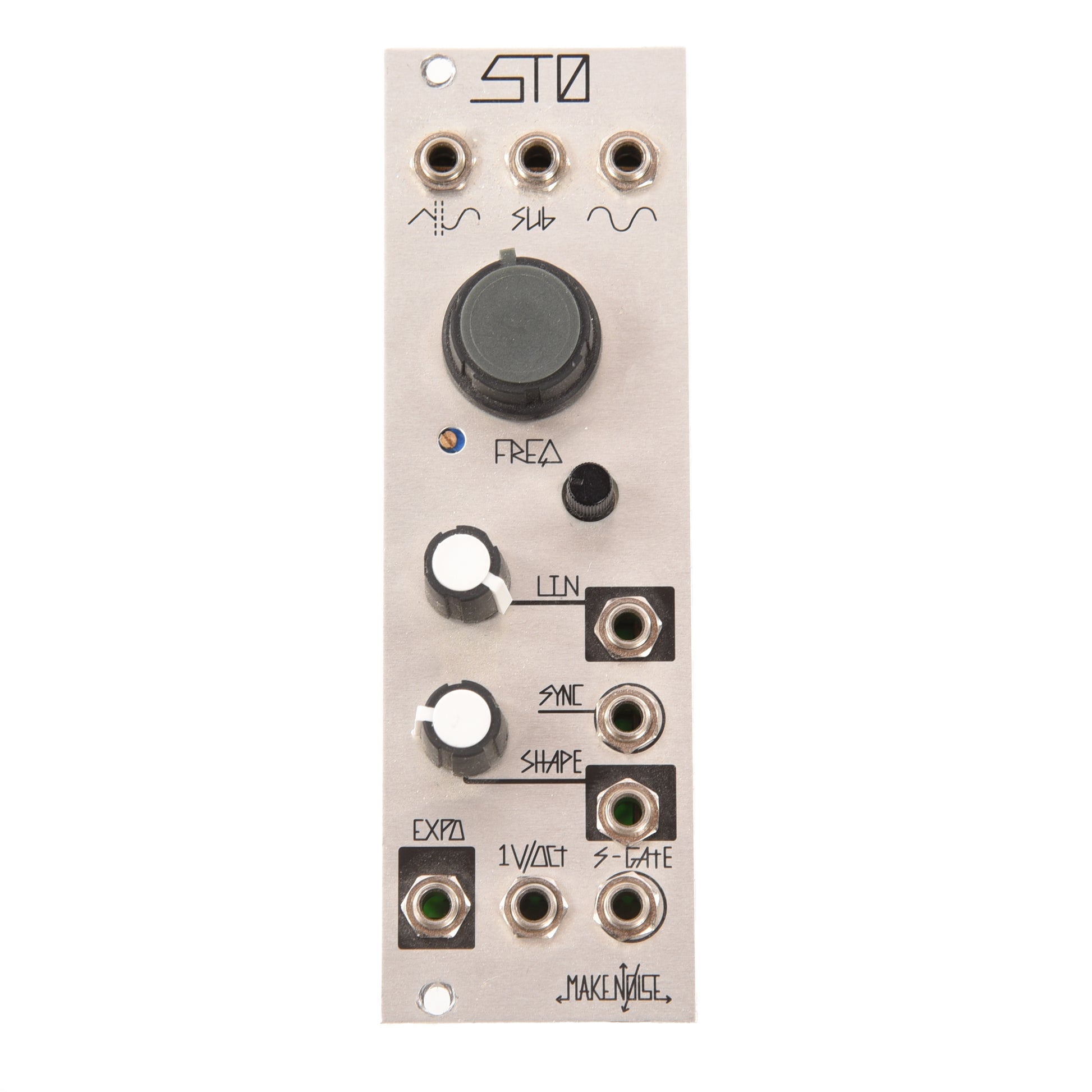

The STO music synthesizer module is a compact Voltage Controlled Oscillator designed for generating SINE waves, Variable wave-SHAPEs, SUB-Octaves, Oscillator SYNC and Linear FM in the analog domain. The Sub-Timbral Oscillator is the more subtle and melodic friend to the DPO‘s complex harmonic lattice.
- Triangle Core with outputs for SINE, SUB and Variable SHAPE
- Unique Variable SHAPE circuit ripples Even and Odd harmonics for subtle timbral shifts
- Linear FM input with Depth control
- -EXPOnential input for deep FM, SYNC sweeps or Transposition of sequences
- SUB-Oscillator yields max bass
- S-Gate input for gating or sync of SUB-Osc. independent of other outputs
- Hard SYNC circuit which combined with Linear FM and Variable SHAPE yields harmonically rich sounds
- Pairs well with the MMG or Optomix
Width: 8hp
Max Depth (incl. power cable): 45mm
Power:
40mA @ +12V
30mA @ -12V
