PRS HDRX 20 20w Tube Head

Get the tone that defined electric guitar amplification for a generation with the new PRS HDRX 20 amp head and cabinet! The PRS HDRX 20 features a newly-documented “Authentic Hendrix” Touring Circuit that’s heavily inspired by one of Hendrix’s personal amps, purportedly used at Woodstock—which Paul Reed Smith and PRS Amp Designer Doug Sewell were able to study in 2018. The PRS HDRX allows for aggression that can be backed off for a late 60’s British-inspired tone in a lower wattage package driven by two 5881 power tubes. To complete the package, PRS HDRX speaker cabinets feature a closed-back design, delivering full-spectrum sound. The Celestion V-type speakers offer a balanced, vintage tone with crisp highs and airy lows


ELECTRONICS
Wattage (nominal): 20

TUBES
Power Tubes: 5881
Preamp Tubes: 3x 12AX7
Preamp Positions: V1- Input, V2- Cathode Follower, V3- Phase Inverter

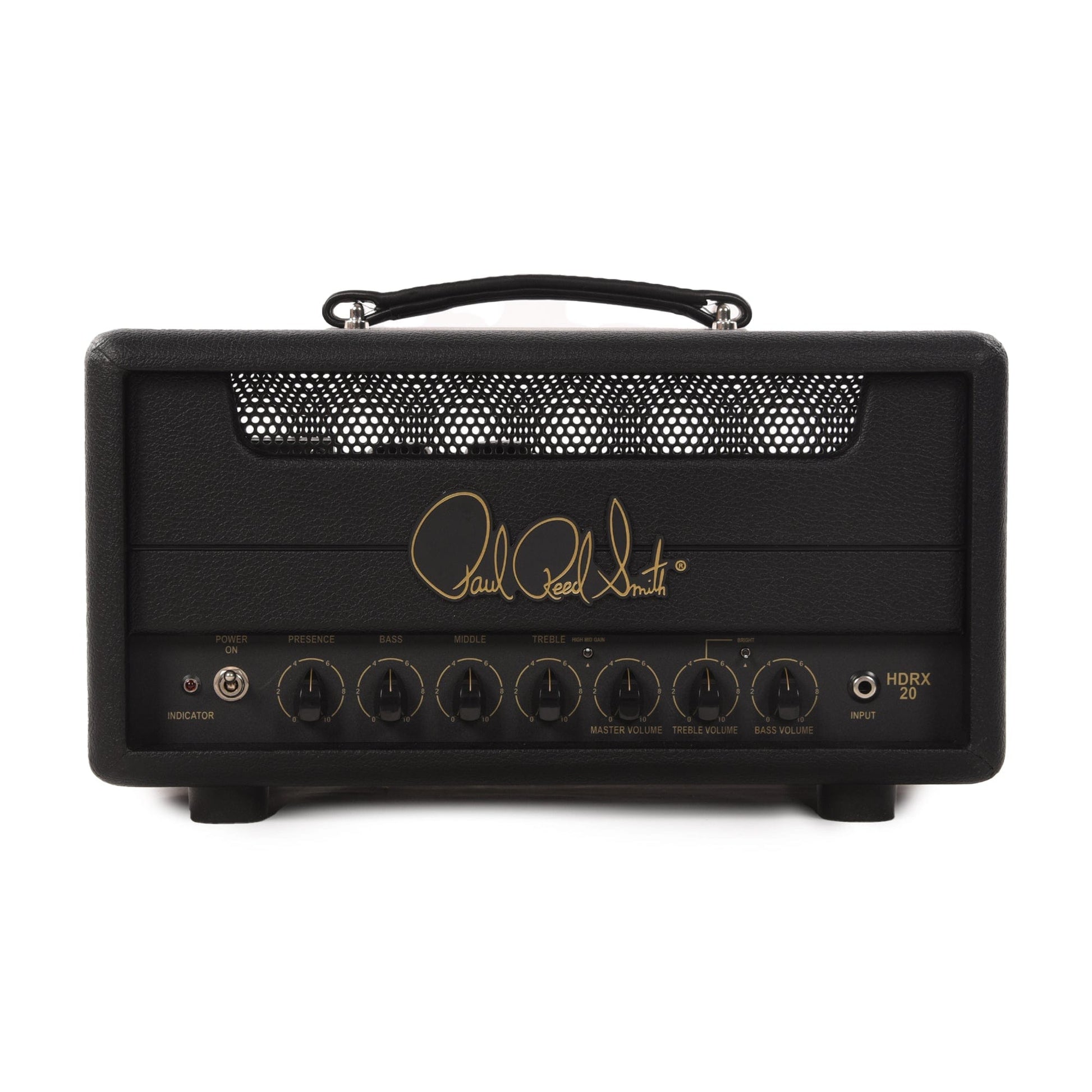

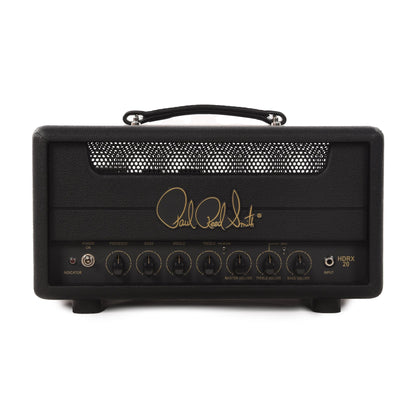

FRONT PANEL CONTROLS
Channel 1 Controls: Bass Volume
Channel 2 Controls: Treble Volume, Bright (off/bright)
Common Controls: Presence, Master Volume, Bass, Middle, Treble, Mid Gain (off/on)

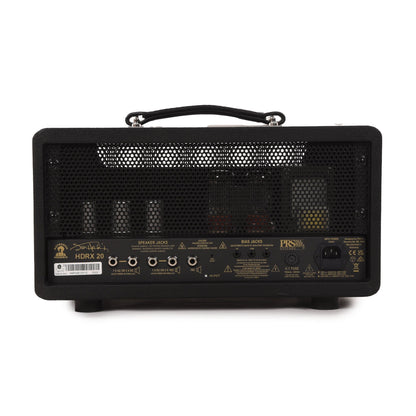

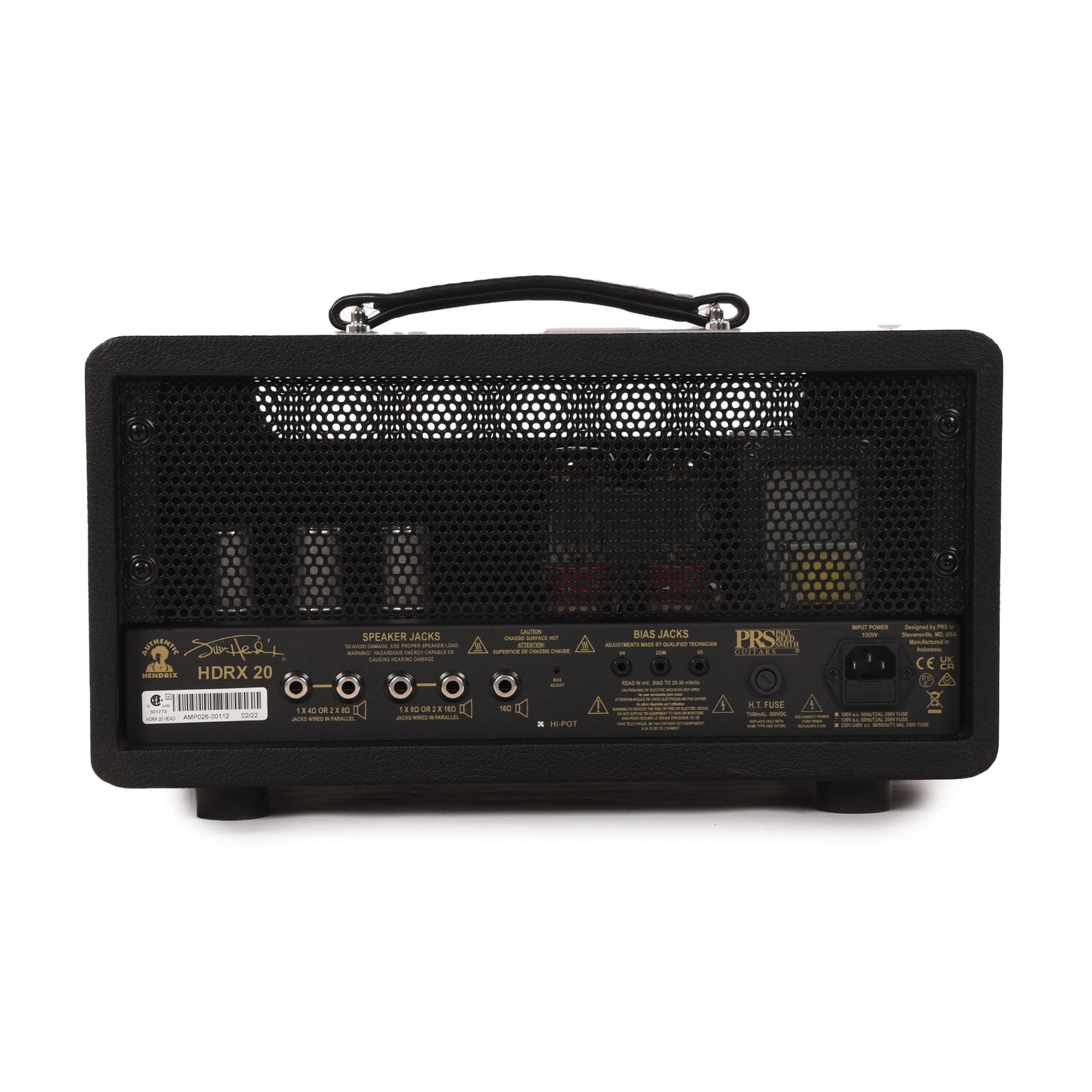

BACK PANEL FEATURES
Inlet: IEC w/ integrated fuse
Output Jack Configuration/Ohm Selection: 2x4, 2x8, 1x16
Bias: Adjustable (accessible bias monitor jacks and adjustment potentiometer)
Channels: 2, Internally-Bridged
B+ Fuse Holder: T500mAL/500V fuse

MATERIALS/COVERING
Covering: Black Telex
Piping: Black
Trim Panel: Black Tolex

MEASUREMENTS
Amp Width: 17.25"
Amp Depth: 9"
Amp Height: 9"
Amp Weight: 27.6lbs

CONFIGURATIONS
Head Only
