The following specs were carefully collected and recorded by a skilled technician.
For a more detailed description and questions regarding sound, feel, or cosmetic
condition, please visit our Lincoln Avenue showroom or call to speak to one of our
Used and Vintage experts.

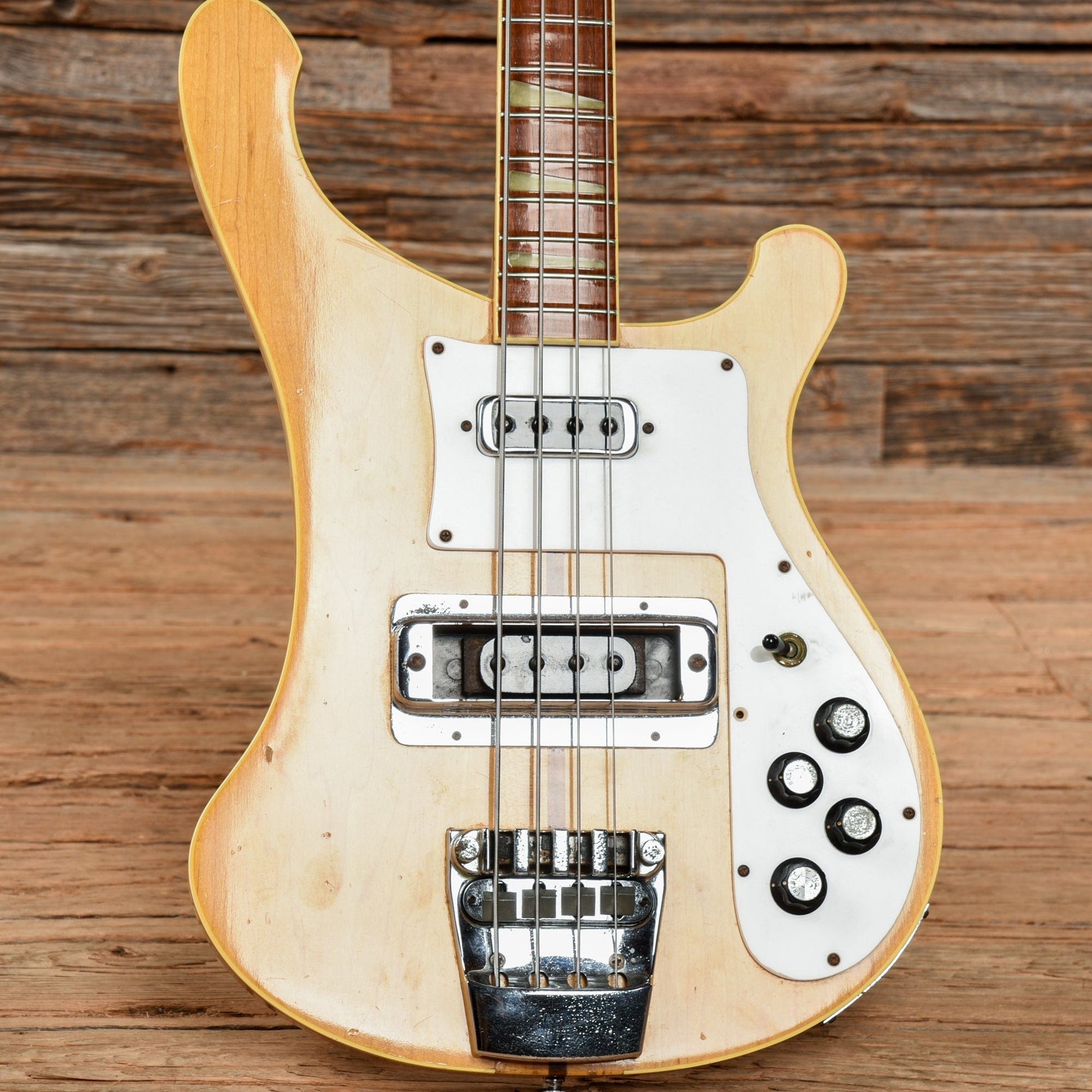

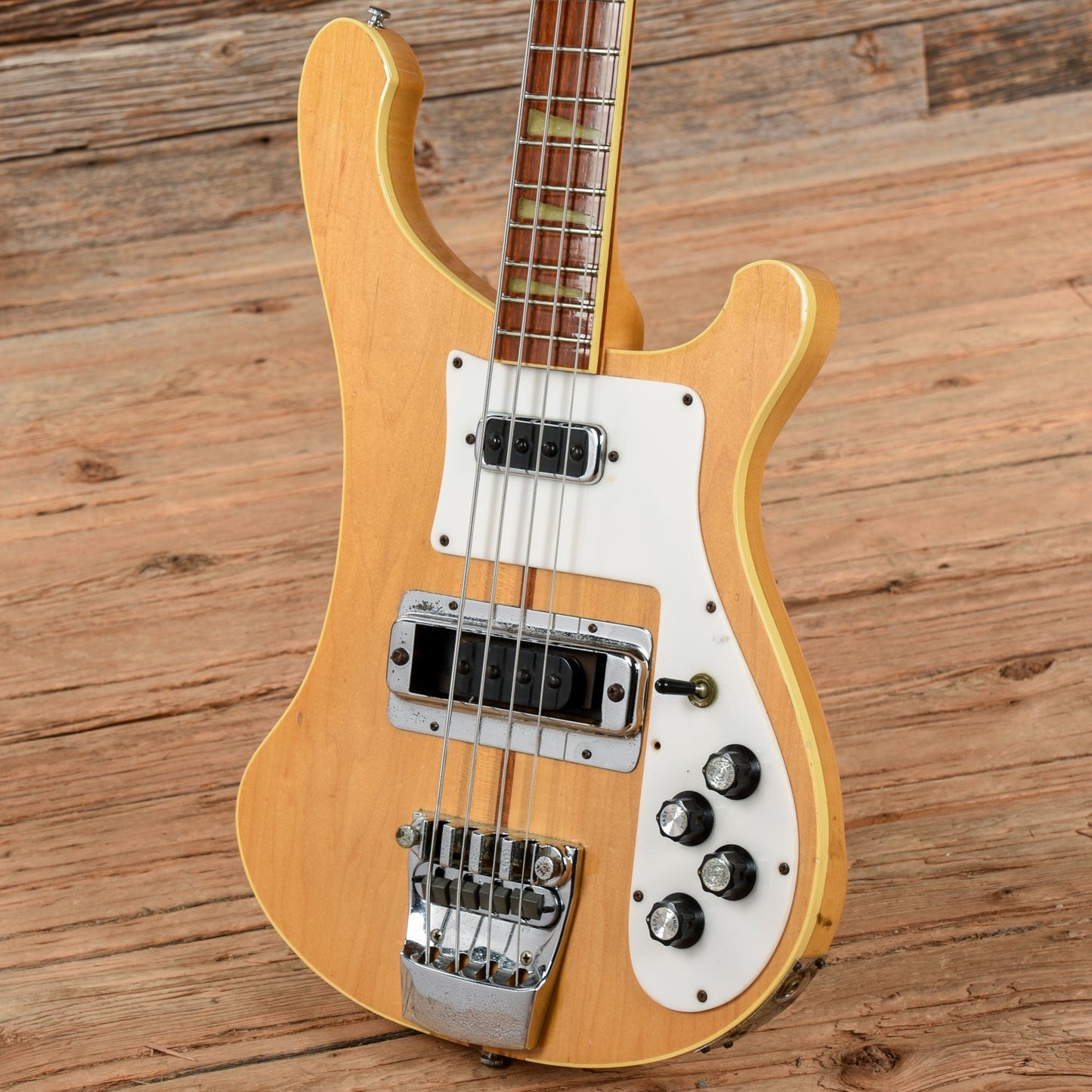

| Finish Details: | Original finish. |
| Body Material: | Maple |

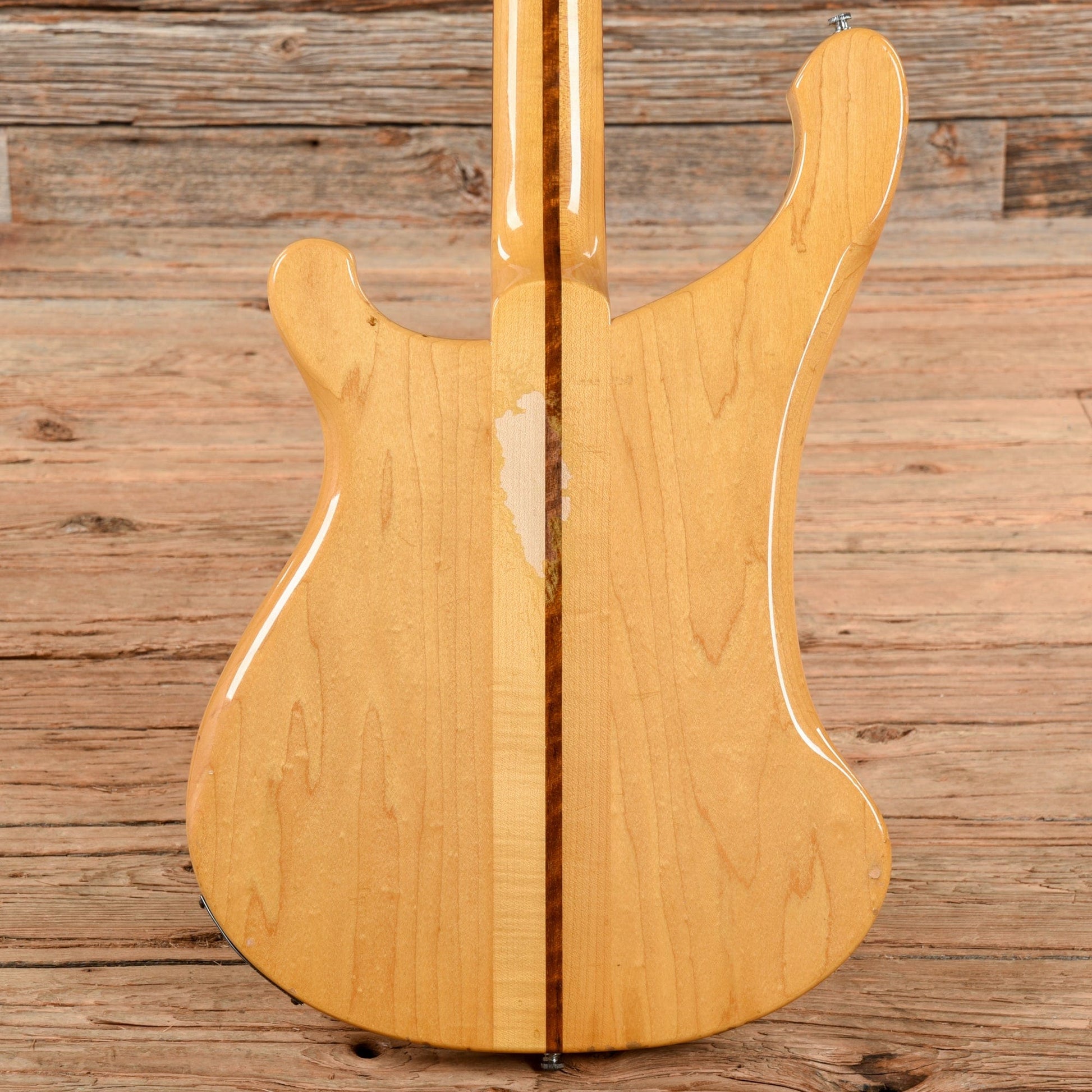

| Body Details: | Neck through design with maple wings. |
| Neck Material: | Maple |
| Fingerboard Material: | Rosewood |
| Neck Profile: | C |
| Neck Thickness (IN): | 1st - .87" & 12th - .90" |
| Fingerboard Radius: | 7.25" |
| Nut Width: | 1-5/8" |
| Scale Length: | 33 1/4" |
| Neck Details: | Three-piece maple/walnut/maple neck with a bound rosewood fingerboard and triangle inlays. |

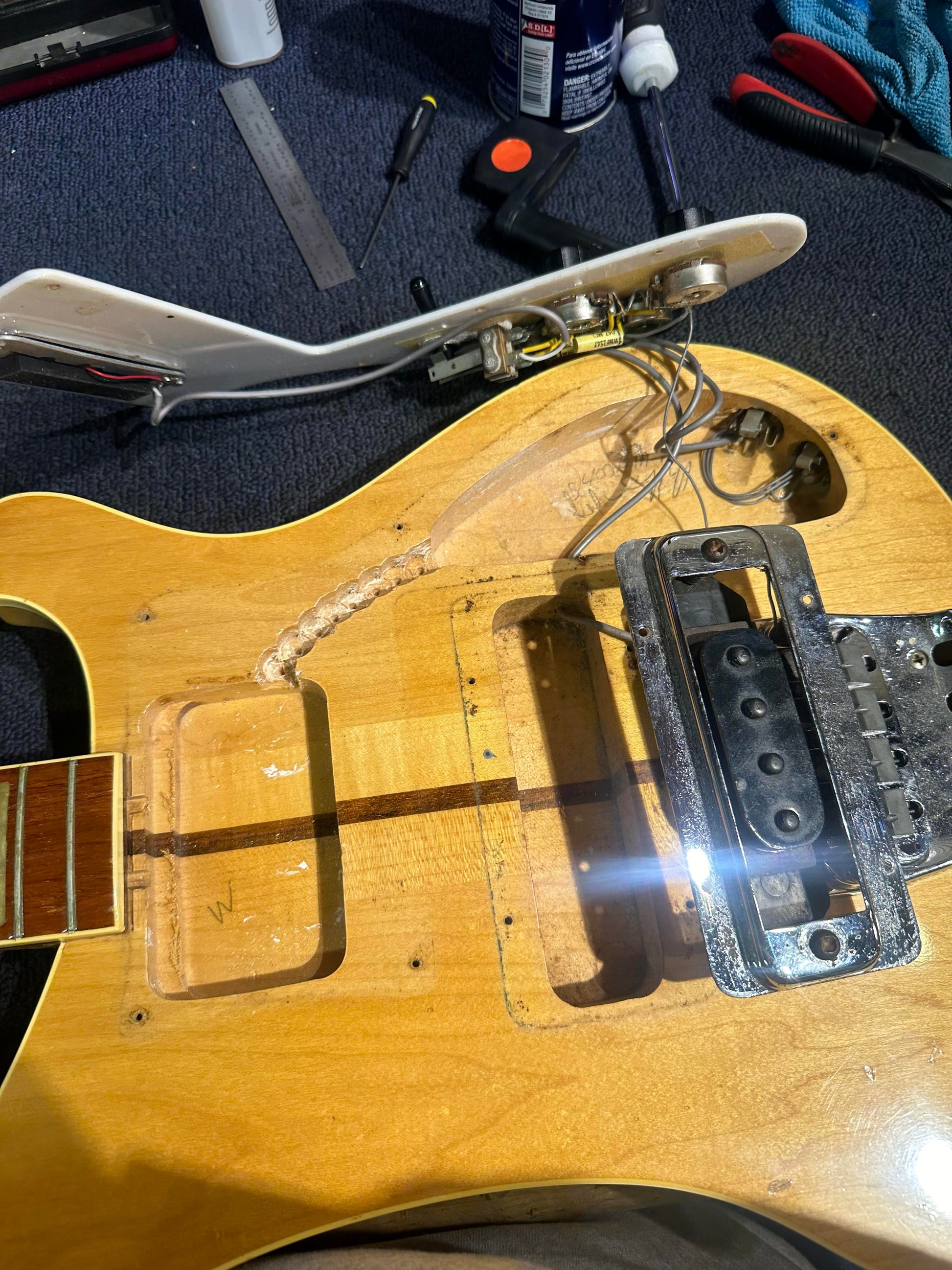

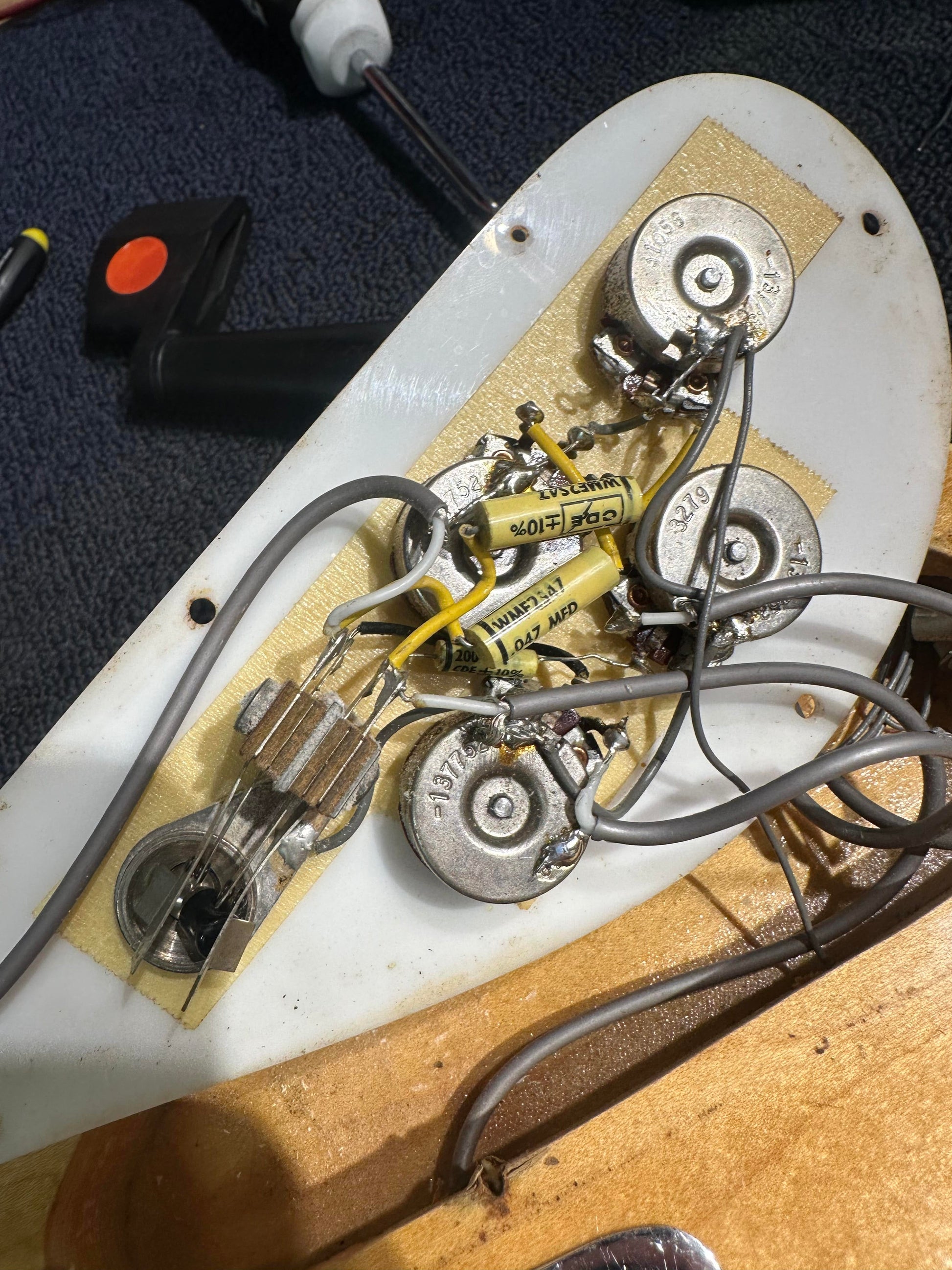

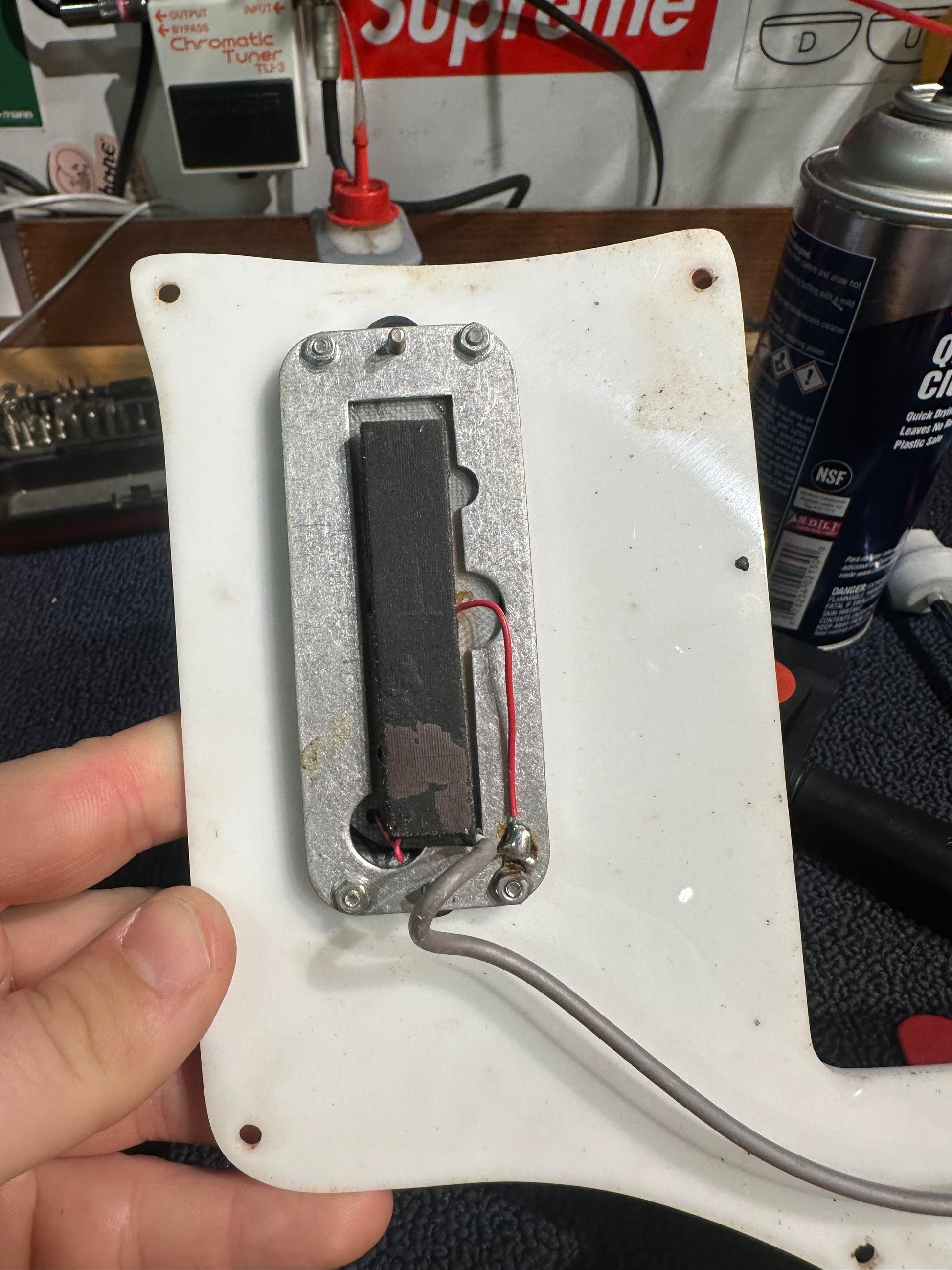

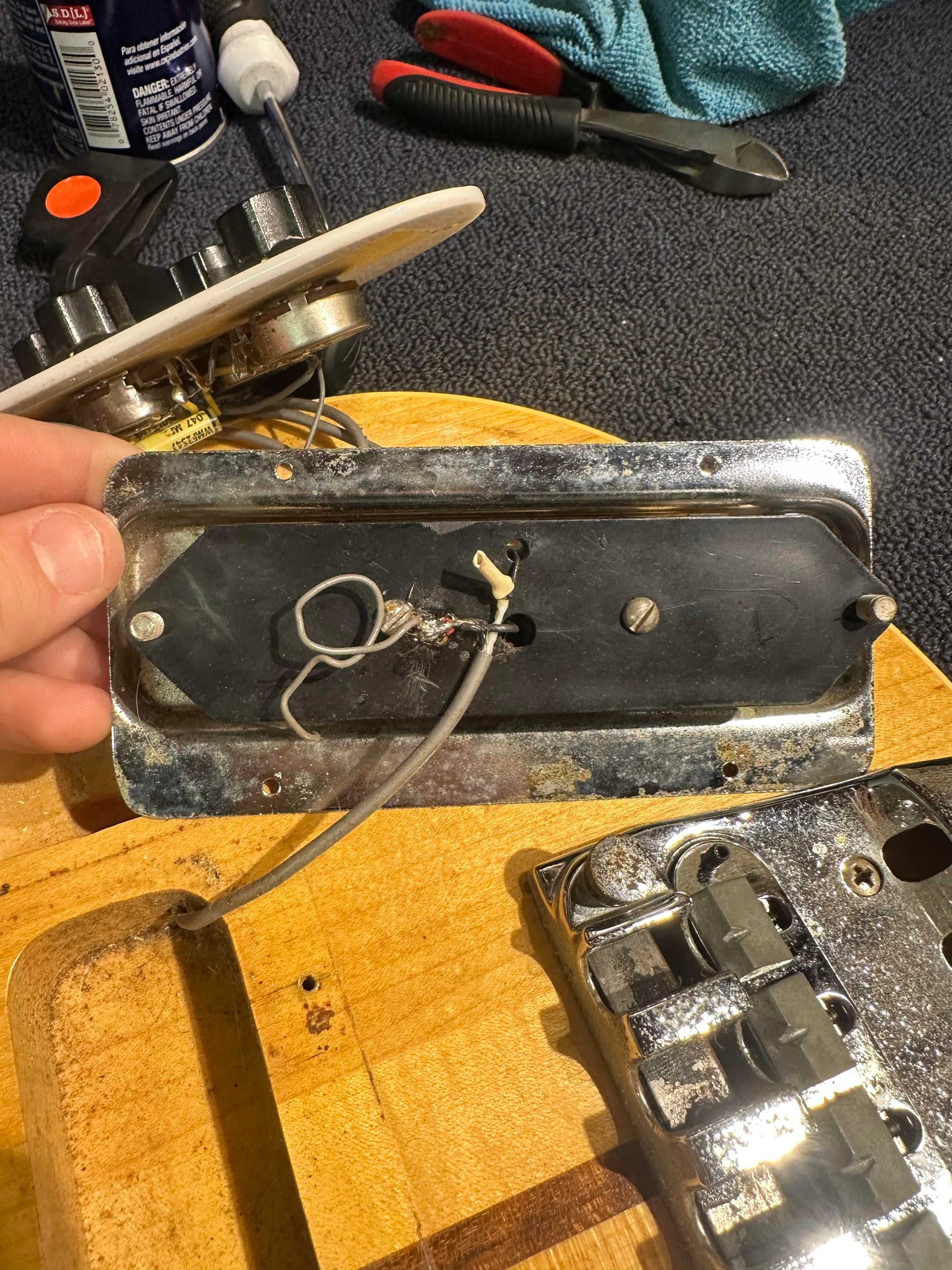

| Electronics: | Original pickups, wiring, and pots. A few solder joints have been touched up. The pot codes date to 1975. |
| Pickup Measurements: | Bridge: 7.79kΩ Neck: 7.77kΩ |

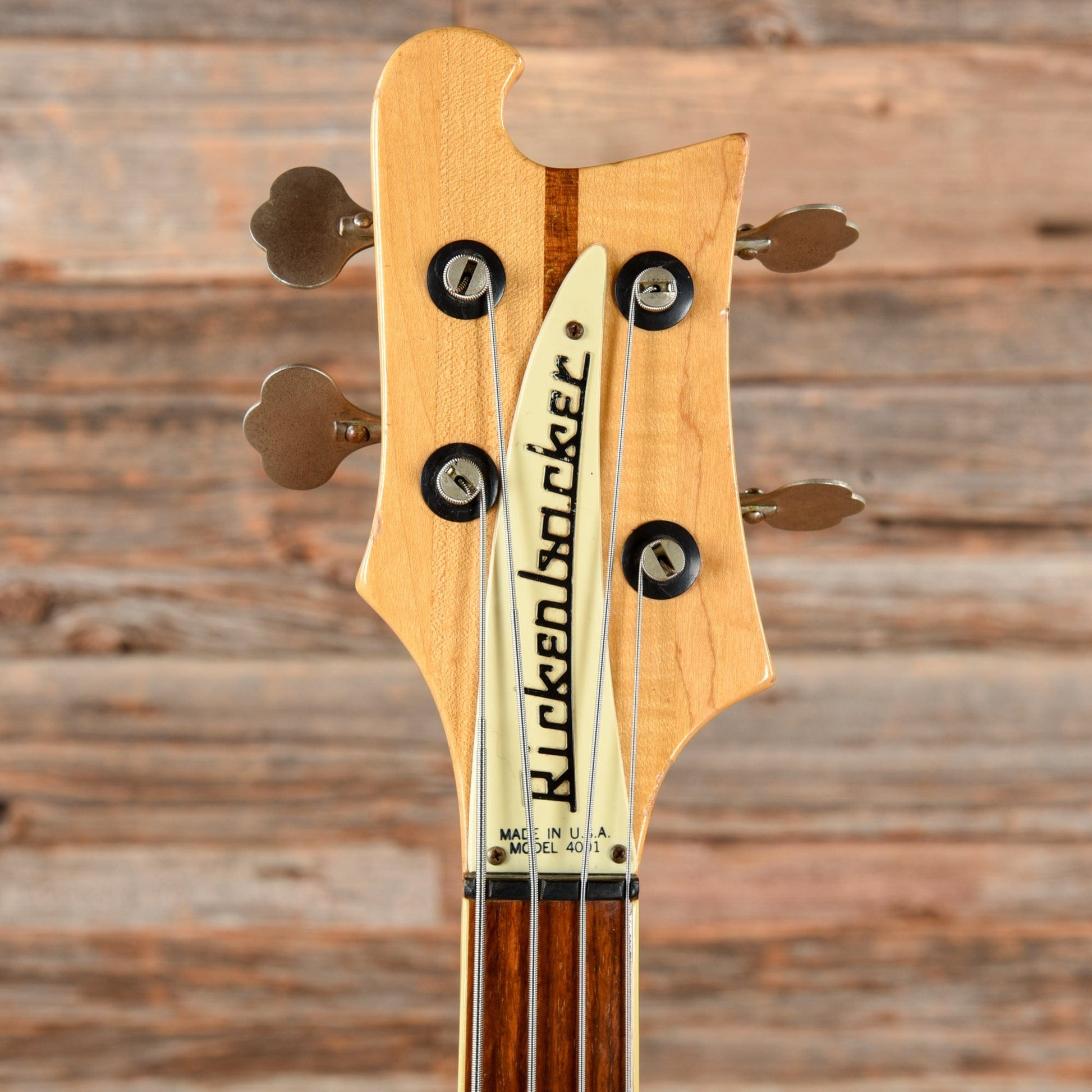

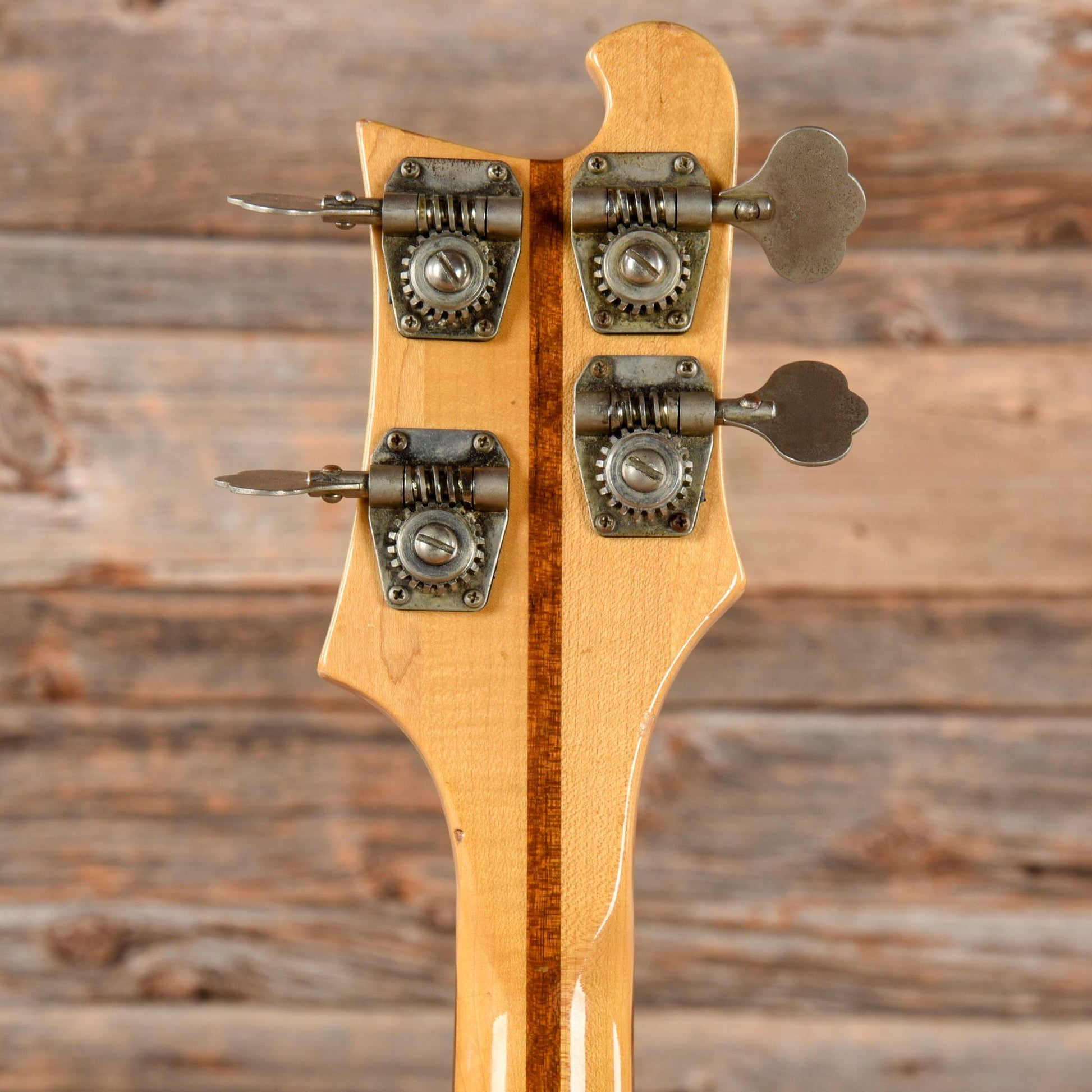

| Hardware: | Original tuners, nut, bridge, and tail-piece. The bridge pickup cover is missing from the guitar. |
| Weight: | 9lbs 6oz |
| Modifications/Repairs: | A few solder joints have been touched up. |

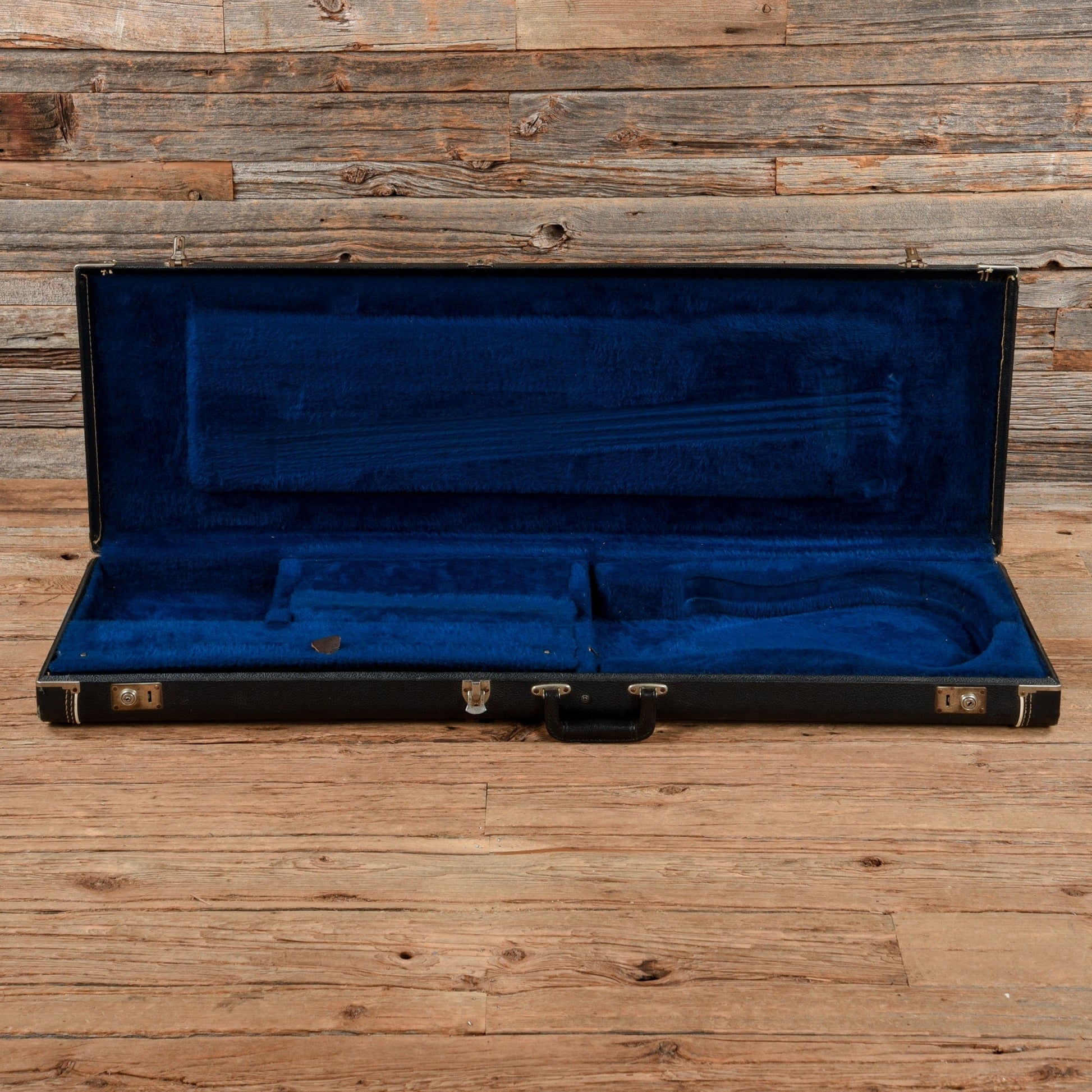

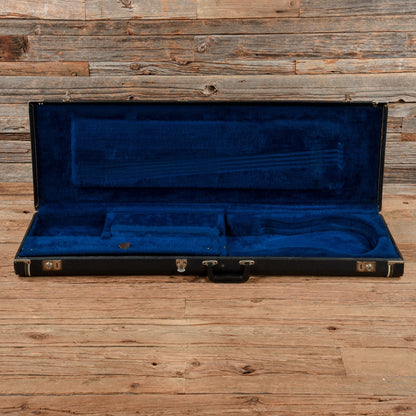

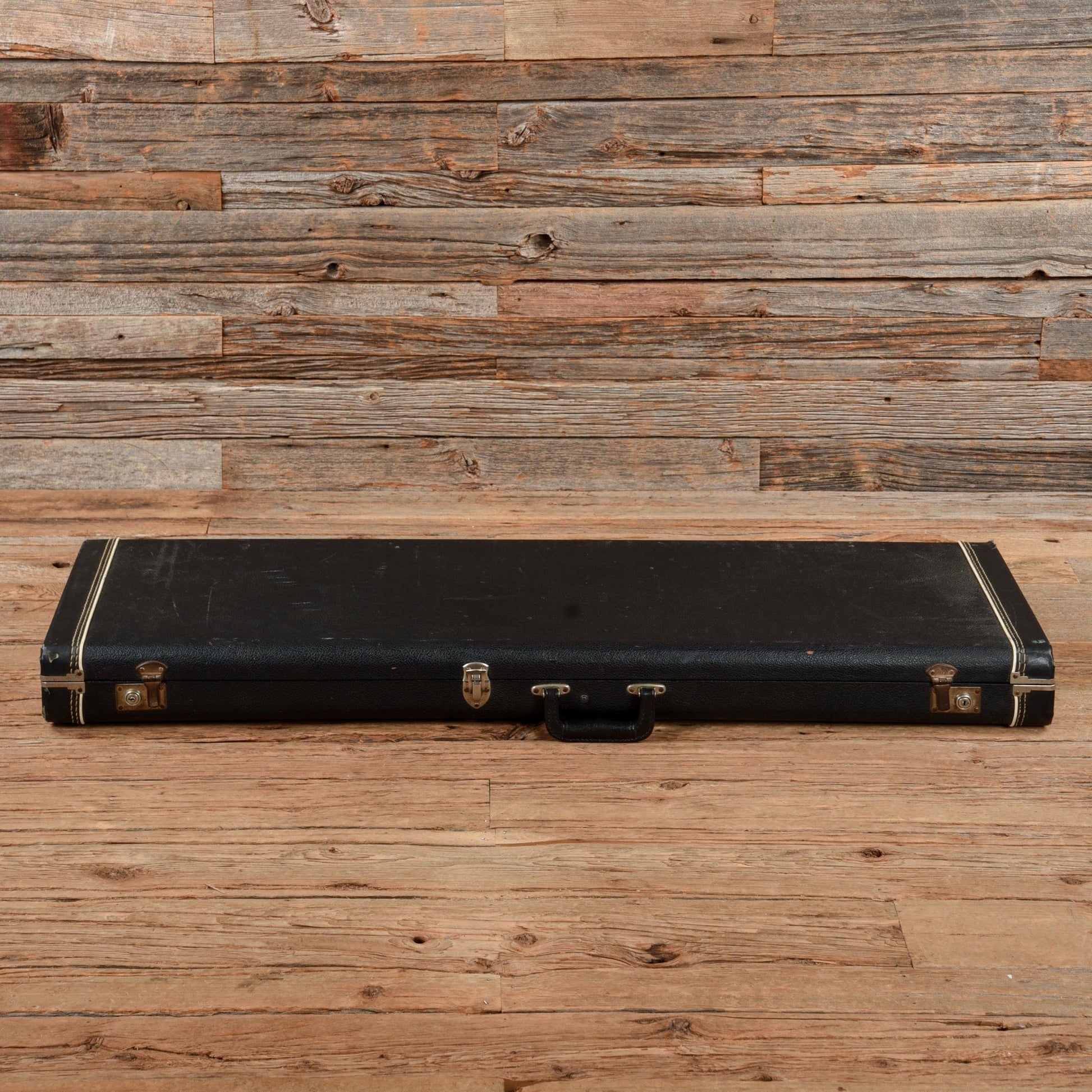

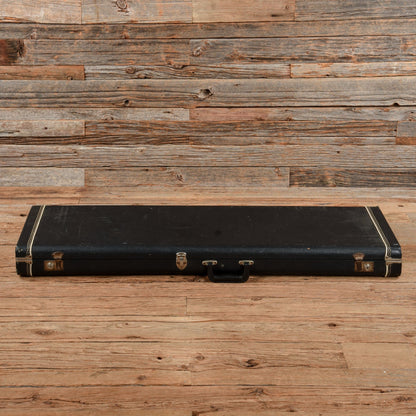

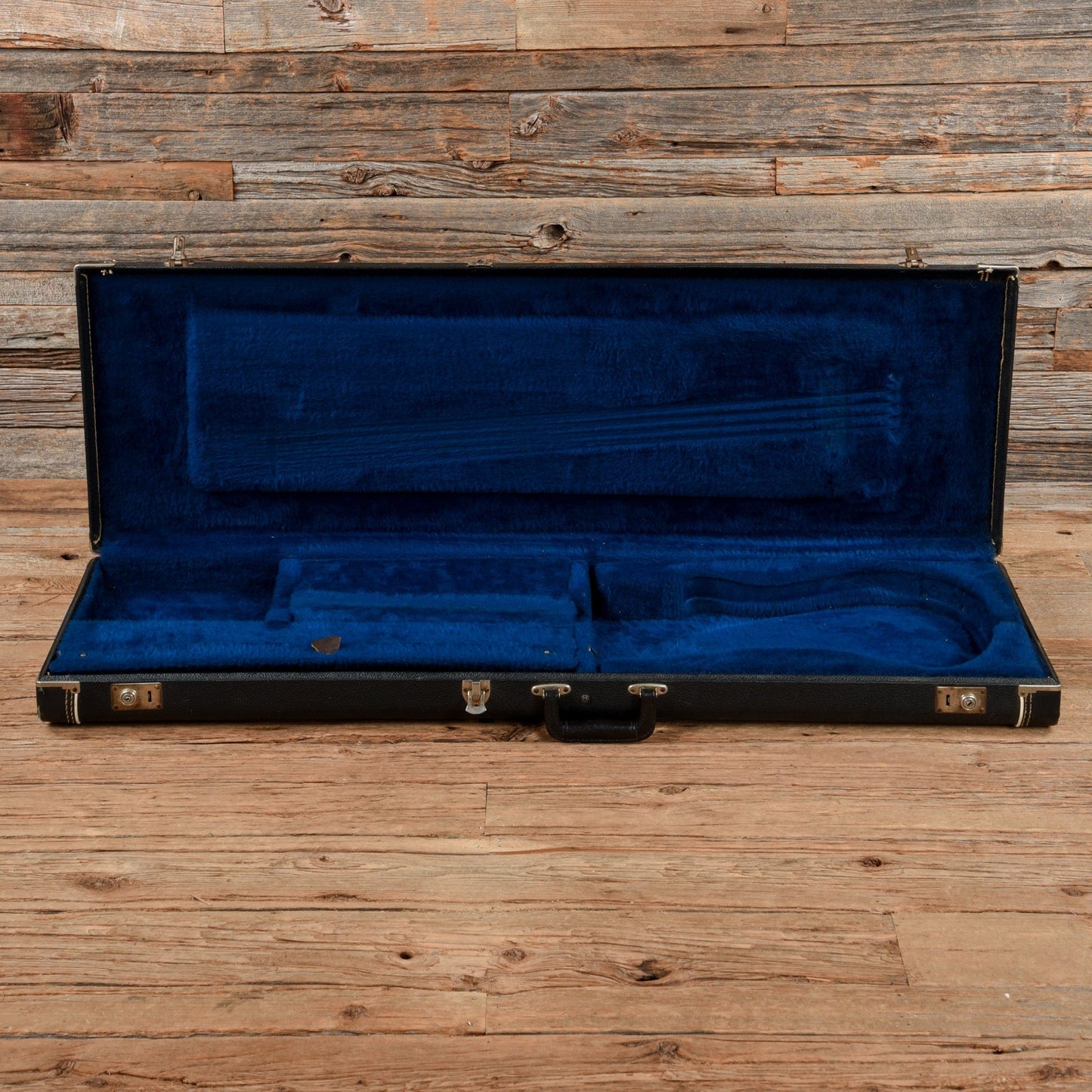

| Case Details: | Original Hardshell Case |

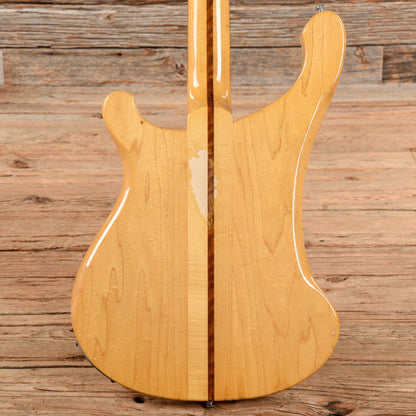

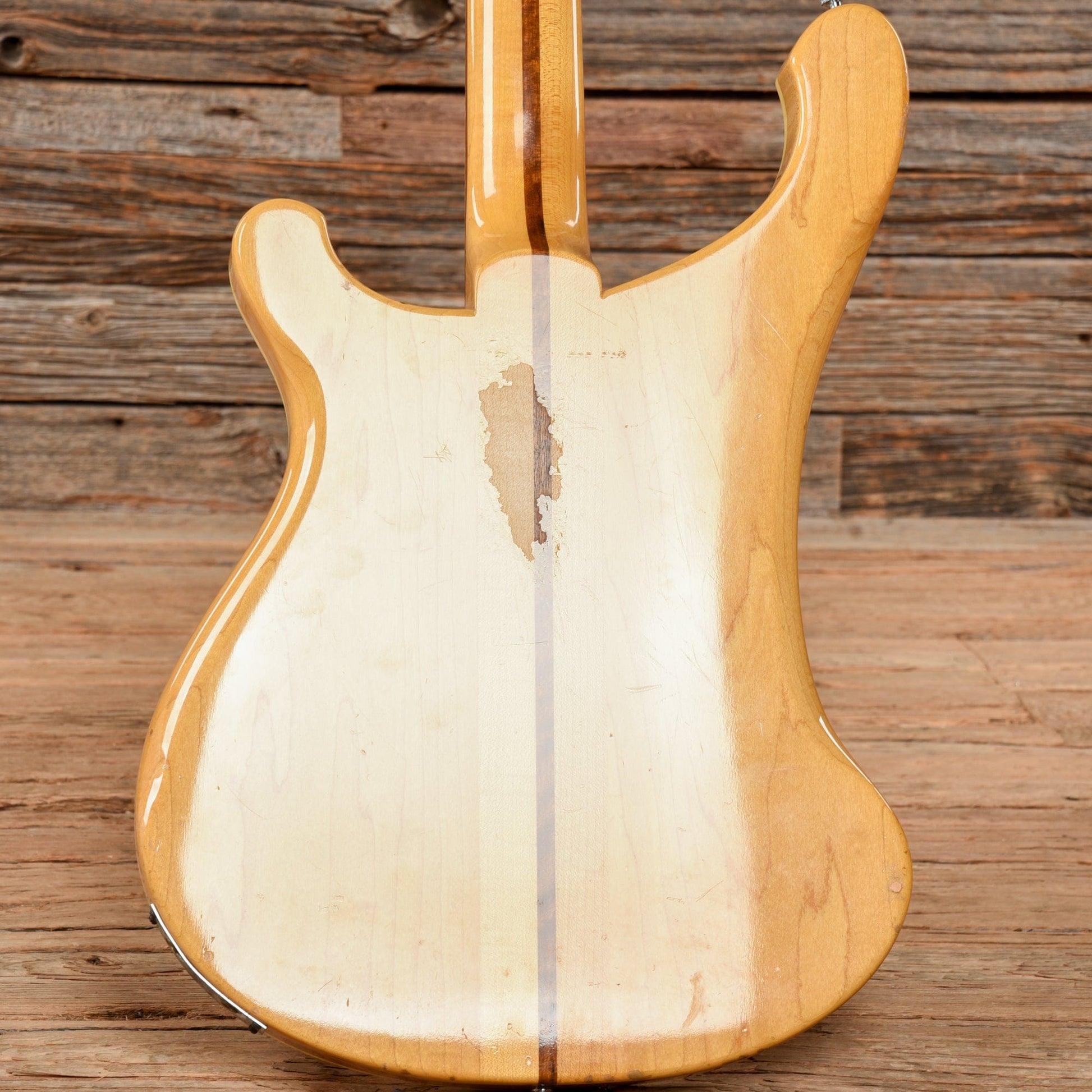

| Cosmetic Condition: | Guitar has aged nicely and is in good cosmetic condition. There are numerous dings, dents, scratches, and finish checks throughout as well as a buckle rash on the back of the body. |
| Serial Number: | PA508 |
| Tech Notes: | This 4001 plays well with low action. The neck has limited adjustability. The frets are thin with medium height. It has been properly setup and intonated in standard tuning. The "P" and "A" in the serial number indicate that this 4001 was produced in January of 1976. |
