Seymour Duncan Antiquity Series
Seymour Duncan Antiquity Series pickups have the look, feel and classic sound of vintage pickups. Hand crafted in Seymour Duncan's Santa Barbara custom shop using the same materials and techniques as the originals that have become so iconic, these "new" pickups are as close to the real thing as it gets. Each pickup is delicately handled to replicate the unmistakable tone and look of truly worn pickups- something that couldn't be done with a mass production process.

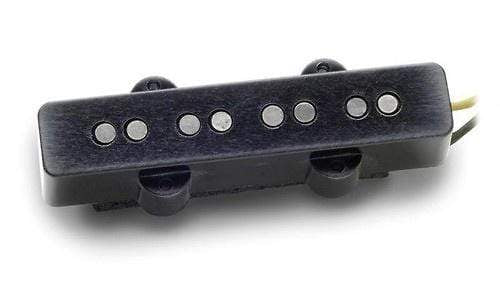

Seymour Duncan Antiquity Jazz Bass® Neck Pickup
The neck position is wound "top going" and North polarity with traditional pole spacing. The magnets are protruding from the top and bottom of the flatwork for a smooth even response. Each pickup is recreated to fit in your old classic and comes with black aged pickup cover, schematic, and mounting screws. Hookup wire is the classic "push back" c braid wire.
Specs:pickup length: 3.492
top pickup width: .628
bottom pickup length: 3.492
bottom pickup width: .628
total pickup height: .695
total magnet height: .780
winding direction: top going
magnet polarity: north
calibrated: yes
pickup cover length: 3.602
pickup cover width: .718
pickup cover height: .750
height adjustment: screwed into body cavity
magnet pattern: raised top and bottom
Part Number: 11044-01
Model: Antiquity Jazz Bass - Neck
Pickup Type: Jazz Bass
Output: Vintage
Strings: 4
Position: Neck
Cable: Cloth Push-Back
Magnet: Alnico 2
DC Resistance: 8.7
Inductance: 4.16 henries
Q: 2.79
