Seymour Duncan Antiquity - P-90 Dog Ear Neck Black

Seymour Duncan Antiquity - P-90 Dog Ear Neck Black

Brand New
  • $119.00

Description & Specs

Seymour Duncan Antiquity Series

Seymour Duncan Antiquity Series pickups have the look, feel and classic sound of vintage pickups. Hand crafted in Seymour Duncan's Santa Barbara custom shop using the same materials and techniques as the originals that have become so iconic, these "new" pickups are as close to the real thing as it gets. Each pickup is delicately handled to replicate the unmistakable tone and look of truly worn pickups- something that couldn't be done with a mass production process.

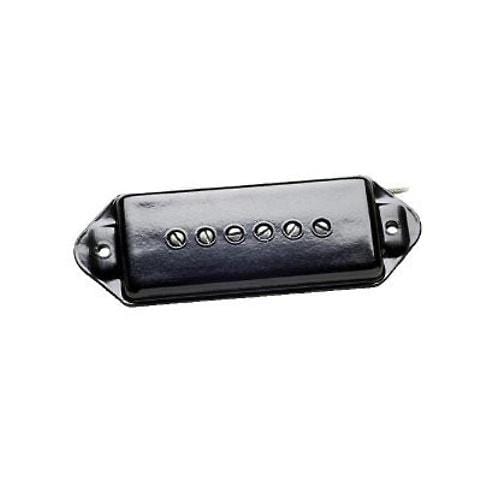

Seymour Duncan Antiquity P-90 Dog Ear Pickups

Imagine the pickups out of an old '52 gold top or a '59 ES-330. By removing the cover you'll find the same hand-fabricated bobbins, wire and "flatback" tape that was used in the originals. Two specially calibrated Dun-Aged™ Alnico II magnets are attached to a precision metal spacer which transfers the magnetic field to the strings via six fillister head pole pieces. The "dog ear" version comes with an aged thermoformed black cover that looks great! All versions have an authoritative, vintage tone.

top pickup length: 3.158
top pickup width: 1.205
bottom plate length: 3.30
bottom plate width: 1.295
total pickup height: .640
total magnet height: .125
winding direction: top going
pickup cover length: 4.645
pickup cover width: 1.60
pickup cover height: .315
magnet polarity: north
center to center: 3.825
calibrated: yes
height adjustment: mounted in cavity
magnet pattern: 2 bar magnets
Part Number: 11034-65
Model: Antiquity P90 Dog Ear - Neck
Pickup Type: P-90
Output: Vintage
Strings: 6
Position: Neck
Cable: Single Conductor Braided Shield
Magnet: Alnico 2
DC Resistance: 7.8
Inductance: 6.85 henries
Q: 2.84
