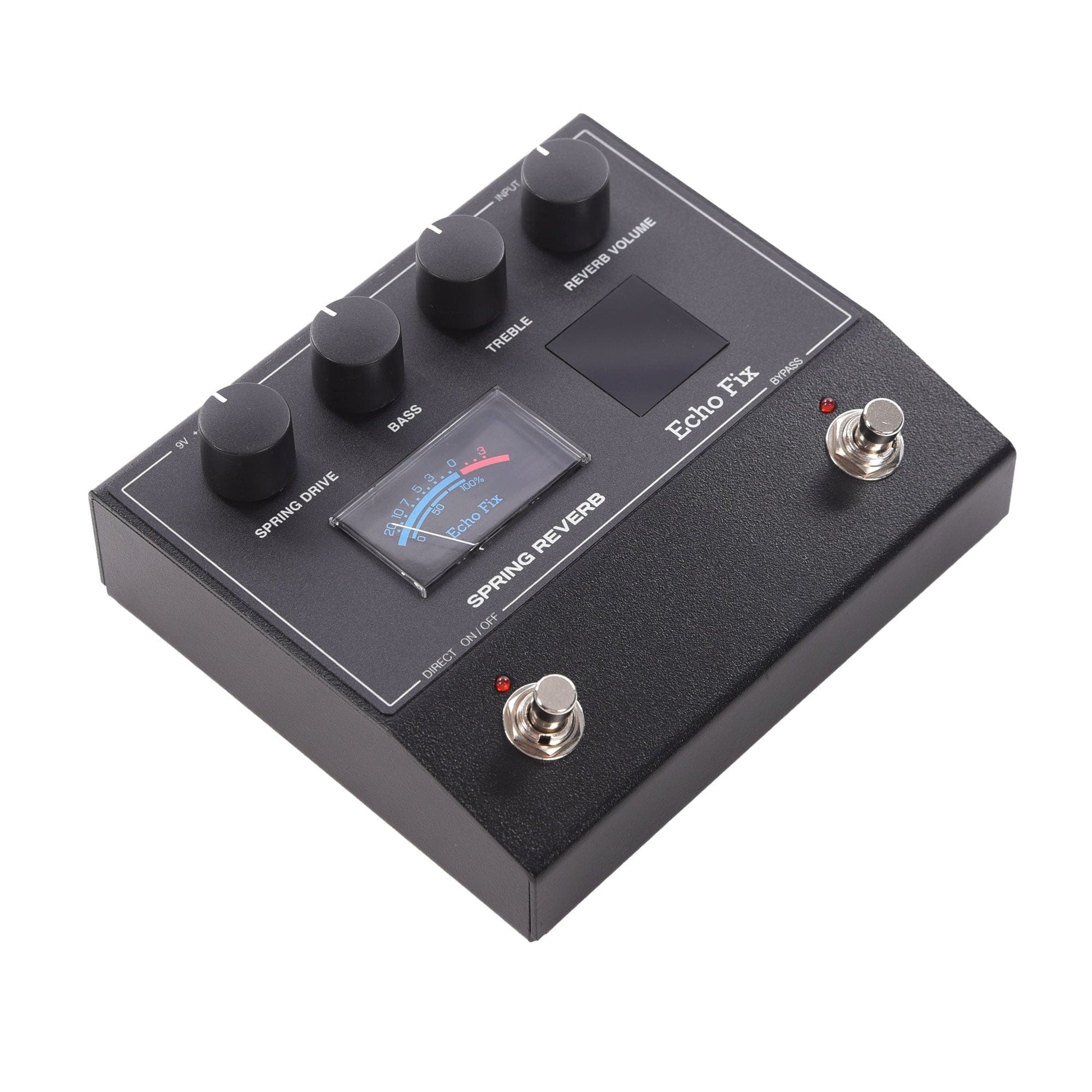

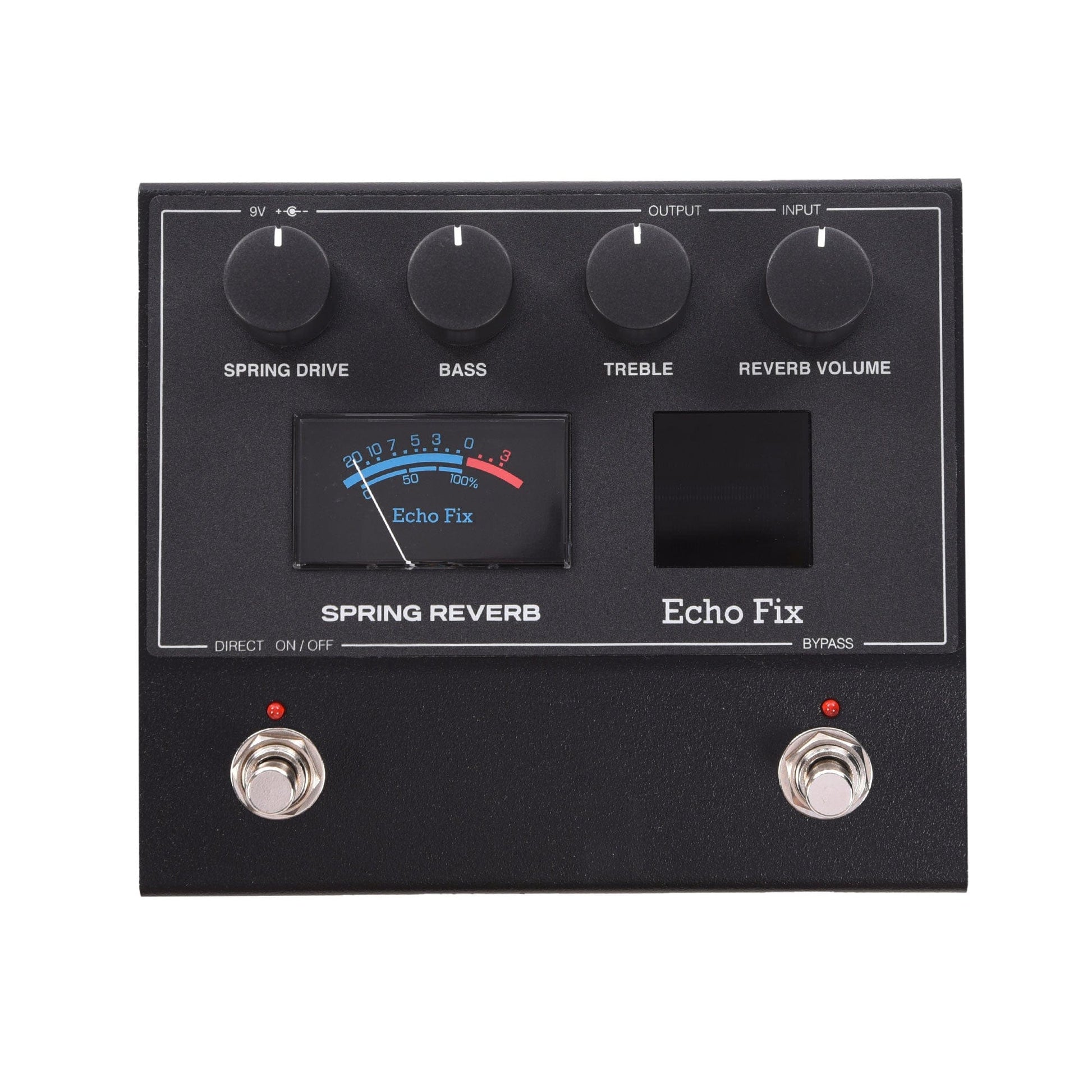

The Echo Fix EF-P2 is a real Spring Reverb pedal that packs a huge sound into a small enclosure. The EF-P2 features a three-spring reverb tank, adjustable Spring Drive, Bass / Treble EQ controls, and Reverb Volume control. With a footswitch for reverb bypass and also a direct signal mute footswitch, the EF-P2 can also be used as an outboard effect in recording studios. With increased voltage rails for studio use, the EF-P2 can accept line level inputs from synths and other audio devices, not just guitar.
Features:
- Real spring reverb pan
- Spring drive control
- Bass control
- Treble control
- Reverb Level Control
- Soft momentary switching for noiseless
- Bypass and Direct Mute switching
- Increased internal power supply voltage rails for increased dynamic range
- Illuminated reverb tank viewing window
- Power - 9VDC Centre Negative
- Current - 200mA minimum
- Input Impedance - 1MΩ
- Output Impedance - 1KΩ
- Dimensions - 160mm x 130mm x 60mm (6.29" x 5.11" x 2.36")
