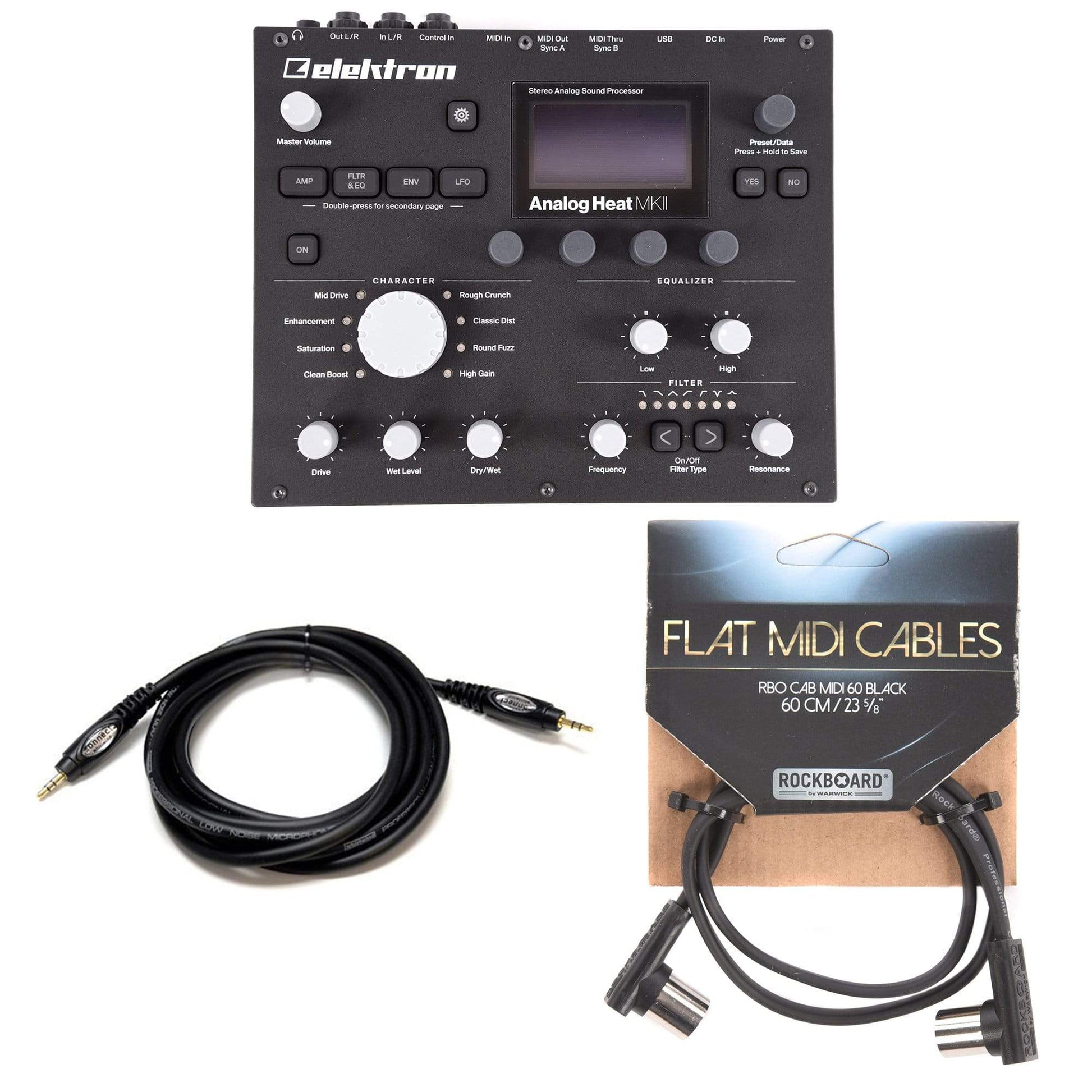

Elektron Analog Heat MKII Stereo Analog Sound Processor Essential Cables Bundle

Elektron Analog Heat MKII Stereo Analog Sound Processor Essential Cables Bundle

Questions? Chat Now!

Description

This Bundle Includes:
  • Elektron Analog Heat MKII Stereo Analog Sound Processor
  • Rockgear Midi Cable, 60cm / 23.62" Black
  • Whirlwind Connect 3.5mm TRS Male-Male 10' Cable
From Elektron:

Add sparkly brilliance, or grimy roughness, to any sound source. Samplers, drum machines, synths, the master bus, you name it. Analog Heat MKII is a fiery furnace destined to make your music glow.

Sound better
Take a sound, any sound. Send it through the Analog Heat MKII, try out the eight different stereo analog distortion circuits, add stereo analog filtering and EQ, and hear beautiful things unfold. New life for your existing gear.

All analog, all yours
The eight stereo analog circuits are designed to quickly access varied and powerful sound shaping. Each circuit has a distinctive way of processing sound. Clean boost, tape-like saturation, tube amp-like enhancement, overdrive, crunch, distortion, harmonic fuzz or high gain? You’ll find your favorite flavor with ease.

Brighter and better
The MKII version of the Analog Heat features improved durability and precision encoders, new tough back-lit keys and a crisp OLED screen. The display is bigger, sharper and brighter: perfect for performing in the dark. There is also additional visual feedback on the Amp, Filter, Envelope and LFO pages that makes overview and understanding of sound processing and modulation a whole lot easier.

Sound processing
  • 8 × Stereo analog distortion circuits
  • 1 × Stereo analog multi-mode filter (7 filter types)
  • 1 × 2 band adaptable stereo analog EQ
  • 1 × Assignable envelope generator/envelope follower
  • 1 × Assignable LFO

Storage
  • 128 user preset slots

Hardware
  • 128×64 pixel OLED screen
  • MIDI In/Out/Thru with DIN Sync out
  • 2 × ¼″ balanced audio out jacks
  • 2 × ¼″ balanced audio in jacks
  • 1 × ¼″ stereo headphones jack
  • 2 × ¼″ CV/Expression pedal input jacks
  • 48 kHz, 24-bit D/A and A/D converters
  • Flash-EEPROM upgradable OS
  • Hi-speed USB 2.0 port

Audio outputs
  • Headphones out level: +19 dBu peak
  • Headphones output impedance: 36 Ω
  • Impedance balanced main outputs level: +19 dBu peak
  • Main outputs impedance: 440 Ω unbalanced

Audio inputs
  • Balanced audio input level: +19 dBu peak
  • Audio input impedance: 39 kΩ

Control inputs
  • Input level: -5 V – +5 V
  • Accepts CV, Expression pedals, Foot switches

Physical specifications
  • Sturdy steel casing
  • Dimensions: W215×D184×H63 mm (8.5×7.2×2.5″) (including audio outputs, knobs and rubber feet)
  • Weight: approximately 1.5 kg (3.3 lbs)
  • 100×100 mm VESA mounting holes

Included in the box
  • Power Supply PSU-3b
  • Elektron USB cable
