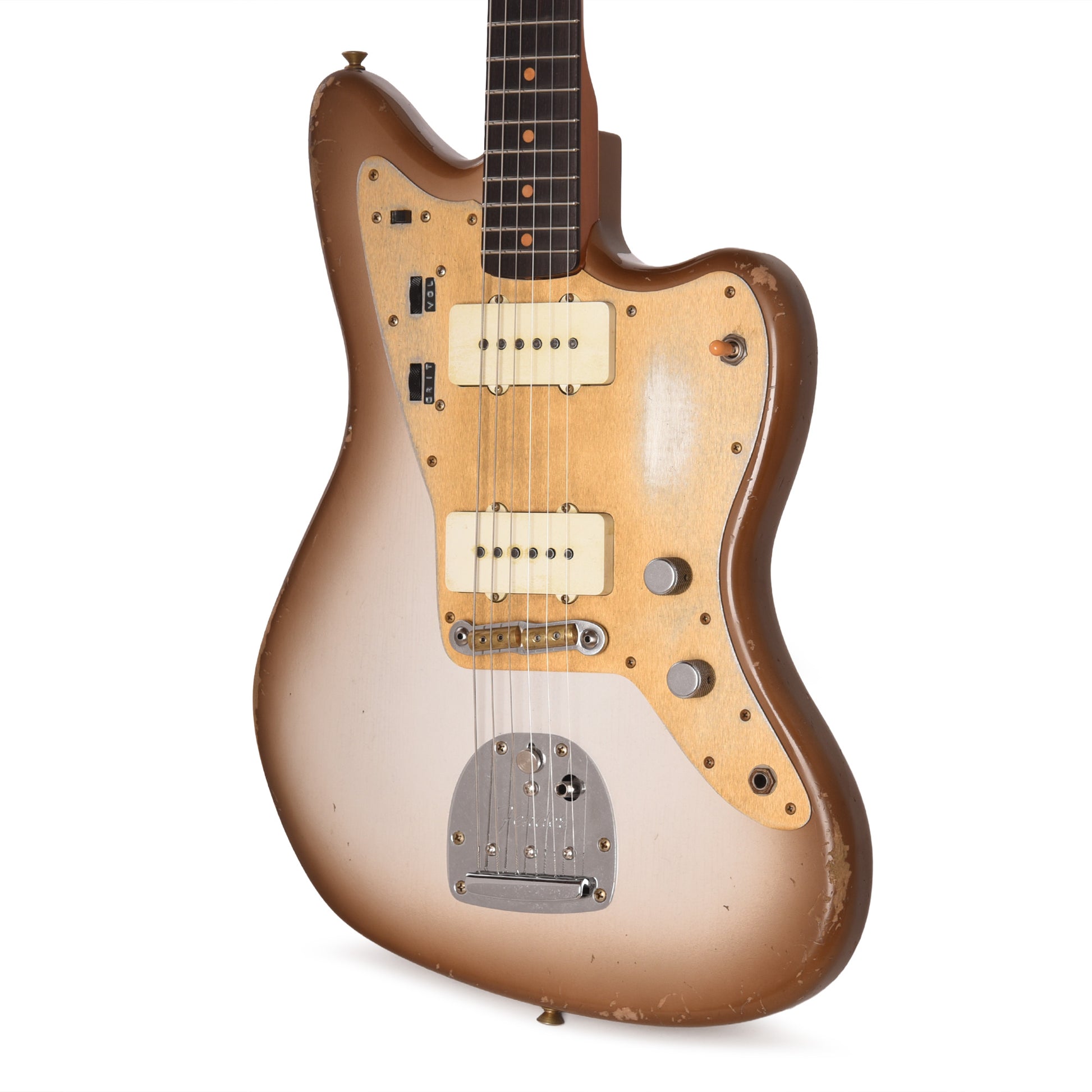

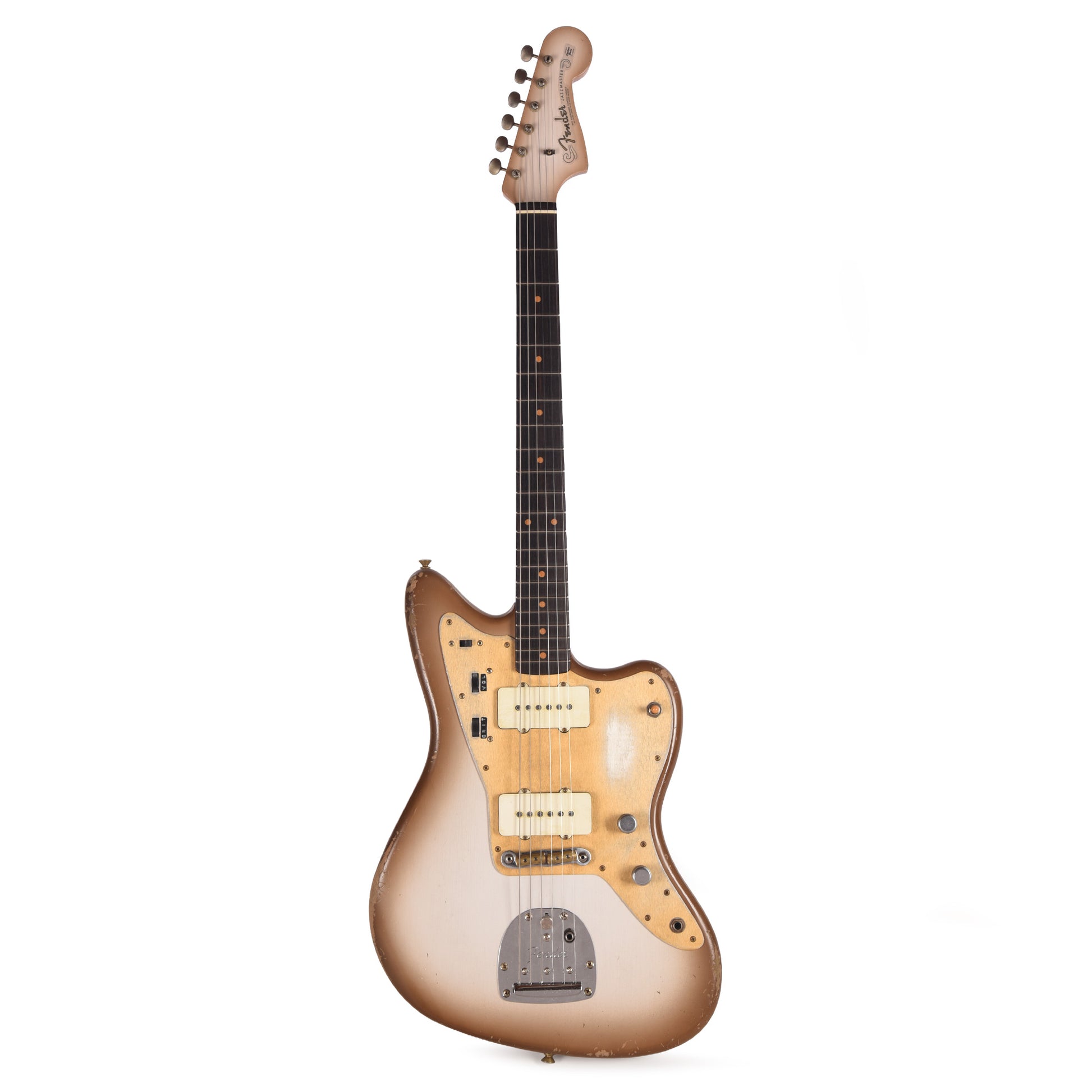

Our goal with our Custom Shop Jazzmasters was to make the absolute best sounding and playing JMs out there. Seems pretty simple right? Combining a mix of vintage specs, and modern mods we think you'll agree that we hit the mark. From 1959 to 1966, our "Chicago Special" Jazzmasters have a 7.25" radius, a slab rosewood fretboard, and a rift sawn maple neck. The magic really happens under the guard with the combination of a 250k volume pot and our Chicago Specials. Based on a set of 1961 Jazzmaster pickups, George Bland helped us craft our set to have higher output in the neck position than the bridge. The bridge pickup is slightly overwound giving it a smooth and round presence, while the neck pickup is moderately overwound giving it a huge bottom end with with round highs. Both Alnico 5 pickups are potted in shellac to give them a wide and open dynamic range, and wound with 42 gauge enamel wire. When you put everything together, you get the most balanced Jazzmaster on the market!
"Chicago Special" Jazzmaster pickups
- Custom set modeled after CME's favorite 1961 Jazzmater AlNiCo 5 magnets
- 42 gauge enamel wire for round highs
- Potted in shellac for open wide range frequency response
- BRIDGE: Slightly overwound for high end punch but still still smooth and round
- NECK: Moderately overwound for huge bottom end but with clear, round highs
Specs
Specs
General
| Series: | Fender Custom Shop |
| Country of Manufacture: | Made in the USA |
| Master Builder: | Levi Perry |

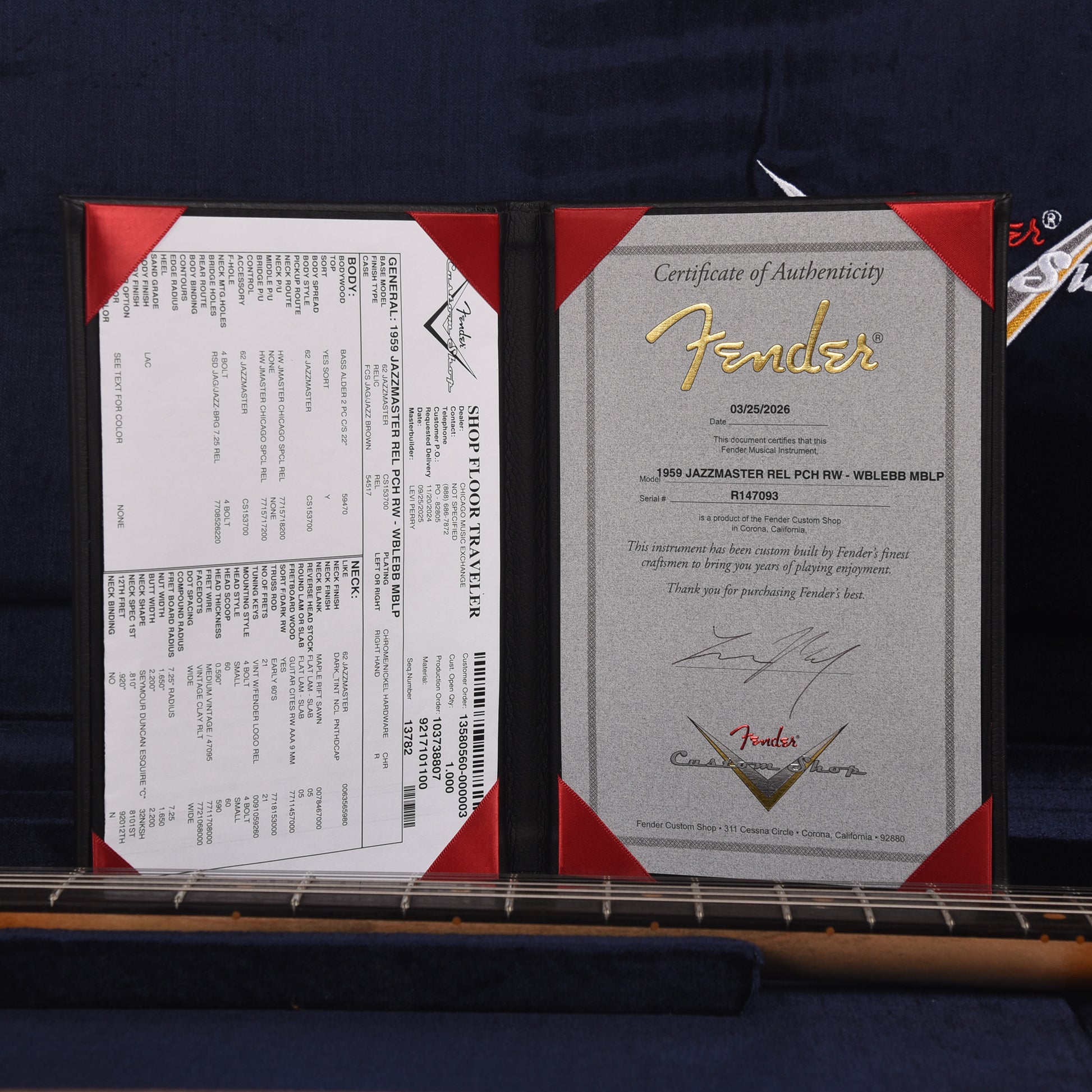

| Serial Number: | R147093 |
| Product Color: | Siamese Burst |
| Relic/Aging Level: | Relic |

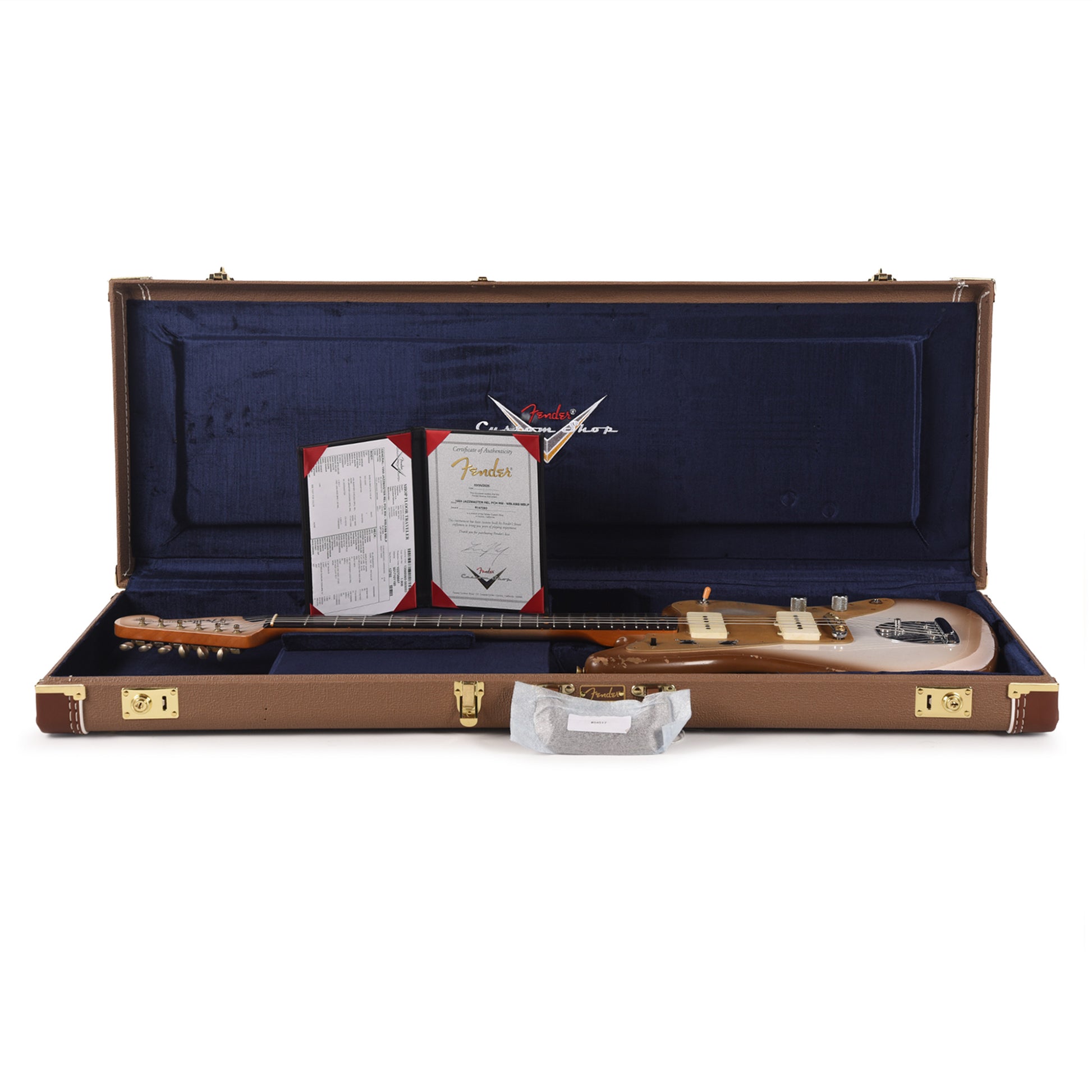

| Case Type: | Hardshell Case Included |
| Factory Setup: | E Standard (E-A-D-G-B-E) |
Body

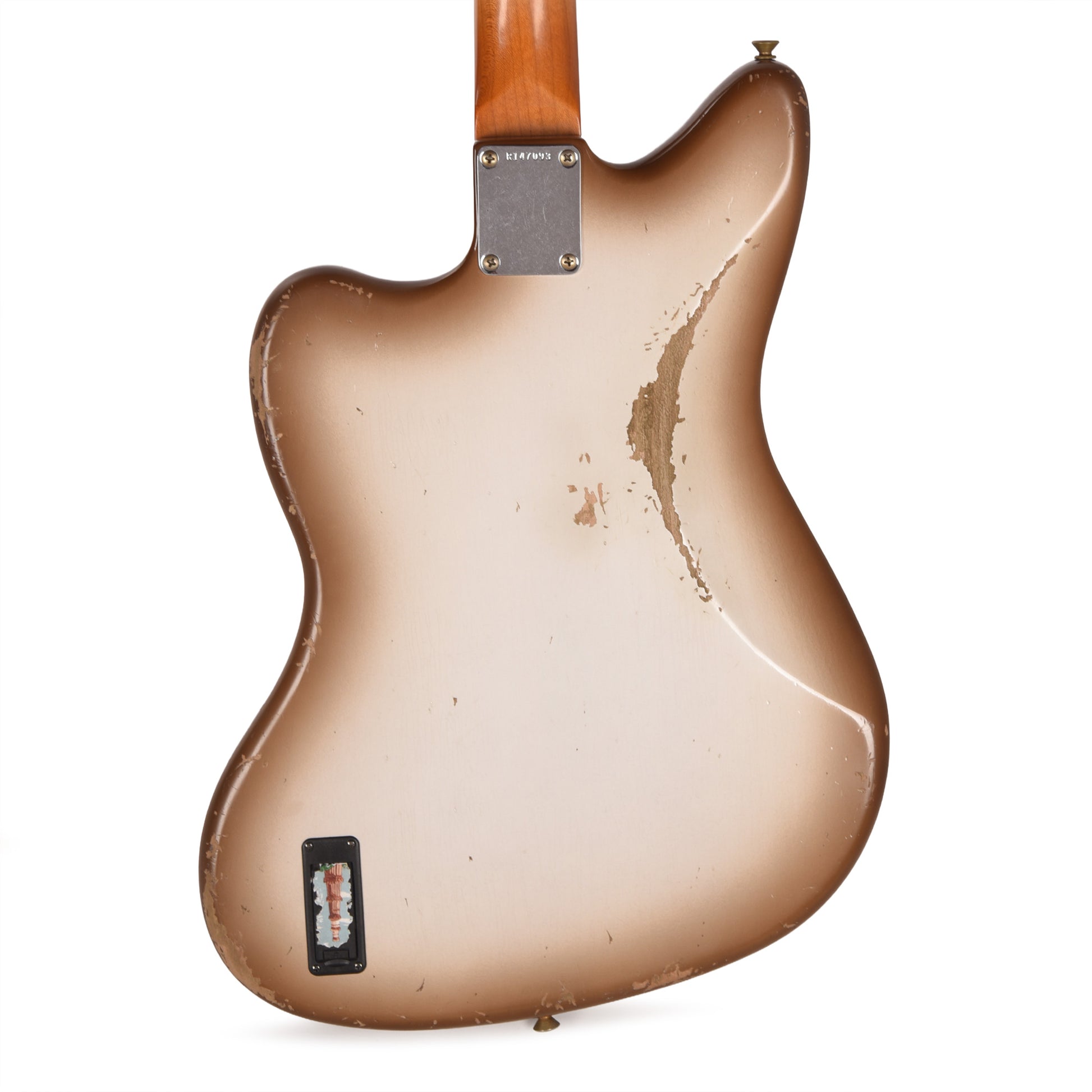

| Body Shape: | Jazzmaster |
| Body Material: | 2-Piece Alder (Sort for Light Weight) |
| Body Finish: | Nitrocellulose Lacquer |
Neck
| Neck Material: | Rift Sawn Maple |
| Neck Finish: | Nitrocellulose Lacquer |
| Neck Tint/Color: | Dark Tint |
| Neck Shape: | Seymour Duncan Esquire "C" (.810-.920) |
| Fingerboard Material: | AAA Indian Rosewood (Sort for Dark) |
| Nut Material: | Bone |
| Nut Width: | 1.65" |
| Fingerboard Radius: | 7.25" |
| Scale Length: | 25.5" |
| Number of Frets: | 21 Frets |
| Neck Joint: | 4 Bolt |
| Fingerboard Inlay: | Vintage Clay Dot |
| Inlay Shape: | Dots |
| Side Marker Inlay: | Vintage Clay |

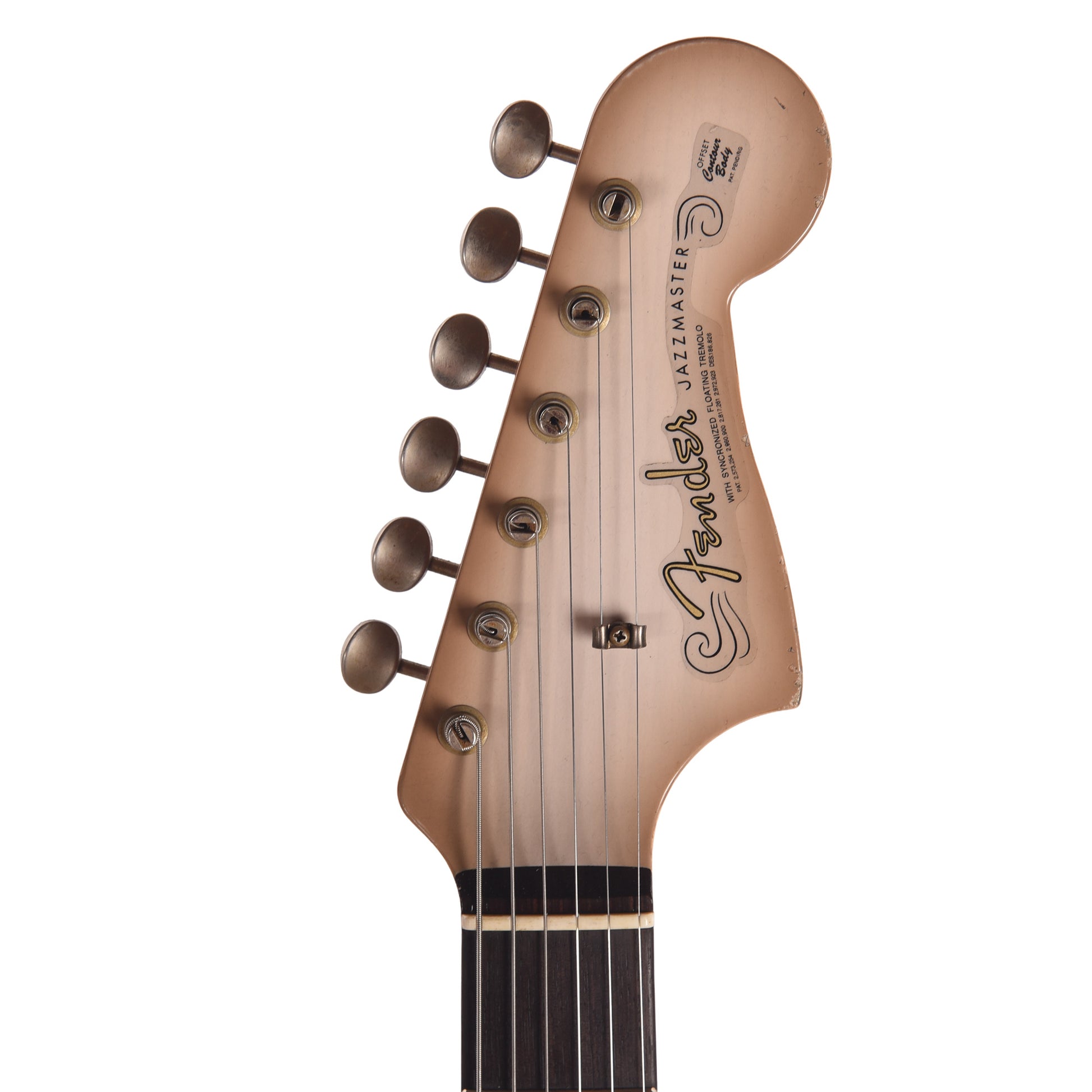

| Headstock Inlay/Decal: | '62 Jazzmaster |
Electronics
| Bridge Pickup: | Josefina Hand-Wound "Chicago Special" Jazzmaster |
| Neck Pickup: | Josefina Hand-Wound "Chicago Special" Jazzmaster |
| Controls and Switching: | Vintage Jazzmaster |
| Electronics Notes: | 250K pots; fuzz circuit replaces rhythm circuit |
Hardware
| Hardware Color: | Nickel/Chrome |
| Bridge: | RSD J-Bridge |

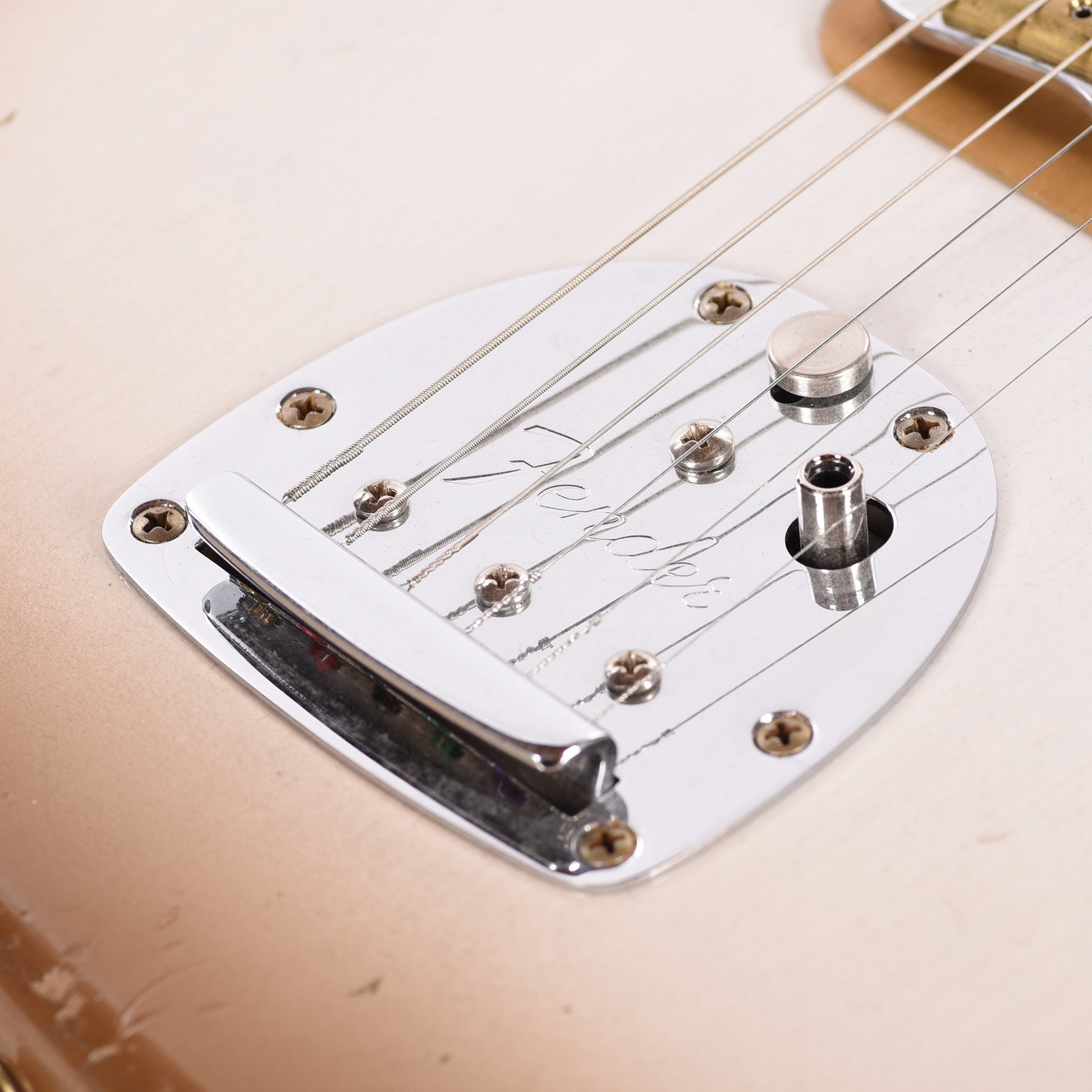

| Tailpiece: | Vintage-Style Floating Vibrato |

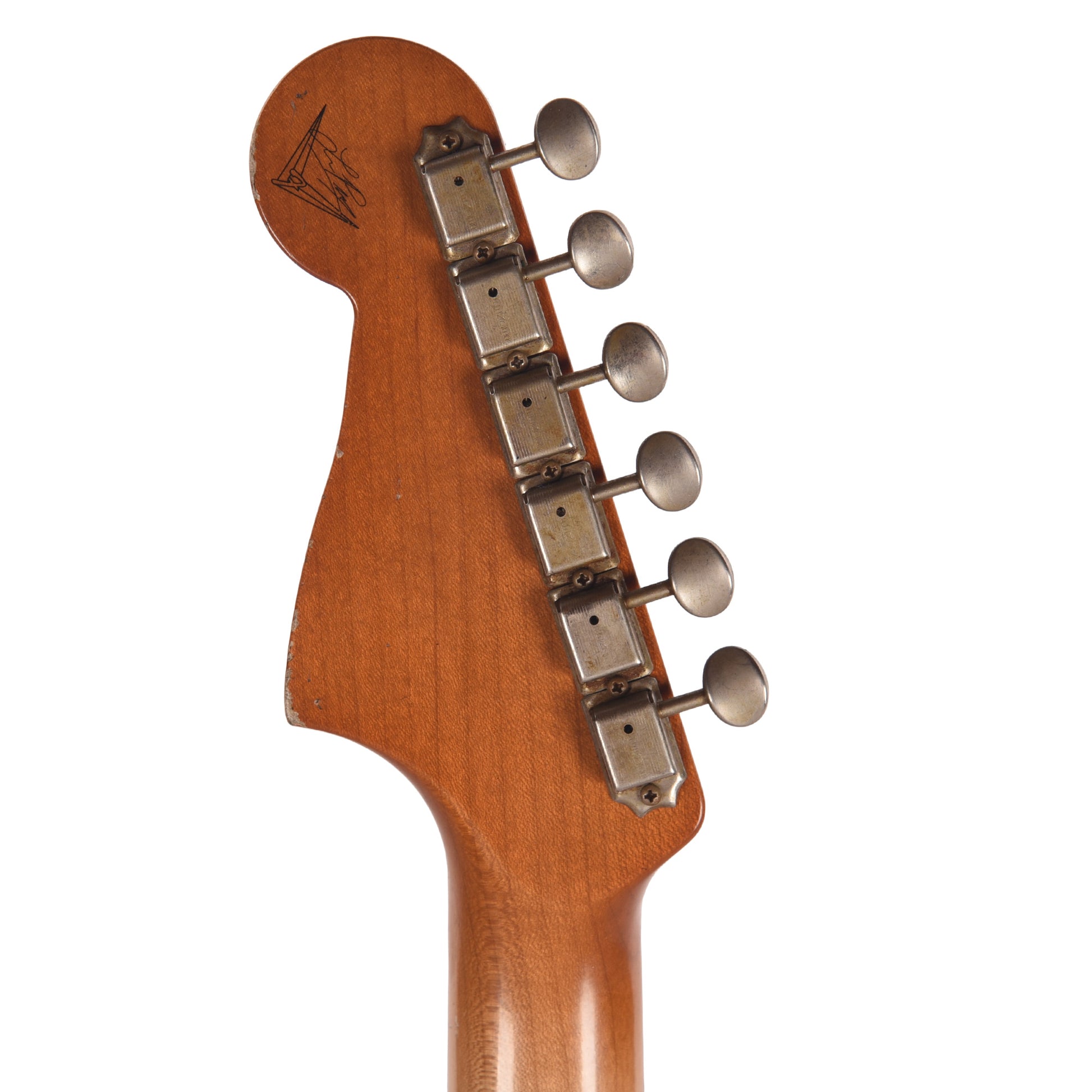

| Tuning Machines: | Vintage w/Fender Logo |
| String Tree: | American Vintage '59-64 Metal Spacer |
| Fret Wire: | Medium Vintage / 47095 |
| Saddle: | Brass |
| Pickguard: | Anodized Black |
| Switch Cap: | Amber |
