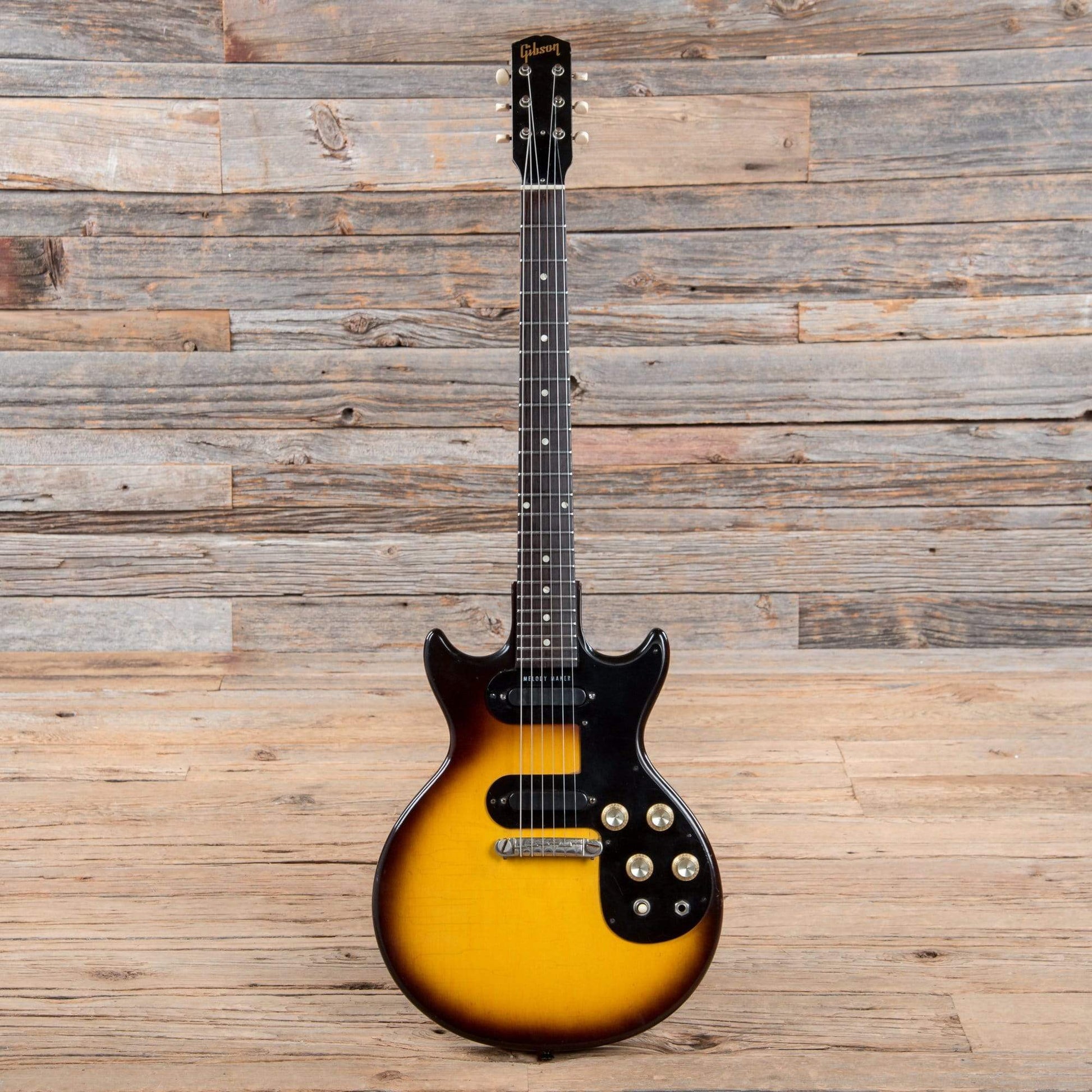

Continue ShoppingGibson Melody Maker D Sunburst 1964
6-String Solid Body Electric Guitar with Brazilian Rosewood Fingerboard. Made in the USA.

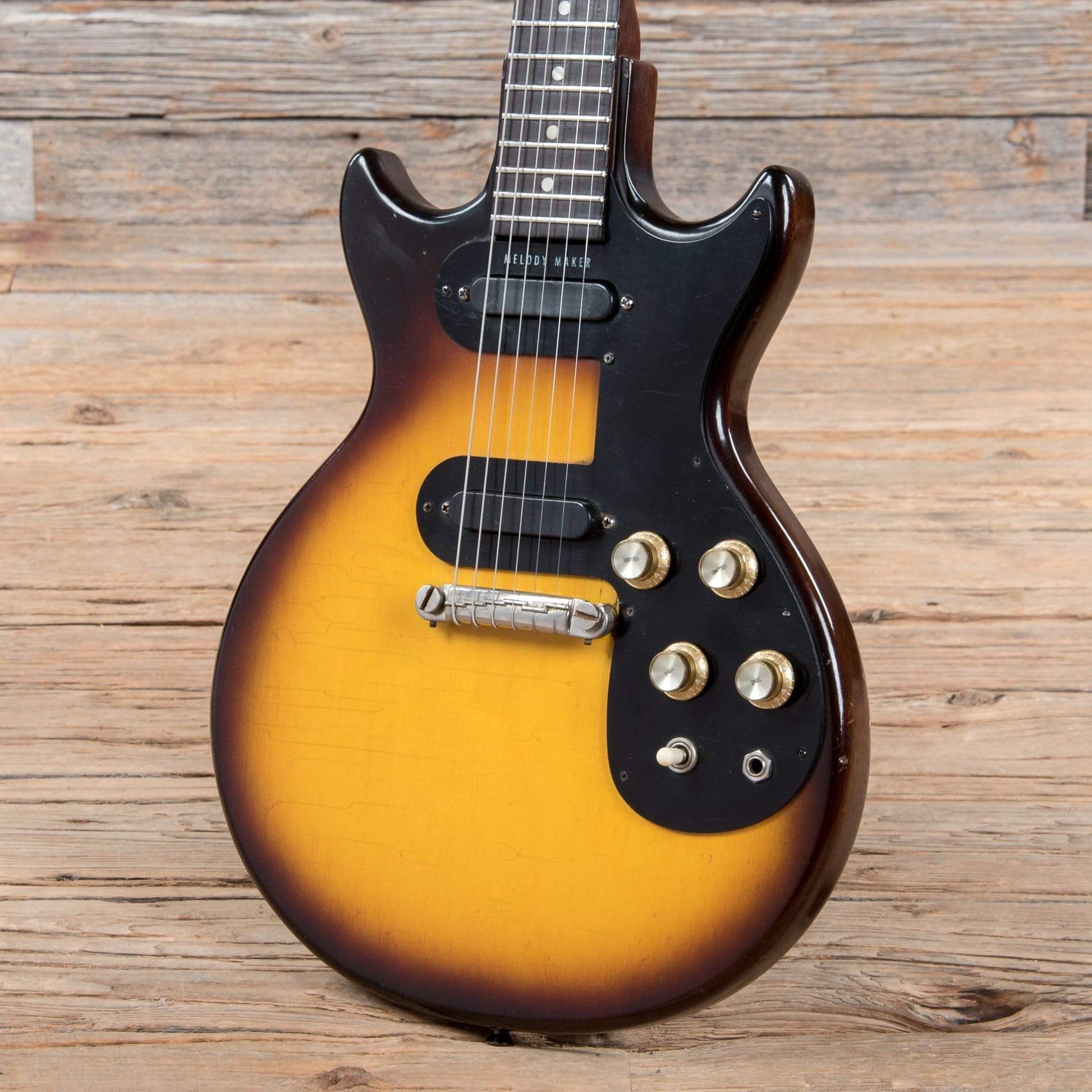

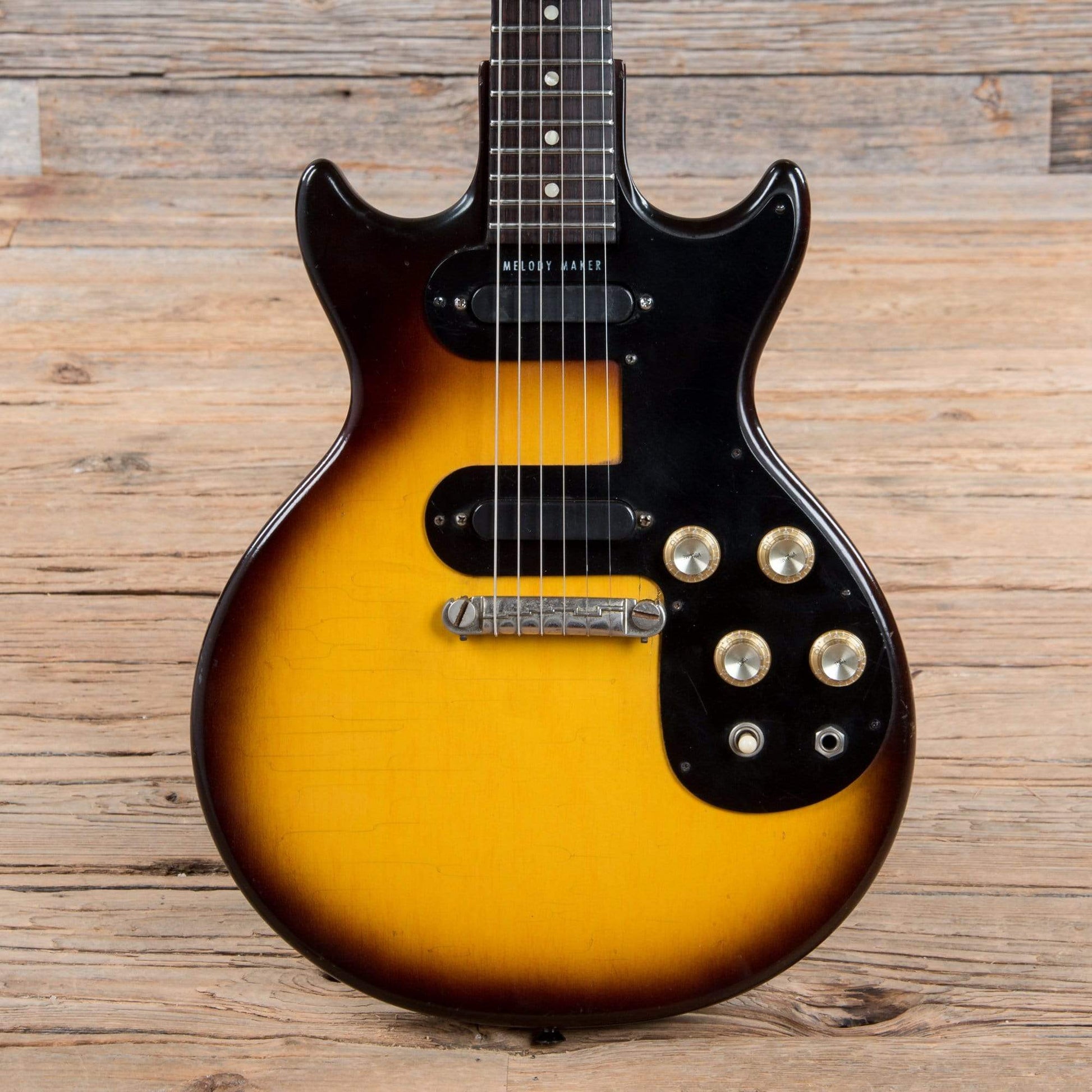

Gibson Melody Maker D Sunburst 1964
Vintage
Vintage
Summary
Finish: Original

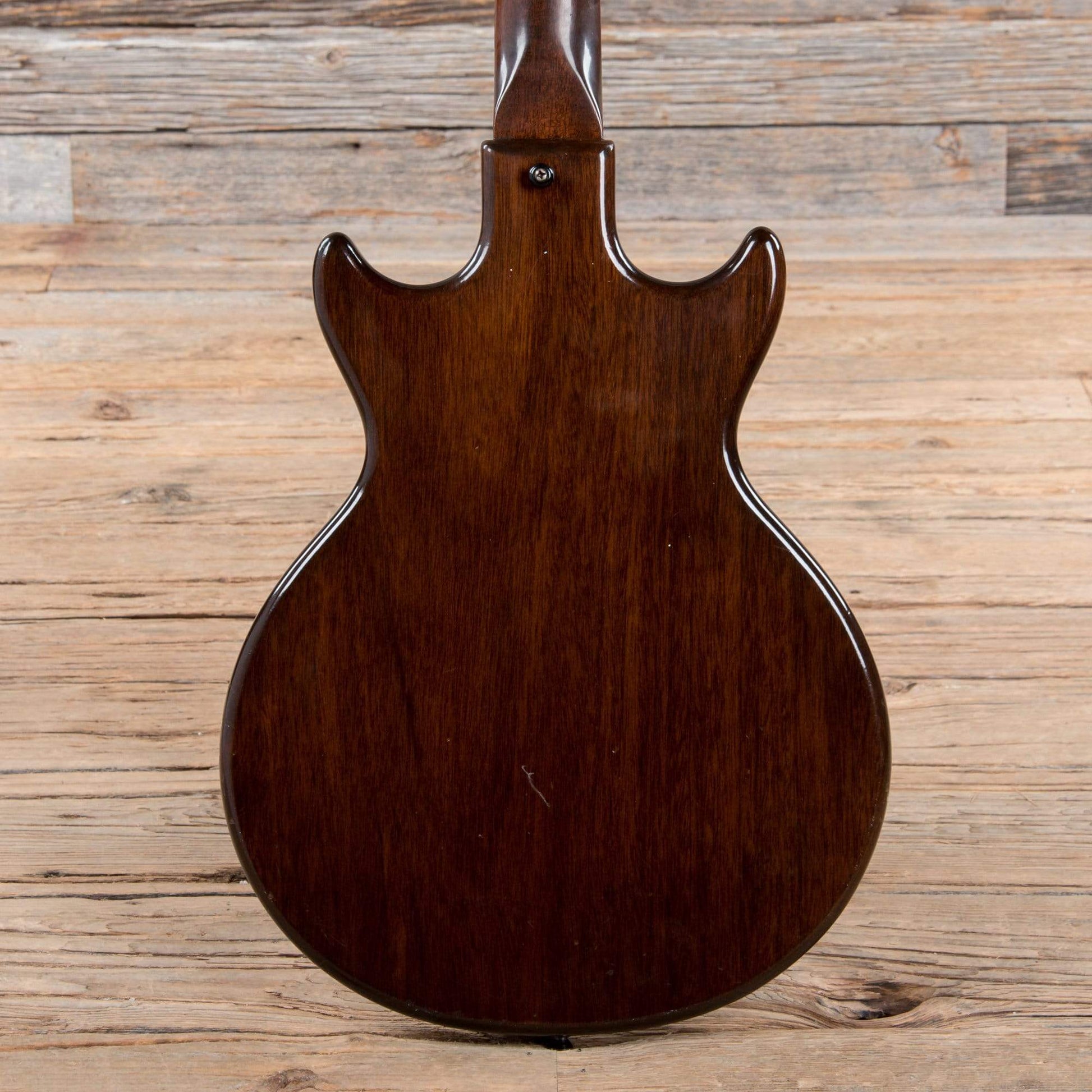

Body Material: Mahogany Body
Body Details: Mahogany solid body -- The area surrounding the treble side bridge stud was blown out at some point and since been repaired.
Neck Material: Mahogany Neck
Fingerboard Material: Brazilian Rosewood
Neck Profile: C-Shape
Neck Thickness (IN): 1st fret: .8", 12th: .94"
Fingerboard Radius: 12.00
Nut Width: 1-11/16"
Scale Length: 24-1/2"

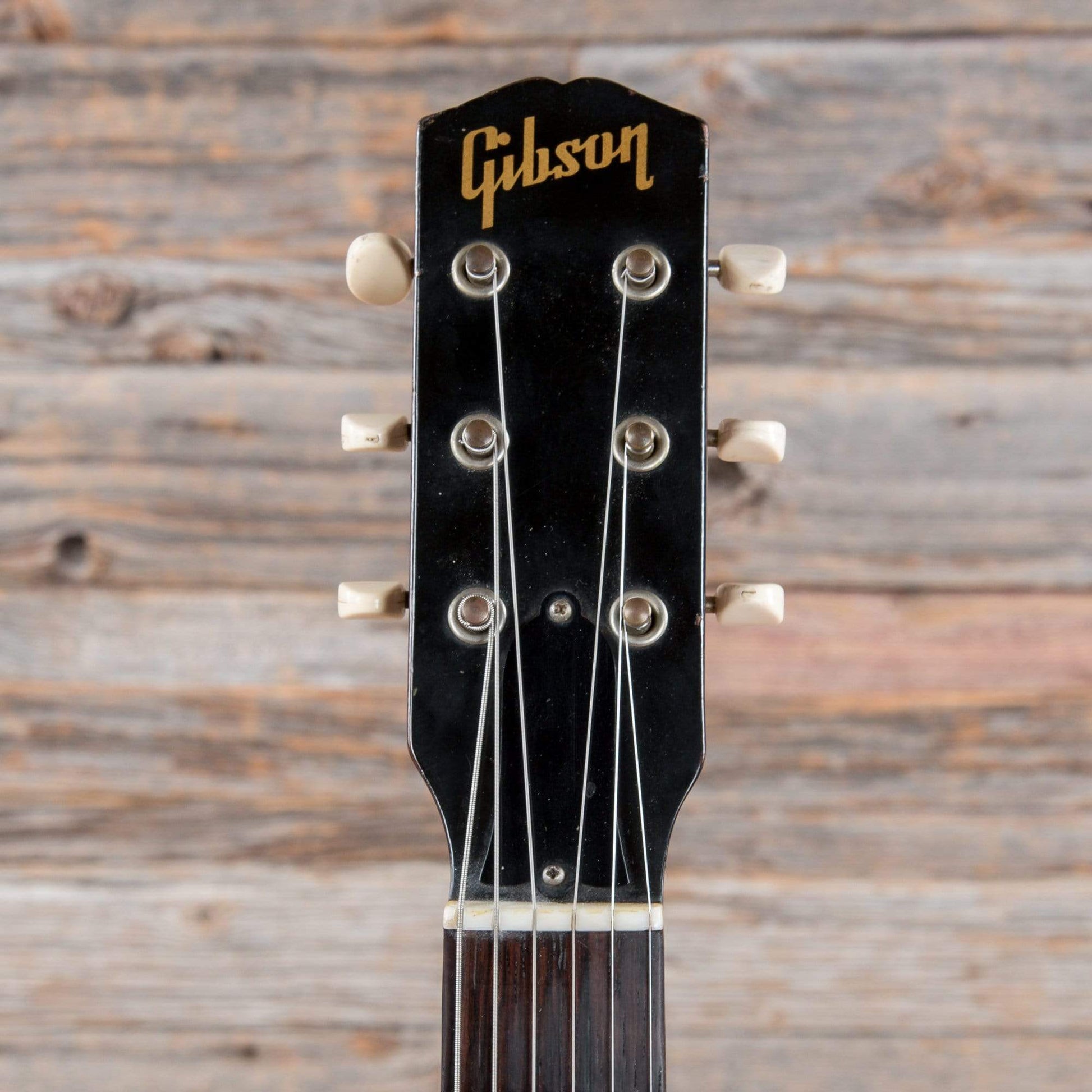

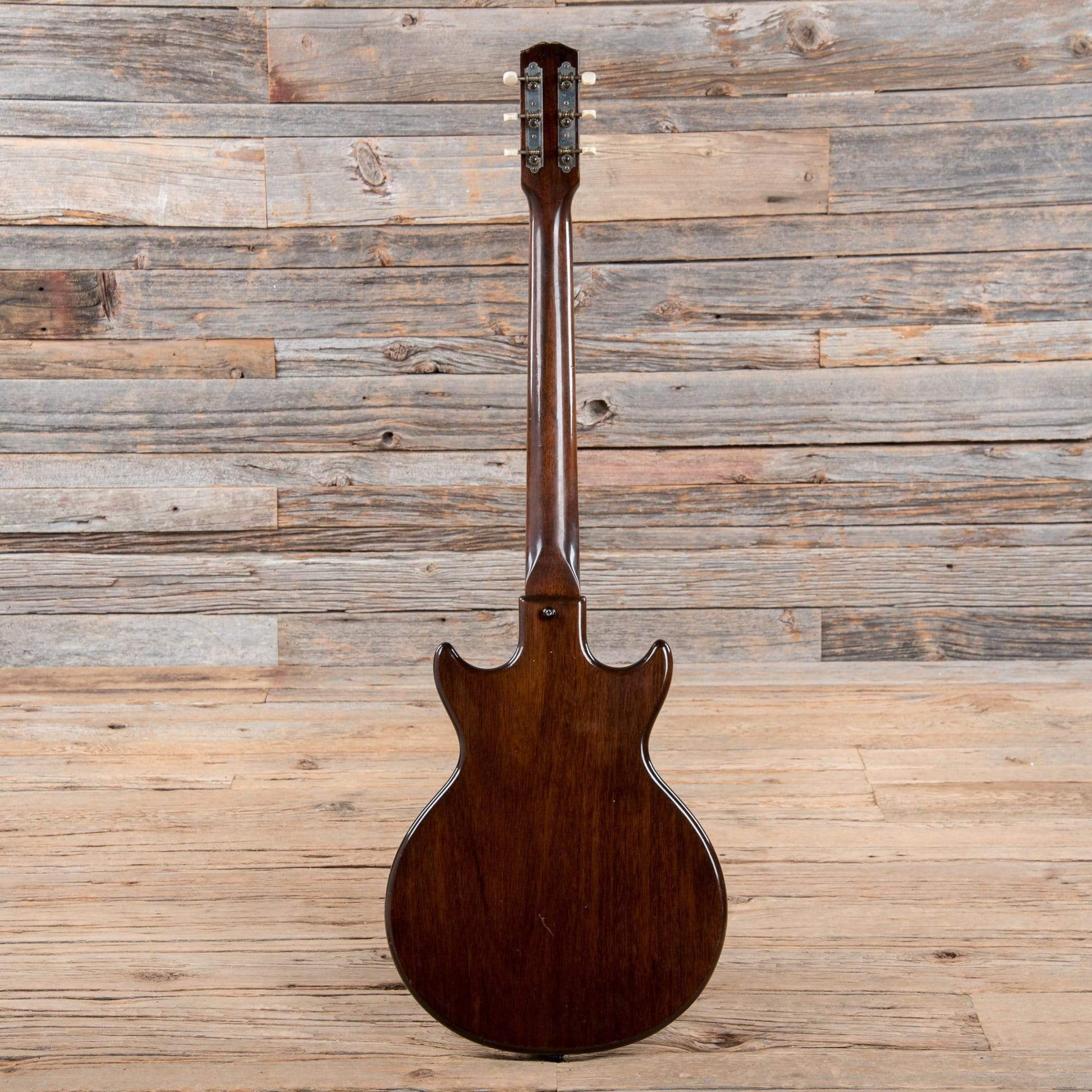

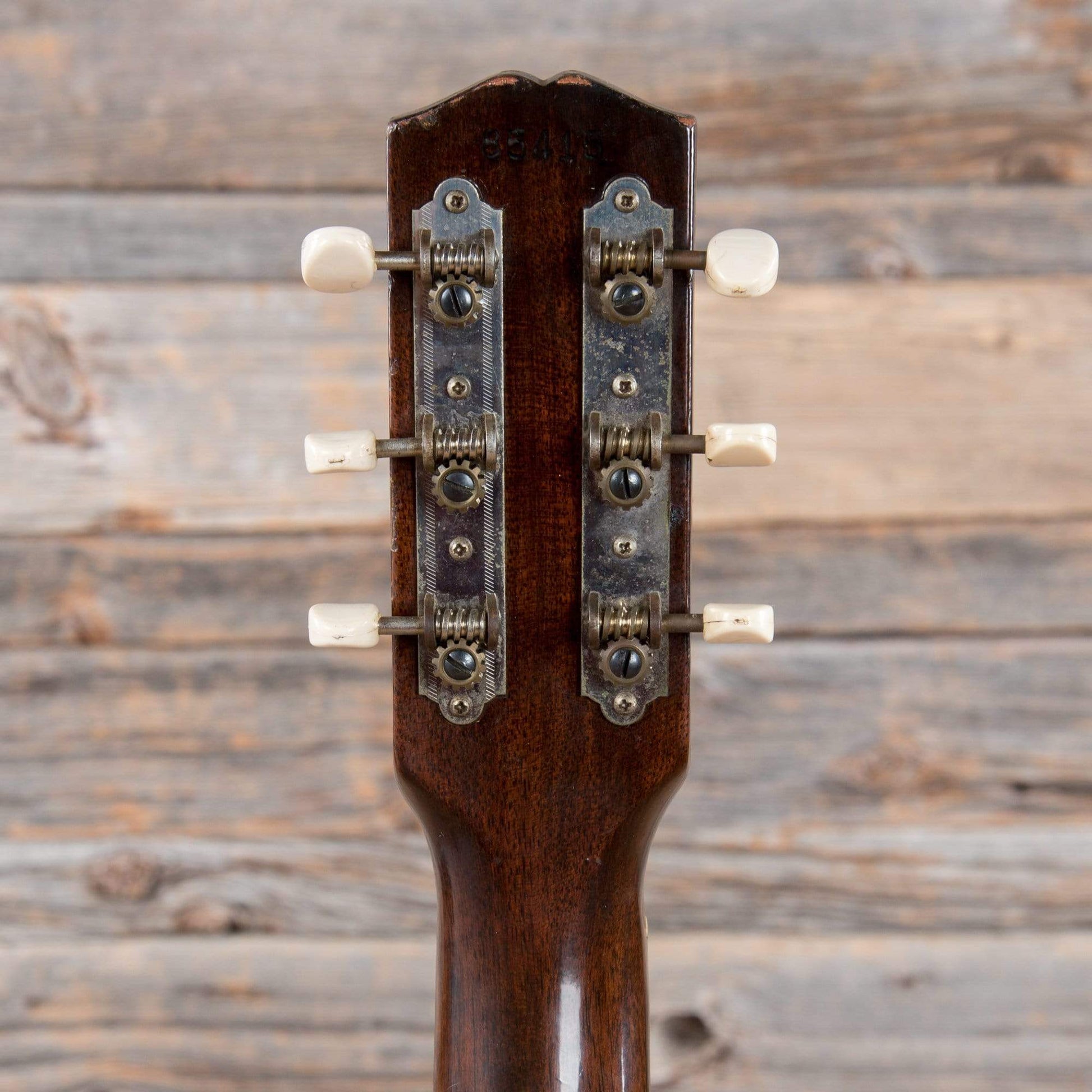

Neck Details: One-piece mahogany set neck with a Brazilian rosewood board, pearloid dot inlays, truss adjustment at the headstock
Electronics: Single-coil pickups, 3-way toggle pickup selector switch, volume & tone controls per pickup -- Original pickups, pots, and switch with pot codes dating from 1961 and 1962. Many solder joints have been touched up or modified. The bridge pickup lead wire has been spliced. The ground wire to the bridge stud has been spliced.
Pickup Measurements: Neck: 7 kΩ, Bridge: 6.6 kΩ
Hardware: The control knobs have been replaced. -- Misc. pickguard screws have been replaced -- The bottom strap button has been replaced. The original is broken but included within the hard shell.
Weight: 6 lbs 2.8 oz
Modifications / Repairs: The area around the treble side bridge stud has been repaired -- Misc wires have been spliced or replaced, misc solder joint connections have been touched up. -- Non-original control knobs -- Misc pickguard screws have been replaced

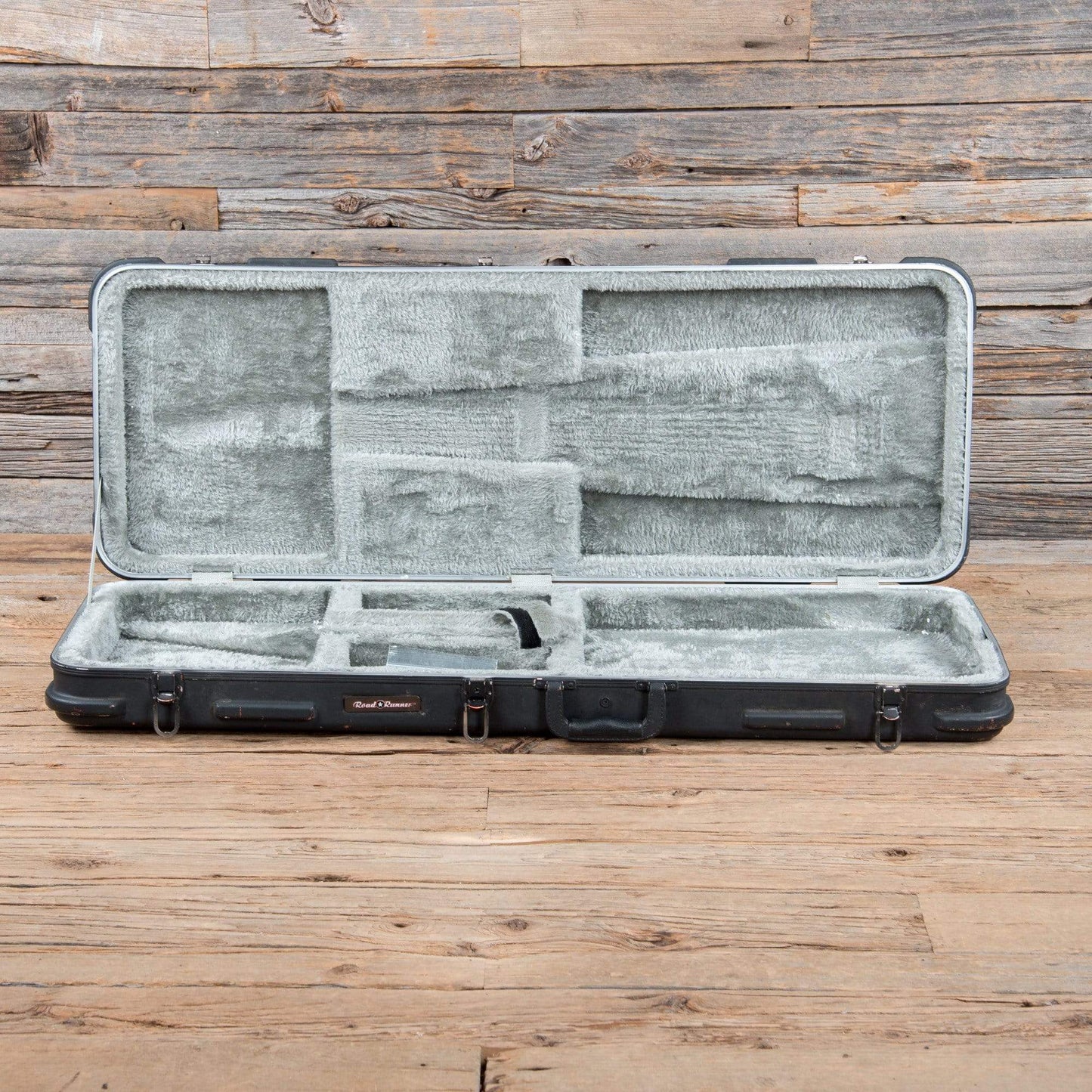

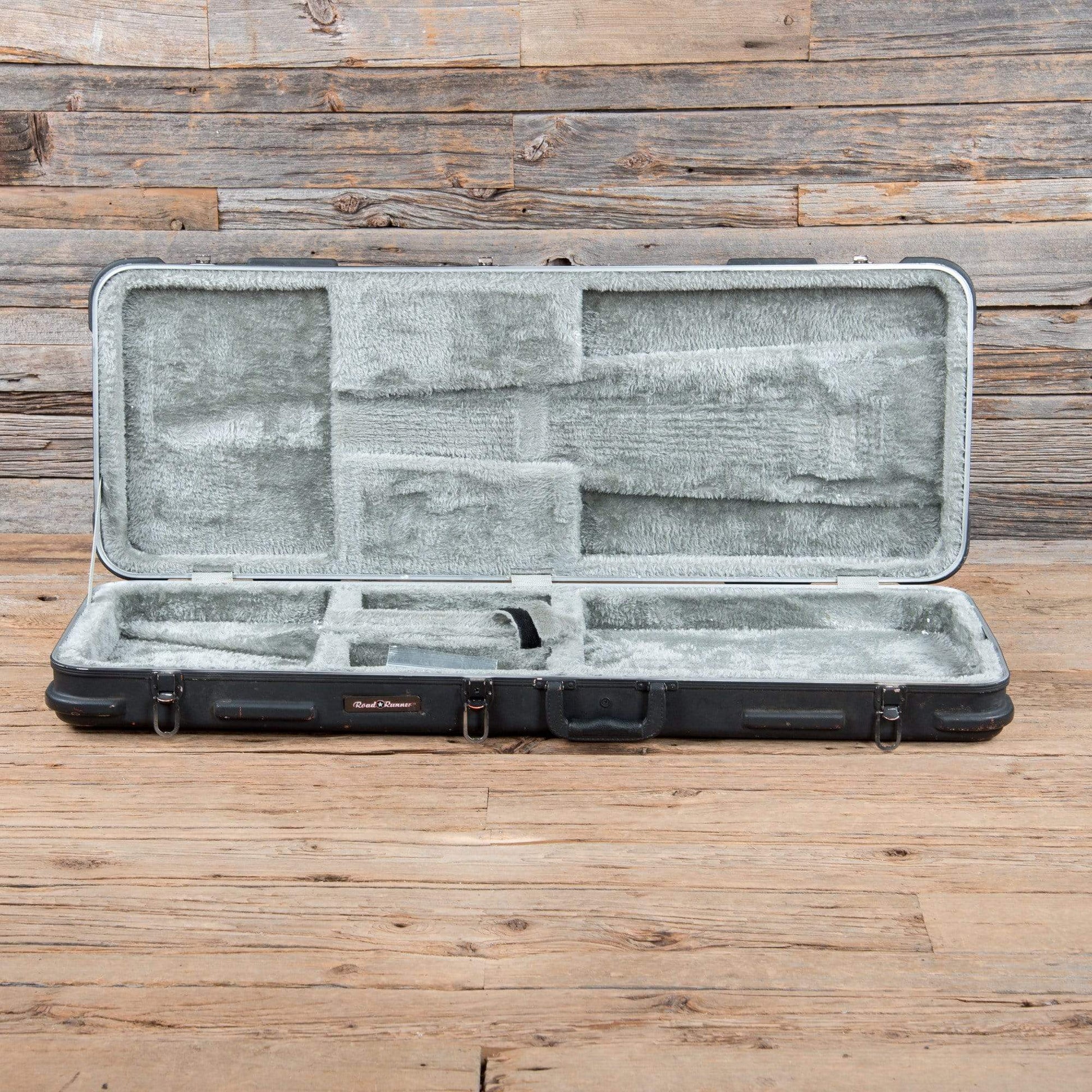

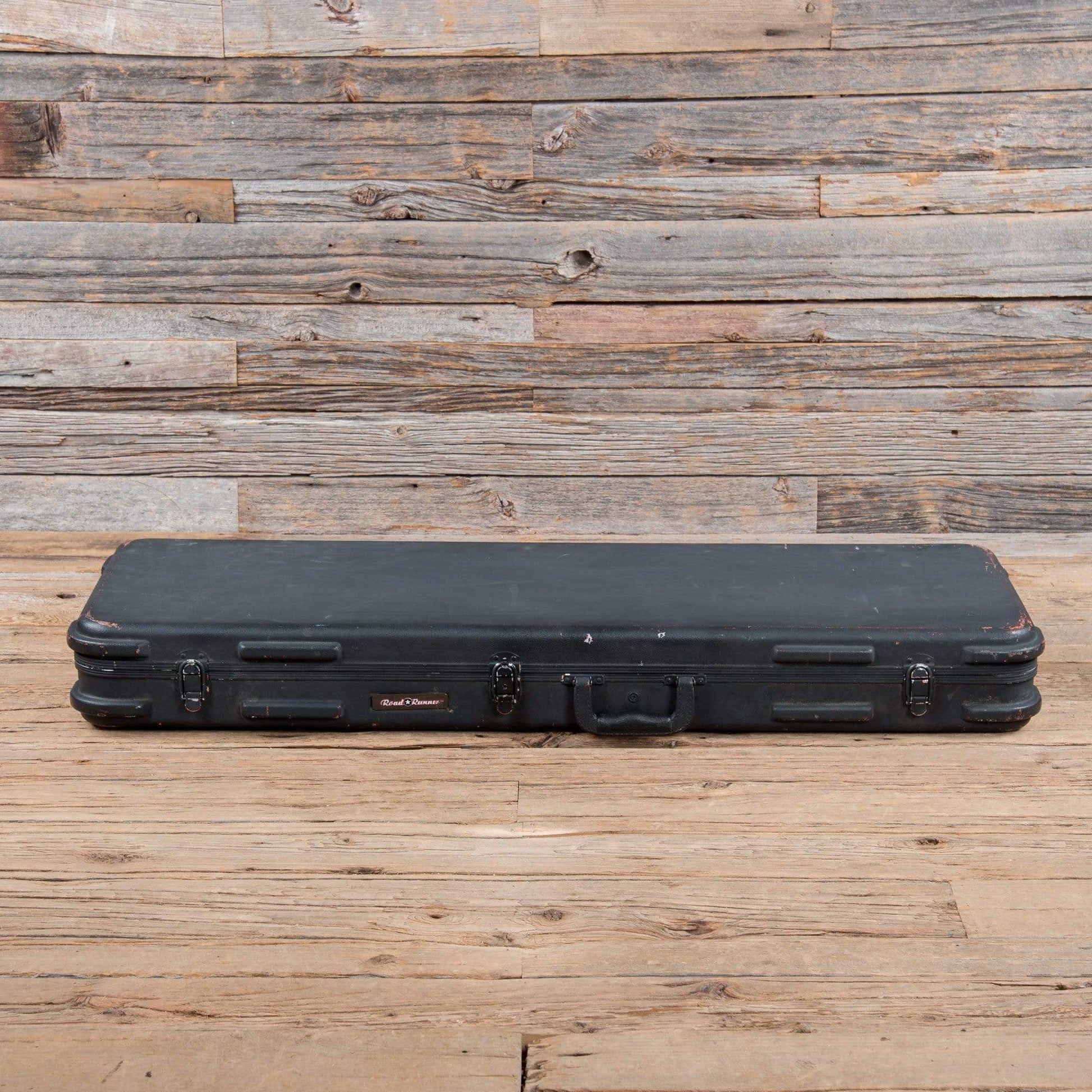

Case Details: Non-original Road Runner brand hard shell case

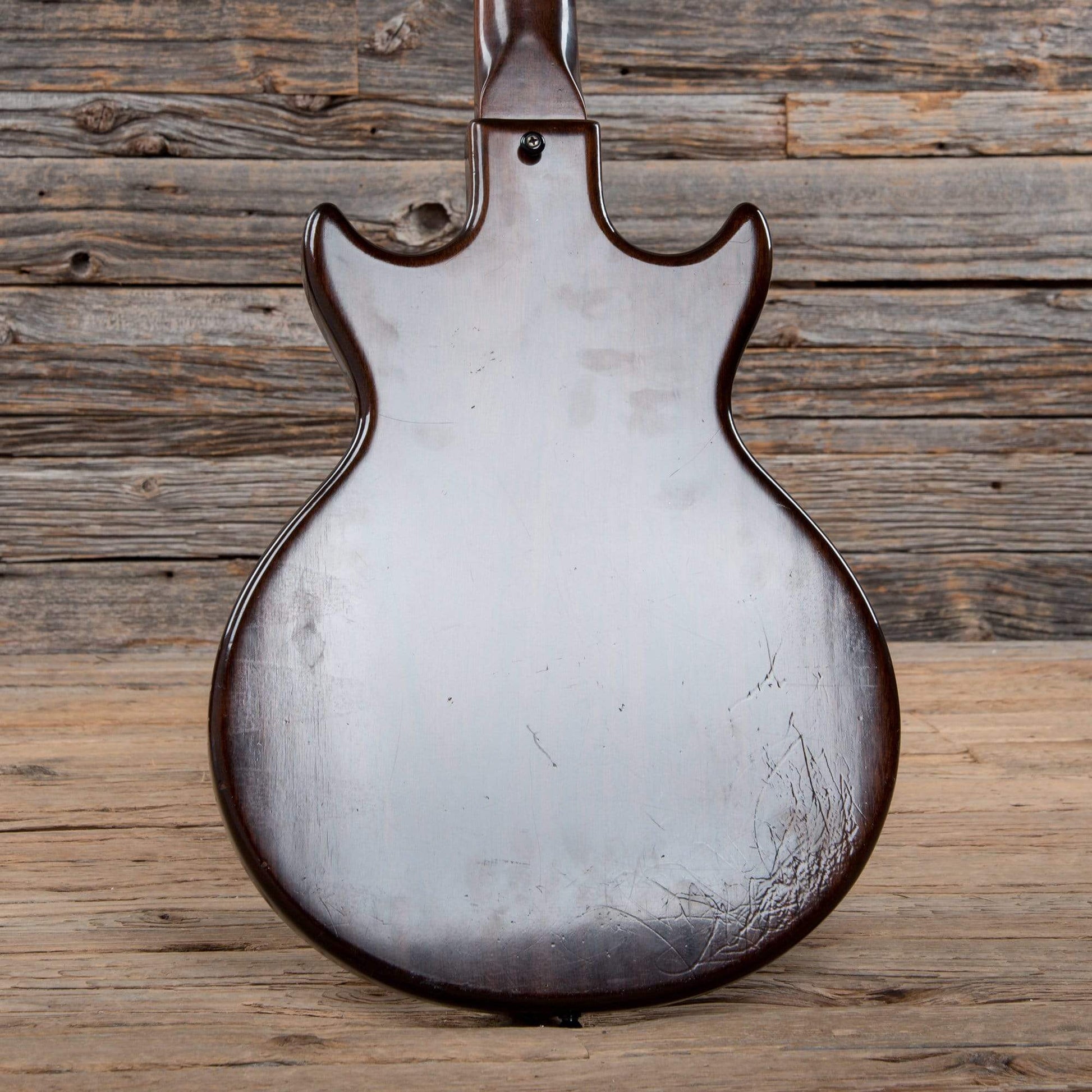

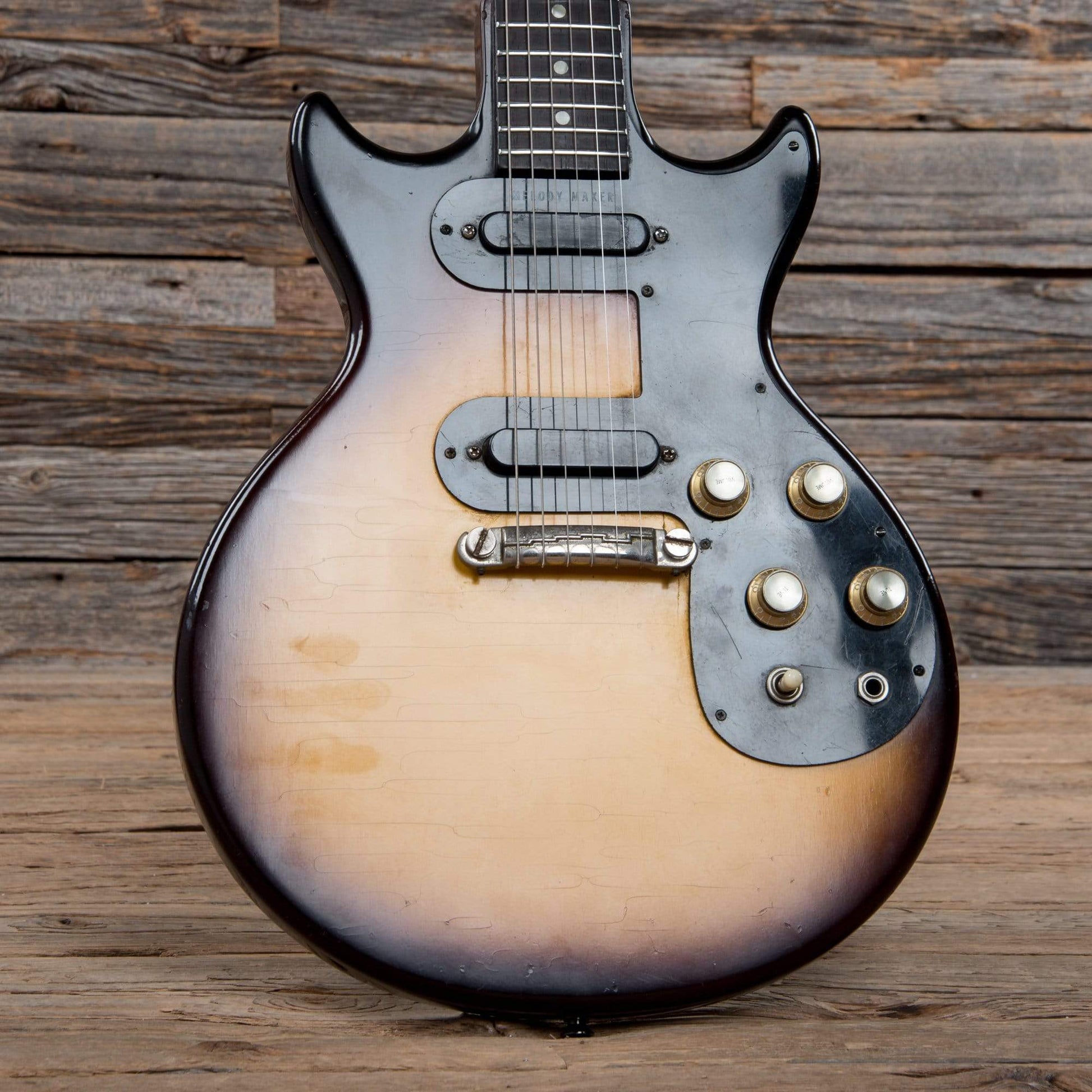

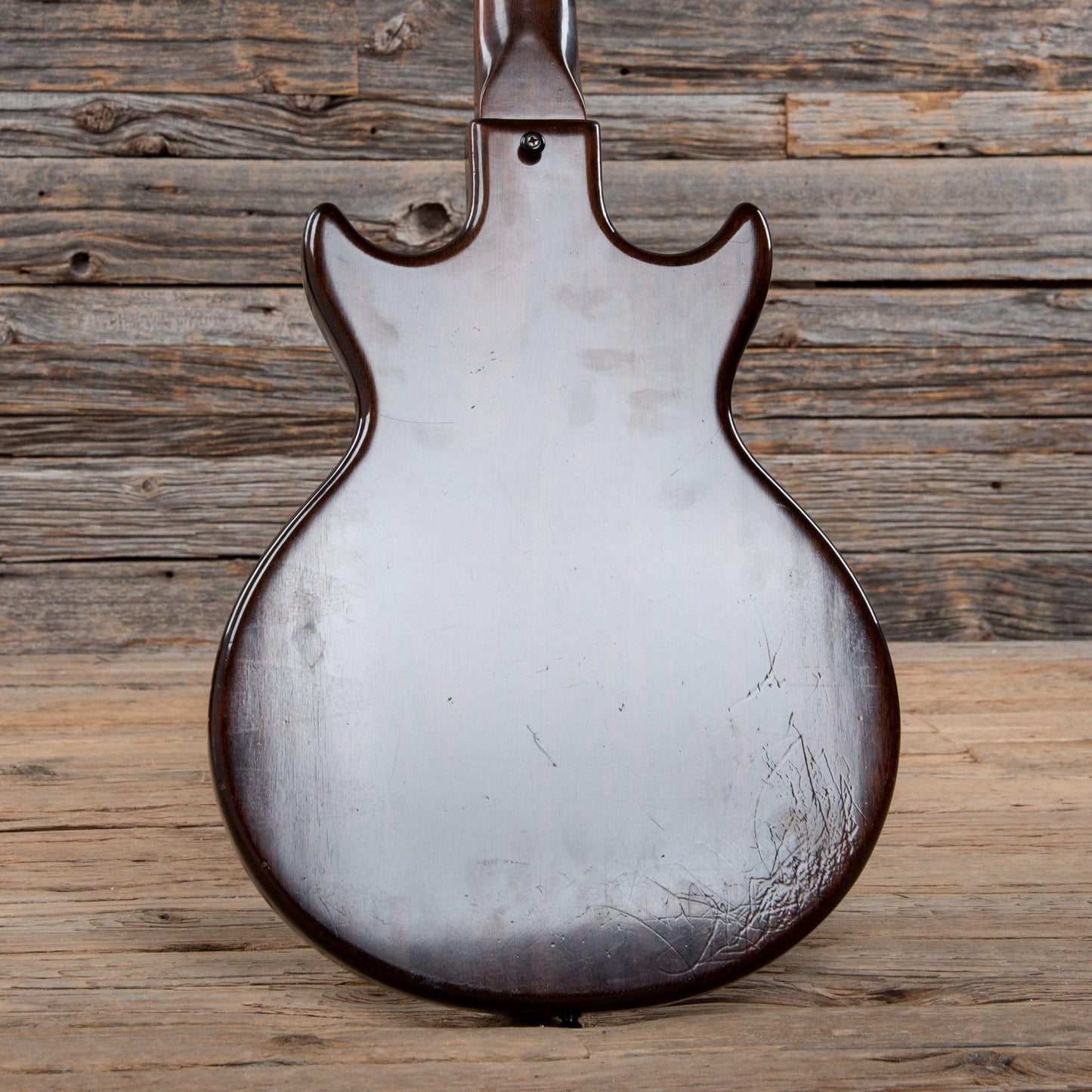

Cosmetic Condition: This Melody Maker shows nice aging and play wear. Finish checking exists on the top of the body but is sparse throughout the rest of the instrument. Minor nicks, chips, and dings can be found.
Serial Number: 85415
Tech Notes: Currently, set up with 10-gauge strings, low action, and optimal neck relief. The frets are wide and low showing only light play wear as they have recently been dressed. -- The pot codes date from 1961 and 1962. The serial number dates from 1962 to 1964, however the appointments date no earlier than 1963. The high serial number suggests a build year of 1964.
Trade
- Brand: Gibson
Description & Specs
The following specs were carefully collected and recorded by a skilled technician.
For a more detailed description and questions regarding sound, feel, or cosmetic
condition, please visit our Lincoln Avenue showroom or call to speak to one of our
Used and Vintage experts.
| Finish Details: | Original |
| Body Material: | Mahogany |
| Body Details: | Mahogany solid body -- The area surrounding the treble side bridge stud was blown out at some point and since been repaired. |
| Neck Material: | Mahogany |
| Fingerboard Material: | Brazilian Rosewood |
| Neck Profile: | C-Shape |
| Neck Thickness (IN): | 1st fret: .8", 12th: .94" |
| Fingerboard Radius: | 12.00" |
| Nut Width: | 1-11/16" |
| Scale Length: | 24 1/2" |
| Neck Details: | One-piece mahogany set neck with a Brazilian rosewood board, pearloid dot inlays, truss adjustment at the headstock |
| Electronics: | Single-coil pickups, 3-way toggle pickup selector switch, volume & tone controls per pickup -- Original pickups, pots, and switch with pot codes dating from 1961 and 1962. Many solder joints have been touched up or modified. The bridge pickup lead wire has been spliced. The ground wire to the bridge stud has been spliced. |
| Pickup Measurements: | Neck: 7 kΩ, Bridge: 6.6 kΩ |
| Hardware: | The control knobs have been replaced. -- Misc. pickguard screws have been replaced -- The bottom strap button has been replaced. The original is broken but included within the hard shell. |
| Modifications/Repairs: | The area around the treble side bridge stud has been repaired -- Misc wires have been spliced or replaced, misc solder joint connections have been touched up. -- Non-original control knobs -- Misc pickguard screws have been replaced |
| Case Details: | Non-original Road Runner brand hard shell case |
| Cosmetic Condition: | This Melody Maker shows nice aging and play wear. Finish checking exists on the top of the body but is sparse throughout the rest of the instrument. Minor nicks, chips, and dings can be found. |
| Serial Number: | 85415 |
| Tech Notes: | Currently, set up with 10-gauge strings, low action, and optimal neck relief. The frets are wide and low showing only light play wear as they have recently been dressed. -- The pot codes date from 1961 and 1962. The serial number dates from 1962 to 1964, however the appointments date no earlier than 1963. The high serial number suggests a build year of 1964. |
