Continue ShoppingJackson USA Fusion Lightning Graphic 1992
6-String Solid Body Electric Guitar with Ebony Fingerboard. Made in the USA.

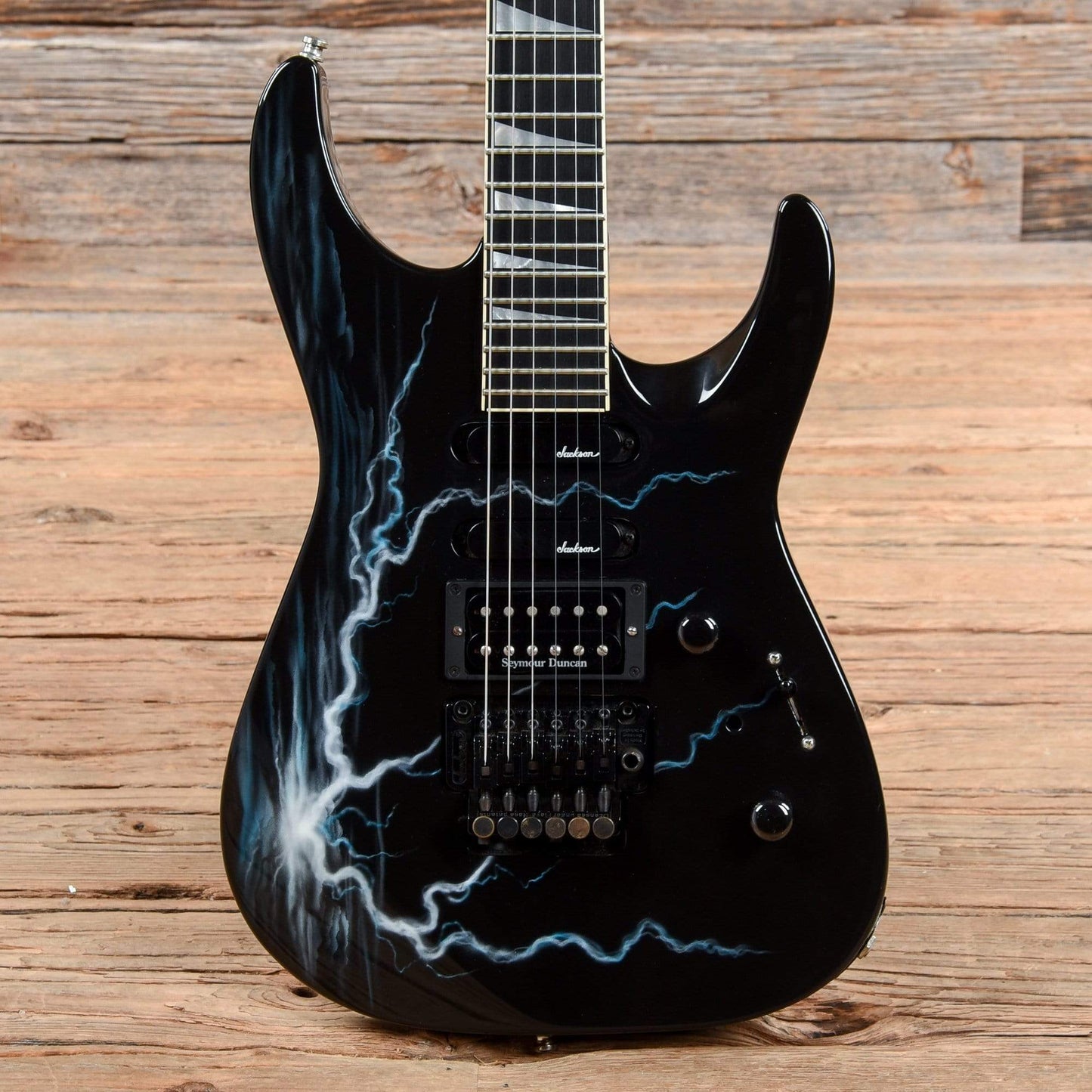

Jackson USA Fusion Lightning Graphic 1992
Used
Used
Summary
Finish: Original
Body Material: Alder Body
Body Details: Solid alder body.
Neck Material: Maple Neck
Fingerboard Material: Ebony Fingerboard
Neck Profile: D shape
Neck Thickness (IN): 1st .72" 12th .84"
Fingerboard Radius: 12.00
Nut Width: 1-11/16"
Scale Length: 24-3/4"
Neck Details: One piece maple bolt-on neck with bound ebony fingerboard.

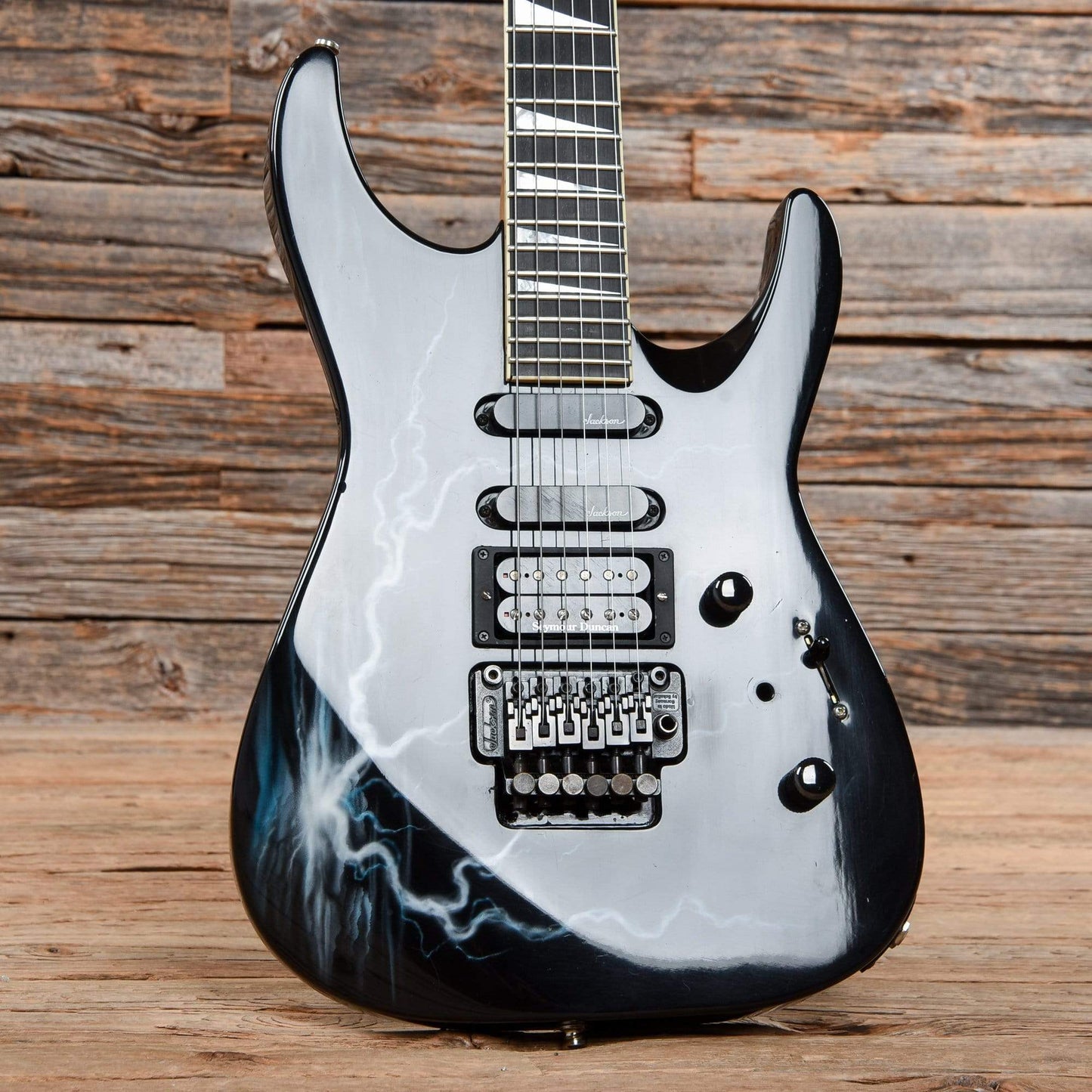

Electronics: Modified electronics. This guitar has been rewired passive (originally it had an active JE-1500 para-mid EQ circuit) and the bridge pickup has been swapped with a Seymour Duncan TB-6 Distortion Trembucker. The pots are not original. The neck and middle pickups are original. Five-way pickup selector, master volume, master tone. -There is an extra hole in the body from the original wiring scheme. -The original bridge pickup and wiring harness are included in the case.
Pickup Measurements: Neck 11.1k Middle 11.2k Bridge 15.1k
Hardware: Original hardware.
Weight: 7 lbs 9.2 oz
Modifications / Repairs: -This guitar has been rewired passive (originally it had an active JE-1500 para-mid EQ circuit) and the bridge pickup has been swapped with a Seymour Duncan TB-6 Distortion Trembucker. -The pots are not original. -There is an extra hole in the body from the original wiring scheme.

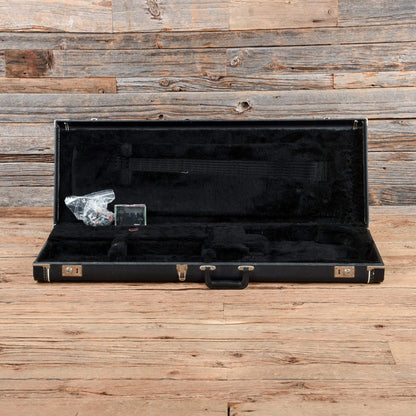

Case Details: The original hardshell case is in good shape with some cosmetic wear. Includes the original bridge pickup, active JE-1500 para-mid EQ wiring harness, and trem arm, and strap.
Cosmetic Condition: This guitar has light wear for its age. -The body has dents and scratches. -The neck has scratches, dents, and a finish chip on the headstock.
Serial Number: 001726
Tech Notes: This guitar plays well with low action and light neck relief. The serial number dates this guitar to 1992.
Trade
- Brand: Jackson
Description & Specs
The following specs were carefully collected and recorded by a skilled technician.
For a more detailed description and questions regarding sound, feel, or cosmetic
condition, please visit our Lincoln Avenue showroom or call to speak to one of our
Used and Vintage experts.
| Finish Details: | Original |
| Body Material: | Alder |
| Neck Material: | Maple |
| Fingerboard Material: | Ebony |
| Neck Profile: | D shape |
| Neck Thickness (IN): | 1st .72" 12th .84" |
| Fingerboard Radius: | 12.00" |
| Nut Width: | 1-11/16" |
| Scale Length: | 24 3/4" |
| Neck Details: | One piece maple bolt-on neck with bound ebony fingerboard. |
| Electronics: | Modified electronics. This guitar has been rewired passive (originally it had an active JE-1500 para-mid EQ circuit) and the bridge pickup has been swapped with a Seymour Duncan TB-6 Distortion Trembucker. The pots are not original. The neck and middle pickups are original. Five-way pickup selector, master volume, master tone. -There is an extra hole in the body from the original wiring scheme. -The original bridge pickup and wiring harness are included in the case. |
| Pickup Measurements: | Neck 11.1k Middle 11.2k Bridge 15.1k |
| Hardware: | Original hardware. |
| Modifications/Repairs: | -This guitar has been rewired passive (originally it had an active JE-1500 para-mid EQ circuit) and the bridge pickup has been swapped with a Seymour Duncan TB-6 Distortion Trembucker. -The pots are not original. -There is an extra hole in the body from the original wiring scheme. |
| Case Details: | The original hardshell case is in good shape with some cosmetic wear. Includes the original bridge pickup, active JE-1500 para-mid EQ wiring harness, and trem arm, and strap. |
| Cosmetic Condition: | This guitar has light wear for its age. -The body has dents and scratches. -The neck has scratches, dents, and a finish chip on the headstock. |
| Serial Number: | 001726 |
| Tech Notes: | This guitar plays well with low action and light neck relief. The serial number dates this guitar to 1992. |
