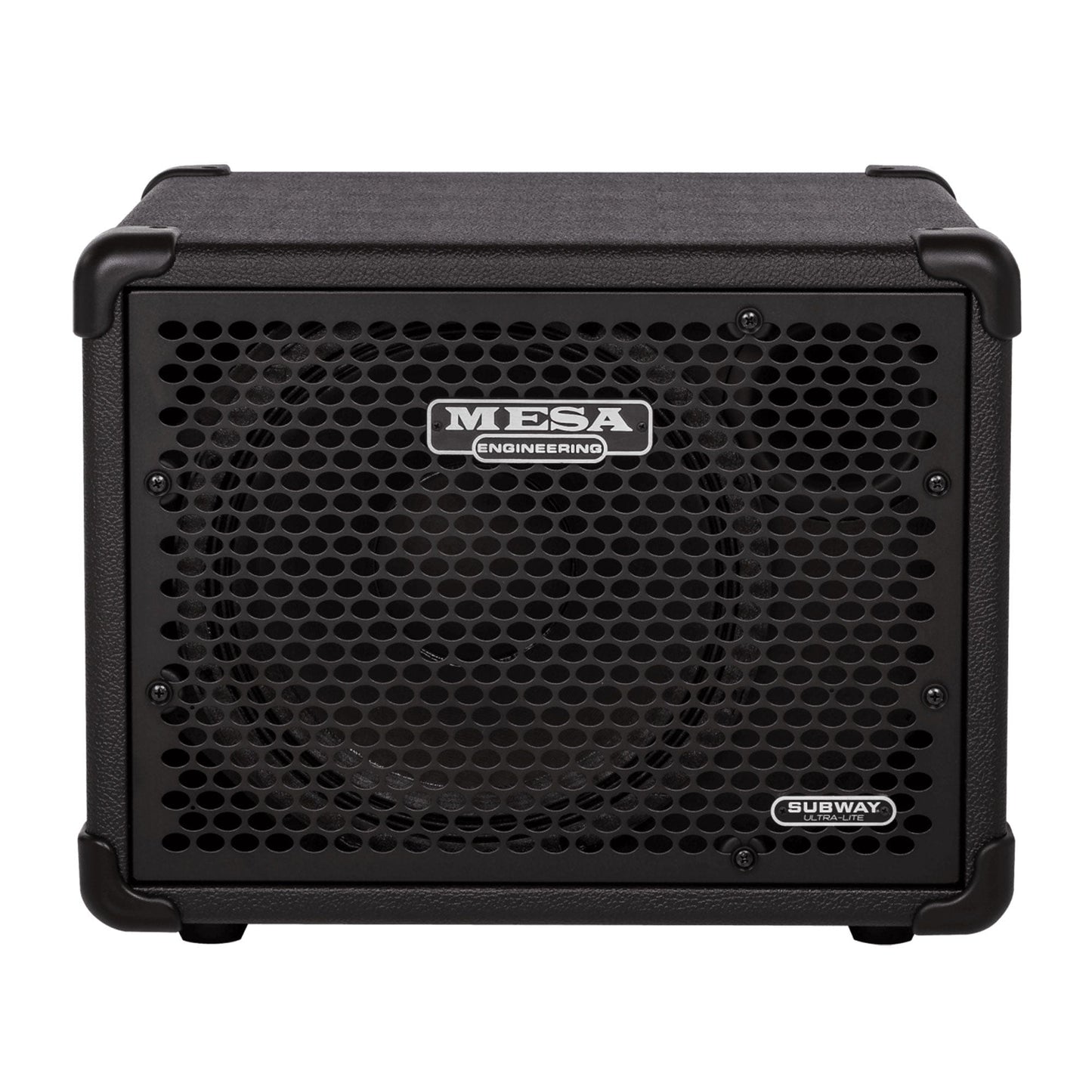

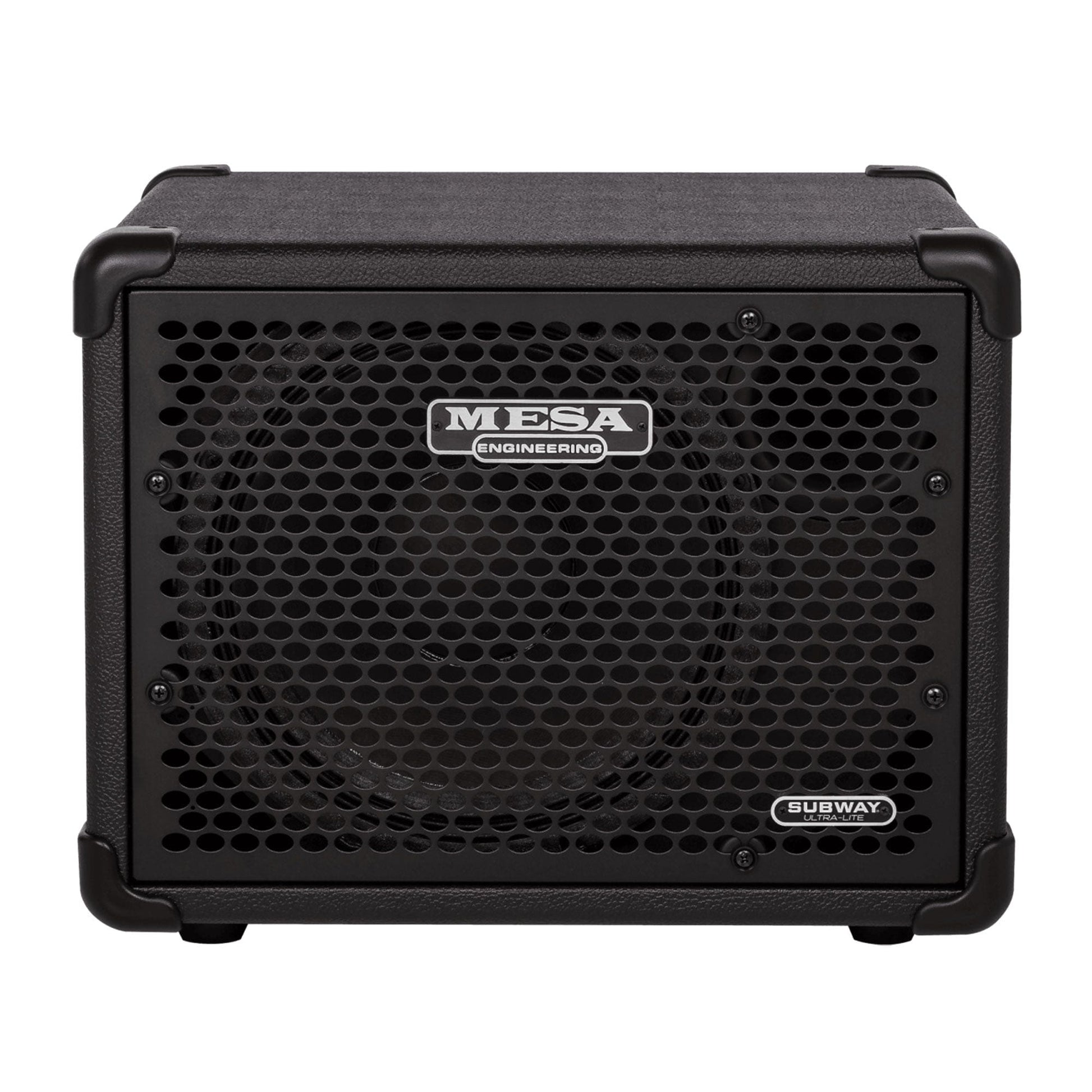

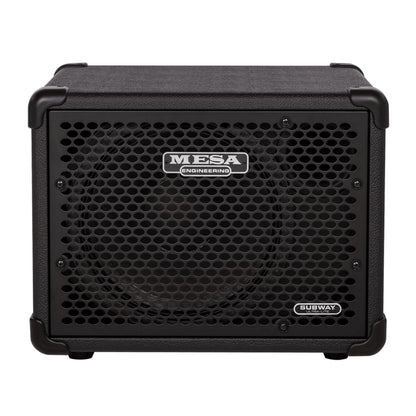

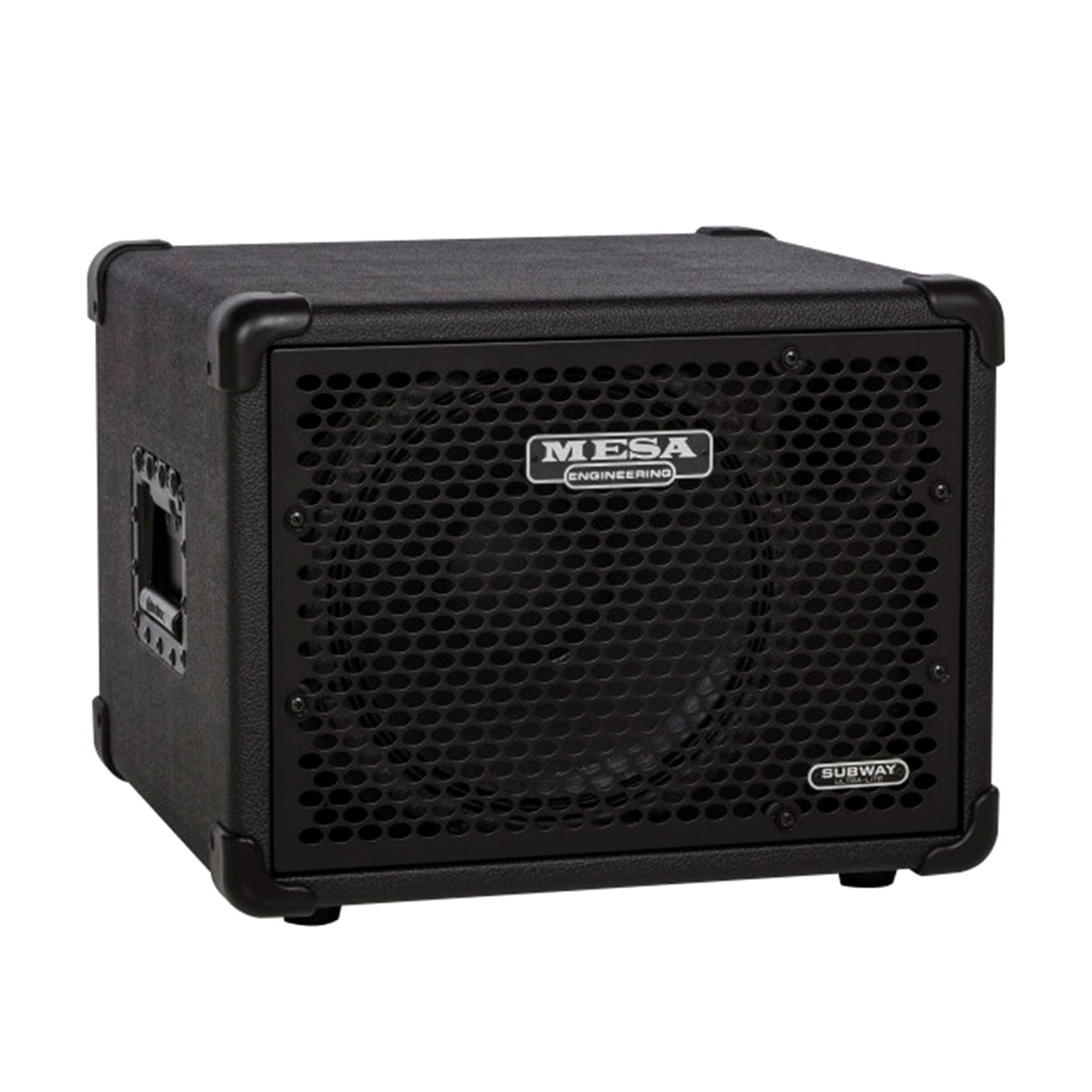

Our most compact Subway Cabinet, the 1x12 Ultra-Lite combines finely-tuned porting, Top-grade ply, aircraft-style bracing, a super-responsive and efficient neodymium 12” Driver and our musical sounding HF Driver to create an amazing compact Bass cabinet that can handle smaller venues surprisingly well by itself, or combined with another 1x12, a 1x15 or larger format cabinets of different speaker sizes for coverage and flavor, always minding proper impedance loading and/or matching of course, for a multi-dimensional Cabinet array.
Features:
- Styletype: Tuned Front Ported Tri-Porting™ (1 x 4.85" square x 4" deep / port area = 24.0 sq. in.)
- Cabinet Internal Volume: 2.05CF
- Speakers Mounting Position: Subway Neodymium Speakers / Front Mounted
- High Frequency Horn: Yes
- Horn Control: Premium Attenuator

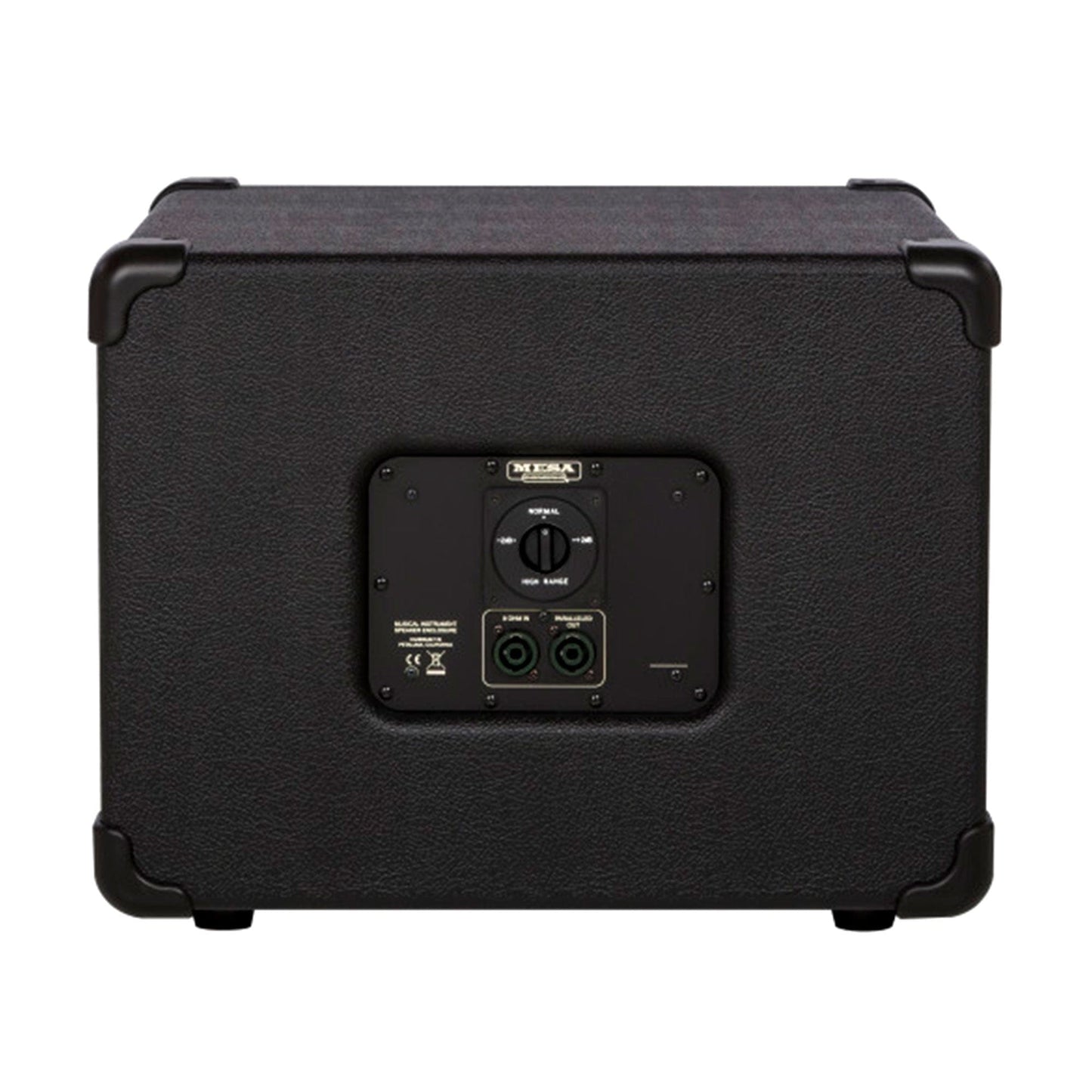

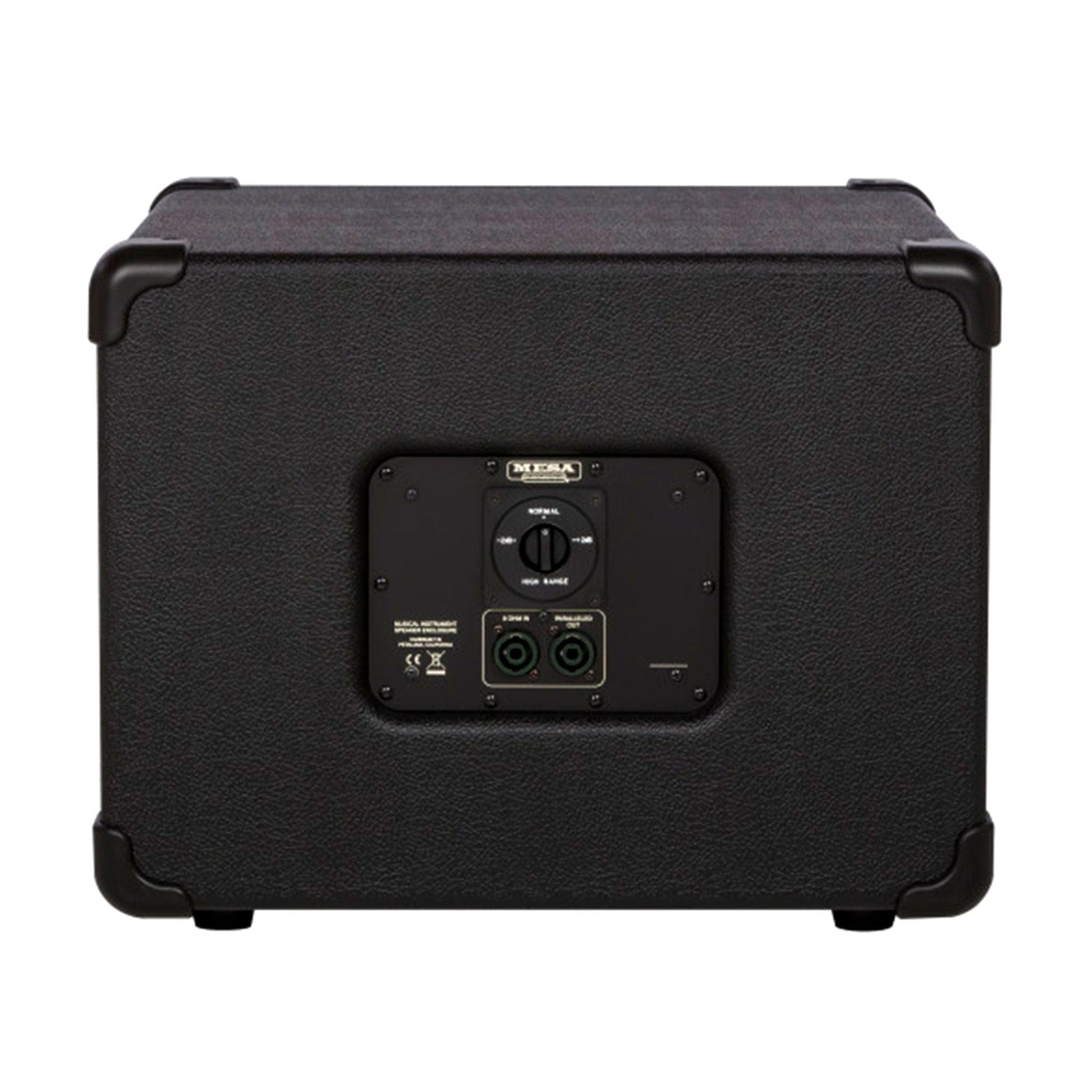

- Inputoutput Connectors: 2 x SpeakOn-1/4" (NL-4 combo)
- Nominal Impedance: 8 ohms (only)
- Minimum Impedance @Frequency: 7.45 ohms (@ 50.8 Hz)
- Average Sensitivity (RMS) 50hz-1000hz: 97.5dB/1W/1M
- Average Mechanical Power (RMS) 50hz-1000hz: 400 Watts
- Minimum Mechanical Power (RMS) @Frequency: 385 Watts (@ 74.3Hz)
- Low Freq F3 (Hz): 57.5 Hz
- Low Freq F6 (Hz): 48.1 Hz
- Low Freq F10 (Hz): 41.5 Hz
- High Freq Response: >12kHz
- Transport Assistance: Optional (sold separately) - Track-Loc™ Removable Casters
- Additional Features: Optional/Convertible Vertical Cabinet Orientation
