Description
Description

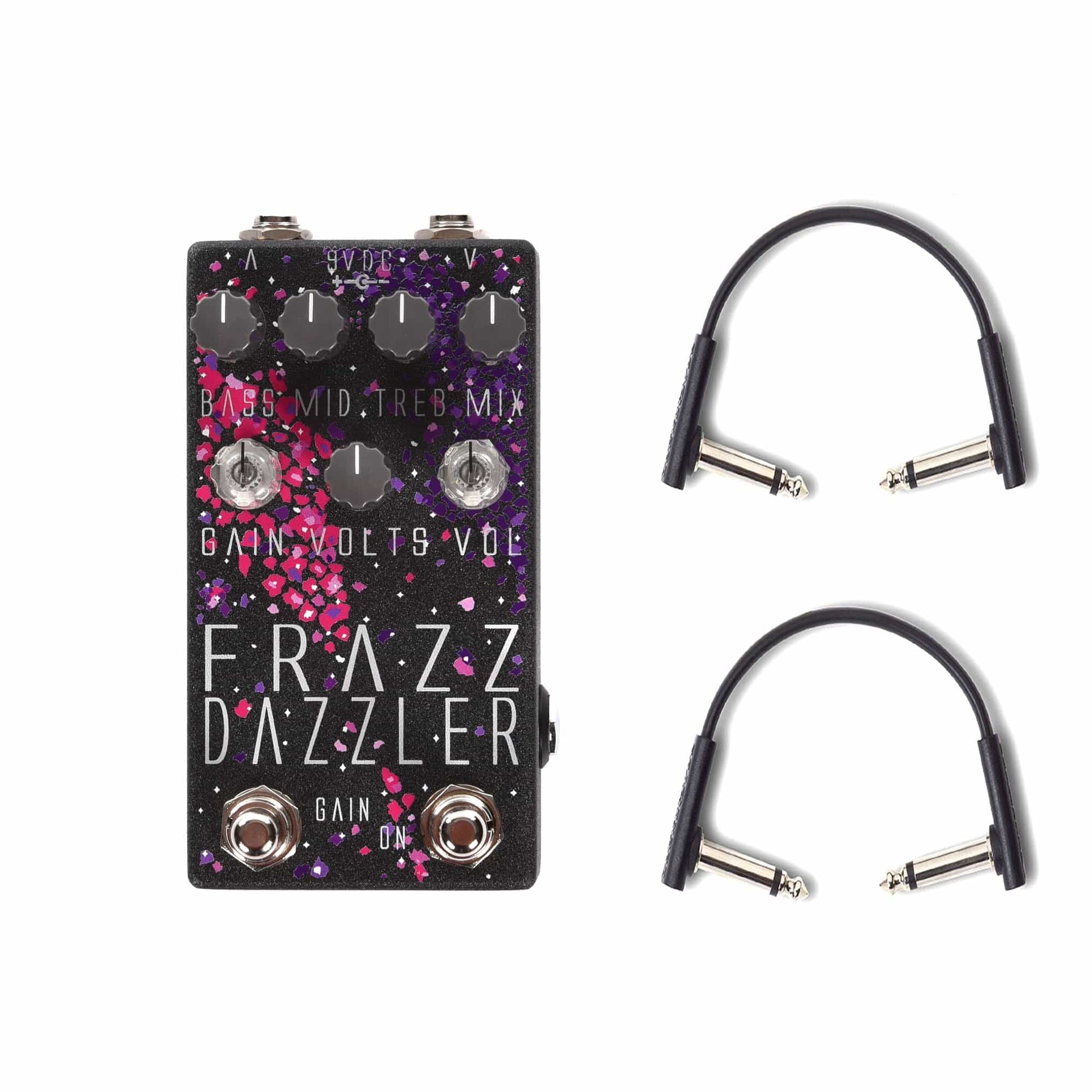

This Bundle Includes:
From Dr. Scientist:
Frazz Dazzler
The Frazz Dazzler is a dual-channel, aggressive fuzz with a wide gain range and a full 3-band equalizer. The Frazz uses a unique circuit topology for extremely high gain even on the low gain channel. The high gain channel offers over-the-top saturation with a built-in noise gate. Both channels make use of a variable regulator for a powerful voltage starve system resulting in a range of sounds from lower headroom/more clipping to glitchy, sub-octave tones. Like all Dr. Scientist pedals, the Frazz Dazzler can be used with guitar, bass, synths, and many other instruments.
Features
Knobs
Additional Specs
- Dr. Scientist Frazz Dazzler Fuzz
- Two RockGear RockBoard Flat Patch Cables; Black 10cm (3.94")
From Dr. Scientist:
Frazz Dazzler
The Frazz Dazzler is a dual-channel, aggressive fuzz with a wide gain range and a full 3-band equalizer. The Frazz uses a unique circuit topology for extremely high gain even on the low gain channel. The high gain channel offers over-the-top saturation with a built-in noise gate. Both channels make use of a variable regulator for a powerful voltage starve system resulting in a range of sounds from lower headroom/more clipping to glitchy, sub-octave tones. Like all Dr. Scientist pedals, the Frazz Dazzler can be used with guitar, bass, synths, and many other instruments.
Features
- Low and High gain fuzz channels with LED indicator selectable with left foot switch
- Uniquely designed circuit
- Active 3-Band EQ
- Voltage starve control
- High quality analog signal path
- Premium parts and components throughout
- True Bypass with soft touch relay switching
- Full control over wet/dry mix
- Expression pedal control over Mix
- Buffered Input and Output
- Top mounted audio and power jacks
- Designed and handmade in B.C., Canada
Knobs
- BASS – Adjust the low frequencies
- MID – Adjust the midrange frequencies
- TREB – Adjust the high frequencies
- MIX – Adjusts the balance between the input signal (Dry) and the effect (Wet) signal
- GAIN – Increases the amount of distortion
- VOLTS – Lowers the overall headroom. Produces glitchy, suboctave sounds at the lowest settings. Lower threshold adjustable with internal trim pot.
- VOL – Controls the effect (Wet) signal level
- Gain Footswitch – Toggles between low- and high-gain channels
- Bypass – Engage or disengage the effect
- Operation
- 500kΩ/1kΩ
- 100mA @ 9VDC, 2.1mm centre negative plug
- True Bypass with soft touch relay switching
Additional Specs
- Mono input, Mono output, TRS Expression input
- Treble Control: +/-15dB 2nd Order peaking filter centred at 3kHz
- Mid Control: +/-15dB 2nd Order peaking filter centred at 800Hz
- Bass Control: +/-15dB 2nd Order peaking filter centred at 100Hz
- Exp Input: TRS cable, 10kΩ to 100kΩ resistance
- Dimensions: 70mm wide, 129mm long, 59mm tall (2.75” wide, 5.1” long, 2.3” tall)
